DtPropulsionNoiseEncoder Class Reference

Instances of DtPropulsionNoiseEncoder are used to take state information from a DtPropulsionNoiseStateRepository and place it into an underwater acoustics PDU. More...

Inheritance diagram for DtPropulsionNoiseEncoder:

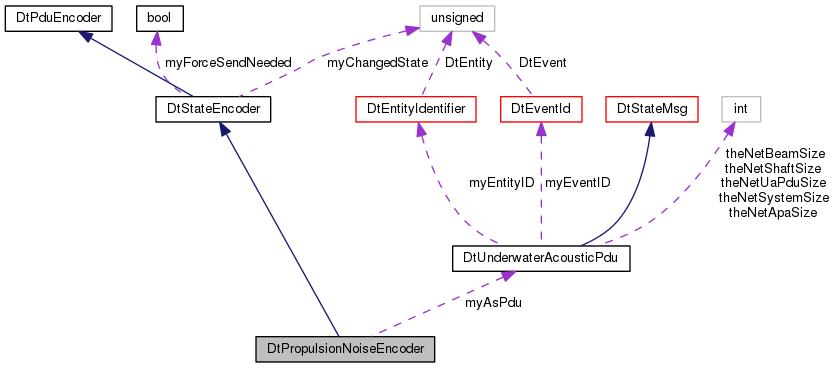

Collaboration diagram for DtPropulsionNoiseEncoder:

Public Member Functions
	DtPropulsionNoiseEncoder ()
	CTOR. More...
	DtPropulsionNoiseEncoder (const DtPropulsionNoiseEncoder &orig)
	Copy CTOR. More...
virtual	~DtPropulsionNoiseEncoder ()
	Virtual CTOR. More...
DtPropulsionNoiseEncoder &	operator= (const DtPropulsionNoiseEncoder &orig)
	Assignment Operator. More...
virtual DtUnderwaterAcousticPdu *	stateMsg (const DtPropulsionNoiseStateRepository &stateRep, const DtPropulsionNoiseStateRepository &asSeenByRemote)
	Constructs a PDU from the state repository. More...
	DtCLONE_ENCODER (DtPropulsionNoiseEncoder)
	Inline clone method. More...
Public Member Functions inherited from DtStateEncoder
	DtStateEncoder ()
	Default constructor. More...
virtual	~DtStateEncoder ()
	Destructor. More...
	DtStateEncoder (const DtStateEncoder &orig)
	Copy constructor. More...
DtStateEncoder &	operator= (const DtStateEncoder &orig)
	Assignment operator. More...
virtual void	setSendNeeded ()
	Sets myForceSendNeeded to true. More...
virtual DtU32	changedState () const
virtual void	clearChangedState ()
virtual bool	isChangedStateBit (DtU32 st) const
virtual void	resetChangedStateBit (DtU32 st)
virtual void	setChangedStateBit (DtU32 st)
virtual DtPduEncoder *	clone () const =0
	clone. More...
virtual void	encode (DtPdu *pdu)
	This is a dummy method for backwards compatibility with DIS encoders. More...
virtual void	fillOutAttributeRecords (const DtStateRepository &stateRep, DtPduWithAttributeRecordSets *pdu, const DtEntityIdentifier &id, bool clearBeforeAdding=true)
	DIS 7 requires filling the Attribute Records for a coupled Attribute PDU. More...
virtual bool	sendNeededAttributeRecords (const DtStateRepository &stateRep, const DtStateRepository &asSeenByRemote)
	In order to modify records in place, and have them sent, we need to compare the stateRep with the As seen by remote. More...
Public Member Functions inherited from DtPduEncoder
virtual	~DtPduEncoder ()

Protected Member Functions
virtual bool	sendNeeded (const DtPropulsionNoiseStateRepository &stateRep, const DtPropulsionNoiseStateRepository &asSeenByRemote)
	Determine if a state message needs to be sent. More...
virtual void	fillOut (const DtPropulsionNoiseStateRepository &stateRep, const DtPropulsionNoiseStateRepository &asSeenByRemote, DtUnderwaterAcousticPdu *pdu)
	Fill out a state message which reflects a state repository. More...

Protected Attributes
DtUnderwaterAcousticPdu	myAsPdu
Protected Attributes inherited from DtStateEncoder
bool	myForceSendNeeded
DtU32	myChangedState

Friends
class	DtUnderwaterAcousticsEncoder

Detailed Description

Instances of DtPropulsionNoiseEncoder are used to take state information from a DtPropulsionNoiseStateRepository and place it into an underwater acoustics PDU.

Constructor & Destructor Documentation

DtPropulsionNoiseEncoder::DtPropulsionNoiseEncoder

(

)

CTOR.

DtPropulsionNoiseEncoder::DtPropulsionNoiseEncoder

(

const DtPropulsionNoiseEncoder &

orig

)

Copy CTOR.

virtual DtPropulsionNoiseEncoder::~DtPropulsionNoiseEncoder ( )

virtual

Virtual CTOR.

Member Function Documentation

DtPropulsionNoiseEncoder::DtCLONE_ENCODER

(

DtPropulsionNoiseEncoder

)

Inline clone method.

virtual void DtPropulsionNoiseEncoder::fillOut ( const DtPropulsionNoiseStateRepository &  stateRep, const DtPropulsionNoiseStateRepository &  asSeenByRemote, DtUnderwaterAcousticPdu *  pdu  )

protectedvirtual

Fill out a state message which reflects a state repository.

DtPropulsionNoiseEncoder& DtPropulsionNoiseEncoder::operator=

(

const DtPropulsionNoiseEncoder &

orig

)

Assignment Operator.

virtual bool DtPropulsionNoiseEncoder::sendNeeded ( const DtPropulsionNoiseStateRepository &  stateRep, const DtPropulsionNoiseStateRepository &  asSeenByRemote  )

protectedvirtual

Determine if a state message needs to be sent.

virtual DtUnderwaterAcousticPdu* DtPropulsionNoiseEncoder::stateMsg ( const DtPropulsionNoiseStateRepository &  stateRep, const DtPropulsionNoiseStateRepository &  asSeenByRemote  )

virtual

Constructs a PDU from the state repository.

Determines whether an Underwater Acoustic PDU needs to be sent and constructs one if it does.

Returns

PDU if send is needed, and NULL if not

Friends And Related Function Documentation

friend class DtUnderwaterAcousticsEncoder

friend

Member Data Documentation

DtUnderwaterAcousticPdu DtPropulsionNoiseEncoder::myAsPdu

protected

---

The documentation for this class was generated from the following file:

• propulsionNoiseEncoderDIS.h
