DtReflectedEmitterSystem Class Reference

Instances of DtReflectedEmitterSystem represent EmitterSystem object simulated by remote applications. More...

Inheritance diagram for DtReflectedEmitterSystem:

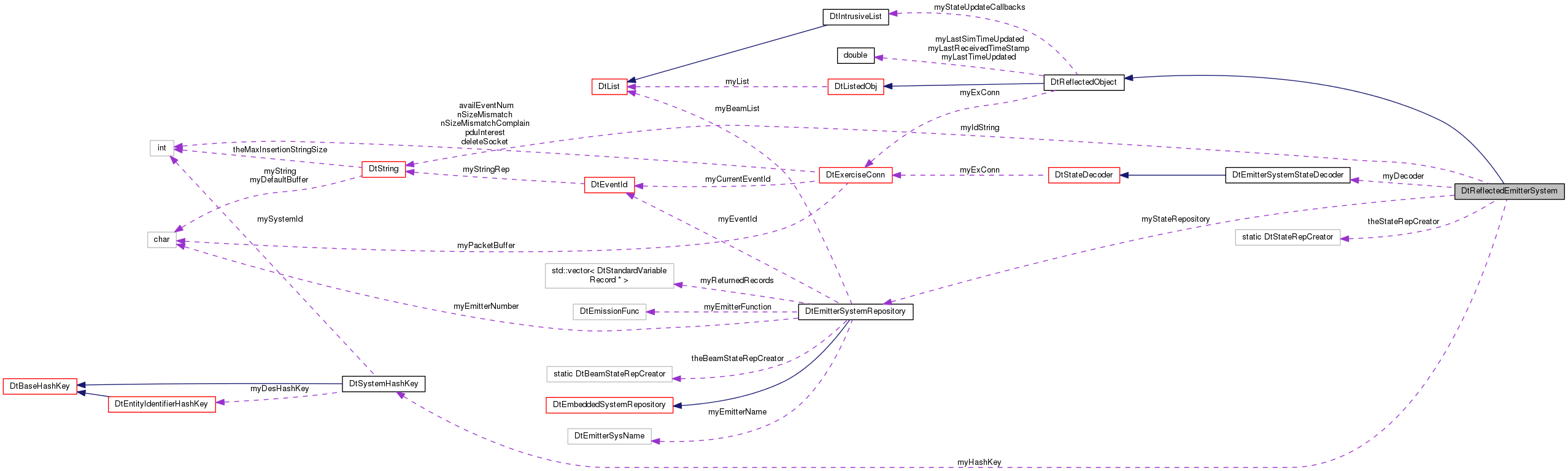

Collaboration diagram for DtReflectedEmitterSystem:

Public Types
typedef DtEmitterSystemRepository *(*	DtStateRepCreator )()
	Function prototype for functions that create DtEmitterSystemRepositories. More...

Public Member Functions
	DtReflectedEmitterSystem (DtExerciseConn *conn, const DtGlobalObjectDesignator &emittingEntity, DtU8 systemNumber)
	Constructor. More...
virtual	~DtReflectedEmitterSystem ()
	destructor More...
virtual DtEmitterSystemRepository *	emitterSysRep () const
	Get the emitter system's state repository. More...
virtual DtEmitterSystemRepository *	esr () const
	Synonym for emitterSysRep(). More...
virtual DtStateRepository *	stateRep () const
	Returns a pointer to the StateRepository - through which you can inspect current state information. More...
virtual void	processStateMessage (const DtStateMsg &msg)
	Process an electronic emissions PDU. More...
virtual DtReflectedEmitterSystem *	next () const
	Get the next remote emitterSystem. More...
virtual DtReflectedEmitterSystem *	prev () const
	Get the previous remote emitterSystem. More...
virtual DtReflectedEmitterSystem *	wrapNext () const
	Get the next remote emitterSystem. More...
virtual DtReflectedEmitterSystem *	wrapPrev () const
	Get the previous remote emitterSystem. More...
virtual void	addPostUpdateCallback (DtEmitterSystemCallbackFunction cb, void *userData)
	emitterSystem state callback registration/deregistration. More...
virtual void	removePostUpdateCallback (DtEmitterSystemCallbackFunction cb, void *userData)
virtual const DtBaseHashKey &	hashKey () const
	Get a hash key for this object. More...
virtual DtString	idString () const
	Get a string identification of this object. More...
virtual const DtGlobalObjectDesignator &	globalId () const
	Get the GlobalId -. More...
Public Member Functions inherited from DtReflectedObject
	DtReflectedObject (DtExerciseConn *conn)
	constructor More...
virtual	~DtReflectedObject ()
	destructor More...
virtual DtStateRepository *	sr () const
	Synonym for stateRep(). More...
virtual DtTime	lastTimeUpdated () const
	Returns the value of wallclock time at the time an update was last received for the entity. More...
virtual DtTime	lastSimTimeUpdated () const
	Returns the value of sim time at the time an update was last received for the entity. More...
virtual DtTime	lastReceivedTimeStamp () const
	Returns the value in seconds past the hour of the timeStamp from the last received PDU. More...
virtual void	baseAddPostUpdateCallback (DtReflectedObjectCallbackFunction cb, void *userData)
	Object state callback registration/deregistration. More...
virtual void	baseRemovePostUpdateCallback (DtReflectedObjectCallbackFunction cb, void *userData)
virtual DtReflectedObject *	nextObj () const
	Get the next remote object. More...
virtual DtReflectedObject *	prevObj () const
	Get the previous remote object. More...
virtual DtReflectedObject *	wrapNextObj () const
	Get the next remote object. More...
virtual DtReflectedObject *	wrapPrevObj () const
	Get the previous remote object. More...
Public Member Functions inherited from DtListedObj
	DtListedObj ()
	Constructor. More...
virtual	~DtListedObj ()
	Destructor. More...
void *	next () const
	Return next (previous) elements on the list, or NULL if hit the end (beginning) of the list. More...
void *	prev () const
void *	wrapNext () const
	Return next (previous) elements on the list, but wrap to the beginning (end) of the list when you hit the end (beginning). More...
void *	wrapPrev () const

Static Public Member Functions
static void	setStateRepCreator (DtStateRepCreator creator)
	Give us a function to be used for creating SRs. More...
static DtStateRepCreator	stateRepCreator (void)

Protected Member Functions
	DtReflectedEmitterSystem (const DtReflectedEmitterSystem &orig)
	copy constructor – not implemented More...
DtReflectedEmitterSystem &	operator= (const DtReflectedEmitterSystem &orig)
	assignment operator – not implemented More...
Protected Member Functions inherited from DtReflectedObject
	DtReflectedObject (const DtReflectedObject &orig)
	copy constructor – not implemented More...
DtReflectedObject &	operator= (const DtReflectedObject &orig)
	assignment operator – not implemented More...
virtual void	processPostUpdateCallbacks ()
	Process the post update callbacks. More...

Protected Attributes
DtString	myIdString
DtEmitterSystemRepository *	myStateRepository
DtSystemHashKey	myHashKey
DtEmitterSystemStateDecoder *	myDecoder
Protected Attributes inherited from DtReflectedObject
DtExerciseConn *	myExConn
DtIntrusiveList	myStateUpdateCallbacks
DtTime	myLastTimeUpdated
DtTime	myLastSimTimeUpdated
DtTime	myLastReceivedTimeStamp
Protected Attributes inherited from DtListedObj
DtList *	myList
DtListItem *	myItem

Static Protected Attributes
static DtStateRepCreator	theStateRepCreator

Detailed Description

Instances of DtReflectedEmitterSystem represent EmitterSystem object simulated by remote applications.

State data can be viewed through its state repository.

Member Typedef Documentation

typedef DtEmitterSystemRepository*(* DtReflectedEmitterSystem::DtStateRepCreator)()

Function prototype for functions that create DtEmitterSystemRepositories.

Constructor & Destructor Documentation

DtReflectedEmitterSystem::DtReflectedEmitterSystem	(	DtExerciseConn *	conn,
		const DtGlobalObjectDesignator &	emittingEntity,
		DtU8	systemNumber
	)

Constructor.

virtual DtReflectedEmitterSystem::~DtReflectedEmitterSystem ( )

virtual

destructor

DtReflectedEmitterSystem::DtReflectedEmitterSystem ( const DtReflectedEmitterSystem &  orig )

protected

copy constructor – not implemented

Member Function Documentation

virtual void DtReflectedEmitterSystem::addPostUpdateCallback ( DtEmitterSystemCallbackFunction  cb, void *  userData  )

virtual

emitterSystem state callback registration/deregistration.

virtual DtEmitterSystemRepository* DtReflectedEmitterSystem::emitterSysRep ( ) const

virtual

Get the emitter system's state repository.

virtual DtEmitterSystemRepository* DtReflectedEmitterSystem::esr ( ) const

virtual

Synonym for emitterSysRep().

virtual const DtGlobalObjectDesignator& DtReflectedEmitterSystem::globalId ( ) const

virtual

Get the GlobalId -.

for DIS, it's the same as its DtEntityIdentifier.

Implements DtReflectedObject.

virtual const DtBaseHashKey& DtReflectedEmitterSystem::hashKey ( ) const

virtual

Get a hash key for this object.

Implements DtReflectedObject.

virtual DtString DtReflectedEmitterSystem::idString ( ) const

virtual

Get a string identification of this object.

Implements DtReflectedObject.

virtual DtReflectedEmitterSystem* DtReflectedEmitterSystem::next ( ) const

virtual

Get the next remote emitterSystem.

DtReflectedEmitterSystem& DtReflectedEmitterSystem::operator= ( const DtReflectedEmitterSystem &  orig )

protected

assignment operator – not implemented

virtual DtReflectedEmitterSystem* DtReflectedEmitterSystem::prev ( ) const

virtual

Get the previous remote emitterSystem.

virtual void DtReflectedEmitterSystem::processStateMessage ( const DtStateMsg &  msg )

virtual

Process an electronic emissions PDU.

Implementation for abstract base class.

Reimplemented from DtReflectedObject.

virtual void DtReflectedEmitterSystem::removePostUpdateCallback ( DtEmitterSystemCallbackFunction  cb, void *  userData  )

virtual

static void DtReflectedEmitterSystem::setStateRepCreator ( DtStateRepCreator  creator )

static

Give us a function to be used for creating SRs.

virtual DtStateRepository* DtReflectedEmitterSystem::stateRep ( ) const

virtual

Returns a pointer to the StateRepository - through which you can inspect current state information.

Implementation for abstract base class. Calls esr().

Implements DtReflectedObject.

static DtStateRepCreator DtReflectedEmitterSystem::stateRepCreator ( void  )

static

virtual DtReflectedEmitterSystem* DtReflectedEmitterSystem::wrapNext ( ) const

virtual

Get the next remote emitterSystem.

Will cycle back to the first remote emitterSystem.

virtual DtReflectedEmitterSystem* DtReflectedEmitterSystem::wrapPrev ( ) const

virtual

Get the previous remote emitterSystem.

Will cycle back to the last remote emitterSystem.

Member Data Documentation

DtEmitterSystemStateDecoder* DtReflectedEmitterSystem::myDecoder

protected

DtSystemHashKey DtReflectedEmitterSystem::myHashKey

protected

DtString DtReflectedEmitterSystem::myIdString

protected

DtEmitterSystemRepository* DtReflectedEmitterSystem::myStateRepository

protected

DtStateRepCreator DtReflectedEmitterSystem::theStateRepCreator

staticprotected

---

The documentation for this class was generated from the following file:

• reflectedEmitterSystemDIS.h
