VR-Link API Documentation for HLA 1516
|
Instances of DtActiveSonarBeamDecoder are used to decode an ActiveSonarBeam state message into a state repository in an HLA environment. More...

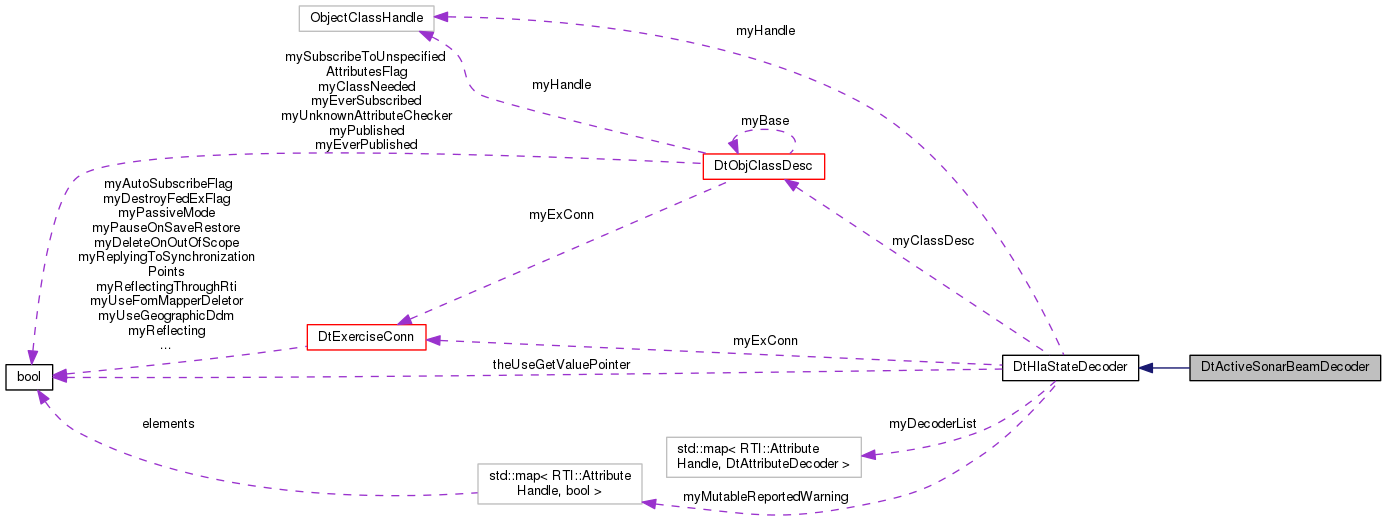

Inheritance diagram for DtActiveSonarBeamDecoder: Collaboration diagram for DtActiveSonarBeamDecoder:Public Member Functions | |
| DtActiveSonarBeamDecoder (DtExerciseConn *exConn, DtObjClassDesc *classDesc) | |
| Constructor. More... | |
| virtual | ~DtActiveSonarBeamDecoder () |
| Destructor. More... | |
| DtActiveSonarBeamDecoder (const DtActiveSonarBeamDecoder &orig) | |
| Copy Constructor. More... | |
| DtActiveSonarBeamDecoder & | operator= (const DtActiveSonarBeamDecoder &orig) |
| Assignment operator. More... | |
| Public Member Functions inherited from DtHlaStateDecoder | |
| DtHlaStateDecoder (DtExerciseConn *exConn, DtObjClassDesc *classDesc) | |
| constructor More... | |
| virtual | ~DtHlaStateDecoder () |
| destructor More... | |
| DtHlaStateDecoder (const DtHlaStateDecoder &orig) | |
| copy constructor More... | |
| DtHlaStateDecoder & | operator= (const DtHlaStateDecoder &orig) |
| assignment operator More... | |
| DtAttributeDecoder | addDecoder (RTI::AttributeHandle h, DtAttributeDecoder func) |
| Add/Remove a decoding function for the attribute specified by handle. More... | |
| DtAttributeDecoder | removeDecoder (RTI::AttributeHandle h) |
| DtAttributeDecoder | addDecoder (char *attrName, DtAttributeDecoder func, bool complain=true) |
| Add/Remove a decoding function for the attribute specified by name. More... | |
| DtAttributeDecoder | removeDecoder (char *attrName, bool complain=true) |
| virtual DtAttributeDecoder | decoder (const RTI::AttributeHandle &handle) const |
| Get the attribute decoder for the specified handle. More... | |
| virtual void | decode (const DtStateMsg &msg, DtStateRepository *stateRep) const |
| Decode the state message into the state repository. More... | |
| virtual RTI::ObjectClassHandle | objectClassHandle () const |
| Get the object's class handle. More... | |
| virtual DtHlaStateDecoder * | clone () const |
| Returns a new-ed clone of this object. More... | |
| virtual DtHlaStateDecoder * | clone (DtObjClassDesc *classDesc) const |
| Returns a new-ed clone of this object which corresponds to the class description classDesc. More... | |
Static Public Member Functions | |
| static DtHlaStateDecoder * | create (DtExerciseConn *exConn, DtObjClassDesc *classDesc) |
| Create a decoder. Caller is responsible for deletion. More... | |
| Static Public Member Functions inherited from DtHlaStateDecoder | |
| static char * | decodingBuffer (int length) |
| Returns a pointer to a buffer that can be used to copy data obtained from a phvps. More... | |
| static char * | attributeData (const RTI::AttributeHandleValuePairSet &attrs, int index, RTI::ULong &length) |
| Returns a pointer to the attribute data. More... | |
| static char * | attributeData (const RTI::AttributeHandleValuePairSet &attrs, int index, RTI::ULong &length, unsigned int expectedDataSize, char *attrName) |
| Gets the attribute data and checks the expected size. More... | |
| static DtNetEventId * | eventIdAttributeData (const RTI::AttributeHandleValuePairSet &attrs, int index) |
| Get the attribute data as a DtNetEventId (adds defensive null terminator) Returns a pointer to the attribute data. More... | |
Protected Member Functions | |
| DtDECLARE_ACTIVE_SONAR_ATTR_DECODER (ActiveEmissionParameterIndex) | |
| DtDECLARE_ACTIVE_SONAR_ATTR_DECODER (ActiveSonarIdentifier) | |
| DtDECLARE_ACTIVE_SONAR_ATTR_DECODER (AzimuthBeamwidth) | |
| DtDECLARE_ACTIVE_SONAR_ATTR_DECODER (AzimuthCenter) | |
| DtDECLARE_ACTIVE_SONAR_ATTR_DECODER (BeamIdentifier) | |
| DtDECLARE_ACTIVE_SONAR_ATTR_DECODER (ElevationBeamwidth) | |
| DtDECLARE_ACTIVE_SONAR_ATTR_DECODER (ElevationCenter) | |
| DtDECLARE_ACTIVE_SONAR_ATTR_DECODER (EventIdentifier) | |
| DtDECLARE_ACTIVE_SONAR_ATTR_DECODER (ScanPattern) | |
| Protected Member Functions inherited from DtHlaStateDecoder | |
| virtual void | decodeAttribute (DtStateRepository *stateRep, const RTI::AttributeHandleValuePairSet &attrs, unsigned long pairSetIndex) const |
| Decode the attribute at the specified index in the attribute handle pair set. More... | |
| virtual void | copyDecFuncs (const DtHlaStateDecoder &orig) |
Additional Inherited Members | |
| Public Types inherited from DtHlaStateDecoder | |
| typedef void(* | DtAttributeDecoder )(DtStateRepository *stateRep, const RTI::AttributeHandleValuePairSet &avlist, unsigned long pairSetIndex) |
| Attribute decoding function declaration. More... | |
| Static Public Attributes inherited from DtHlaStateDecoder | |
| static bool | theUseGetValuePointer |
| Protected Types inherited from DtHlaStateDecoder | |
| typedef std::map < RTI::AttributeHandle, DtAttributeDecoder > | AttributeHandleDecoderMap |
| typedef std::map < RTI::AttributeHandle, bool > | AttributeHandleBoolMap |
| Protected Attributes inherited from DtHlaStateDecoder | |
| DtExerciseConn * | myExConn |
| DtObjClassDesc * | myClassDesc |
| RTI::ObjectClassHandle | myHandle |
| AttributeHandleDecoderMap | myDecoderList |
| myDecoderList is a map of decoders for each attribute registered to this state. More... | |
Instances of DtActiveSonarBeamDecoder are used to decode an ActiveSonarBeam state message into a state repository in an HLA environment.
| DtActiveSonarBeamDecoder::DtActiveSonarBeamDecoder | ( | DtExerciseConn * | exConn, |
| DtObjClassDesc * | classDesc | ||
| ) |
Constructor.
|
virtual |
Destructor.
| DtActiveSonarBeamDecoder::DtActiveSonarBeamDecoder | ( | const DtActiveSonarBeamDecoder & | orig | ) |
Copy Constructor.
|
static |
Create a decoder. Caller is responsible for deletion.
|
protected |
|
protected |
|
protected |
|
protected |
|
protected |
|
protected |
|
protected |
|
protected |
|
protected |
| DtActiveSonarBeamDecoder& DtActiveSonarBeamDecoder::operator= | ( | const DtActiveSonarBeamDecoder & | orig | ) |
Assignment operator.
