VR-Link API Documentation for HLA 1516
 All Classes Namespaces Files Functions Variables Typedefs Enumerations Enumerator Friends Macros Groups Pages
List of all members | Public Member Functions | Protected Attributes
DtDefaultOwnershipHandler Class Reference
The VR-Link Simulation Library (vlProt)

This class meant to encapsulate user callbacks on ownership management services. More...

+ Inheritance diagram for DtDefaultOwnershipHandler:

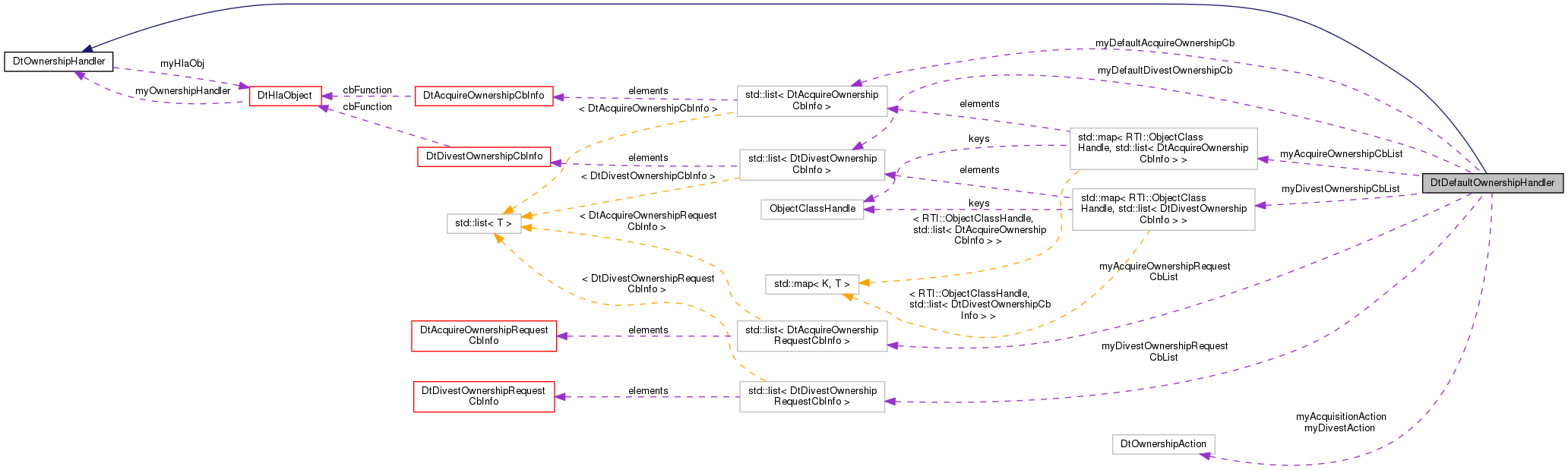

+ Collaboration diagram for DtDefaultOwnershipHandler:

Public Member Functions

 DtDefaultOwnershipHandler ()
 Constructor. More...

virtual ~DtDefaultOwnershipHandler ()
 Destructor. More...

virtual DtOwnershipHandler * clone () const
 Clone copy. More...

 DtDefaultOwnershipHandler (const DtDefaultOwnershipHandler &other)
 Copy constructor. More...

DtDefaultOwnershipHandler & operator= (const DtDefaultOwnershipHandler &other)
 Assignment operator. More...

virtual void setOwnershipAcquisitionAction (DtOwnershipAction)
 Set the default action when someone offers an object to acquire Your three options are, accept, deny, or send a callback to ask for this information. More...

virtual void setOwnershipDivestitudeAction (DtOwnershipAction)
 Set the default action when someone requests your object to acquire Your three options are, accept, deny, or send a callback to ask for this information. More...

virtual void gainOwnership (const RTI::AttributeHandleSet &set)
 Called whenever the local federate has acquired ownership of a set of attributes. More...

virtual void loseOwnership (const RTI::AttributeHandleSet &set)
 Called whenever the local federate has lost ownership of a set of attributes. More...

virtual void addAcquireOwnershipCallback (DtAcquireOwnershipCb cb, void *usr, const DtObjClassDesc *desc=0)
 Callback for Acquiring ownership. More...

virtual void removeAcquireOwnershipCallback (DtAcquireOwnershipCb cb, void *usr, const DtObjClassDesc *desc=0)

virtual void addDivestOwnershipCallback (DtDivestOwnershipCb cb, void *usr, const DtObjClassDesc *desc=0)
 Callback for divesting ownership. More...

virtual void removeDivestOwnershipCallback (DtDivestOwnershipCb cb, void *usr, const DtObjClassDesc *desc=0)

virtual void addAcquireOwnershipRequestCallback (DtAcquireOwnershipRequestCb cb, void *usr)
 Callback for acquiring and divesting requests. More...

virtual void removeAcquireOwnershipRequestCallback (DtAcquireOwnershipRequestCb cb, void *usr)

virtual void addDivestOwnershipRequestCallback (DtDivestOwnershipRequestCb cb, void *usr)

virtual void removeDivestOwnershipRequestCallback (DtDivestOwnershipRequestCb cb, void *usr)

virtual bool requesteOwnershipRelease (const RTI::AttributeHandleSet &candidateAttributes, const RTI::VariableLengthData &theTag)
 Called as a result of the requestAttributeOwnershipRelease RTI service. More...

virtual void requestAttributeOwnershipAssumption (const RTI::AttributeHandleSet &offeredAttributes, const RTI::VariableLengthData &theTag)
 Called as a result of the requestAttributeOwnershipAssumption RTI service. More...

- Public Member Functions inherited from DtOwnershipHandler
 DtOwnershipHandler ()
 Constructor. More...

virtual ~DtOwnershipHandler ()
 Destructor. More...

 DtOwnershipHandler (const DtOwnershipHandler &other)
 Copy constructor. More...

DtOwnershipHandler & operator= (const DtOwnershipHandler &other)
 Assignment operator. More...

virtual DtHlaObject * hlaObject ()
 Returns a pointer to the DtHlaObject with which this instance has been registered. More...

virtual void attributeOwnershipDivestitureNotification (const RTI::AttributeHandleSet &releasedAttributes)
 Called as a result of the attributeOwnershipDivestitureNotification RTI service. More...

virtual void attributeOwnershipAcquisitionNotification (const RTI::AttributeHandleSet &securedAttributes)
 Called as a result of the attributeOwnershipAcquisitionNotification RTI service. More...

virtual void confirmAttributeOwnershipAcquisitionCancellation (const RTI::AttributeHandleSet &attributes)
 Called as a result of the confirmAttributeOwnershipAcquisitionCancellation RTI service. More...


Protected Attributes

DtOwnershipAction myAcquisitionAction

DtOwnershipAction myDivestAction

std::map
< RTI::ObjectClassHandle,
std::list
< DtAcquireOwnershipCbInfo > > 		myAcquireOwnershipCbList

std::map
< RTI::ObjectClassHandle,
std::list
< DtDivestOwnershipCbInfo > > 		myDivestOwnershipCbList

std::list
< DtAcquireOwnershipCbInfo > 		myDefaultAcquireOwnershipCb

std::list
< DtDivestOwnershipCbInfo > 		myDefaultDivestOwnershipCb

std::list
< DtAcquireOwnershipRequestCbInfo > 		myAcquireOwnershipRequestCbList

std::list
< DtDivestOwnershipRequestCbInfo > 		myDivestOwnershipRequestCbList

- Protected Attributes inherited from DtOwnershipHandler
DtHlaObject * myHlaObj


Additional Inherited Members

- Protected Member Functions inherited from DtOwnershipHandler
virtual void setHlaObject (DtHlaObject *obj)


Detailed Description

This class meant to encapsulate user callbacks on ownership management services.

It allows users to automatically accept or deny ownership requests, as well as globally register callbacks related to ownership management.

Constructor & Destructor Documentation

DtDefaultOwnershipHandler::DtDefaultOwnershipHandler ( )

Constructor.

virtual DtDefaultOwnershipHandler::~DtDefaultOwnershipHandler ( )
virtual

Destructor.

DtDefaultOwnershipHandler::DtDefaultOwnershipHandler ( const DtDefaultOwnershipHandler &  other)

Copy constructor.

Member Function Documentation

virtual void DtDefaultOwnershipHandler::addAcquireOwnershipCallback ( DtAcquireOwnershipCb  cb,
void *  usr,
const DtObjClassDesc *  desc = 0
)
virtual

Callback for Acquiring ownership.

These callbacks will be called whenever this federate acquires an object's attributes

virtual void DtDefaultOwnershipHandler::addAcquireOwnershipRequestCallback ( DtAcquireOwnershipRequestCb  cb,
void *  usr
)
virtual

Callback for acquiring and divesting requests.

Are only called if you have OWNERSHIP_CALLBACK defined Allows you to decide if you should accept or reject this ownership request. While there may be many callbacks, this will accept if just a single one returns true.

virtual void DtDefaultOwnershipHandler::addDivestOwnershipCallback ( DtDivestOwnershipCb  cb,
void *  usr,
const DtObjClassDesc *  desc = 0
)
virtual

Callback for divesting ownership.

These callbacks will be called whenever this federate divests an object's attributes

virtual void DtDefaultOwnershipHandler::addDivestOwnershipRequestCallback ( DtDivestOwnershipRequestCb  cb,
void *  usr
)
virtual
virtual DtOwnershipHandler* DtDefaultOwnershipHandler::clone ( ) const
virtual

Clone copy.

Reimplemented from DtOwnershipHandler.

Reimplemented in DtPartialOwnershipHandler, and DtRprOwnershipHandler.

virtual void DtDefaultOwnershipHandler::gainOwnership ( const RTI::AttributeHandleSet &  set)
virtual

Called whenever the local federate has acquired ownership of a set of attributes.

This can happen as the result of an attributeOwnershipAcquisitionNotification RTI service call.

Reimplemented from DtOwnershipHandler.

Reimplemented in DtPartialOwnershipHandler.

virtual void DtDefaultOwnershipHandler::loseOwnership ( const RTI::AttributeHandleSet &  set)
virtual

Called whenever the local federate has lost ownership of a set of attributes.

This can happen as a result of an explicit or implicit unpublish, an attributeOwnershipDivestitureNotification RTI service call, or a call to DtHlaObject::unconditionalDivest.

Reimplemented from DtOwnershipHandler.

Reimplemented in DtPartialOwnershipHandler.

DtDefaultOwnershipHandler& DtDefaultOwnershipHandler::operator= ( const DtDefaultOwnershipHandler &  other)

Assignment operator.

virtual void DtDefaultOwnershipHandler::removeAcquireOwnershipCallback ( DtAcquireOwnershipCb  cb,
void *  usr,
const DtObjClassDesc *  desc = 0
)
virtual
virtual void DtDefaultOwnershipHandler::removeAcquireOwnershipRequestCallback ( DtAcquireOwnershipRequestCb  cb,
void *  usr
)
virtual
virtual void DtDefaultOwnershipHandler::removeDivestOwnershipCallback ( DtDivestOwnershipCb  cb,
void *  usr,
const DtObjClassDesc *  desc = 0
)
virtual
virtual void DtDefaultOwnershipHandler::removeDivestOwnershipRequestCallback ( DtDivestOwnershipRequestCb  cb,
void *  usr
)
virtual
virtual void DtDefaultOwnershipHandler::requestAttributeOwnershipAssumption ( const RTI::AttributeHandleSet &  offeredAttributes,
const RTI::VariableLengthData &  theTag
)
virtual

Called as a result of the requestAttributeOwnershipAssumption RTI service.

You can call DtHlaObject's acquireAttributes even though you are within an RTI callback.

Reimplemented from DtOwnershipHandler.

Reimplemented in DtRprOwnershipHandler.

virtual bool DtDefaultOwnershipHandler::requesteOwnershipRelease ( const RTI::AttributeHandleSet &  candidateAttributes,
const RTI::VariableLengthData &  theTag
)
virtual

Called as a result of the requestAttributeOwnershipRelease RTI service.

You should return true if you accept this attribute transfer, and false otherwise

Reimplemented from DtOwnershipHandler.

Reimplemented in DtRprOwnershipHandler.

virtual void DtDefaultOwnershipHandler::setOwnershipAcquisitionAction ( DtOwnershipAction  )
virtual

Set the default action when someone offers an object to acquire Your three options are, accept, deny, or send a callback to ask for this information.

virtual void DtDefaultOwnershipHandler::setOwnershipDivestitudeAction ( DtOwnershipAction  )
virtual

Set the default action when someone requests your object to acquire Your three options are, accept, deny, or send a callback to ask for this information.

Member Data Documentation

std::map<RTI::ObjectClassHandle, std::list<DtAcquireOwnershipCbInfo> > DtDefaultOwnershipHandler::myAcquireOwnershipCbList
protected
std::list<DtAcquireOwnershipRequestCbInfo> DtDefaultOwnershipHandler::myAcquireOwnershipRequestCbList
protected
DtOwnershipAction DtDefaultOwnershipHandler::myAcquisitionAction
protected
std::list<DtAcquireOwnershipCbInfo> DtDefaultOwnershipHandler::myDefaultAcquireOwnershipCb
protected
std::list<DtDivestOwnershipCbInfo> DtDefaultOwnershipHandler::myDefaultDivestOwnershipCb
protected
DtOwnershipAction DtDefaultOwnershipHandler::myDivestAction
protected
std::map<RTI::ObjectClassHandle, std::list<DtDivestOwnershipCbInfo> > DtDefaultOwnershipHandler::myDivestOwnershipCbList
protected
std::list<DtDivestOwnershipRequestCbInfo> DtDefaultOwnershipHandler::myDivestOwnershipRequestCbList
protected
The documentation for this class was generated from the following file:
