Instances of DtInterrogationInteraction are used to store state data for IFFEmission.Interrogation interactions. More...

Inheritance diagram for DtInterrogationInteraction:

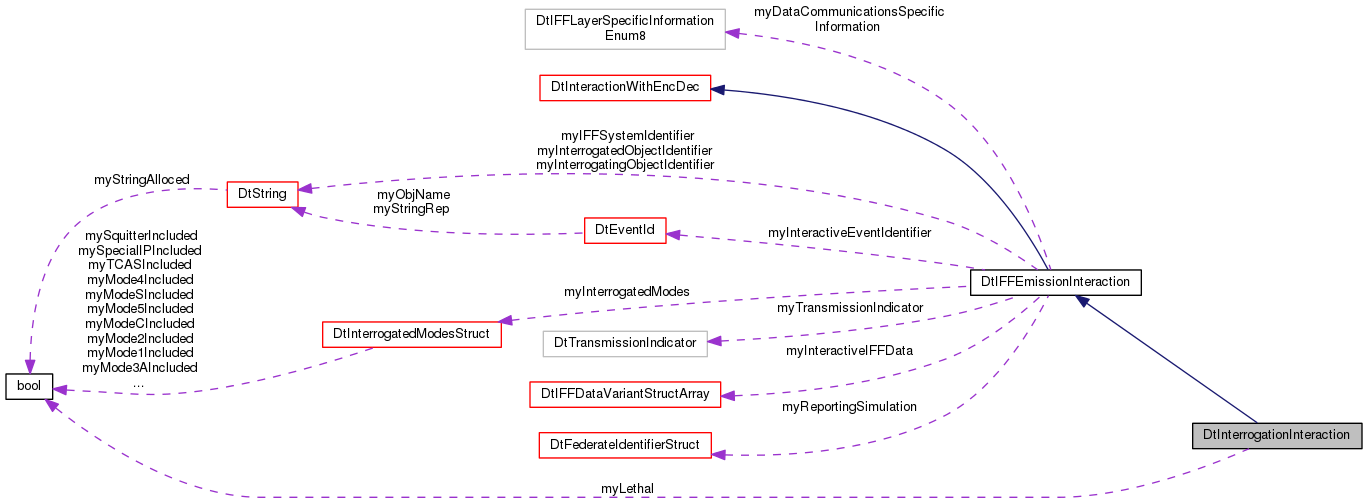

Collaboration diagram for DtInterrogationInteraction:

Public Member Functions
	DtInterrogationInteraction ()
	Constructor. More...

virtual	~DtInterrogationInteraction ()
	Destructor. More...

	DtInterrogationInteraction (const DtInterrogationInteraction &orig)
	Copy constructor. More...

DtInterrogationInteraction &	operator= (const DtInterrogationInteraction &orig)
	Assignment operator. More...

virtual void	printData () const
	Print the interaction's data. More...

virtual void	printDataToStream (std::ostream &stream) const
	Print the interaction's data to the specified stream. More...

virtual void	setLethal (bool val)
	Lethal mutator. More...

virtual bool	isLethal () const
	Lethal accessor. More...

virtual const char *	name () const
	Name of the interaction. (Not necessarily the ClassName from the FOM.) More...

Public Member Functions inherited from DtIFFEmissionInteraction
	DtIFFEmissionInteraction ()
	Constructor. More...

virtual	~DtIFFEmissionInteraction ()
	Destructor. More...

	DtIFFEmissionInteraction (const DtIFFEmissionInteraction &orig)
	Copy constructor. More...

DtIFFEmissionInteraction &	operator= (const DtIFFEmissionInteraction &orig)
	Assignment operator. More...

virtual void	setIFFSystemIdentifier (const DtGlobalObjectDesignator &val)
	The identification of the IFFSystem object emitting this IFF electromagnetic signal or composite set of signals. More...

virtual const DtGlobalObjectDesignator &	IFFSystemIdentifier () const
	IFFSystemIdentifier accessor. More...

virtual void	setSimulationMode (DtPduStatusIFFSimulationMode mode)
	Set/Get the Simulation Mode of the Change/Options record. More...

virtual bool	simulationMode () const

virtual bool	isInteractiveCapable () const
	Get Interactive Capable field from the Change/Options record where 1=Capable and 0=Not Capable Setting the Simulation Mode will set the Interactive Capable field accordingly. More...

virtual void	setTransmissionIndicator (const DtTransmissionIndicator &val)
	Indication whether this is an interrogation, a reply to an interrogation, or a squitter transmission. More...

virtual const DtTransmissionIndicator &	transmissionIndicator () const
	TransmissionIndicator accessor. More...

virtual void	setInterrogatingId (const DtGlobalObjectDesignator &val)
	The object that is interrogating another object. More...

virtual const DtGlobalObjectDesignator &	interrogatingId () const
	InterrogatingObjectIdentifier accessor. More...

virtual void	setInterrogatedId (const DtGlobalObjectDesignator &val)
	The object to which the interrogation is being directed InterrogatedObjectIdentifier mutator. More...

virtual const DtGlobalObjectDesignator &	interrogatedId () const
	InterrogatedObjectIdentifier accessor. More...

virtual void	setInteractiveEventId (const DtEventId &val)
	Used to associate a reply to an interrogation. More...

virtual const DtEventId &	interactiveEventId () const
	InteractiveEventIdentifier accessor. More...

virtual void	setInterrogatedModes (const DtInterrogatedModesStruct &val)
	The modes being interrogated. More...

virtual const DtInterrogatedModesStruct &	interrogatedModes () const
	InterrogatedModes accessor. More...

virtual const DtInterrogatedModesStruct &	interrogatedModesStruct () const

virtual void	setReportingSimulation (const DtFederateIdentifierStruct &val)
	The simulation publishing this IFF emission. More...

virtual const DtFederateIdentifierStruct &	reportingSimulation () const
	ReportingSimulation accessor. More...

virtual void	setDataCommunicationsSpecificInformation (const DtIFFLayerSpecificInformationEnum8 &val)
	Specific information for data communications (DIS IFF PDU layer 5) that varies by System Type. More...

virtual const DtIFFLayerSpecificInformationEnum8 &	dataCommunicationsSpecificInformation () const
	DataCommunicationsSpecificInformation accessor. More...

virtual void	setInteractiveIFFData (const DtIFFDataVariantStructArray &val)
	Additional interactive IFF data. More...

virtual const DtIFFDataVariantStructArray &	interactiveIFFData () const
	InteractiveIFFData accessor. More...

Public Member Functions inherited from DtInteractionWithEncDec
	DtInteractionWithEncDec ()
	default constructor More...

virtual	~DtInteractionWithEncDec ()
	destructor More...

	DtInteractionWithEncDec (const DtInteractionWithEncDec &orig)
	copy constructor More...

DtInteractionWithEncDec &	operator= (const DtInteractionWithEncDec &orig)
	assignment operator More...

virtual void	setExConn (DtExerciseConn exConn, DtInterClassDesc classDesc=NULL)
	Sets the interaction's ExerciseConn and class descriptor. More...

virtual const RTI::ParameterHandleValueMap &	phvm () const
	Get the parameter handle value pair set for the interaction. More...

virtual void	setFromPhvm (const RTI::ParameterHandleValueMap &pvList)
	Set contents from a parameter handle value pair set. More...

virtual void	useThese (DtInteractionEncoder enc, DtInteractionDecoder dec, DtInteractionRep *data)
	Specify an encoder, decoder, and interaction data repository to use in encoding and decoding. More...

virtual DtInteractionEncoder *	encoder () const
	Return the encoder we are using. More...

virtual DtInteractionDecoder *	decoder () const
	Return the decoder we are using. More...

virtual void	setParameterByHandle (const RTI::ParameterHandle &attrHdl, const char *attrValue, unsigned size)
	Set the Parameter with the given handle. More...

virtual const char *	getParameterByHandle (const RTI::ParameterHandle &attrHdl, unsigned &size) const
	Get a pointer to Parameter value for the Parameter with the given handle. More...

virtual void	setParameterByName (const DtString &name, const char *attrValue, unsigned size)
	Set the Parameter with the given name. More...

virtual const char *	getParameterByName (const DtString &name, unsigned &size) const
	Get a pointer to Parameter value for the Parameter with the given name. More...

Public Member Functions inherited from DtInteraction
	DtInteraction ()
	default constructor More...

virtual	~DtInteraction ()
	destructor More...

	DtInteraction (const DtInteraction &orig)
	copy constructor More...

DtInteraction &	operator= (const DtInteraction &orig)
	assignment operator More...

virtual RTI::InteractionClassHandle	interactionClassHandle () const
	Get the interaction class handle. Returns 0 if no classDesc. More...

virtual char *	interactionClassName () const
	Get the interaction class name. Returns NULL if no classDesc. More...

virtual int	numParameters () const
	Get the number of parameters. Returns 0 if no classDesc. More...

virtual bool	neededByFederation () const
	Returns true if the interaction class is needed by the federation false otherwise. More...

virtual void	print () const
	Print the interaction's host rep data, including header. More...

virtual void	printToStream (std::ostream &stream) const
	Print the interaction to a stream. More...

virtual void	printHeader () const
	Print the header info. More...

virtual void	printHeaderToStream (std::ostream &stream) const
	Print the header info to a stream. More...

virtual void	printDataToString (DtString &buff) const
	Print the interaction's data to the string provided. More...

virtual void	printParams (bool withHex) const
	Print the header followed by the interaction's parameters. More...

virtual void	printParamsToStream (std::ostream &stream, bool withHex) const
	Print the header followed by the interaction's parameters to a stream. More...

virtual DtExerciseConn *	exerciseConn () const
	Get the current exercise connection. More...

virtual DtInterClassDesc *	classDesc () const
	Get the current class descriptor we're using for this interaction. More...

virtual bool	customTagSet () const
	Get whether a custom tag has been set on the interaction or not. More...

virtual void	setCustomTag (const RTI::VariableLengthData &a_tag)
	Set the user-defined tag. More...

virtual void	setTag (const RTI::VariableLengthData &tag)
	Set the user-defined tag. More...

virtual const RTI::VariableLengthData &	tag () const
	Get the user-defined tag. More...

virtual const RTI::RegionHandleSet *	conveyedRegion () const
	Get & Set the conveyed region of the reflected state message. More...

virtual void	setConveyedRegion (const RTI::RegionHandleSet *sentRegionHandleSet)

virtual void	setTimeStamp (DtTime time, DtTimeStampType type=DtTimeStampRelative)
	Set the time of validity of the message, and whether this represents relative or absolute time. More...

virtual DtTime	timeStamp () const
	Return the time of validity of the message (in seconds past an hour) as set by setTimeStamp. More...

virtual DtTimeStampType	timeStampType () const
	Return the type of the time stamp. More...

virtual DtTime	guessTimeValid (DtTime referenceTime) const
	Since timestamp only represents number of seconds past the hour, guessTimeValid chooses the hour that would make the timestamp closest to reference time, and returns a time that is timestamp seconds past that hour. More...

virtual void	setFedTime (const RTI::LogicalTime &ft)
	This is used for TSO interactions. More...

virtual const RTI::LogicalTime *	fedTime () const
	When the interaction is received, if the federate sending the interaction had TSO set then the fedTime will be set. More...

virtual void	setMessageRetractionHandle (const RTI::MessageRetractionHandle &handle)
	Get/Set the MessageRetractionHandle. More...

virtual RTI::MessageRetractionHandle	messageRetractionHandle () const
	Get the message retraction handle. For more info see setMessageRetractionHandle. More...

Static Public Member Functions
static DtInteraction *	create ()
	Create a DtInterrogationInteraction. More...

static void	addCallback (DtExerciseConn conn, DtInterrogationInteractionCb cb, void usr, DtDDMRegionSP region=DtDDMRegionSP())
	Add (register)/Remove (deregister) function to be called when interaction occurs. More...

static void	removeCallback (DtExerciseConn conn, DtInterrogationInteractionCb cb, void usr, DtDDMRegionSP region=DtDDMRegionSP())

Static Public Member Functions inherited from DtIFFEmissionInteraction
static DtInteraction *	create ()
	Create a DtIFFEmissionInteraction. More...

static void	addCallback (DtExerciseConn conn, DtIFFEmissionInteractionCb cb, void usr, DtDDMRegionSP region=DtDDMRegionSP())
	Add (register)/Remove (deregister) function to be called when interaction occurs. More...

static void	removeCallback (DtExerciseConn conn, DtIFFEmissionInteractionCb cb, void usr, DtDDMRegionSP region=DtDDMRegionSP())

Static Public Member Functions inherited from DtInteraction
static void	setTagIsAsciiTime (bool val)
	Set/Get flag that tells us whether we're using the RPR FOM convention that the UserDefinedTag in updates and interactions represents a DIS-style timestamp. More...

static bool	tagIsAsciiTime ()

static void	addCallback (DtExerciseConn conn, const std::vector< DtString > classes, DtReceiveInteractionCb cb, void *usr, DtDDMRegionSP region=DtDDMRegionSP())
	Register/Deregister callback function cb with conn, on all interaction class name (char*) contained in classes. More...

static void	removeCallback (DtExerciseConn conn, const std::vector< DtString > classes, DtReceiveInteractionCb cb, void *usr, DtDDMRegionSP region=DtDDMRegionSP())

static void	addCallback (DtExerciseConn conn, const char className, DtReceiveInteractionCb cb, void *usr, DtDDMRegionSP region=DtDDMRegionSP())
	Can be used instead of above for a single class. More...

static void	removeCallback (DtExerciseConn conn, const char className, DtReceiveInteractionCb cb, void *usr, DtDDMRegionSP region=DtDDMRegionSP())

Protected Member Functions
virtual const char *	interactionClassToUse (DtExerciseConn *exConn) const
	Returns the FOM interaction class name to use. More...

virtual DtInteractionDecoder *	createDecoder (DtExerciseConn *exConn) const
	Called by decoderToUse to obtain a new'ed decoder. More...

virtual DtInteractionEncoder *	createEncoder (DtExerciseConn *exConn) const
	Called by encoderToUse to obtain a new'ed encoder. More...

Protected Member Functions inherited from DtInteractionWithEncDec
virtual DtInteractionDecoder *	decoderToUse (DtExerciseConn *exConn) const
	Returns a decoder to use for decoding the interaction. More...

virtual DtInteractionEncoder *	encoderToUse (DtExerciseConn *exConn) const
	Returns an encoder to use for encoding the interaction. More...

Protected Member Functions inherited from DtInteraction
virtual RTI::ParameterHandleValueMap &	privPvList () const
	Returns a pointer to a private pvList that can be used as a return value by phvps. More...

DtInteraction *	self () const
	Get rid of const-ness on the "this" pointer in order to access non-const functions from const member functions (such as simple accessors). More...

Protected Attributes
bool	myLethal

Protected Attributes inherited from DtIFFEmissionInteraction
DtGlobalObjectDesignator	myIFFSystemIdentifier

DtTransmissionIndicator	myTransmissionIndicator

DtGlobalObjectDesignator	myInterrogatingObjectIdentifier

DtGlobalObjectDesignator	myInterrogatedObjectIdentifier

DtEventId	myInteractiveEventIdentifier

DtInterrogatedModesStruct	myInterrogatedModes

DtFederateIdentifierStruct	myReportingSimulation

DtIFFLayerSpecificInformationEnum8	myDataCommunicationsSpecificInformation

DtIFFDataVariantStructArray	myInteractiveIFFData

Protected Attributes inherited from DtInteractionWithEncDec
DtInteractionDecoder *	myDecoder

DtInteractionEncoder *	myEncoder

DtInteractionRep *	myData

std::map< RTI::ParameterHandle, DtGenericParameterInfo * >	myParametersByHandle
	parameters by handle. More...

Protected Attributes inherited from DtInteraction
DtInterClassDesc *	myClassDesc

DtExerciseConn *	myExConn

DtTime	myTime

DtTimeStampType	myTimeType

RTI::LogicalTime *	myFedTime

RTI::ParameterHandleValueMap	myPvList

RTI::MessageRetractionHandle	myRetractionHandle

RTI::VariableLengthData	myTag

const RTI::RegionHandleSet *	myConveyedRegion

bool	myCustomTagSet

Additional Inherited Members
Static Protected Attributes inherited from DtInteraction
static bool	theTagIsAsciiTime

Detailed Description

Instances of DtInterrogationInteraction are used to store state data for IFFEmission.Interrogation interactions.

Constructor & Destructor Documentation

DtInterrogationInteraction::DtInterrogationInteraction ( )

Constructor.

virtual DtInterrogationInteraction::~DtInterrogationInteraction ( )

virtual

Destructor.

DtInterrogationInteraction::DtInterrogationInteraction ( const DtInterrogationInteraction & orig )

Copy constructor.

Member Function Documentation

static void DtInterrogationInteraction::addCallback	(	DtExerciseConn *	conn,
		DtInterrogationInteractionCb	cb,
		void *	usr,
		DtDDMRegionSP	region = `DtDDMRegionSP()`
	)

static

Add (register)/Remove (deregister) function to be called when interaction occurs.

static DtInteraction* DtInterrogationInteraction::create ( )

static

Create a DtInterrogationInteraction.

Caller is responsible for deletion.

virtual DtInteractionDecoder* DtInterrogationInteraction::createDecoder ( DtExerciseConn * exConn ) const

protectedvirtual

Called by decoderToUse to obtain a new'ed decoder.

Default implementation is to ask the FOM Mapper. The object is automatically deleted in the interaction's destructor.

Reimplemented from DtIFFEmissionInteraction.

virtual DtInteractionEncoder* DtInterrogationInteraction::createEncoder ( DtExerciseConn * exConn ) const

protectedvirtual

Called by encoderToUse to obtain a new'ed encoder.

Default implementation is to ask the FOM Mapper. The object is automatically deleted in the interaction's destructor.

Reimplemented from DtIFFEmissionInteraction.

virtual const char* DtInterrogationInteraction::interactionClassToUse ( DtExerciseConn * exConn ) const

protectedvirtual

Returns the FOM interaction class name to use.

Default implementation is to ask the fomMapper.

Reimplemented from DtIFFEmissionInteraction.

virtual bool DtInterrogationInteraction::isLethal ( ) const

virtual

Lethal accessor.

virtual const char* DtInterrogationInteraction::name ( ) const

inlinevirtual

Name of the interaction. (Not necessarily the ClassName from the FOM.)

Reimplemented from DtIFFEmissionInteraction.

DtInterrogationInteraction& DtInterrogationInteraction::operator= ( const DtInterrogationInteraction & orig )

Assignment operator.

virtual void DtInterrogationInteraction::printData ( ) const

virtual

Print the interaction's data.

Reimplemented from DtIFFEmissionInteraction.

virtual void DtInterrogationInteraction::printDataToStream ( std::ostream & stream ) const

virtual

Print the interaction's data to the specified stream.

Reimplemented from DtIFFEmissionInteraction.

static void DtInterrogationInteraction::removeCallback	(	DtExerciseConn *	conn,
		DtInterrogationInteractionCb	cb,
		void *	usr,
		DtDDMRegionSP	region = `DtDDMRegionSP()`
	)

static

virtual void DtInterrogationInteraction::setLethal ( bool val )

virtual

Lethal mutator.

Member Data Documentation

bool DtInterrogationInteraction::myLethal

protected

The documentation for this class was generated from the following file:

interrogationInteractionHLA.h

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
