Because this example adds a concept that did not already exist in VR-Link's DtFireInteraction class, we create this subclass of DtFireInteraction that adds the concept of temperature. More...

Inheritance diagram for MyFireInteraction:

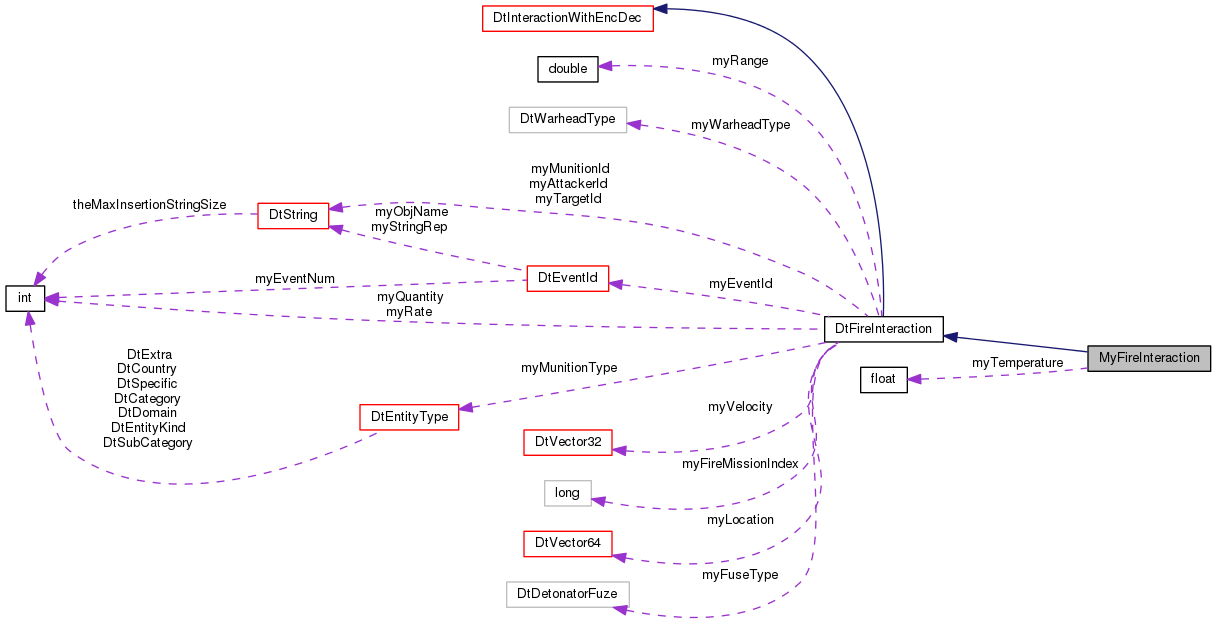

Collaboration diagram for MyFireInteraction:

Public Member Functions
virtual void	setTemperature (float temp)
	Set the temperature. More...

virtual float	temperature () const
	The temperature. More...

virtual void	printData () const
	Virtual function override: print the interaction's data. More...

Public Member Functions inherited from DtFireInteraction
	DtFireInteraction ()
	default constructor More...

virtual	~DtFireInteraction ()
	destructor More...

	DtFireInteraction (const DtFireInteraction &orig)
	copy constructor More...

DtFireInteraction &	operator= (const DtFireInteraction &orig)
	assignment operator More...

virtual void	printDataToStream (std::ostream &stream) const
	Print the interaction's data to the specified stream. More...

virtual void	printDataToString (DtString &buffer) const
	Put the interaction's data into the given buffer. More...

virtual void	setAttackerId (const DtGlobalObjectDesignator &id)
	Set/Get the attacker identifier. More...

virtual const DtGlobalObjectDesignator &	attackerId () const

virtual void	setTargetId (const DtGlobalObjectDesignator &id)
	Set/Get the target identifier. More...

virtual const DtGlobalObjectDesignator &	targetId () const

virtual void	setMunitionId (const DtGlobalObjectDesignator &id)
	Set/Get the munition identifier. More...

virtual const DtGlobalObjectDesignator &	munitionId () const

virtual void	setEventId (const DtEventID &id)
	Set/Get the event id. More...

virtual const DtEventID &	eventId () const

virtual void	setFireMissionIndex (unsigned long i)
	Set/Get the fire mission index. More...

virtual unsigned long	fireMissionIndex () const

virtual void	setLocation (const DtVector &location)
	Set/Get the location in world coordinates. More...

virtual const DtVector &	location () const

virtual void	setVelocity (const DtVector32 &velocity)
	Set/Get the velocity. More...

virtual const DtVector32 &	velocity () const

virtual void	setRange (double range)
	Set/Get the range. More...

virtual double	range () const

virtual void	setFuseType (DtDetonatorFuze f)
	Set/Get the detonator fuse type. More...

virtual DtDetonatorFuze	fuseType () const

virtual void	setMunitionType (const DtEntityType &t)
	Set/Get the munition type. More...

virtual const DtEntityType &	munitionType () const

virtual void	setQuantity (int q)
	Set/Get the quantity. More...

virtual int	quantity () const

virtual void	setRate (int r)
	Set/Get the rate. More...

virtual int	rate () const

virtual void	setWarheadType (DtWarheadType t)
	Set/Get the warhead type. More...

virtual DtWarheadType	warheadType () const

virtual const char *	name () const
	Name of the interaction. (Not necessarily the ClassName from the FOM.) More...

Public Member Functions inherited from DtInteractionWithEncDec
	DtInteractionWithEncDec ()
	default constructor More...

virtual	~DtInteractionWithEncDec ()
	destructor More...

	DtInteractionWithEncDec (const DtInteractionWithEncDec &orig)
	copy constructor More...

DtInteractionWithEncDec &	operator= (const DtInteractionWithEncDec &orig)
	assignment operator More...

virtual void	setExConn (DtExerciseConn exConn, DtInterClassDesc classDesc=NULL)
	Sets the interaction's ExerciseConn and class descriptor. More...

virtual const RTI::ParameterHandleValueMap &	phvm () const
	Get the parameter handle value pair set for the interaction. More...

virtual void	setFromPhvm (const RTI::ParameterHandleValueMap &pvList)
	Set contents from a parameter handle value pair set. More...

virtual void	useThese (DtInteractionEncoder enc, DtInteractionDecoder dec, DtInteractionRep *data)
	Specify an encoder, decoder, and interaction data repository to use in encoding and decoding. More...

virtual DtInteractionEncoder *	encoder () const
	Return the encoder we are using. More...

virtual DtInteractionDecoder *	decoder () const
	Return the decoder we are using. More...

virtual void	setParameterByHandle (const RTI::ParameterHandle &attrHdl, const char *attrValue, unsigned size)
	Set the Parameter with the given handle. More...

virtual const char *	getParameterByHandle (const RTI::ParameterHandle &attrHdl, unsigned &size) const
	Get a pointer to Parameter value for the Parameter with the given handle. More...

virtual void	setParameterByName (const DtString &name, const char *attrValue, unsigned size)
	Set the Parameter with the given name. More...

virtual const char *	getParameterByName (const DtString &name, unsigned &size) const
	Get a pointer to Parameter value for the Parameter with the given name. More...

Public Member Functions inherited from DtInteraction
	DtInteraction ()
	default constructor More...

virtual	~DtInteraction ()
	destructor More...

	DtInteraction (const DtInteraction &orig)
	copy constructor More...

DtInteraction &	operator= (const DtInteraction &orig)
	assignment operator More...

virtual RTI::InteractionClassHandle	interactionClassHandle () const
	Get the interaction class handle. Returns 0 if no classDesc. More...

virtual char *	interactionClassName () const
	Get the interaction class name. Returns NULL if no classDesc. More...

virtual int	numParameters () const
	Get the number of parameters. Returns 0 if no classDesc. More...

virtual bool	neededByFederation () const
	Returns true if the interaction class is needed by the federation false otherwise. More...

virtual void	print () const
	Print the interaction's host rep data, including header. More...

virtual void	printToStream (std::ostream &stream) const
	Print the interaction to a stream. More...

virtual void	printHeader () const
	Print the header info. More...

virtual void	printHeaderToStream (std::ostream &stream) const
	Print the header info to a stream. More...

virtual void	printParams (bool withHex) const
	Print the header followed by the interaction's parameters. More...

virtual void	printParamsToStream (std::ostream &stream, bool withHex) const
	Print the header followed by the interaction's parameters to a stream. More...

virtual DtExerciseConn *	exerciseConn () const
	Get the current exercise connection. More...

virtual DtInterClassDesc *	classDesc () const
	Get the current class descriptor we're using for this interaction. More...

virtual bool	customTagSet () const
	Get whether a custom tag has been set on the interaction or not. More...

virtual void	setCustomTag (const RTI::VariableLengthData &a_tag)
	Set the user-defined tag. More...

virtual void	setTag (const RTI::VariableLengthData &tag)
	Set the user-defined tag. More...

virtual const RTI::VariableLengthData &	tag () const
	Get the user-defined tag. More...

virtual const RTI::RegionHandleSet *	conveyedRegion () const
	Get & Set the conveyed region of the reflected state message. More...

virtual void	setConveyedRegion (const RTI::RegionHandleSet *sentRegionHandleSet)

virtual void	setTimeStamp (DtTime time, DtTimeStampType type=DtTimeStampRelative)
	Set the time of validity of the message, and whether this represents relative or absolute time. More...

virtual DtTime	timeStamp () const
	Return the time of validity of the message (in seconds past an hour) as set by setTimeStamp. More...

virtual DtTimeStampType	timeStampType () const
	Return the type of the time stamp. More...

virtual DtTime	guessTimeValid (DtTime referenceTime) const
	Since timestamp only represents number of seconds past the hour, guessTimeValid chooses the hour that would make the timestamp closest to reference time, and returns a time that is timestamp seconds past that hour. More...

virtual void	setFedTime (const RTI::LogicalTime &ft)
	This is used for TSO interactions. More...

virtual const RTI::LogicalTime *	fedTime () const
	When the interaction is received, if the federate sending the interaction had TSO set then the fedTime will be set. More...

virtual void	setMessageRetractionHandle (const RTI::MessageRetractionHandle &handle)
	Get/Set the MessageRetractionHandle. More...

virtual RTI::MessageRetractionHandle	messageRetractionHandle () const
	Get the message retraction handle. For more info see setMessageRetractionHandle. More...

Static Public Member Functions
static DtInteraction *	create ()
	Create a MyFireInteraction. Caller is responsible for deletion. More...

Static Public Member Functions inherited from DtFireInteraction
static DtInteraction *	create ()
	Create a DtFireInteraction. More...

static void	addCallback (DtExerciseConn conn, DtFireInteractionCb cb, void usr, DtDDMRegionSP region=DtDDMRegionSP())
	Add (register)/Remove (deregister) function to be called when interaction occurs. More...

static void	removeCallback (DtExerciseConn conn, DtFireInteractionCb cb, void usr, DtDDMRegionSP region=DtDDMRegionSP())

Static Public Member Functions inherited from DtInteraction
static void	setTagIsAsciiTime (bool val)
	Set/Get flag that tells us whether we're using the RPR FOM convention that the UserDefinedTag in updates and interactions represents a DIS-style timestamp. More...

static bool	tagIsAsciiTime ()

static void	addCallback (DtExerciseConn conn, const std::vector< DtString > classes, DtReceiveInteractionCb cb, void *usr, DtDDMRegionSP region=DtDDMRegionSP())
	Register/Deregister callback function cb with conn, on all interaction class name (char*) contained in classes. More...

static void	removeCallback (DtExerciseConn conn, const std::vector< DtString > classes, DtReceiveInteractionCb cb, void *usr, DtDDMRegionSP region=DtDDMRegionSP())

static void	addCallback (DtExerciseConn conn, const char className, DtReceiveInteractionCb cb, void *usr, DtDDMRegionSP region=DtDDMRegionSP())
	Can be used instead of above for a single class. More...

static void	removeCallback (DtExerciseConn conn, const char className, DtReceiveInteractionCb cb, void *usr, DtDDMRegionSP region=DtDDMRegionSP())

Protected Attributes
float	myTemperature

Protected Attributes inherited from DtFireInteraction
DtGlobalObjectDesignator	myAttackerId

DtGlobalObjectDesignator	myTargetId

DtGlobalObjectDesignator	myMunitionId

DtEventID	myEventId

unsigned long	myFireMissionIndex

DtVector	myLocation

DtVector32	myVelocity

double	myRange

DtDetonatorFuze	myFuseType

DtEntityType	myMunitionType

int	myQuantity

int	myRate

DtWarheadType	myWarheadType

Protected Attributes inherited from DtInteractionWithEncDec
DtInteractionDecoder *	myDecoder

DtInteractionEncoder *	myEncoder

DtInteractionRep *	myData

std::map< RTI::ParameterHandle, DtGenericParameterInfo * >	myParametersByHandle
	parameters by handle. More...

Protected Attributes inherited from DtInteraction
DtInterClassDesc *	myClassDesc

DtExerciseConn *	myExConn

DtTime	myTime

DtTimeStampType	myTimeType

RTI::LogicalTime *	myFedTime

RTI::ParameterHandleValueMap	myPvList

RTI::MessageRetractionHandle	myRetractionHandle

RTI::VariableLengthData	myTag

const RTI::RegionHandleSet *	myConveyedRegion

bool	myCustomTagSet

Additional Inherited Members
Protected Member Functions inherited from DtInteractionWithEncDec
virtual DtInteractionDecoder *	createDecoder (DtExerciseConn *exConn) const
	Called by decoderToUse to obtain a new'ed decoder. More...

virtual DtInteractionEncoder *	createEncoder (DtExerciseConn *exConn) const
	Called by encoderToUse to obtain a new'ed encoder. More...

virtual DtInteractionDecoder *	decoderToUse (DtExerciseConn *exConn) const
	Returns a decoder to use for decoding the interaction. More...

virtual DtInteractionEncoder *	encoderToUse (DtExerciseConn *exConn) const
	Returns an encoder to use for encoding the interaction. More...

Protected Member Functions inherited from DtInteraction
virtual const char *	interactionClassToUse (DtExerciseConn *exConn) const
	Returns the FOM interaction class name to use. More...

virtual RTI::ParameterHandleValueMap &	privPvList () const
	Returns a pointer to a private pvList that can be used as a return value by phvps. More...

DtInteraction *	self () const
	Get rid of const-ness on the "this" pointer in order to access non-const functions from const member functions (such as simple accessors). More...

Static Protected Attributes inherited from DtInteraction
static bool	theTagIsAsciiTime

Detailed Description

Because this example adds a concept that did not already exist in VR-Link's DtFireInteraction class, we create this subclass of DtFireInteraction that adds the concept of temperature.
