DtReflectedLandSurface Class Reference

Inheritance diagram for DtReflectedLandSurface:

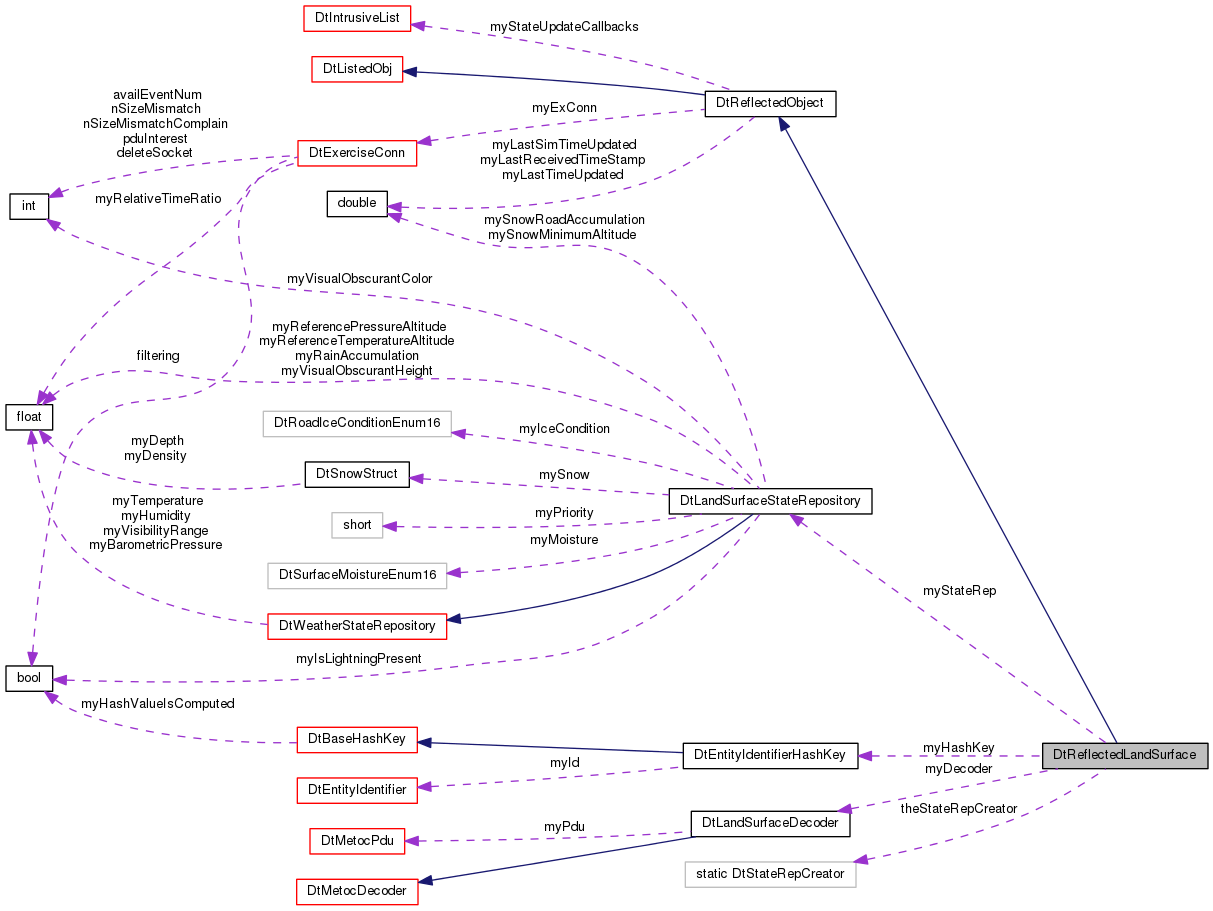

Collaboration diagram for DtReflectedLandSurface:

Public Types
typedef DtLandSurfaceStateRepository *(*	DtStateRepCreator )()
	Function prototype for functions that create DtLandSurfaceStateRepository. More...

Public Member Functions
	DtReflectedLandSurface (DtExerciseConn *conn)
	Constructor. More...
virtual	~DtReflectedLandSurface ()
	Destructor. More...
virtual DtLandSurfaceStateRepository *	landSurfaceStateRep () const
	Returns a pointer to the StateRepository - through which you can inspect current state information. More...
virtual DtLandSurfaceStateRepository *	lsr () const
	Synonym for landSurfaceStateRep(). More...
virtual DtStateRepository *	stateRep () const
	Returns a pointer to the StateRepository - through which you can inspect current state information. More...
virtual DtLandSurfaceDecoder *	decoder ()
	Returns a pointer to the Decoder being used to decode state messages into our SR. More...
virtual const DtGlobalObjectDesignator &	globalId () const
	Get the objects's global object designator - for DIS, it's the same as its DtEntityIdentifier. More...
virtual DtReflectedLandSurface *	next () const
	Get the next and previous elements in the reflected aggregate list. More...
virtual DtReflectedLandSurface *	prev () const
virtual DtReflectedLandSurface *	wrapNext () const
	Get the next and previous elements, wrap at the ends of the list. More...
virtual DtReflectedLandSurface *	wrapPrev () const
virtual void	addPostUpdateCallback (DtLandSurfaceCallbackFunction cb, void *userData)
	Entity state callback registration/deregistration. More...
virtual void	removePostUpdateCallback (DtLandSurfaceCallbackFunction cb, void *userData)
virtual void	setHashKey (const DtEntityIdentifier &uniqueVal)
	Sets the hash key from a unique string value. More...
virtual const DtBaseHashKey &	hashKey () const
	Get a hash key for this object - Key must be set before use. More...
virtual DtString	idString () const
	Get a string identification of this object. More...
virtual void	processStateMessage (const DtStateMsg &msg)
	Implementation for abstract base class. More...
virtual void	processLandSurfaceState (const DtMetocPdu &pdu)
	Process an state PDU. More...
Public Member Functions inherited from DtReflectedObject
	DtReflectedObject (DtExerciseConn *conn)
	constructor More...
virtual	~DtReflectedObject ()
	destructor More...
virtual DtStateRepository *	sr () const
	Synonym for stateRep(). More...
virtual DtTime	lastTimeUpdated () const
	Returns the value of wallclock time at the time an update was last received for the entity. More...
virtual DtTime	lastSimTimeUpdated () const
	Returns the value of sim time at the time an update was last received for the entity. More...
virtual DtTime	lastReceivedTimeStamp () const
	Returns the value in seconds past the hour of the timeStamp from the last received PDU. More...
virtual void	baseAddPostUpdateCallback (DtReflectedObjectCallbackFunction cb, void *userData)
	Object state callback registration/deregistration. More...
virtual void	baseRemovePostUpdateCallback (DtReflectedObjectCallbackFunction cb, void *userData)
virtual DtReflectedObject *	nextObj () const
	Get the next remote object. More...
virtual DtReflectedObject *	prevObj () const
	Get the previous remote object. More...
virtual DtReflectedObject *	wrapNextObj () const
	Get the next remote object. More...
virtual DtReflectedObject *	wrapPrevObj () const
	Get the previous remote object. More...
Public Member Functions inherited from DtListedObj
	DtListedObj ()
	Constructor. More...
virtual	~DtListedObj ()
	Destructor. More...
void *	next () const
	Return next (previous) elements on the list, or NULL if hit the end (beginning) of the list. More...
void *	prev () const
void *	wrapNext () const
	Return next (previous) elements on the list, but wrap to the beginning (end) of the list when you hit the end (beginning). More...
void *	wrapPrev () const

Static Public Member Functions
static void	setStateRepCreator (DtStateRepCreator creator)
	Give us a function to be used for creating SRs. More...
static DtStateRepCreator	stateRepCreator (void)

Protected Attributes
DtEntityIdentifierHashKey	myHashKey
DtLandSurfaceStateRepository *	myStateRep
DtLandSurfaceDecoder *	myDecoder
Protected Attributes inherited from DtReflectedObject
DtExerciseConn *	myExConn
DtIntrusiveList	myStateUpdateCallbacks
DtTime	myLastTimeUpdated
DtTime	myLastSimTimeUpdated
DtTime	myLastReceivedTimeStamp
Protected Attributes inherited from DtListedObj
DtList *	myList
DtListItem *	myItem

Static Protected Attributes
static DtStateRepCreator	theStateRepCreator

Private Member Functions
	DtReflectedLandSurface (const DtReflectedLandSurface &orig)
	copy constructor – not implemented More...
DtReflectedLandSurface &	operator= (const DtReflectedLandSurface &orig)
	assignment operator – not implemented More...

Additional Inherited Members
Protected Member Functions inherited from DtReflectedObject
	DtReflectedObject (const DtReflectedObject &orig)
	copy constructor – not implemented More...
DtReflectedObject &	operator= (const DtReflectedObject &orig)
	assignment operator – not implemented More...
virtual void	processPostUpdateCallbacks ()
	Process the post update callbacks. More...

Member Typedef Documentation

typedef DtLandSurfaceStateRepository*(* DtReflectedLandSurface::DtStateRepCreator)()

Function prototype for functions that create DtLandSurfaceStateRepository.

Constructor & Destructor Documentation

DtReflectedLandSurface::DtReflectedLandSurface

(

DtExerciseConn *

conn

)

Constructor.

virtual DtReflectedLandSurface::~DtReflectedLandSurface ( )

virtual

Destructor.

DtReflectedLandSurface::DtReflectedLandSurface ( const DtReflectedLandSurface &  orig )

private

copy constructor – not implemented

Member Function Documentation

virtual void DtReflectedLandSurface::addPostUpdateCallback ( DtLandSurfaceCallbackFunction  cb, void *  userData  )

virtual

Entity state callback registration/deregistration.

virtual DtLandSurfaceDecoder* DtReflectedLandSurface::decoder ( )

virtual

Returns a pointer to the Decoder being used to decode state messages into our SR.

virtual const DtGlobalObjectDesignator& DtReflectedLandSurface::globalId ( ) const

virtual

Get the objects's global object designator - for DIS, it's the same as its DtEntityIdentifier.

Implements DtReflectedObject.

virtual const DtBaseHashKey& DtReflectedLandSurface::hashKey ( ) const

virtual

Get a hash key for this object - Key must be set before use.

Implements DtReflectedObject.

virtual DtString DtReflectedLandSurface::idString ( ) const

virtual

Get a string identification of this object.

Implements DtReflectedObject.

virtual DtLandSurfaceStateRepository* DtReflectedLandSurface::landSurfaceStateRep ( ) const

virtual

Returns a pointer to the StateRepository - through which you can inspect current state information.

virtual DtLandSurfaceStateRepository* DtReflectedLandSurface::lsr ( ) const

virtual

Synonym for landSurfaceStateRep().

virtual DtReflectedLandSurface* DtReflectedLandSurface::next ( ) const

virtual

Get the next and previous elements in the reflected aggregate list.

DtReflectedLandSurface& DtReflectedLandSurface::operator= ( const DtReflectedLandSurface &  orig )

private

assignment operator – not implemented

virtual DtReflectedLandSurface* DtReflectedLandSurface::prev ( ) const

virtual

virtual void DtReflectedLandSurface::processLandSurfaceState ( const DtMetocPdu &  pdu )

virtual

Process an state PDU.

Also calls down to base class processStateMessage().

virtual void DtReflectedLandSurface::processStateMessage ( const DtStateMsg &  msg )

virtual

Implementation for abstract base class.

Reimplemented from DtReflectedObject.

virtual void DtReflectedLandSurface::removePostUpdateCallback ( DtLandSurfaceCallbackFunction  cb, void *  userData  )

virtual

virtual void DtReflectedLandSurface::setHashKey ( const DtEntityIdentifier &  uniqueVal )

virtual

Sets the hash key from a unique string value.

static void DtReflectedLandSurface::setStateRepCreator ( DtStateRepCreator  creator )

static

Give us a function to be used for creating SRs.

virtual DtStateRepository* DtReflectedLandSurface::stateRep ( ) const

virtual

Returns a pointer to the StateRepository - through which you can inspect current state information.

Implementation for abstract base class. Calls asr().

Implements DtReflectedObject.

static DtStateRepCreator DtReflectedLandSurface::stateRepCreator ( void  )

static

virtual DtReflectedLandSurface* DtReflectedLandSurface::wrapNext ( ) const

virtual

Get the next and previous elements, wrap at the ends of the list.

virtual DtReflectedLandSurface* DtReflectedLandSurface::wrapPrev ( ) const

virtual

Member Data Documentation

DtLandSurfaceDecoder* DtReflectedLandSurface::myDecoder

protected

DtEntityIdentifierHashKey DtReflectedLandSurface::myHashKey

protected

DtLandSurfaceStateRepository* DtReflectedLandSurface::myStateRep

protected

DtStateRepCreator DtReflectedLandSurface::theStateRepCreator

staticprotected

---

The documentation for this class was generated from the following file:

• reflectedLandSurfaceDIS.h
