DtReflectedWindCorridor Class Reference

Inheritance diagram for DtReflectedWindCorridor:

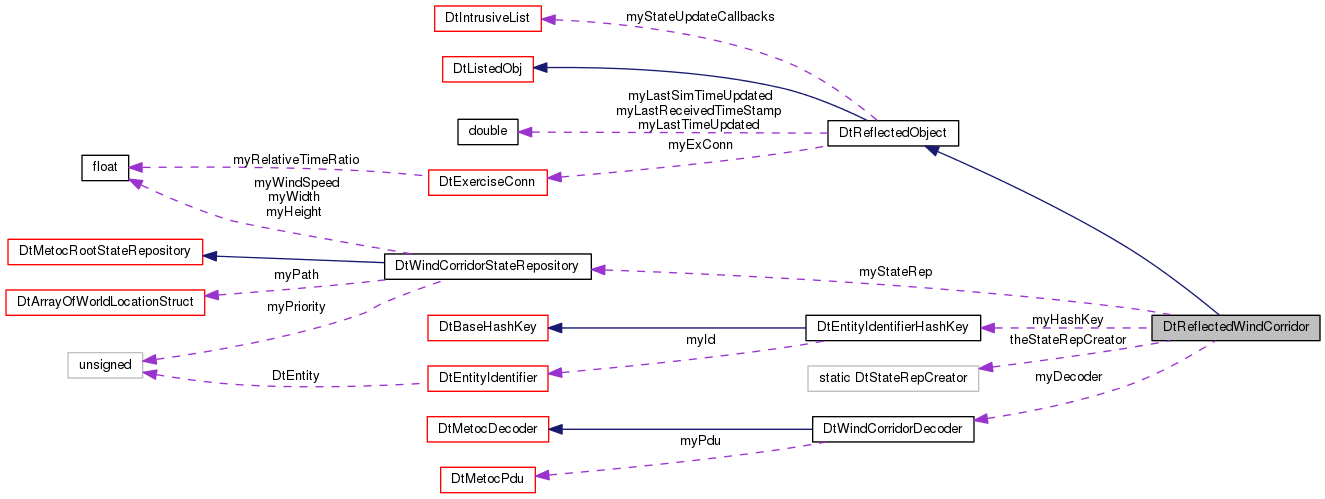

Collaboration diagram for DtReflectedWindCorridor:

Public Types
typedef DtWindCorridorStateRepository *(*	DtStateRepCreator )()
	Function prototype for functions that create DtWindCorridorStateRepository. More...

Public Member Functions
	DtReflectedWindCorridor (DtExerciseConn *conn)
	Constructor. More...
virtual	~DtReflectedWindCorridor ()
	Destructor. More...
virtual DtWindCorridorStateRepository *	windCorridorStateRep () const
	Returns a pointer to the StateRepository - through which you can inspect current state information. More...
virtual DtWindCorridorStateRepository *	wsr () const
	Synonym for windCorridorStateRep(). More...
virtual DtStateRepository *	stateRep () const
	Returns a pointer to the StateRepository - through which you can inspect current state information. More...
virtual DtWindCorridorDecoder *	decoder ()
	Returns a pointer to the Decoder being used to decode state messages into our SR. More...
virtual const DtGlobalObjectDesignator &	globalId () const
	Get the objects's global object designator - for DIS, it's the same as its DtEntityIdentifier. More...
virtual DtReflectedWindCorridor *	next () const
	Get the next and previous elements in the reflected aggregate list. More...
virtual DtReflectedWindCorridor *	prev () const
virtual DtReflectedWindCorridor *	wrapNext () const
	Get the next and previous elements, wrap at the ends of the list. More...
virtual DtReflectedWindCorridor *	wrapPrev () const
virtual void	addPostUpdateCallback (DtWindCorridorCallbackFunction cb, void *userData)
	Entity state callback registration/deregistration. More...
virtual void	removePostUpdateCallback (DtWindCorridorCallbackFunction cb, void *userData)
virtual void	setHashKey (const DtEntityIdentifier &uniqueVal)
	Sets the hash key from a unique string value. More...
virtual const DtBaseHashKey &	hashKey () const
	Get a hash key for this object - Key must be set before use. More...
virtual DtString	idString () const
	Get a string identification of this object. More...
virtual void	processStateMessage (const DtStateMsg &msg)
	Implementation for abstract base class. More...
virtual void	processWindCorridorState (const DtMetocPdu &pdu)
	Process an state PDU. More...
Public Member Functions inherited from DtReflectedObject
	DtReflectedObject (DtExerciseConn *conn)
	constructor More...
virtual	~DtReflectedObject ()
	destructor More...
virtual DtStateRepository *	sr () const
	Synonym for stateRep(). More...
virtual DtTime	lastTimeUpdated () const
	Returns the value of wallclock time at the time an update was last received for the entity. More...
virtual DtTime	lastSimTimeUpdated () const
	Returns the value of sim time at the time an update was last received for the entity. More...
virtual DtTime	lastReceivedTimeStamp () const
	Returns the value in seconds past the hour of the timeStamp from the last received PDU. More...
virtual void	baseAddPostUpdateCallback (DtReflectedObjectCallbackFunction cb, void *userData)
	Object state callback registration/deregistration. More...
virtual void	baseRemovePostUpdateCallback (DtReflectedObjectCallbackFunction cb, void *userData)
virtual DtReflectedObject *	nextObj () const
	Get the next remote object. More...
virtual DtReflectedObject *	prevObj () const
	Get the previous remote object. More...
virtual DtReflectedObject *	wrapNextObj () const
	Get the next remote object. More...
virtual DtReflectedObject *	wrapPrevObj () const
	Get the previous remote object. More...
Public Member Functions inherited from DtListedObj
	DtListedObj ()
	Constructor. More...
virtual	~DtListedObj ()
	Destructor. More...
void *	next () const
	Return next (previous) elements on the list, or NULL if hit the end (beginning) of the list. More...
void *	prev () const
void *	wrapNext () const
	Return next (previous) elements on the list, but wrap to the beginning (end) of the list when you hit the end (beginning). More...
void *	wrapPrev () const

Static Public Member Functions
static void	setStateRepCreator (DtStateRepCreator creator)
	Give us a function to be used for creating SRs. More...
static DtStateRepCreator	stateRepCreator (void)

Protected Attributes
DtEntityIdentifierHashKey	myHashKey
DtWindCorridorStateRepository *	myStateRep
DtWindCorridorDecoder *	myDecoder
Protected Attributes inherited from DtReflectedObject
DtExerciseConn *	myExConn
DtIntrusiveList	myStateUpdateCallbacks
DtTime	myLastTimeUpdated
DtTime	myLastSimTimeUpdated
DtTime	myLastReceivedTimeStamp
Protected Attributes inherited from DtListedObj
DtList *	myList
DtListItem *	myItem

Static Protected Attributes
static DtStateRepCreator	theStateRepCreator

Private Member Functions
	DtReflectedWindCorridor (const DtReflectedWindCorridor &orig)
	copy constructor – not implemented More...
DtReflectedWindCorridor &	operator= (const DtReflectedWindCorridor &orig)
	assignment operator – not implemented More...

Additional Inherited Members
Protected Member Functions inherited from DtReflectedObject
	DtReflectedObject (const DtReflectedObject &orig)
	copy constructor – not implemented More...
DtReflectedObject &	operator= (const DtReflectedObject &orig)
	assignment operator – not implemented More...
virtual void	processPostUpdateCallbacks ()
	Process the post update callbacks. More...

Member Typedef Documentation

typedef DtWindCorridorStateRepository*(* DtReflectedWindCorridor::DtStateRepCreator)()

Function prototype for functions that create DtWindCorridorStateRepository.

Constructor & Destructor Documentation

DtReflectedWindCorridor::DtReflectedWindCorridor

(

DtExerciseConn *

conn

)

Constructor.

virtual DtReflectedWindCorridor::~DtReflectedWindCorridor ( )

virtual

Destructor.

DtReflectedWindCorridor::DtReflectedWindCorridor ( const DtReflectedWindCorridor &  orig )

private

copy constructor – not implemented

Member Function Documentation

virtual void DtReflectedWindCorridor::addPostUpdateCallback ( DtWindCorridorCallbackFunction  cb, void *  userData  )

virtual

Entity state callback registration/deregistration.

virtual DtWindCorridorDecoder* DtReflectedWindCorridor::decoder ( )

virtual

Returns a pointer to the Decoder being used to decode state messages into our SR.

virtual const DtGlobalObjectDesignator& DtReflectedWindCorridor::globalId ( ) const

virtual

Get the objects's global object designator - for DIS, it's the same as its DtEntityIdentifier.

Implements DtReflectedObject.

virtual const DtBaseHashKey& DtReflectedWindCorridor::hashKey ( ) const

virtual

Get a hash key for this object - Key must be set before use.

Implements DtReflectedObject.

virtual DtString DtReflectedWindCorridor::idString ( ) const

virtual

Get a string identification of this object.

Implements DtReflectedObject.

virtual DtReflectedWindCorridor* DtReflectedWindCorridor::next ( ) const

virtual

Get the next and previous elements in the reflected aggregate list.

DtReflectedWindCorridor& DtReflectedWindCorridor::operator= ( const DtReflectedWindCorridor &  orig )

private

assignment operator – not implemented

virtual DtReflectedWindCorridor* DtReflectedWindCorridor::prev ( ) const

virtual

virtual void DtReflectedWindCorridor::processStateMessage ( const DtStateMsg &  msg )

virtual

Implementation for abstract base class.

Reimplemented from DtReflectedObject.

virtual void DtReflectedWindCorridor::processWindCorridorState ( const DtMetocPdu &  pdu )

virtual

Process an state PDU.

Also calls down to base class processStateMessage().

virtual void DtReflectedWindCorridor::removePostUpdateCallback ( DtWindCorridorCallbackFunction  cb, void *  userData  )

virtual

virtual void DtReflectedWindCorridor::setHashKey ( const DtEntityIdentifier &  uniqueVal )

virtual

Sets the hash key from a unique string value.

static void DtReflectedWindCorridor::setStateRepCreator ( DtStateRepCreator  creator )

static

Give us a function to be used for creating SRs.

virtual DtStateRepository* DtReflectedWindCorridor::stateRep ( ) const

virtual

Returns a pointer to the StateRepository - through which you can inspect current state information.

Implementation for abstract base class. Calls asr().

Implements DtReflectedObject.

static DtStateRepCreator DtReflectedWindCorridor::stateRepCreator ( void  )

static

virtual DtWindCorridorStateRepository* DtReflectedWindCorridor::windCorridorStateRep ( ) const

virtual

Returns a pointer to the StateRepository - through which you can inspect current state information.

virtual DtReflectedWindCorridor* DtReflectedWindCorridor::wrapNext ( ) const

virtual

Get the next and previous elements, wrap at the ends of the list.

virtual DtReflectedWindCorridor* DtReflectedWindCorridor::wrapPrev ( ) const

virtual

virtual DtWindCorridorStateRepository* DtReflectedWindCorridor::wsr ( ) const

virtual

Synonym for windCorridorStateRep().

Member Data Documentation

DtWindCorridorDecoder* DtReflectedWindCorridor::myDecoder

protected

DtEntityIdentifierHashKey DtReflectedWindCorridor::myHashKey

protected

DtWindCorridorStateRepository* DtReflectedWindCorridor::myStateRep

protected

DtStateRepCreator DtReflectedWindCorridor::theStateRepCreator

staticprotected

---

The documentation for this class was generated from the following file:

• reflectedWindCorridorDIS.h
