DtSdcObject Class Reference

DtSdcObject is the base class from which all Draw Control Objects are derived. More...

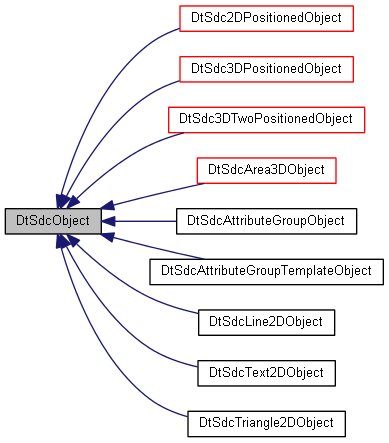

Inheritance diagram for DtSdcObject:

List of all members.

Public Member Functions
	DtSdcObject (DtExerciseConn *exConn, unsigned id, const DtString &objName)
	Parameterized constructor.
virtual	~DtSdcObject ()
	Virtual destructor.
virtual unsigned	id () const
	id accessor
virtual void	setId (unsigned id)
	id mutator
virtual const DtGlobalObjectDesignator &	globalId () const
virtual void	setVisible (bool yesNo)
virtual bool	visible () const
virtual bool	flashing () const
virtual void	setFlashing (bool yesNo)
virtual const DtSdcColor &	color () const
virtual void	setColor (const DtSdcColor &color)
virtual void	setRemoteGraphicSet (const std::string &setName)
virtual void	update ()=0
	update the internal publisher and tick
Protected Attributes
unsigned	myId
DtEnvironmentProcessPublisher	myPublisher
bool	myVisible
DtSdcColor	myEmptyColor
Private Member Functions
	DtSdcObject ()
	Default constructor.
	DtSdcObject (const DtSdcObject &orig)
	Copy constructor Private and unimplemented.
DtSdcObject &	operator= (const DtSdcObject &rhs)
	Assignment operator Private and unimplemented.

---

Detailed Description

DtSdcObject is the base class from which all Draw Control Objects are derived.

DtSdcObject defines the interface and storage that is common to all Stealth Draw Control Objects. This includes a local id (that should be unique to the sender - see the DtStealthRemoteDrawer class for an id generator) and a DtStealthDrawControlPdu that is used to send the object on the network to remote stealths. The local id is combined with the sender id of the application / federate sending the draw object to create the object's full id.

It is important to note that Draw Control Objects are not true objects in the DIS / HLA-RPR sense; they are sent as data interactions, and will only be seen by listeners that are in the exercise / federation at the time they are sent.

---

Constructor & Destructor Documentation

DtSdcObject::DtSdcObject	(	DtExerciseConn *	exConn,
		unsigned	id,
		const DtString &	objName
	)

Parameterized constructor.

Parameters:

id	(locally) unique id to use for this object

References myPublisher.

DtSdcObject::~DtSdcObject

(

)

[virtual]

Virtual destructor.

References myPublisher, and myVisible.

DtSdcObject::DtSdcObject

(

)

[private]

Default constructor.

Private and unimplemented. You must construct a DtSdcObject with an id

DtSdcObject::DtSdcObject

(

const DtSdcObject &

orig

)

[private]

Copy constructor Private and unimplemented.

Not copyable.

---

Member Function Documentation

DtSdcObject& DtSdcObject::operator=

(

const DtSdcObject &

rhs

)

[private]

Assignment operator Private and unimplemented.

Not copyable.

unsigned DtSdcObject::id

(

)

const [virtual]

id accessor

Returns:

The (local) id of this draw object

References myId.

Referenced by DtSdcArea3DObject::DtSdcArea3DObject(), DtSdcAttributeGroupObject::DtSdcAttributeGroupObject(), DtSdcAttributeGroupTemplateObject::DtSdcAttributeGroupTemplateObject(), DtSdcCuboidObject::DtSdcCuboidObject(), DtSdcCylinderObject::DtSdcCylinderObject(), DtSdcEllipseObject::DtSdcEllipseObject(), DtSdcEllipsoidObject::DtSdcEllipsoidObject(), DtSdcLine2DObject::DtSdcLine2DObject(), DtSdcLine3DObject::DtSdcLine3DObject(), DtSdcRectangleObject::DtSdcRectangleObject(), DtSdcText2DObject::DtSdcText2DObject(), DtSdcText3DObject::DtSdcText3DObject(), DtSdcTriangle2DObject::DtSdcTriangle2DObject(), and setId().

void DtSdcObject::setId

(

unsigned

id

)

[virtual]

id mutator

This is useful for assigning a unique Id after cloning an object using the copy constructor.

Parameters:

id	A (locally unique) id for this draw object

References id(), and myId.

const DtGlobalObjectDesignator & DtSdcObject::globalId

(

)

const [virtual]

References myPublisher.

Referenced by DtSdcAttributeGroupObject::createAttributes().

void DtSdcObject::setVisible

(

bool

yesNo

)

[virtual]

References myPublisher, and myVisible.

bool DtSdcObject::visible

(

)

const [virtual]

References myVisible.

bool DtSdcObject::flashing

(

)

const [virtual]

Reimplemented in DtSdcArea3DObject, DtSdcAttributeGroupObject, DtSdcEllipsoidCuboidBase, DtSdcCylinderObject, DtSdcEllRectBase, DtSdcLine2DObject, DtSdcLine3DObject, DtSdcText2DObject, DtSdcText3DObject, and DtSdcTriangle2DObject.

void DtSdcObject::setFlashing

(

bool

yesNo

)

[virtual]

Reimplemented in DtSdcArea3DObject, DtSdcAttributeGroupObject, DtSdcEllipsoidCuboidBase, DtSdcCylinderObject, DtSdcEllRectBase, DtSdcLine2DObject, DtSdcLine3DObject, DtSdcText2DObject, DtSdcText3DObject, and DtSdcTriangle2DObject.

const DtSdcColor & DtSdcObject::color

(

)

const [virtual]

Reimplemented in DtSdcArea3DObject, DtSdcAttributeGroupObject, DtSdcEllipsoidCuboidBase, DtSdcCylinderObject, DtSdcEllRectBase, DtSdcLine2DObject, DtSdcLine3DObject, DtSdcText2DObject, DtSdcText3DObject, and DtSdcTriangle2DObject.

References myEmptyColor.

void DtSdcObject::setColor

(

const DtSdcColor &

color

)

[virtual]

Reimplemented in DtSdcArea3DObject, DtSdcAttributeGroupObject, DtSdcEllipsoidCuboidBase, DtSdcCylinderObject, DtSdcEllRectBase, DtSdcLine2DObject, DtSdcLine3DObject, DtSdcText2DObject, DtSdcText3DObject, and DtSdcTriangle2DObject.

void DtSdcObject::setRemoteGraphicSet

(

const std::string &

setName

)

[virtual]

Reimplemented in DtSdcArea3DObject, DtSdcAttributeGroupObject, DtSdcEllipsoidCuboidBase, DtSdcCylinderObject, DtSdcEllRectBase, DtSdcLine2DObject, DtSdcLine3DObject, DtSdcText2DObject, DtSdcText3DObject, and DtSdcTriangle2DObject.

virtual void DtSdcObject::update

(

)

[pure virtual]

update the internal publisher and tick

Pure virtual function used to force any changes to the draw control objects to be sent to the network.

Implemented in DtSdcArea3DObject, DtSdcAttributeGroupObject, DtSdcAttributeGroupTemplateObject, DtSdcCuboidObject, DtSdcCylinderObject, DtSdcEllRectBase, DtSdcEllipsoidObject, DtSdcLine2DObject, DtSdcLine3DObject, DtSdcText2DObject, DtSdcText3DObject, and DtSdcTriangle2DObject.

---

Member Data Documentation

unsigned DtSdcObject::myId [protected]

Referenced by id(), and setId().

DtEnvironmentProcessPublisher DtSdcObject::myPublisher [protected]

Referenced by DtSdcAttributeGroupTemplateObject::createAttributeTemplate(), DtSdcArea3DObject::DtSdcArea3DObject(), DtSdcAttributeGroupObject::DtSdcAttributeGroupObject(), DtSdcAttributeGroupTemplateObject::DtSdcAttributeGroupTemplateObject(), DtSdcCuboidObject::DtSdcCuboidObject(), DtSdcCylinderObject::DtSdcCylinderObject(), DtSdcEllipseObject::DtSdcEllipseObject(), DtSdcEllipsoidObject::DtSdcEllipsoidObject(), DtSdcLine2DObject::DtSdcLine2DObject(), DtSdcLine3DObject::DtSdcLine3DObject(), DtSdcObject(), DtSdcRectangleObject::DtSdcRectangleObject(), DtSdcText2DObject::DtSdcText2DObject(), DtSdcText3DObject::DtSdcText3DObject(), DtSdcTriangle2DObject::DtSdcTriangle2DObject(), globalId(), setVisible(), DtSdcTriangle2DObject::update(), DtSdcText3DObject::update(), DtSdcText2DObject::update(), DtSdcLine3DObject::update(), DtSdcLine2DObject::update(), DtSdcEllRectBase::update(), DtSdcEllipsoidObject::update(), DtSdcCylinderObject::update(), DtSdcCuboidObject::update(), DtSdcAttributeGroupTemplateObject::update(), DtSdcAttributeGroupObject::update(), DtSdcArea3DObject::update(), and ~DtSdcObject().

bool DtSdcObject::myVisible [protected]

Referenced by setVisible(), visible(), and ~DtSdcObject().

DtSdcColor DtSdcObject::myEmptyColor [protected]

Referenced by color().

---

The documentation for this class was generated from the following files:

• legacyStealthControl.h
• legacyStealthControl.inl
