The SimulationDatabase stores all data for the simulation. It also owns the event, control, and view managers. More...

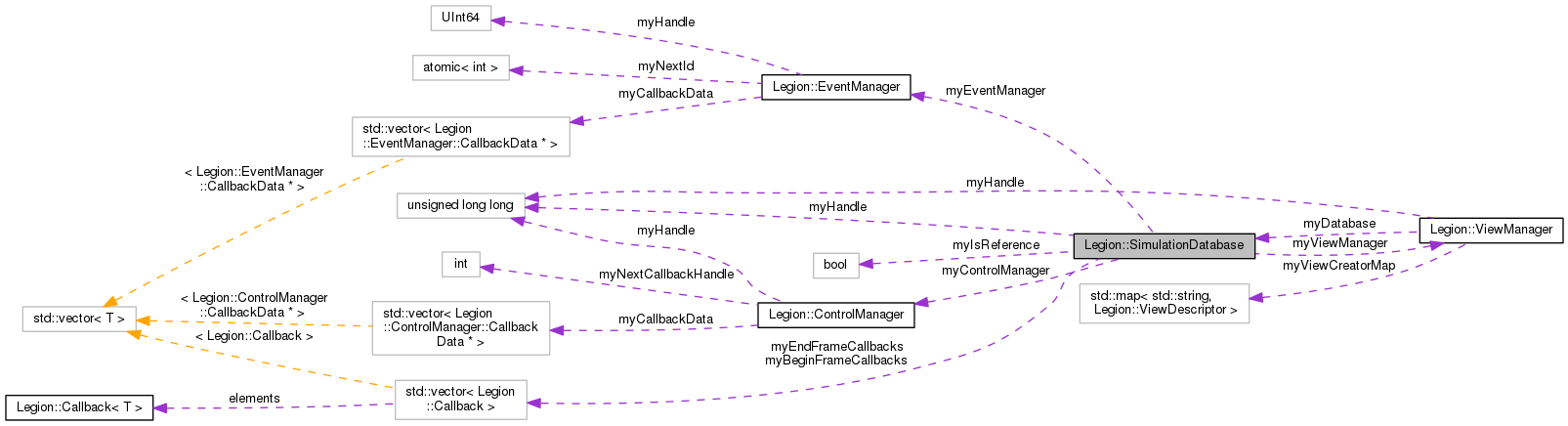

Collaboration diagram for Legion::SimulationDatabase:

Public Member Functions
	SimulationDatabase (const Configuration &config)
	constructor More...

	SimulationDatabase (DatabaseHandle dbHandle)
	Access an existing database by it's handle - doesn't create a new database. More...

virtual	~SimulationDatabase ()
	destructor More...

virtual DatabaseHandle	handle () const
	Returns the handle to the internal representation of this object. More...

virtual void	beginFrame (double time)
	BeginFrame tells the database that a new frame of simulation has started and allows for synchronization and updating of internal data structures. More...

virtual void	endFrame ()
	EndFrame tells the database that a frame of simulation has completed and allows for synchronization and updating of internal data structures. More...

virtual bool	inFrame () const
	Users can check if the database is between an begin and end frame call. More...

virtual UInt64	currentFrame () const
	Gets the current frame number. More...

virtual double	simTime () const
	gets the current simulation time More...

virtual ClientId	clientId () const
	Get the current client ID of this database if the simulation is distributed over a network. More...

virtual bool	addBeginFrameCallback (BeginFrameCb bfcb)
	Register and unregister callbacks for beginning of frame. More...

virtual bool	removeBeginFrameCallback (BeginFrameCb bfcb)

virtual bool	addEndFrameCallback (EndFrameCb efd)
	Register and unregister callbacks for end of frame. More...

virtual bool	removeEndFrameCallback (EndFrameCb efd)

virtual AttributeSetId	registerAttributeSet (const AttributeSetDescriptor &descriptor)
	Register a new type of attribute set with the database for storage. More...

virtual AttributeIndex	registerAttribute (UInt32 setId, const AttributeDescriptor &descriptor)
	Register a new type of attribute with an existing attribute set for storage. More...

virtual AttributeSetId	findAttributeSetId (const std::string &name)
	Find the attribute set id from the set name. More...

virtual AttributeIndex	findAttributeIndex (UInt32 setId, const std::string &name)
	Find the application specific attribute index of an attribute from its name. More...

virtual AttributeIndex	findAttributeIndex (UInt32 setId, UInt32 attrId)
	Find the application specific attribute index of an attribute from its ID. More...

template<typename OBJECT_TYPE >
OBJECT_TYPE	createInstance ()
	Create an instance of registered legion object the OBJECT_TYPE class must have a static function type() that returns a AttributeSetId for the instance you want to create. More...

virtual InstanceHandle	findInstance (GlobalIdentifier globalId)
	Find the internal instance handle of a simulation object from its globalID. More...

virtual void	destroyInstance (const WriteStateInstance &instance)
	Destroy an instance that was created in this database. More...

virtual ClientId	getClientId (InstanceHandle instance)
	Get the client ID of owner of the given instance handle. More...

virtual GlobalIdentifier	findGlobalId (InstanceHandle handle)
	Find the global ID from the internal instance handle of a simulation object. More...

virtual Bool	reserve (AttributeSetId type, UInt32 count)
	Reserve enough space for count instances of a given attribute set. More...

virtual UInt32	capacity (AttributeSetId type)
	Returns the capacity for a given attribute set. More...

virtual EventManager &	eventManager ()
	Get the Event Manager for the database. More...

virtual ControlManager &	controlManager ()
	Get the Control Manager for the database. More...

virtual ViewManager &	viewManager ()
	Get the View Manager for the database. More...

Static Protected Member Functions
static void	beginFrameCallback (void *usr, double simTime)

static void	endFrameCallback (void *usr)

Protected Attributes
DatabaseHandle	myHandle

EventManager *	myEventManager

ControlManager *	myControlManager

ViewManager *	myViewManager

bool	myIsReference

std::vector< BeginFrameCb >	myBeginFrameCallbacks

std::vector< EndFrameCb >	myEndFrameCallbacks

Detailed Description

The SimulationDatabase stores all data for the simulation. It also owns the event, control, and view managers.

Constructor & Destructor Documentation

Legion::SimulationDatabase::SimulationDatabase ( const Configuration & config )

constructor

Legion::SimulationDatabase::SimulationDatabase ( DatabaseHandle dbHandle )

Access an existing database by it's handle - doesn't create a new database.

virtual Legion::SimulationDatabase::~SimulationDatabase ( )

destructor

Member Function Documentation

virtual bool Legion::SimulationDatabase::addBeginFrameCallback ( BeginFrameCb bfcb )

virtual

Register and unregister callbacks for beginning of frame.

virtual bool Legion::SimulationDatabase::addEndFrameCallback ( EndFrameCb efd )

virtual

Register and unregister callbacks for end of frame.

virtual void Legion::SimulationDatabase::beginFrame ( double time )

virtual

BeginFrame tells the database that a new frame of simulation has started and allows for synchronization and updating of internal data structures.

The user needs to provide the current simulation time to the database.

Referenced by Clutter::SimEngine::finish(), and main().

static void Legion::SimulationDatabase::beginFrameCallback	(	void *	usr,
		double	simTime
	)

staticprotected

virtual UInt32 Legion::SimulationDatabase::capacity ( AttributeSetId type )

virtual

Returns the capacity for a given attribute set.

Includes empty space and instantiated instances.

virtual ClientId Legion::SimulationDatabase::clientId ( ) const

virtual

Get the current client ID of this database if the simulation is distributed over a network.

virtual ControlManager& Legion::SimulationDatabase::controlManager ( )

virtual

Get the Control Manager for the database.

template<typename OBJECT_TYPE >

OBJECT_TYPE Legion::SimulationDatabase::createInstance ( )

Create an instance of registered legion object the OBJECT_TYPE class must have a static function type() that returns a AttributeSetId for the instance you want to create.

OBJECT_TYPE needs to derive from WriteStateInstance.

References legion_db_createInstance(), and Return_success.

Referenced by DtVehicleSim::DtVehicleSim(), DtVehicleSim::enableEmissions(), Clutter::SimEngine::init(), DtVehicleSim::init(), and main().

virtual UInt64 Legion::SimulationDatabase::currentFrame ( ) const

virtual

Gets the current frame number.

virtual void Legion::SimulationDatabase::destroyInstance ( const WriteStateInstance & instance )

virtual

Destroy an instance that was created in this database.

Referenced by DtVehicleSim::disableEmissions(), main(), and DtVehicleSim::~DtVehicleSim().

virtual void Legion::SimulationDatabase::endFrame ( )

virtual

EndFrame tells the database that a frame of simulation has completed and allows for synchronization and updating of internal data structures.

Referenced by Clutter::SimEngine::finish(), and main().

static void Legion::SimulationDatabase::endFrameCallback ( void * usr )

staticprotected

virtual EventManager& Legion::SimulationDatabase::eventManager ( )

virtual

Get the Event Manager for the database.

Referenced by DtVehicleSim::detonateMunition(), DtVehicleSim::DtVehicleSim(), DtVehicleSim::fireMunition(), main(), and DtVehicleSim::~DtVehicleSim().

virtual AttributeIndex Legion::SimulationDatabase::findAttributeIndex	(	UInt32	setId,
		const std::string &	name
	)

virtual

Find the application specific attribute index of an attribute from its name.

Referenced by registerCustomAttributeSet().

virtual AttributeIndex Legion::SimulationDatabase::findAttributeIndex	(	UInt32	setId,
		UInt32	attrId
	)

virtual

Find the application specific attribute index of an attribute from its ID.

virtual AttributeSetId Legion::SimulationDatabase::findAttributeSetId ( const std::string & name )

virtual

Find the attribute set id from the set name.

Referenced by Clutter::SimEngine::extendEntityAttributes(), and RegisterCustomEntityAttributes().

virtual GlobalIdentifier Legion::SimulationDatabase::findGlobalId ( InstanceHandle handle )

virtual

Find the global ID from the internal instance handle of a simulation object.

If the Attribute Set of the ID is not registered or the instance is not known, this function will return 0.

virtual InstanceHandle Legion::SimulationDatabase::findInstance ( GlobalIdentifier globalId )

virtual

Find the internal instance handle of a simulation object from its globalID.

If the Attribute Set of the instance is not registered or the instance is not known, this function will return 0.

Referenced by processOwnershipAcquired().

virtual ClientId Legion::SimulationDatabase::getClientId ( InstanceHandle instance )

virtual

Get the client ID of owner of the given instance handle.

virtual DatabaseHandle Legion::SimulationDatabase::handle ( ) const

inlinevirtual

Returns the handle to the internal representation of this object.

virtual bool Legion::SimulationDatabase::inFrame ( ) const

virtual

Users can check if the database is between an begin and end frame call.

Several operations can only happen between begin/end frame calls such as creating or destroying instances, and creating and sending events, and controls

virtual AttributeIndex Legion::SimulationDatabase::registerAttribute	(	UInt32	setId,
		const AttributeDescriptor &	descriptor
	)

virtual

Register a new type of attribute with an existing attribute set for storage.

Referenced by Clutter::SimEngine::extendEntityAttributes(), and RegisterCustomEntityAttributes().

virtual AttributeSetId Legion::SimulationDatabase::registerAttributeSet ( const AttributeSetDescriptor & descriptor )

virtual

Register a new type of attribute set with the database for storage.

Referenced by registerCustomAttributeSet().

virtual bool Legion::SimulationDatabase::removeBeginFrameCallback ( BeginFrameCb bfcb )

virtual

virtual bool Legion::SimulationDatabase::removeEndFrameCallback ( EndFrameCb efd )

virtual

virtual Bool Legion::SimulationDatabase::reserve	(	AttributeSetId	type,
		UInt32	count
	)

virtual

Reserve enough space for count instances of a given attribute set.

Referenced by Clutter::SimEngine::init(), and Clutter::SimEngine::SimEngine().

virtual double Legion::SimulationDatabase::simTime ( ) const

virtual

gets the current simulation time

Referenced by DtVehicleSim::fireMunition(), DtVehicleSim::init(), DtVehicleSim::munitionTick(), and DtVehicleSim::reactToDamage().

virtual ViewManager& Legion::SimulationDatabase::viewManager ( )

virtual

Get the View Manager for the database.

Referenced by DtVehicleSim::DtVehicleSim(), f18ShutDownHandler(), main(), and DtVehicleSim::~DtVehicleSim().

Member Data Documentation

std::vector<BeginFrameCb> Legion::SimulationDatabase::myBeginFrameCallbacks

protected

ControlManager* Legion::SimulationDatabase::myControlManager

protected

std::vector<EndFrameCb> Legion::SimulationDatabase::myEndFrameCallbacks

protected

EventManager* Legion::SimulationDatabase::myEventManager

protected

DatabaseHandle Legion::SimulationDatabase::myHandle

protected

bool Legion::SimulationDatabase::myIsReference

protected

ViewManager* Legion::SimulationDatabase::myViewManager

protected

The documentation for this class was generated from the following files:
