Instances of DtInteractionMgr manage the sending and receiving of interactions. More...

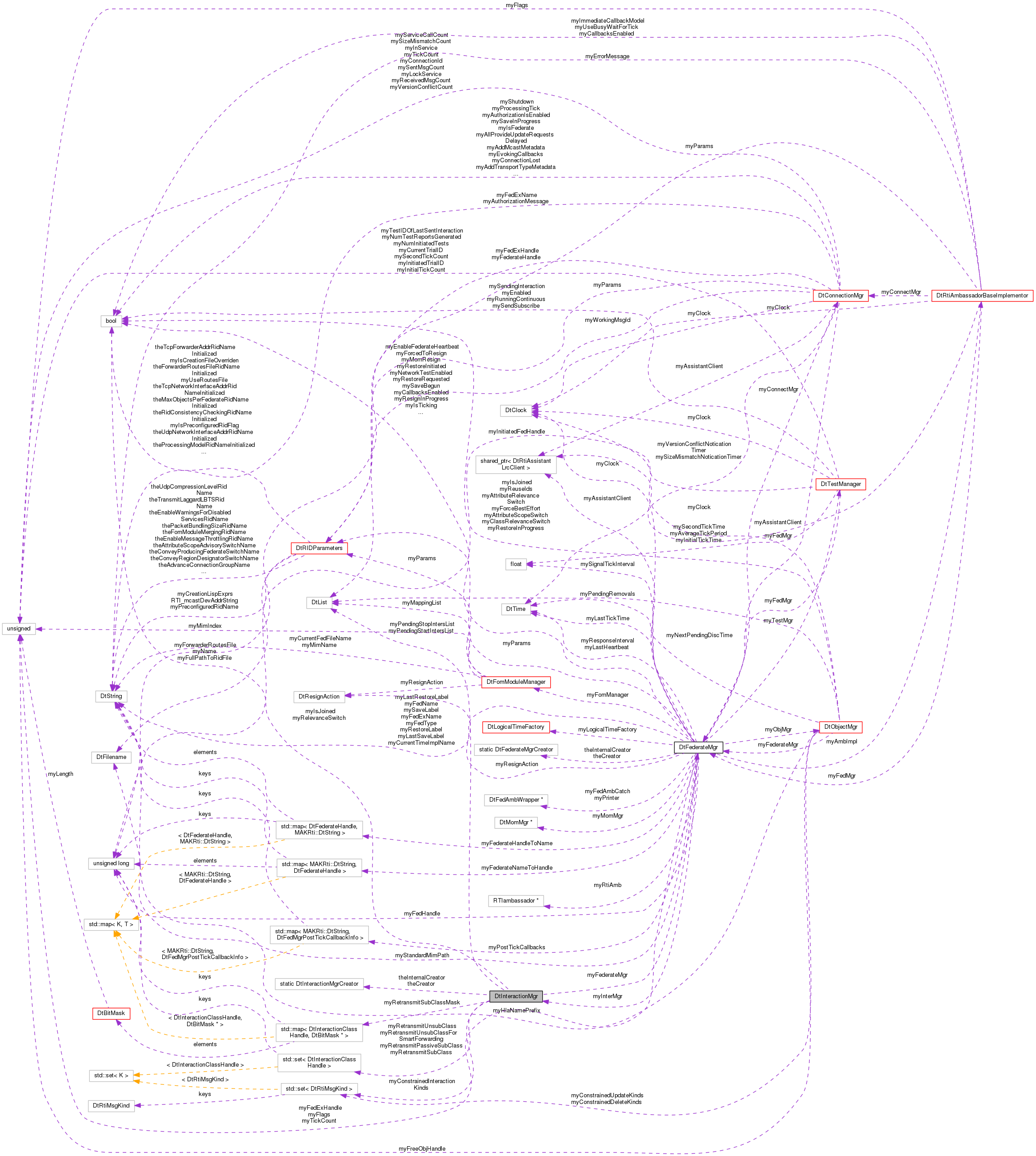

Collaboration diagram for DtInteractionMgr:

Public Types
typedef DtInteractionMgr (	DtInteractionMgrCreator )(DtFederateMgr *fedMgr)
	Creator function. More...

Public Member Functions
virtual	~DtInteractionMgr ()
	Destructor. More...

virtual void	postJoinInit ()
	Post join processing. All managers shall have been created and initialized. More...

virtual bool	isPostJoined () const
	Return bool: Was the post join initialization performed? More...

virtual void	publish (DtInteractionClassHandle theInteraction)
	Process publish service call. More...

virtual void	unpublish (DtInteractionClassHandle theInteraction)
	Process unpublish service call. More...

virtual void	subscribe (DtInteractionClassHandle theClass, bool active)
	Process subscribe service call. More...

virtual void	unsubscribe (DtInteractionClassHandle theClass)
	Process unsubscribe service call. More...

virtual unsigned long	send (DtInteractionClassHandle theInteraction, const DtPhvps &params, DtRtiApiTime const *theTime, DtRtiApiTagConstRef theTag, DtHandle channel, bool anonymous=false)
	Process send interaction service call. More...

virtual unsigned long	sendDirected (DtInteractionClassHandle theInteraction, DtObjectInstanceHandle objectInstance, const DtPhvps &params, DtRtiApiTagConstRef theTag, DtRtiApiTime const *theTime=nullptr)
	Process send directed interaction service call. More...

virtual MAKRti::DtTransportType	getTransport (DtInteractionClassHandle theClass)
	Get the transport for the given class. More...

virtual void	setTransport (DtInteractionClassHandle theClass, MAKRti::DtTransportType theType)
	Set the transport for the given class. More...

virtual void	requestInteractionTransportationTypeChange (DtInteractionClassHandle theClass, MAKRti::DtTransportType theType)
	Sets the transport for the given class then calls back to the federate ambassador for confirm interaction transportation type change. More...

virtual void	setOrder (DtInteractionClassHandle theClass, MAKRti::DtOrderType theType)
	Set the order for the given class. More...

virtual void	subscribeInteractionClassWithRegions (DtInteractionClassHandle theClass, RTI_API::RegionHandleSet const &theRegionHandleSet, bool active)
	Process subscribe with region. More...

virtual void	unsubscribeInteractionClassWithRegions (DtInteractionClassHandle theClass, RTI_API::RegionHandleSet const &theRegionHandleSet)
	Process unsubscribe with region. More...

virtual unsigned long	send (DtInteractionClassHandle theClass, const DtPhvps &params, RTI_API::RegionHandleSet const &theRegionHandleSet, RTI_API::LogicalTime const *theTime, RTI_API::VariableLengthData const &theTag, bool anonymous=false)
	Process send interaction with region Internal RTI interactions (i.e., MOM) are sent anonymously. More...

virtual int	acceptInteraction (const DtInteractionMsg &msg)
	DtIFSPEC13. More...

virtual int	subscribed (DtInteractionClassHandle handle)
	Returns 1 if subscribed to the class, 0 otherwise Assumes handle is defined. More...

virtual int	published (DtInteractionClassHandle handle)
	Returns 1 if published the class, 0 otherwise Assumes handle is defined. More...

virtual int	subscribed (DtInteractionClassInfo const *classDesc)
	Returns 1 if subscribed to the class, 0 otherwise Assumes handle is defined. More...

virtual bool	subscribed (DtObjectClassInfo const objectClassInfo, DtInteractionClassInfo const interactionClassInfo)
	Returns true if subscribed directed at the given object class (universal or not); otherwise, false. More...

virtual int	evaluateSubscription (DtRtiMsg const &msg)
	Determine if message is interaction and if so, is it subscribed e.g., would be delivered if processed Returns -1 if not an interaction, 0 if no delivery expected, 1 if delivery expected. More...

virtual void	sendSubscribeMsg (DtInteractionClassHandle theInter, bool isPassive, DtFederateHandle fedHandle)
	Send subscribe interaction message. More...

virtual void	sendSubscribeMsg (DtInteractionClassHandle theInter, bool isPassive, DtBitMask *sendMask=0)

virtual void	sendPublishMsg (DtInteractionClassHandle theInter)
	Send publish interaction message. More...

virtual void	sendUnsubscribeMsg (DtInteractionClassHandle theInter, bool forSmartForwarding=false)
	Send unsubscribe interaction message. More...

virtual void	sendUnpublishMsg (DtInteractionClassHandle theInter)
	Send unpublish interaction message. More...

virtual void	sendInteractionMsg (DtInteractionClassHandle theClass, const DtPhvps &theParams, MAKRti::DtTransportType transportType, MAKRti::DtOrderType orderType, DtRtiApiTime const *theTime, DtRtiApiTagConstRef theTag, unsigned long serialNumber, DtHandle channel, bool anonymous=false)
	Send interaction message. More...

virtual void	sendDirectedInteractionMsg (DtInteractionClassHandle interactionClass, DtRtiObject const &objectHandle, const DtPhvps &parameters, MAKRti::DtOrderType orderType, DtRtiApiTime const *time, DtRtiApiTagConstRef userTag, unsigned long serialNumber)
	Send interaction message. More...

virtual void	checkParameterHandles (DtInteractionClassInfo *classDesc, const DtPhvps &paramValues)
	Check the handles in the parameter handle value pair set. More...

virtual void	addPendingStartInters (DtInteractionClassHandle theClass)
	Add a turnOn/OffInteractions call that should be made in the next tick call. More...

virtual void	addPendingStopInters (DtInteractionClassHandle theClass)

virtual void	sendPendingStartInters ()
	Send pending turnOn/OffInteractions. More...

virtual void	sendPendingStopInters ()

virtual void	sendPendingSubscription ()
	Send/add pending subscription class retransmissions that will get sent during next tick. More...

virtual void	addPendingSubscription (DtInteractionClassHandle theClass, bool isPassive, DtFederateHandle fedHandle=0)

virtual void	sendPendingUnsubscription ()
	Send/add pending unsubscription class retransmissions that will get sent during next tick. More...

virtual void	addPendingUnsubscription (DtInteractionClassHandle theClass, bool forSmartForwarding)

virtual void	preTick ()
	Called before processing messages in RTI ambassador tick / evoke callbacks. More...

virtual void	postTick ()
	Called after processing messages in RTI ambassador tick / evoke callbacks. More...

virtual void	processResign (const DtResignMsg &msg)
	Process resign message. More...

virtual DtInteractionClassInfo *	firstSubscribedClass (DtInteractionClassInfo *classDesc)
	Determine the most specific superclass of class (including one provided) to which we are subscribed Returns the interaction class if qualified; otherwise, nullptr. More...

virtual DtInteractionClassInfo *	firstSubscribedDirectedClass (DtObjectClassInfo const knownObjectClass, bool attributesOwned, DtInteractionClassInfo classDesc)
	Determine the most specific superclass of interaction class (including one provided) to which we are subscribed directed at the known object. More...

virtual void	enableRelevanceAdvisorySwitch ()
	Enable/Disable interactionRelevanceAdvisorySwitch 1516 throws exception if call is redundant. More...

virtual void	disableRelevanceAdvisorySwitch ()

virtual void	setRelevanceAdvisorySwitch (bool enableSwitch)
	Set/Get value of interactionRelevanceAdvisorySwitch. More...

virtual bool	relevanceAdvisorySwitch () const

virtual MAKRti::DtInetAddr	localAddrMap (DtInteractionClassHandle theClass, DtHandle theChannel)
	Map the class and channel to a multicast address. More...

virtual void	checkForRegionalSubscribe (DtInteractionClassInfo &info)
	The empty methods below are overridden in the DtInterDataDistMgr and help implement DDM. More...

virtual void	checkForRegionalPublish (DtInteractionClassInfo &info)
	When subscribing, check whether region publication info needs to get sent to other LRCs/rtiexec along with the attrs. More...

virtual bool	save (DtRtiSaveFile &file)
	Save the state information to the given file. More...

virtual void	prepareToRestore ()
	Prepare the state information to be restored (i.e., clear out existing data). More...

virtual bool	restore (DtRtiSaveFile &file)
	Restore the state information from the given file. More...

virtual DtFederateMgr *	federateMgr ()
	Access the federate manager. More...

virtual DtFederateMgr *	federateMgr () const

virtual DtConnectionMgr *	connectMgr ()
	Access the connection manager. More...

virtual DtConnectionMgr *	connectMgr () const

virtual DtRIDParameters *	params ()
	Access the RID parameters. More...

virtual DtRIDParameters *	params () const

virtual DtFomClassMgr *	fom ()
	Access the fom manager. More...

virtual DtFomClassMgr *	fom () const

virtual DtTimeMgr *	timeMgr ()
	Access the time Manager. More...

virtual DtTimeMgr *	timeMgr () const

Static Public Member Functions
static DtInteractionMgr *	create (DtFederateMgr *fedMgrPtr)
	A Interaction Manager instance is created and its pointer is returned. More...

static void	setCreatorFunction (DtInteractionMgrCreator fn)
	Register a creator function. More...

static void	setInternalCreatorFunction (DtInteractionMgrCreator fn)
	Register alternate internal creators. More...

Protected Types
typedef std::map < DtInteractionClassHandle, DtBitMask * >	DtInteractionClassMaskMap

Protected Member Functions
	DtInteractionMgr (DtFederateMgr *fedMgr)
	Constructor. More...

virtual void	fastIncrementSentTally (DtInteractionClassHandle classHandle, MAKRti::DtTransportType transport)

virtual void	fastIncrementReceivedTally (DtInteractionClassHandle classHandle, MAKRti::DtTransportType transport)

virtual void	insertBitMask (DtInteractionClassMaskMap &classMaskMap, DtObjectClassHandle classHandle, DtFederateHandle fedHandle)

virtual DtPhvps *	getParameterValuesAndRegionHandles (const DtInteractionMsg &inter, DtObjectInstanceHandle objectHandle, DtPhvps &msgParams, DtInteractionClassInfo const **receiveClassDesc, RTI_API::RegionHandleSet &regionHandles)

virtual void	processInteraction (const DtInteractionMsg &msg)
	Message callbacks called from registered callbacks. More...

virtual void	processPub (const DtPubInterMsg &msg)

virtual void	processUnpub (const DtUnpubInterMsg &msg)

virtual void	processSub (const DtSubInterMsg &msg)

virtual void	processUnsub (const DtUnsubInterMsg &msg)

virtual void	addClassMulticast (DtInteractionClassInfo *classDesc)
	Recursively add and remove the DM multicast address of this class and all its subclasses. More...

virtual void	removeClassMulticast (DtInteractionClassInfo *classDesc)

virtual void	calculateRegionSet (DtInteractionClassInfo const &sentClassInfo, DtInteractionClassInfo const &receivedClassInfo, unsigned long channel, RTI_API::RegionHandleSet &regionHandles)
	Calculate region set for processUpdate. More...

virtual void	destroyInteractionLists ()
	Destroy processing lists. More...

Static Protected Member Functions
static void	processInteraction (const DtInteractionMsg &msg, void *usr)
	Message callback methods to register with connection manager The class instance is expected for user data. More...

static void	processPub (const DtPubInterMsg &msg, void *usr)

static void	processUnpub (const DtUnpubInterMsg &msg, void *usr)

static void	processSub (const DtSubInterMsg &msg, void *usr)

static void	processUnsub (const DtUnsubInterMsg &msg, void *usr)

Protected Attributes
DtFederateMgr *	myFederateMgr
	Access to the federate manager. More...

bool	myIsJoined
	Manager has performed join processing. More...

MAKRti::DtList	myPendingStartIntersList
	Pending start/stop interactions. More...

MAKRti::DtList	myPendingStopIntersList

std::set< DtRtiMsgKind >	myConstrainedInteractionKinds

bool	myRelevanceSwitch
	Indicates whether relevance advisory is enabled. More...

DtInteractionClassHandleStdSet	myRetransmitSubClass
	Set of class subscriptions to retransmit. More...

DtInteractionClassMaskMap	myRetransmitSubClassMask

DtInteractionClassHandleStdSet	myRetransmitPassiveSubClass

DtInteractionClassHandleStdSet	myRetransmitUnsubClass
	Set of class unsubscriptions to retransmit. More...

DtInteractionClassHandleStdSet	myRetransmitUnsubClassForSmartForwarding

Static Protected Attributes
static DtInteractionMgrCreator	theCreator
	The plugin creator. More...

static DtInteractionMgrCreator	theInternalCreator
	The internal creator. More...

Private Member Functions
	DtInteractionMgr (DtInteractionMgr const &other)
	Copy constructor not implemented – Copy not allowed! More...

DtInteractionMgr &	operator= (DtInteractionMgr const &other)
	Assignment operator not implemented – Assignment not allowed! More...

Detailed Description

Instances of DtInteractionMgr manage the sending and receiving of interactions.

This class also handles subscription and publication information.

Member Typedef Documentation

typedef std::map< DtInteractionClassHandle, DtBitMask*> DtInteractionMgr::DtInteractionClassMaskMap

protected

typedef DtInteractionMgr*(* DtInteractionMgr::DtInteractionMgrCreator)(DtFederateMgr *fedMgr)

Creator function.

Constructor & Destructor Documentation

DtInteractionMgr::DtInteractionMgr ( DtFederateMgr * fedMgr )

protected

Constructor.

virtual DtInteractionMgr::~DtInteractionMgr ( )

virtual

Destructor.

DtInteractionMgr::DtInteractionMgr ( DtInteractionMgr const & other )

private

Copy constructor not implemented – Copy not allowed!

Member Function Documentation

virtual int DtInteractionMgr::acceptInteraction ( const DtInteractionMsg & msg )

virtual

DtIFSPEC13.

Return true if the interaction should be processed

virtual void DtInteractionMgr::addClassMulticast ( DtInteractionClassInfo * classDesc )

protectedvirtual

Recursively add and remove the DM multicast address of this class and all its subclasses.

virtual void DtInteractionMgr::addPendingStartInters ( DtInteractionClassHandle theClass )

virtual

Add a turnOn/OffInteractions call that should be made in the next tick call.

If relevanceAdvisorySwitch is false, it's a no-op.

virtual void DtInteractionMgr::addPendingStopInters ( DtInteractionClassHandle theClass )

virtual

virtual void DtInteractionMgr::addPendingSubscription	(	DtInteractionClassHandle	theClass,
		bool	isPassive,
		DtFederateHandle	fedHandle = `0`
	)

virtual

virtual void DtInteractionMgr::addPendingUnsubscription	(	DtInteractionClassHandle	theClass,
		bool	forSmartForwarding
	)

virtual

virtual void DtInteractionMgr::calculateRegionSet	(	DtInteractionClassInfo const &	sentClassInfo,
		DtInteractionClassInfo const &	receivedClassInfo,
		unsigned long	channel,
		RTI_API::RegionHandleSet &	regionHandles
	)

inlineprotectedvirtual

Calculate region set for processUpdate.

virtual void DtInteractionMgr::checkForRegionalPublish ( DtInteractionClassInfo & info )

inlinevirtual

When subscribing, check whether region publication info needs to get sent to other LRCs/rtiexec along with the attrs.

virtual void DtInteractionMgr::checkForRegionalSubscribe ( DtInteractionClassInfo & info )

inlinevirtual

The empty methods below are overridden in the DtInterDataDistMgr and help implement DDM.

When publishing, check whether region subscription info needs to get sent to other LRCs/rtiexec along with the attrs

virtual void DtInteractionMgr::checkParameterHandles	(	DtInteractionClassInfo *	classDesc,
		const DtPhvps &	paramValues
	)

virtual

Check the handles in the parameter handle value pair set.

virtual DtConnectionMgr* DtInteractionMgr::connectMgr ( )

virtual

Access the connection manager.

virtual DtConnectionMgr* DtInteractionMgr::connectMgr ( ) const

virtual

static DtInteractionMgr* DtInteractionMgr::create ( DtFederateMgr * fedMgrPtr )

static

A Interaction Manager instance is created and its pointer is returned.

A registered creator is used if present; otherwise, an internal class is instantiated.

virtual void DtInteractionMgr::destroyInteractionLists ( )

protectedvirtual

Destroy processing lists.

virtual void DtInteractionMgr::disableRelevanceAdvisorySwitch ( )

virtual

virtual void DtInteractionMgr::enableRelevanceAdvisorySwitch ( )

virtual

Enable/Disable interactionRelevanceAdvisorySwitch 1516 throws exception if call is redundant.

virtual int DtInteractionMgr::evaluateSubscription ( DtRtiMsg const & msg )

virtual

Determine if message is interaction and if so, is it subscribed e.g., would be delivered if processed Returns -1 if not an interaction, 0 if no delivery expected, 1 if delivery expected.

virtual void DtInteractionMgr::fastIncrementReceivedTally	(	DtInteractionClassHandle	classHandle,
		MAKRti::DtTransportType	transport
	)

protectedvirtual

virtual void DtInteractionMgr::fastIncrementSentTally	(	DtInteractionClassHandle	classHandle,
		MAKRti::DtTransportType	transport
	)

protectedvirtual

virtual DtFederateMgr* DtInteractionMgr::federateMgr ( )

virtual

Access the federate manager.

virtual DtFederateMgr* DtInteractionMgr::federateMgr ( ) const

virtual

virtual DtInteractionClassInfo* DtInteractionMgr::firstSubscribedClass ( DtInteractionClassInfo * classDesc )

virtual

Determine the most specific superclass of class (including one provided) to which we are subscribed Returns the interaction class if qualified; otherwise, nullptr.

virtual DtInteractionClassInfo* DtInteractionMgr::firstSubscribedDirectedClass	(	DtObjectClassInfo const *	knownObjectClass,
		bool	attributesOwned,
		DtInteractionClassInfo *	classDesc
	)

virtual

Determine the most specific superclass of interaction class (including one provided) to which we are subscribed directed at the known object.

Subscription does not qualify if subscription is not universal and no attributes are owned. Returns the interaction class if qualified; otherwise, nullptr

virtual DtFomClassMgr* DtInteractionMgr::fom ( )

virtual

Access the fom manager.

virtual DtFomClassMgr* DtInteractionMgr::fom ( ) const

virtual

virtual DtPhvps* DtInteractionMgr::getParameterValuesAndRegionHandles	(	const DtInteractionMsg &	inter,
		DtObjectInstanceHandle	objectHandle,
		DtPhvps &	msgParams,
		DtInteractionClassInfo const **	receiveClassDesc,
		RTI_API::RegionHandleSet &	regionHandles
	)

protectedvirtual

virtual MAKRti::DtTransportType DtInteractionMgr::getTransport ( DtInteractionClassHandle theClass )

virtual

Get the transport for the given class.

virtual void DtInteractionMgr::insertBitMask	(	DtInteractionClassMaskMap &	classMaskMap,
		DtObjectClassHandle	classHandle,
		DtFederateHandle	fedHandle
	)

protectedvirtual

virtual bool DtInteractionMgr::isPostJoined ( ) const

virtual

Return bool: Was the post join initialization performed?

virtual MAKRti::DtInetAddr DtInteractionMgr::localAddrMap	(	DtInteractionClassHandle	theClass,
		DtHandle	theChannel
	)

virtual

Map the class and channel to a multicast address.

DtInteractionMgr& DtInteractionMgr::operator= ( DtInteractionMgr const & other )

private

Assignment operator not implemented – Assignment not allowed!

virtual DtRIDParameters* DtInteractionMgr::params ( )

virtual

Access the RID parameters.

virtual DtRIDParameters* DtInteractionMgr::params ( ) const

virtual

virtual void DtInteractionMgr::postJoinInit ( )

virtual

Post join processing. All managers shall have been created and initialized.

virtual void DtInteractionMgr::postTick ( )

virtual

Called after processing messages in RTI ambassador tick / evoke callbacks.

virtual void DtInteractionMgr::prepareToRestore ( )

virtual

Prepare the state information to be restored (i.e., clear out existing data).

virtual void DtInteractionMgr::preTick ( )

virtual

Called before processing messages in RTI ambassador tick / evoke callbacks.

virtual void DtInteractionMgr::processInteraction ( const DtInteractionMsg & msg )

protectedvirtual

Message callbacks called from registered callbacks.

static void DtInteractionMgr::processInteraction	(	const DtInteractionMsg &	msg,
		void *	usr
	)

staticprotected

Message callback methods to register with connection manager The class instance is expected for user data.

virtual void DtInteractionMgr::processPub ( const DtPubInterMsg & msg )

protectedvirtual

static void DtInteractionMgr::processPub	(	const DtPubInterMsg &	msg,
		void *	usr
	)

staticprotected

virtual void DtInteractionMgr::processResign ( const DtResignMsg & msg )

virtual

Process resign message.

virtual void DtInteractionMgr::processSub ( const DtSubInterMsg & msg )

protectedvirtual

static void DtInteractionMgr::processSub	(	const DtSubInterMsg &	msg,
		void *	usr
	)

staticprotected

virtual void DtInteractionMgr::processUnpub ( const DtUnpubInterMsg & msg )

protectedvirtual

static void DtInteractionMgr::processUnpub	(	const DtUnpubInterMsg &	msg,
		void *	usr
	)

staticprotected

virtual void DtInteractionMgr::processUnsub ( const DtUnsubInterMsg & msg )

protectedvirtual

static void DtInteractionMgr::processUnsub	(	const DtUnsubInterMsg &	msg,
		void *	usr
	)

staticprotected

virtual void DtInteractionMgr::publish ( DtInteractionClassHandle theInteraction )

virtual

Process publish service call.

virtual int DtInteractionMgr::published ( DtInteractionClassHandle handle )

virtual

Returns 1 if published the class, 0 otherwise Assumes handle is defined.

virtual bool DtInteractionMgr::relevanceAdvisorySwitch ( ) const

virtual

virtual void DtInteractionMgr::removeClassMulticast ( DtInteractionClassInfo * classDesc )

protectedvirtual

virtual void DtInteractionMgr::requestInteractionTransportationTypeChange	(	DtInteractionClassHandle	theClass,
		MAKRti::DtTransportType	theType
	)

virtual

Sets the transport for the given class then calls back to the federate ambassador for confirm interaction transportation type change.

virtual bool DtInteractionMgr::restore ( DtRtiSaveFile & file )

virtual

Restore the state information from the given file.

virtual bool DtInteractionMgr::save ( DtRtiSaveFile & file )

virtual

Save the state information to the given file.

virtual unsigned long DtInteractionMgr::send	(	DtInteractionClassHandle	theInteraction,
		const DtPhvps &	params,
		DtRtiApiTime const *	theTime,
		DtRtiApiTagConstRef	theTag,
		DtHandle	channel,
		bool	anonymous = `false`
	)

virtual

Process send interaction service call.

virtual unsigned long DtInteractionMgr::send	(	DtInteractionClassHandle	theClass,
		const DtPhvps &	params,
		RTI_API::RegionHandleSet const &	theRegionHandleSet,
		RTI_API::LogicalTime const *	theTime,
		RTI_API::VariableLengthData const &	theTag,
		bool	anonymous = `false`
	)

inlinevirtual

Process send interaction with region Internal RTI interactions (i.e., MOM) are sent anonymously.

virtual unsigned long DtInteractionMgr::sendDirected	(	DtInteractionClassHandle	theInteraction,
		DtObjectInstanceHandle	objectInstance,
		const DtPhvps &	params,
		DtRtiApiTagConstRef	theTag,
		DtRtiApiTime const *	theTime = `nullptr`
	)

virtual

Process send directed interaction service call.

virtual void DtInteractionMgr::sendDirectedInteractionMsg	(	DtInteractionClassHandle	interactionClass,
		DtRtiObject const &	objectHandle,
		const DtPhvps &	parameters,
		MAKRti::DtOrderType	orderType,
		DtRtiApiTime const *	time,
		DtRtiApiTagConstRef	userTag,
		unsigned long	serialNumber
	)

virtual

Send interaction message.

virtual void DtInteractionMgr::sendInteractionMsg	(	DtInteractionClassHandle	theClass,
		const DtPhvps &	theParams,
		MAKRti::DtTransportType	transportType,
		MAKRti::DtOrderType	orderType,
		DtRtiApiTime const *	theTime,
		DtRtiApiTagConstRef	theTag,
		unsigned long	serialNumber,
		DtHandle	channel,
		bool	anonymous = `false`
	)

virtual

Send interaction message.

virtual void DtInteractionMgr::sendPendingStartInters ( )

virtual

Send pending turnOn/OffInteractions.

virtual void DtInteractionMgr::sendPendingStopInters ( )

virtual

virtual void DtInteractionMgr::sendPendingSubscription ( )

virtual

Send/add pending subscription class retransmissions that will get sent during next tick.

virtual void DtInteractionMgr::sendPendingUnsubscription ( )

virtual

Send/add pending unsubscription class retransmissions that will get sent during next tick.

virtual void DtInteractionMgr::sendPublishMsg ( DtInteractionClassHandle theInter )

virtual

Send publish interaction message.

virtual void DtInteractionMgr::sendSubscribeMsg	(	DtInteractionClassHandle	theInter,
		bool	isPassive,
		DtFederateHandle	fedHandle
	)

virtual

Send subscribe interaction message.

virtual void DtInteractionMgr::sendSubscribeMsg	(	DtInteractionClassHandle	theInter,
		bool	isPassive,
		DtBitMask *	sendMask = `0`
	)

virtual

virtual void DtInteractionMgr::sendUnpublishMsg ( DtInteractionClassHandle theInter )

virtual

Send unpublish interaction message.

virtual void DtInteractionMgr::sendUnsubscribeMsg	(	DtInteractionClassHandle	theInter,
		bool	forSmartForwarding = `false`
	)

virtual

Send unsubscribe interaction message.

static void DtInteractionMgr::setCreatorFunction ( DtInteractionMgrCreator fn )

static

Register a creator function.

When set, it will be used to create the Interaction Manager.

static void DtInteractionMgr::setInternalCreatorFunction ( DtInteractionMgrCreator fn )

static

Register alternate internal creators.

The RTI proper uses this function to choose from various internal implementations. This function should not be used by plugins as the assignment may be overridden internally. Use the setCreatorFunction.

virtual void DtInteractionMgr::setOrder	(	DtInteractionClassHandle	theClass,
		MAKRti::DtOrderType	theType
	)

virtual

Set the order for the given class.

virtual void DtInteractionMgr::setRelevanceAdvisorySwitch ( bool enableSwitch )

virtual

Set/Get value of interactionRelevanceAdvisorySwitch.

virtual void DtInteractionMgr::setTransport	(	DtInteractionClassHandle	theClass,
		MAKRti::DtTransportType	theType
	)

virtual

Set the transport for the given class.

virtual void DtInteractionMgr::subscribe	(	DtInteractionClassHandle	theClass,
		bool	active
	)

virtual

Process subscribe service call.

virtual int DtInteractionMgr::subscribed ( DtInteractionClassHandle handle )

virtual

Returns 1 if subscribed to the class, 0 otherwise Assumes handle is defined.

virtual int DtInteractionMgr::subscribed ( DtInteractionClassInfo const * classDesc )

virtual

Returns 1 if subscribed to the class, 0 otherwise Assumes handle is defined.

virtual bool DtInteractionMgr::subscribed	(	DtObjectClassInfo const *	objectClassInfo,
		DtInteractionClassInfo const *	interactionClassInfo
	)

virtual

Returns true if subscribed directed at the given object class (universal or not); otherwise, false.

virtual void DtInteractionMgr::subscribeInteractionClassWithRegions	(	DtInteractionClassHandle	theClass,
		RTI_API::RegionHandleSet const &	theRegionHandleSet,
		bool	active
	)

inlinevirtual

Process subscribe with region.

virtual DtTimeMgr* DtInteractionMgr::timeMgr ( )

virtual

Access the time Manager.

virtual DtTimeMgr* DtInteractionMgr::timeMgr ( ) const

virtual

virtual void DtInteractionMgr::unpublish ( DtInteractionClassHandle theInteraction )

virtual

Process unpublish service call.

virtual void DtInteractionMgr::unsubscribe ( DtInteractionClassHandle theClass )

virtual

Process unsubscribe service call.

virtual void DtInteractionMgr::unsubscribeInteractionClassWithRegions	(	DtInteractionClassHandle	theClass,
		RTI_API::RegionHandleSet const &	theRegionHandleSet
	)

inlinevirtual

Process unsubscribe with region.

Member Data Documentation

std::set<DtRtiMsgKind> DtInteractionMgr::myConstrainedInteractionKinds

protected

DtFederateMgr* DtInteractionMgr::myFederateMgr

protected

Access to the federate manager.

bool DtInteractionMgr::myIsJoined

protected

Manager has performed join processing.

MAKRti::DtList DtInteractionMgr::myPendingStartIntersList

protected

Pending start/stop interactions.

MAKRti::DtList DtInteractionMgr::myPendingStopIntersList

protected

bool DtInteractionMgr::myRelevanceSwitch

protected

Indicates whether relevance advisory is enabled.

DtInteractionClassHandleStdSet DtInteractionMgr::myRetransmitPassiveSubClass

protected

DtInteractionClassHandleStdSet DtInteractionMgr::myRetransmitSubClass

protected

Set of class subscriptions to retransmit.

DtInteractionClassMaskMap DtInteractionMgr::myRetransmitSubClassMask

protected

DtInteractionClassHandleStdSet DtInteractionMgr::myRetransmitUnsubClass

protected

Set of class unsubscriptions to retransmit.

DtInteractionClassHandleStdSet DtInteractionMgr::myRetransmitUnsubClassForSmartForwarding

protected

DtInteractionMgrCreator DtInteractionMgr::theCreator

staticprotected

The plugin creator.

DtInteractionMgrCreator DtInteractionMgr::theInternalCreator

staticprotected

The internal creator.

The documentation for this class was generated from the following file:

interMgr.h

Public Types

Public Member Functions

Static Public Member Functions

Protected Types

Protected Member Functions

Static Protected Member Functions

Protected Attributes

Static Protected Attributes

Private Member Functions

Detailed Description

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
