End User Descriptoon: DtActuatorComponentDescriptor contains parameters common to all actuator component descriptors in VR-Forces. More...

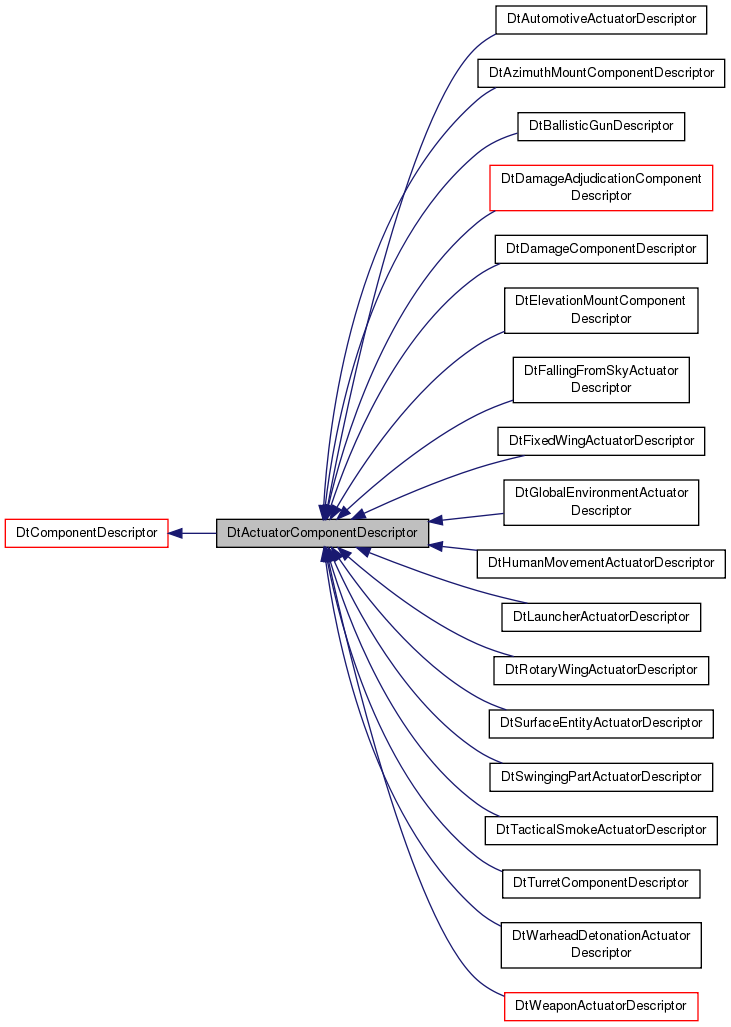

Inheritance diagram for DtActuatorComponentDescriptor:

[legend]

Public Member Functions
	DtActuatorComponentDescriptor (const DtString &componentName, DtReaderWriterRegistry *parentRegistry=NULL)
	constructor
	DtActuatorComponentDescriptor (const DtSymbolString &componentName, DtReaderWriterRegistry *parentRegistry=NULL)
	DtActuatorComponentDescriptor (const DtActuatorComponentDescriptor &orig, DtReaderWriterRegistry *parentRegistry=NULL)
	copy constructor
DtActuatorComponentDescriptor &	operator= (const DtActuatorComponentDescriptor &orig)
	assignment
virtual	~DtActuatorComponentDescriptor ()
	destructor
virtual DtString	type () const
	Returns the type of component this descriptor describes.
virtual DtComponentDescriptor *	clone (DtReaderWriterRegistry *parentRegistry=0) const

virtual void	setArtPartDescriptorList (const DtSimArtPartDescriptorList &artPartDescriptorList)
	Accessor/mutator for myArtPartDescriptorList.
virtual const DtSimArtPartDescriptorList &	artPartDescriptorList () const
	Accessor/mutator for myArtPartDescriptorList.
Public Member Functions inherited from DtComponentDescriptor
	DtComponentDescriptor (const DtComponentDescriptor &orig, DtReaderWriterRegistry *parentRegistry=NULL)
	copy constructor
DtComponentDescriptor &	operator= (const DtComponentDescriptor &orig)
	assignment
virtual	~DtComponentDescriptor ()
virtual void	putData (FILE *fp, int indentLevel=0)
	Overrides base class putData to output our type.
virtual DtlObjPtr	getData (DtlObjPtr args, const DtFilename &searchPath, const DtVariableBindingsList &variableBindings)
	getData is just used to get us past the type in the data stream, since it's not actually stored.
virtual bool	init ()
	Base class init does nothing, but will be called by createComponentDescriptor(), allowing derived classes to do memory allocation if necessary.
	DtComponentDescriptor (const DtString &componentName, DtReaderWriterRegistry *parentRegistry=NULL)
	DtComponentDescriptor (const DtSymbolString &componentName, DtReaderWriterRegistry *parentRegistry=NULL)
virtual void	setComponentType (const DtString &componentType)
	Type of DtSimComponent this descriptor is associated with.
virtual const DtString &	componentType () const
	Type of DtSimComponent this descriptor is associated with.
virtual void	setMinTickPeriod (DtReal minTickPeriod)
virtual DtReal	minTickPeriod () const
virtual void	setMinTickPeriodVariance (DtReal minTickPeriodVariance)
virtual DtReal	minTickPeriodVariance () const
virtual void	setTickPeriodUsesRealTime (bool value)
	Accessor/mutator for myTickPeriodUsesRealTime.
virtual bool	tickPeriodUsesRealTime () const
	Accessor/mutator for myTickPeriodUsesRealTime.
virtual const DtString &	processStateRepositoryName () const
	Name which this component will assign to its PSR.
virtual void	setProcessStateRepositoryName (const DtString &name)
	Name which this component will assign to its PSR.
virtual const DtString &	processStateRepositoryType () const
	Type of PSR this component will create.
virtual void	setProcessStateRepositoryType (const DtString &type)
	Type of PSR this component will create.
virtual void	setIsEnabled (bool yesNo)
	Is the component enabled or not.
virtual bool	isEnabled () const
	Is the component enabled or not.
Public Member Functions inherited from DtReaderWriter
	DtReaderWriter ()
	default constructor
	DtReaderWriter (const DtString &name, DtReaderWriterRegistry *parentRegistry=NULL, bool readonly=false)
	real constructor Setting the readonly flag prevents object from writing itself to the stream.
	DtReaderWriter (const DtSymbolString &name, DtReaderWriterRegistry *parentRegistry=NULL, bool readonly=false)
	DtReaderWriter (const DtString &name, const DtReaderWriter &orig, DtReaderWriterRegistry *parentRegistry=NULL)
	copy constructor
	DtReaderWriter (const DtSymbolString &name, const DtReaderWriter &orig, DtReaderWriterRegistry *parentRegistry=NULL)
const DtReaderWriter &	operator= (const DtReaderWriter &orig)
	assignment operator
virtual	~DtReaderWriter ()
	destructor
virtual void	putSelf (FILE *fp, int indentLevel=0, bool writeUnspecified=false, const DtFilename &path=DtFilename::nullFilename())
	Top level call to write itself to file.
virtual void	getSelf (DtlObjPtr args, const DtFilename &searchPath=DtFilename::nullFilename(), const DtVariableBindingsList &variableBindings=nullVariableReference())
	Top level to read itself from an input stream.
virtual void	writeSelf (FILE *fp, int indentLevel=0, bool writeUnspecified=false, const DtFilename &path=DtFilename::nullFilename())
	Called from putSelf, calls myRegistry.putSelf which in turn calls putSelf on each reader/writer in the registry.
virtual DtSymbolString	name () const
	Accessor for name of this readable/writable object.
virtual void	addAlias (const DtSymbolString &alias)
	Add an alias as an alternative name for this object.
virtual bool	hasAlias (const DtSymbolString &alias)
virtual const aliasContainer &	aliases () const
virtual void	setReadonly (bool flag)
	Set read-only flag.
virtual bool	isReadonly () const
virtual bool	variableIsBound () const
virtual void	unbindVariable ()
	Sets the myVariableIsBound flag to false.
virtual void	setName (const DtString &)
	Set the name of the object.
virtual const char *	readerWriterType () const
	Used to supply a string type that this reader writer type is.
virtual DtString	prettyPrint () const
	Routine to return a human readable form of the reader/writer variable.
virtual void	bindVariables (DtVariableBindingsList variableBindings)
	Runs a variable binding pass on this reader writer and any of its children.
virtual std::list < DtVariableNameType >	unboundVariables () const
bool	invalid () const
virtual bool	hasChild (const DtReaderWriter *p) const
	Returns true if this variable has a child p in it's chain.
virtual void	setValueSpecified (bool specified, bool recurse=false)
	The specified flags are used for optional values.
virtual bool	valueSpecified () const
	The specified flags are used for optional values.
virtual bool	isVariableReference () const
	Specifies whether or not this reader writer is really a variable that is specified elsewhere.
virtual void	setIsVariableReference (bool value)
virtual DtSymbolString	variableName () const
	The variable name, if this object is a variable reference.
virtual void	setVariableName (const DtSymbolString variableName)
	The variable name, if this object is a variable reference.
const DtReaderWriterRegistry &	registry () const
	Collection of child DtReaderWriter nodes owned by this object.
DtReaderWriterRegistry &	registry ()
	Collection of child DtReaderWriter nodes owned by this object.

Static Public Member Functions
static DtComponentDescriptor *	creator ()

Static Public Member Functions inherited from DtComponentDescriptor
static void	addComponentDescriptorCreatorFcn (const DtString &type, DtComponentDescriptorCreatorFcn fcn)
	Adds a given component descriptor creation function and corresponding type (defined in compDescTypes.h) to the DtComponentDescriptorFactory.
static DtComponentDescriptor *	createComponentDescriptor (DtlObjPtr mtlStream, const DtFilename &searchPath, const DtVariableBindingsList &variableBindings)
	Creates and initializes a component descriptor when reading in from an MTL (MAK Technologies Lisp) file (i.e.
static DtComponentDescriptor *	createComponentDescriptor (const char *pName)
	Creates and initializes a new instance of this class.
static DtComponentDescriptorFactory *	factory ()
	The factory for creating objects of type DtComponentDescriptor.
static void	setFactory (DtComponentDescriptorFactory *factory)
	The factory for creating objects of type DtComponentDescriptor.
Static Public Member Functions inherited from DtReaderWriter
static void	putIndent (FILE *fp, int indentLevel)
static const DtVariableBindingsList &	nullVariableReference ()
static void	setPostGetSelfCallback (DtGetSelfCallbackFcn fcn, void *usrData)
static void	setPrePutSelfCallback (DtPutSelfCallbackFcn fcn, void *usrData)
static const DtFilename &	appPath ()
	Gets the current working directory.

Protected Member Functions
	DtActuatorComponentDescriptor ()
	default constructor; not implemented
Protected Member Functions inherited from DtComponentDescriptor
	DtComponentDescriptor ()
	default constructor; not implemented
Protected Member Functions inherited from DtReaderWriter
virtual void	bindToRwAsVariable (const DtReaderWriter *rw)
	Copies values from the specified DtReaderWriter.
virtual void	bindLocalVariables (const DtVariableBindingsList &variableBindings)
	Checks to see if this RW object is a variable reference that can be bound using the provided bindings.

Protected Attributes
parameters
These parameters are available for setting in the OPD files.
DtSimArtPartDescriptorList	myArtPartDescriptorList
	Parameter Name: art-part-list Parameter Description: List of articulated parts associated with this actuator.
Protected Attributes inherited from DtComponentDescriptor
DtRwBoolean	myIsEnabled
DtRwString	myComponentType
	Parameter Name: component-type Parameter Description: String identifying type of component.
DtRwReal	myMinTickPeriod
	Parameter Name: min-tick-period Parameter Description: Minimum tick period for this component.
DtRwReal	myMinTickPeriodVariance
	Parameter Name: min-tick-period-variance Parameter Description: Minimum tick period for this component.
DtRwBoolean	myTickPeriodUsesRealTime
	Parameter Name: tick-period-uses-real-time Parameter Description: Specified whether the min-tick-period and min-tick-period-variance parameters are based on real time or simulation time.
DtRwString	myProcessStateRepositoryName
	Parameter Name: process-state-repository-name Parameter Description: Name of the process state repository associated with this component.
DtRwString	myProcessStateRepositoryType
	Parameter Name: process-state-repository-type Parameter Description: Type of the process state repository assoicated with this component.
Protected Attributes inherited from DtReaderWriter
const DtSymbolString	myName
DtReaderWriterRegistry	myRegistry
bool	myValueSpecified
bool	myReadOnlyFlag
bool	myIsVariableReference
DtSymbolString	myVariableName
bool	myVariableIsBound
aliasContainer	myAliases
	Container for the aliases which represent alternative names for the object.
bool	myInvalid
	Set to true if there is a problem reading this item.

Additional Inherited Members
Public Types inherited from DtReaderWriter
typedef std::vector < DtSymbolString >	aliasContainer
typedef std::vector < DtSymbolString >::iterator	aliasIter
typedef std::vector < DtSymbolString > ::const_iterator	aliasConstIter
typedef std::pair < DtSymbolString, DtString >	DtVariableNameType
Static Protected Attributes inherited from DtComponentDescriptor
static DtComponentDescriptorFactory *	myFactory

Detailed Description

End User Descriptoon: DtActuatorComponentDescriptor contains parameters common to all actuator component descriptors in VR-Forces.

Developer Description: DtActuatorComponentDescriptor is used to specify actuator components. It derives from DtComponentDescriptor. It adds a DtSimArtPartDescriptorList list of articulating parts that the actuator will model. The DtSimArtPartDescriptorList includes the information needed for VR-Link to represent articulated parts on the network. All actuators must use a DtActuatorComponentDescriptor, even if there are no articulating parts involved.

DtSimArtPartDescriptorList is a DtList of DtSimArtPartDescriptors. The DtSimArtPartDescriptor specifies a part type and a parent part type that are VR-Link articulated part types, a vector that represents where the articulating part is attached (in the parent part's coordinate system), and a DtSimArtPartParamList. The DtSimArtPartParamList is a DtList of the VR-Link articulated part parameter types the part should use. Enumerations for various types of articulated parts can be found in disEnums.h file. DtArtPartType is the type of articulated part that will be attached to the entity or another part like a turret or missile launcher. DtArtParamType describes the different types of parameters an articulated part has that will describe its motion. For example, a DtApAzimuth parameter will specify that the articulated part should rotate around the z axis of the part.

Constructor & Destructor Documentation

DtActuatorComponentDescriptor::DtActuatorComponentDescriptor	(	const DtString &	componentName,
		DtReaderWriterRegistry *	parentRegistry = `NULL`
	)

constructor

DtActuatorComponentDescriptor::DtActuatorComponentDescriptor	(	const DtSymbolString &	componentName,
		DtReaderWriterRegistry *	parentRegistry = `NULL`
	)

DtActuatorComponentDescriptor::DtActuatorComponentDescriptor	(	const DtActuatorComponentDescriptor &	orig,
		DtReaderWriterRegistry *	parentRegistry = `NULL`
	)

copy constructor

virtual DtActuatorComponentDescriptor::~DtActuatorComponentDescriptor ( )

virtual

destructor

DtActuatorComponentDescriptor::DtActuatorComponentDescriptor ( )

protected

default constructor; not implemented

Member Function Documentation

DtActuatorComponentDescriptor& DtActuatorComponentDescriptor::operator= ( const DtActuatorComponentDescriptor & orig )

assignment

virtual DtString DtActuatorComponentDescriptor::type ( ) const

virtual

Returns the type of component this descriptor describes.

Used to create the descriptor on read from an mtl file. Component descriptor type strings are defined in compDescTypes.h.

Returns: DtActuatorComponentDescriptorType

Reimplemented from DtComponentDescriptor.

virtual DtComponentDescriptor* DtActuatorComponentDescriptor::clone ( DtReaderWriterRegistry * parentRegistry = 0 ) const

virtual

virtual void DtActuatorComponentDescriptor::setArtPartDescriptorList ( const DtSimArtPartDescriptorList & artPartDescriptorList )

virtual

Accessor/mutator for myArtPartDescriptorList.

virtual const DtSimArtPartDescriptorList& DtActuatorComponentDescriptor::artPartDescriptorList ( ) const

virtual

Accessor/mutator for myArtPartDescriptorList.

static DtComponentDescriptor* DtActuatorComponentDescriptor::creator ( )

static

Returns: Newly created instance of this class, with an empty DtReaderWriter name. Creation methods are registered with a DtComponentDescriptorFactory, so they can be created on demand as they are read in from a parameter database file.

Reimplemented from DtComponentDescriptor.

Member Data Documentation

DtSimArtPartDescriptorList DtActuatorComponentDescriptor::myArtPartDescriptorList

protected

Parameter Name: art-part-list
Parameter Description: List of articulated parts associated with this actuator.

Parameter Default Value:

The documentation for this class was generated from the following file:

include/vrfobjparam/actCompDesc.h

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
