makVrv::DtStateVisualizer Class Reference
vrvCore

The DtStateVisualizer is an abstract class. More...

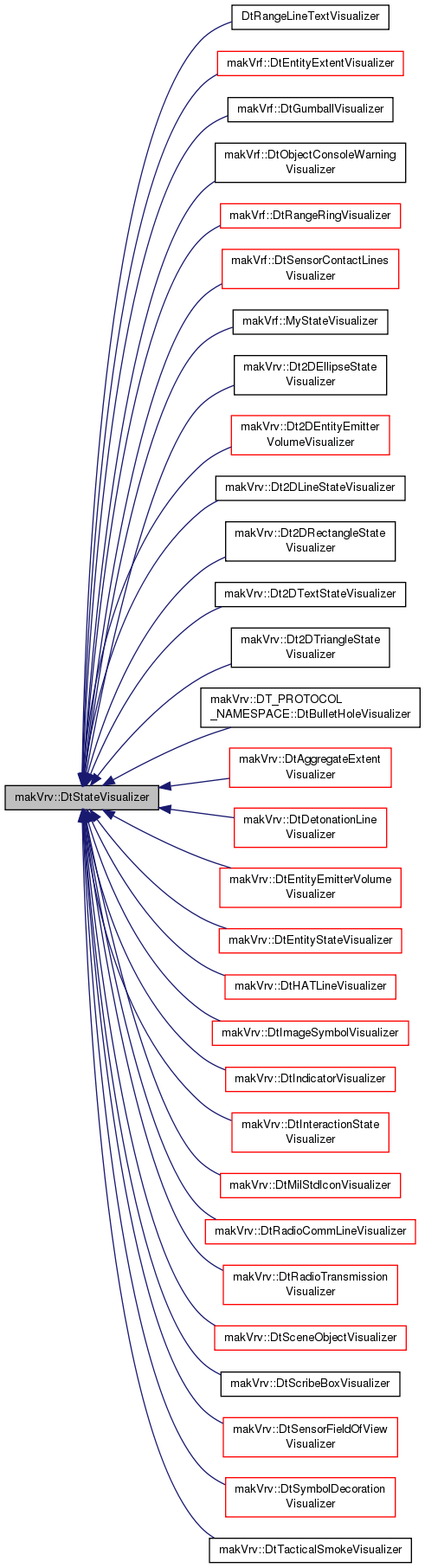

Inheritance diagram for makVrv::DtStateVisualizer:
Inheritance graph
[legend]

Classes

struct  TypeInfo
 Struct to hold metadata about each functional visualizer type This allows users of the factory to get information about a visualizer without knowing its tag. More...

Public Types

enum  Type {
  AllVisualizerTypes = 0, EntityVisualizerType = 1, EnvironmentalVisualizerType, InteractionVisualizerType,
  AggregateVisualizerType, IntervisibilityVisualizerType, TacticalSmokeVisualizerType, UserType = 10000
}
 Visualizer class types that are supportable via visualizers. More...

Public Member Functions

 DtStateVisualizer (DtBaseConnection &connection, DtStateListener &listener, int modelSet)
 CTOR.
virtual ~DtStateVisualizer ()
 DTOR.
virtual void createModelAgents ()=0
 Override to create model agents that will be used to display data from the listener.
virtual void destroyModelAgents ()=0
 Destroys all currently created definitions.
virtual const TypeInfo & typeInfo () const =0
 Get the type info.
virtual void setParent (DtStateVisualizer *)
 Override to set the parent of this visualizer.
void setModelDefinition (const std::string &definition)
 Sets the model definition and creates agent(s) based on that definition.
const std::string & modelDefinition () const
 Gets the current model definition.
virtual bool setVisible (bool visible, int context)
 Returns true if this context wants to show or hide the item.
virtual void initialize ()
 Initialize the visualizer.
virtual bool isVisible () const
 Returns true if visible.
virtual void setSelected (bool)
 Sets selected state.
virtual bool selected () const
void setName (const std::string &)
 Internal name of state visualizer.
const std::string & name () const
virtual void setPickable (bool)
 Sets pickable state.
virtual bool pickable () const
virtual void setUniqueID (DtUniqueID id)
DtUniqueID uniqueID () const
int visualizerType () const
void setShowHideContext (const std::vector< int > &s)
 Set show/hide context without changing visibility of item.
virtual void setVisualizerDefinition (const DtVisualizerDefinition &)
 Set any other additional visualizer information from the visual record.
DtStateListener & listener ()
DtBaseConnection & simulation ()
 Get the connection for this visualizer.
void setDistribute (bool b)
 Whether or not to distribute over the network.
bool distribute () const

Public Attributes

boost::signal< void(DtStateVisualizer
*, DtStateVisualizer
*, DtStateVisualizer *)> 		signal_reparented
 Signaled when the parent of this item changes, called before destroying any model agents.
boost::signal< void(DtMouseState
&, const DtUniqueID &, const
std::string &, const
std::string &, const
std::string
&, DtStateVisualizer *)> 		signal_mouseDown
 Emitted when the entity's indicator is clicked.
boost::signal< void(DtMouseState
&, const DtUniqueID &, const
std::string &, const
std::string &, const
std::string
&, DtStateVisualizer *)> 		signal_mouseUp
boost::signal< void(DtMouseState
&, const DtUniqueID &, const
std::string &, const
std::string &, const
std::string
&, DtStateVisualizer *)> 		signal_mouseDblClick

Protected Member Functions

virtual void slot_mouseDown (DtMouseState &mouseState, const std::string &displayEngineName, const std::string &windowName, const std::string &channelName)
 Called when the mouse is clicked in this visualizer.
virtual void slot_mouseUp (DtMouseState &mouseState, const std::string &displayEngineName, const std::string &windowName, const std::string &channelName)
virtual void slot_mouseDblClick (DtMouseState &mouseState, const std::string &displayEngineName, const std::string &windowName, const std::string &channelName)
virtual bool hide (int context)
 Will call destroyModelAgents(), if, when the context is added, it is the first context in the list.
virtual bool show (int context)
 Will call createModelAgents(), if, when context is removed from myShowHideContexts, the list size is zero.
virtual bool supportsShowHideContext (int) const
 Default returns true.
virtual void setModelDefinitionForAgents ()=0
 Sets model definition for all the agents that this visualizer might be using.
template<typename T , typename C >
void connectAndUpdate (boost::signal< void(T)> &sig, void(C::*fp)(T), T val)
 Connect a signal and update the entity.

Protected Attributes

DtBaseConnection & mySimulation
DtStateListener & myListener
bool myDistributeFlag
DtUniqueID myUniqueID
std::string myName
std::string myModelDefinition
DtSignalConnectionManager myConnections
int myModelSet
int myVisualizerType
std::vector< int > myShowHideContexts
bool mySelected
bool myPickable
bool myVisible
DtStateVisualizer * myParent
DtSceneObjectAgent * mySceneObjectAgent

Private Member Functions

 DtStateVisualizer ()
 Default constructor.
 DtStateVisualizer (const DtStateVisualizer &)
 Copy constructor.
DtStateVisualizer & operator= (const DtStateVisualizer &)
 Assignment Operator.

Detailed Description

The DtStateVisualizer is an abstract class.

Developers derive from this to create logic that "directs" things in the VRV framework.

Member Enumeration Documentation

enum makVrv::DtStateVisualizer::Type

Visualizer class types that are supportable via visualizers.

Each visualizer can be created by an instance visualizer that supports the creation of matching class types.

Enumerator:
AllVisualizerTypes
EntityVisualizerType
EnvironmentalVisualizerType
InteractionVisualizerType
AggregateVisualizerType
IntervisibilityVisualizerType
TacticalSmokeVisualizerType
UserType

Constructor & Destructor Documentation

makVrv::DtStateVisualizer::DtStateVisualizer ( DtBaseConnection &  connection,
DtStateListener &  listener,
int  modelSet
)

CTOR.

virtual makVrv::DtStateVisualizer::~DtStateVisualizer ( )
virtual

DTOR.

makVrv::DtStateVisualizer::DtStateVisualizer ( )
private

Default constructor.

Note
Not implemented
makVrv::DtStateVisualizer::DtStateVisualizer ( const DtStateVisualizer &  )
private

Copy constructor.

Note
Not implemented

Member Function Documentation

virtual void makVrv::DtStateVisualizer::createModelAgents ( )
pure virtual

Override to create model agents that will be used to display data from the listener.

Implemented in makVrf::VRF_PROTOCOL_NAMESPACE::DtVrfVrlink2DAggregateExtentVisualizer, makVrf::VRF_PROTOCOL_NAMESPACE::DtVrfVrlink3DAggregateExtentVisualizer, makVrv::DtEnvironmentalVertexVisualizer, makVrv::DtEntityKinStateVisualizer, makVrv::DtMilStdIconVisualizer, makVrv::DtEntityWakeVisualizer, makVrf::VRF_PROTOCOL_NAMESPACE::DtVrlinkAggregateArticulatedStateModelVisualizer, makVrv::DtEllipseVisualizer, makVrv::Dt3DLineStateVisualizer, makVrv::DtEntityArticulatedStateModelVisualizer, makVrv::DtEnvironmentalPointKinStateVisualizer, makVrv::DtIntervisibilityVertexVisualizer, makVrv::DtHATLineVisualizer, makVrf::DtVrf3DAggregateExtentVisualizer, makVrv::DtImageSymbolVisualizer, makVrf::DtVrf2DAggregateExtentVisualizer, makVrv::Dt2DLineStateVisualizer, makVrf::DtRangeRingVisualizer, makVrv::DtEntityDIGuyStateVisualizer, makVrv::DtCylinderStateVisualizer, makVrv::DT_PROTOCOL_NAMESPACE::DtBulletHoleVisualizer, makVrv::DtEnvironmentalVolumetricLineVisualizer, makVrv::DtIndicatorVisualizer, makVrv::Dt2DRectangleStateVisualizer, makVrv::DtIntervisibilityFanVisualizer, makVrv::DtTacticalSmokeVisualizer, makVrv::DT_PROTOCOL_NAMESPACE::DtVrlinkEntityArticulatedStateModelVisualizer, makVrv::Dt3DTextStateVisualizer, makVrv::DtAttributeGroupStateVisualizer, makVrv::Dt2DEllipseStateVisualizer, makVrv::DtEllipsoidStateVisualizer, makVrv::DtIntervisibilityEntityFanVisualizer, makVrv::DtIntervisibilityLineVisualizer, makVrv::DtCuboidStateVisualizer, makVrv::DtEnvironmentalIndicatorVisualizer, makVrv::DtEnvironmentalLineVisualizer, makVrv::DT_PROTOCOL_NAMESPACE::DtVrlinkSensorFieldOfViewVisualizer, makVrf::DtEntityExtentVisualizer, makVrv::Dt2DTextStateVisualizer, makVrv::DtEnvironmentalAreaVisualizer, makVrv::DtEntityTrackHistoryVisualizer, makVrf::DtSensorContactLinesVisualizer, makVrv::DtScribeBoxVisualizer, makVrv::Dt2DTriangleStateVisualizer, makVrv::Dt3DAreaStateVisualizer, makVrv::DtSceneObjectVisualizer, makVrv::DT_PROTOCOL_NAMESPACE::DtVrlinkRadioCommLineVisualizer, makVrf::Dt3DEntityExtentVisualizer, makVrf::DtGumballVisualizer, makVrv::DT_PROTOCOL_NAMESPACE::DtVrlinkEntityEmitterVolumeVisualizer, makVrv::DT_PROTOCOL_NAMESPACE::DtVrlinkRadioTransmissionVisualizer, makVrv::DtSymbolDecorationVisualizer, makVrv::Dt2DTextBoxVisualizer, makVrv::DtDetonationLineVisualizer, makVrv::DT_PROTOCOL_NAMESPACE::DtVrlink2DEntityEmitterVolumeVisualizer, makVrf::Dt2DEntityExtentVisualizer, makVrv::Dt2DEntityEmitterVolumeVisualizer, makVrv::DtEntityEmitterVolumeVisualizer, makVrv::DtAggregateExtentVisualizer, makVrf::DtObjectConsoleWarningVisualizer, makVrv::DT_PROTOCOL_NAMESPACE::DtVrlink3DAggregateMilStdIconVisualizer, makVrv::DT_PROTOCOL_NAMESPACE::DtVrlinkEntityMilStdIconVisualizer, makVrv::DT_PROTOCOL_NAMESPACE::DtVrlinkAggregateImageSymbolVisualizer, makVrv::Dt2DAggregateExtentVisualizer, makVrf::VRF_PROTOCOL_NAMESPACE::DtVrfVrlink2DEnvironmentalAreaVisualizer, makVrv::Dt3DAggregateExtentVisualizer, makVrv::DtDetonationInteractionVisualizer, makVrv::DtEntitySmokePlumeVisualizer, makVrf::VRF_PROTOCOL_NAMESPACE::DtVrlinkAggregateRadioTransmissionVisualizer, makVrv::DT_PROTOCOL_NAMESPACE::DtVrlinkEntityImageSymbolVisualizer, makVrv::DT_PROTOCOL_NAMESPACE::DtVrlinkEntityIndicatorVisualizer, DtRangeLineTextVisualizer, makVrv::DtEntityRotorWashVisualizer, makVrv::DtEntityTrailEffectVisualizer, makVrf::VRF_PROTOCOL_NAMESPACE::DtVrfVrlinkRadioCommLineVisualizer, makVrv::Dt2DIntervisibilityEntityFanVisualizer, makVrv::DtRadioTransmissionVisualizer, makVrv::DtSensorFieldOfViewVisualizer, makVrv::DtRadioCommLineVisualizer, makVrv::Dt3DIntervisibilityEntityFanVisualizer, makVrv::DtEntityDecalEffectVisualizer, makVrv::DtEnvironmentalMilStdIconVisualizer, makVrv::DT_PROTOCOL_NAMESPACE::DtVrlinkAggregateKinStateVisualizer, makVrv::DtEntityFlamesVisualizer, makVrv::DtLaserDesignatorVisualizer, makVrv::DtTacticalGraphicImageSymbolVisualizer, makVrv::DT_PROTOCOL_NAMESPACE::DtVrlink2DAggregateMilStdIconVisualizer, makVrv::Dt2DIntervisibilityFanVisualizer, makVrv::DT_PROTOCOL_NAMESPACE::DtVrlinkAggregateIndicatorVisualizer, makVrv::DT_PROTOCOL_NAMESPACE::DtVrlinkEntityKinStateVisualizer, makVrf::DtVrfGuiEnvironmentalPointKinStateVisualizer, makVrf::Dt2DSensorContactLinesVisualizer, makVrf::Dt3DSensorContactLinesVisualizer, makVrv::DtFireInteractionVisualizer, makVrv::DT_PROTOCOL_NAMESPACE::DtVrlinkDetonationLineVisualizer, MassLabelVisualizer, and VrlinkMassLabelVisualizer.

virtual void makVrv::DtStateVisualizer::destroyModelAgents ( )
pure virtual

Destroys all currently created definitions.

Implemented in makVrv::DtEnvironmentalVertexVisualizer, makVrv::DtEntityKinStateVisualizer, makVrv::DtMilStdIconVisualizer, makVrv::DtEnvironmentalLineVisualizer, makVrv::DtEntityWakeVisualizer, makVrv::DtEnvironmentalVolumetricLineVisualizer, makVrf::Dt2DRangeRingVisualizer, makVrv::Dt3DLineStateVisualizer, makVrv::DtEllipseVisualizer, makVrv::DtEnvironmentalAreaVisualizer, makVrv::DtEntityArticulatedStateModelVisualizer, makVrv::Dt2DLineStateVisualizer, makVrv::DtHATLineVisualizer, makVrv::DtEnvironmentalPointKinStateVisualizer, makVrv::DtIntervisibilityVertexVisualizer, makVrv::DtImageSymbolVisualizer, makVrv::DtEntityDIGuyStateVisualizer, makVrv::DT_PROTOCOL_NAMESPACE::DtBulletHoleVisualizer, makVrv::DtCylinderStateVisualizer, makVrv::Dt2DRectangleStateVisualizer, makVrv::Dt3DTextStateVisualizer, makVrv::DtIndicatorVisualizer, makVrv::Dt2DEllipseStateVisualizer, makVrf::DtRangeSphereVisualizer, makVrv::DtTacticalSmokeVisualizer, makVrv::DtAttributeGroupStateVisualizer, makVrv::DtIntervisibilityFanVisualizer, makVrv::DtIntervisibilityLineVisualizer, makVrv::DtEllipsoidStateVisualizer, makVrv::Dt2DTextStateVisualizer, makVrv::DtIntervisibilityEntityFanVisualizer, makVrv::DtCuboidStateVisualizer, makVrv::DT_PROTOCOL_NAMESPACE::DtVrlinkSensorFieldOfViewVisualizer, makVrv::Dt2DTriangleStateVisualizer, makVrf::DtEntityExtentVisualizer, makVrv::Dt3DAreaStateVisualizer, makVrv::DtEntityTrackHistoryVisualizer, makVrf::DtSensorContactLinesVisualizer, makVrv::DtSceneObjectVisualizer, makVrv::DtScribeBoxVisualizer, makVrv::DT_PROTOCOL_NAMESPACE::DtVrlinkEntityEmitterVolumeVisualizer, makVrv::DT_PROTOCOL_NAMESPACE::DtVrlinkRadioCommLineVisualizer, makVrf::Dt3DEntityExtentVisualizer, makVrv::DT_PROTOCOL_NAMESPACE::DtVrlinkRadioTransmissionVisualizer, makVrv::Dt2DEntityEmitterVolumeVisualizer, makVrv::DT_PROTOCOL_NAMESPACE::DtVrlink2DEntityEmitterVolumeVisualizer, makVrf::DtGumballVisualizer, makVrv::DtEntityEmitterVolumeVisualizer, makVrv::DtSymbolDecorationVisualizer, makVrv::Dt2DTextBoxVisualizer, makVrf::Dt2DEntityExtentVisualizer, makVrv::DtDetonationLineVisualizer, makVrv::DtAggregateExtentVisualizer, makVrv::DtEnvironmentalMilStdIconVisualizer, makVrf::DtObjectConsoleWarningVisualizer, makVrv::Dt2DAggregateExtentVisualizer, makVrv::DtTacticalGraphicImageSymbolVisualizer, makVrv::Dt3DAggregateExtentVisualizer, makVrf::VRF_PROTOCOL_NAMESPACE::DtVrfVrlink2DEnvironmentalAreaVisualizer, makVrf::VRF_PROTOCOL_NAMESPACE::DtVrlinkAggregateRadioTransmissionVisualizer, makVrv::Dt3DEnvironmentalVolumetricLineVisualizer, makVrv::DtRadioTransmissionVisualizer, makVrv::DtSensorFieldOfViewVisualizer, DtRangeLineTextVisualizer, makVrv::DtEntityRotorWashVisualizer, makVrv::DtEntitySmokePlumeVisualizer, makVrv::DtInteractionVisualizer, makVrv::DtRadioCommLineVisualizer, makVrv::Dt2DIntervisibilityFanVisualizer, makVrf::VRF_PROTOCOL_NAMESPACE::DtVrfVrlinkRadioCommLineVisualizer, makVrv::Dt2DIntervisibilityEntityFanVisualizer, makVrv::DtEntityTrailEffectVisualizer, makVrv::Dt3DIntervisibilityEntityFanVisualizer, makVrf::VRF_PROTOCOL_NAMESPACE::DtVrfVrlinkTacticalGraphicVertexVisualizer, makVrv::Dt3DIntervisibilityFanVisualizer, makVrv::DtEntityDecalEffectVisualizer, makVrv::DtLaserDesignatorVisualizer, makVrv::DtEntityFlamesVisualizer, makVrv::DtInteractionKinStateVisualizer, makVrv::DtInteractionStateVisualizer, makVrf::DtVrf2DEnvironmentalAreaVisualizer, MassLabelVisualizer, makVrv::Dt2DLaserDesignatorVisualizer, and makVrv::Dt3DLaserDesignatorVisualizer.

virtual const TypeInfo& makVrv::DtStateVisualizer::typeInfo ( ) const
pure virtual

Get the type info.

Typically the implementation of this function should call a static function called theTypeInfo.

Implemented in makVrv::DtEnvironmentalVertexVisualizer, makVrv::DtEntityKinStateVisualizer, makVrv::DtEntityWakeVisualizer, makVrf::VRF_PROTOCOL_NAMESPACE::DtVrlinkAggregateArticulatedStateModelVisualizer, makVrv::DT_PROTOCOL_NAMESPACE::DtBulletHoleVisualizer, makVrv::DtEntityArticulatedStateModelVisualizer, makVrf::Dt2DRangeRingVisualizer, makVrv::Dt3DLineStateVisualizer, makVrv::DtIntervisibilityVertexVisualizer, makVrv::Dt2DEntityEmitterVolumeVisualizer, makVrv::Dt2DLineStateVisualizer, makVrv::DtCylinderStateVisualizer, makVrv::DtEntityEmitterVolumeVisualizer, makVrv::DtAttributeGroupStateVisualizer, makVrv::DtEnvironmentalPointKinStateVisualizer, makVrv::DtTacticalSmokeVisualizer, makVrv::Dt2DRectangleStateVisualizer, makVrv::DtAggregateMilStdIconVisualizer, makVrv::DtEllipsoidStateVisualizer, makVrv::DtCuboidStateVisualizer, makVrv::DtEntityDIGuyStateVisualizer, makVrv::Dt2DLaserDesignatorVisualizer, makVrv::Dt3DTextStateVisualizer, makVrv::DtEnvironmentalIndicatorVisualizer, makVrv::Dt2DEllipseStateVisualizer, makVrf::DtRangeSphereVisualizer, makVrv::Dt2DTextStateVisualizer, makVrv::DtSensorFieldOfViewVisualizer, makVrv::DtRadioTransmissionVisualizer, makVrv::DtScribeBoxVisualizer, makVrv::DtRadioCommLineVisualizer, makVrv::Dt3DAreaStateVisualizer, makVrv::Dt3DLaserDesignatorVisualizer, makVrf::DtAggregateArticulatedStateModelVisualizer, makVrv::Dt2DTriangleStateVisualizer, makVrv::DtDetonationLineVisualizer, makVrv::DtEntityIndicatorVisualizer, makVrv::DtEntityTrackHistoryVisualizer, makVrf::Dt3DEntityExtentVisualizer, makVrf::VRF_PROTOCOL_NAMESPACE::DtVrfVrlinkAggregateTrackHistoryVisualizer, makVrf::Dt2DEntityExtentVisualizer, makVrv::DtEntitySmokePlumeVisualizer, makVrf::DtGumballVisualizer, makVrv::DtEntityTrailEffectVisualizer, makVrv::Dt2DAggregateExtentVisualizer, makVrv::DtAggregateSymbolDecorationVisualizer, makVrv::DtEntityRotorWashVisualizer, makVrv::DtEntitySymbolDecorationVisualizer, makVrv::DtTacticalGraphicSymbolDecorationVisualizer, makVrv::DT_PROTOCOL_NAMESPACE::DtVrlinkAggregateImageSymbolVisualizer, makVrv::DT_PROTOCOL_NAMESPACE::DtVrlinkTacticalGraphicImageSymbolVisualizer, makVrv::Dt3DAggregateExtentVisualizer, makVrv::Dt3DEnvironmentalAreaVisualizer, MassLabelVisualizer, makVrv::Dt2DBoxVisualizer, makVrv::Dt3DBoxVisualizer, makVrv::Dt3DEllipseVisualizer, makVrv::DtEntityDecalEffectVisualizer, DtRangeLineTextVisualizer, makVrf::DtObjectConsoleWarningVisualizer, makVrv::DtEnvironmentalMilStdIconVisualizer, makVrv::DtInteractionKinStateVisualizer, makVrv::DT_PROTOCOL_NAMESPACE::DtVrlinkEntityImageSymbolVisualizer, makVrv::Dt2DTextBoxVisualizer, makVrv::Dt3DEnvironmentalLineVisualizer, makVrv::DtAggregateIndicatorVisualizer, makVrv::DtDetonationInteractionVisualizer, makVrv::DtEntityFlamesVisualizer, makVrv::DtTacticalGraphicImageSymbolVisualizer, makVrv::Dt2DAggregateMilStdIconVisualizer, makVrv::Dt2DIntervisibilityEntityFanVisualizer, makVrv::Dt3DEnvironmentalVolumetricLineVisualizer, makVrv::DtAggregateImageSymbolVisualizer, makVrv::DtEntityImageSymbolVisualizer, makVrv::Dt2DEnvironmentalLineVisualizer, makVrv::Dt2DIntervisibilityLineVisualizer, makVrv::Dt3DIntervisibilityEntityFanVisualizer, makVrv::Dt3DIntervisibilityLineVisualizer, makVrv::Dt2DEllipseVisualizer, makVrv::Dt2DIntervisibilityFanVisualizer, makVrv::Dt3DAggregateMilStdIconVisualizer, makVrv::Dt3DIntervisibilityFanVisualizer, makVrv::DtAggregateKinStateVisualizer, makVrv::DtEntityMilStdIconVisualizer, makVrf::Dt2DSensorContactLinesVisualizer, makVrf::Dt3DSensorContactLinesVisualizer, makVrv::Dt2DEnvironmentalVolumetricLineVisualizer, makVrv::DtEnvironmentalHATLineVisualizer, makVrv::DtFireInteractionVisualizer, makVrv::Dt2DAirCorridorLineVisualizer, makVrv::Dt2DEnvironmentalAreaVisualizer, makVrv::Dt3DAirCorridorLineVisualizer, and makVrv::DtEntityHATLineVisualizer.

virtual void makVrv::DtStateVisualizer::setParent ( DtStateVisualizer *  )
virtual

Override to set the parent of this visualizer.

The parent is usually the scene object that will allow this visualizer to be displayed

Reimplemented in makVrv::DtEntityWakeVisualizer, makVrv::DT_PROTOCOL_NAMESPACE::DtBulletHoleVisualizer, makVrv::DtDetonationLineVisualizer, makVrv::DtSceneObjectVisualizer, makVrv::DtLaserDesignatorVisualizer, and makVrv::DtScribeBoxVisualizer.

void makVrv::DtStateVisualizer::setModelDefinition ( const std::string &  definition)

Sets the model definition and creates agent(s) based on that definition.

const std::string& makVrv::DtStateVisualizer::modelDefinition ( ) const

Gets the current model definition.

virtual bool makVrv::DtStateVisualizer::setVisible ( bool  visible,
int  context
)
virtual

Returns true if this context wants to show or hide the item.

If it does, put onto (or removes) list of contexts that are responsible for keeping this item hidden. If there are no items left and the item wants to be show, createModelAgents() is called, else if being hidden, destroyModelAgents() is called. Returns true if visibility has changed

Reimplemented in makVrf::DtRangeRingVisualizer, and makVrf::DtSensorContactLinesVisualizer.

virtual void makVrv::DtStateVisualizer::initialize ( )
virtual

Initialize the visualizer.

Reimplemented in makVrf::VRF_PROTOCOL_NAMESPACE::DtVrfVrlinkEntityDIGuyStateVisualizer.

virtual bool makVrv::DtStateVisualizer::isVisible ( ) const
virtual

Returns true if visible.

virtual void makVrv::DtStateVisualizer::setSelected ( bool  )
virtual

Sets selected state.

Reimplemented in makVrv::DtEnvironmentalVertexVisualizer, makVrf::DtRangeRingVisualizer, makVrv::DtEllipseVisualizer, makVrf::VRF_PROTOCOL_NAMESPACE::DtVrfVrlink2DEnvironmentalAreaVisualizer, makVrv::DtIntervisibilityVertexVisualizer, makVrv::DtEnvironmentalVolumetricLineVisualizer, makVrv::DtSymbolDecorationVisualizer, makVrv::DtIntervisibilityEntityFanVisualizer, makVrv::DtIntervisibilityFanVisualizer, makVrv::DtIntervisibilityLineVisualizer, makVrv::DtEnvironmentalLineVisualizer, makVrf::DtEntityExtentVisualizer, makVrv::DtEnvironmentalAreaVisualizer, makVrf::DtSensorContactLinesVisualizer, makVrv::DtMilStdIconVisualizer, makVrv::DtAggregateExtentVisualizer, makVrf::DtVrf2DEnvironmentalAreaVisualizer, makVrv::DtEnvironmentalIndicatorVisualizer, makVrv::DtIndicatorVisualizer, makVrv::DtImageSymbolVisualizer, makVrv::DtScribeBoxVisualizer, and makVrv::DtEntityDIGuyStateVisualizer.

virtual bool makVrv::DtStateVisualizer::selected ( ) const
virtual

Reimplemented in makVrv::DtEnvironmentalIndicatorVisualizer.

void makVrv::DtStateVisualizer::setName ( const std::string &  )

Internal name of state visualizer.

Use in instance visualizer map

const std::string& makVrv::DtStateVisualizer::name ( ) const
virtual void makVrv::DtStateVisualizer::setPickable ( bool  )
virtual

Sets pickable state.

Reimplemented in makVrv::DtEnvironmentalVertexVisualizer, makVrv::DtMilStdIconVisualizer, and makVrv::DtImageSymbolVisualizer.

virtual bool makVrv::DtStateVisualizer::pickable ( ) const
virtual
virtual void makVrv::DtStateVisualizer::setUniqueID ( DtUniqueID  id)
virtual

Reimplemented in makVrv::DtIndicatorVisualizer, DtRangeLineTextVisualizer, makVrv::DtEnvironmentalIndicatorVisualizer, and makVrv::DtHATLineVisualizer.

DtUniqueID makVrv::DtStateVisualizer::uniqueID ( ) const
inline

Reimplemented in makVrv::DtEnvironmentalVertexVisualizer, and makVrv::DtSceneObjectVisualizer.

int makVrv::DtStateVisualizer::visualizerType ( ) const
inline
void makVrv::DtStateVisualizer::setShowHideContext ( const std::vector< int > &  s)
inline

Set show/hide context without changing visibility of item.

virtual void makVrv::DtStateVisualizer::setVisualizerDefinition ( const DtVisualizerDefinition &  )
virtual

Set any other additional visualizer information from the visual record.

Reimplemented in makVrv::DtEnvironmentalLineVisualizer, makVrv::DtEntityWakeVisualizer, makVrv::DtEnvironmentalVolumetricLineVisualizer, makVrv::DtEnvironmentalAreaVisualizer, makVrv::DtHATLineVisualizer, makVrv::DtIntervisibilityVertexVisualizer, makVrv::DT_PROTOCOL_NAMESPACE::DtBulletHoleVisualizer, makVrv::DtIndicatorVisualizer, makVrv::DtEntityKinStateVisualizer, makVrf::Dt2DRangeRingVisualizer, makVrv::DtTacticalSmokeVisualizer, makVrv::DT_PROTOCOL_NAMESPACE::DtVrlinkRadioCommLineVisualizer, makVrv::DT_PROTOCOL_NAMESPACE::DtVrlinkRadioTransmissionVisualizer, makVrv::DtIntervisibilityFanVisualizer, makVrv::DtEntityArticulatedStateModelVisualizer, makVrv::DtIntervisibilityEntityFanVisualizer, makVrv::DtEntityTrackHistoryVisualizer, makVrv::DtSensorFieldOfViewVisualizer, makVrv::DtSymbolDecorationVisualizer, makVrv::DT_PROTOCOL_NAMESPACE::DtVrlinkEntityEmitterVolumeVisualizer, makVrf::DtSensorContactLinesVisualizer, makVrv::DT_PROTOCOL_NAMESPACE::DtVrlink2DEntityEmitterVolumeVisualizer, makVrf::Dt3DEntityExtentVisualizer, makVrf::Dt2DEntityExtentVisualizer, makVrv::Dt2DTextBoxVisualizer, makVrv::Dt3DEllipseVisualizer, makVrv::DtDetonationLineVisualizer, makVrv::Dt2DAggregateExtentVisualizer, makVrv::DtEntityRotorWashVisualizer, makVrv::Dt3DAggregateExtentVisualizer, makVrv::Dt3DEnvironmentalLineVisualizer, makVrv::Dt3DEnvironmentalVolumetricLineVisualizer, makVrv::DtEntityDIGuyStateVisualizer, makVrv::DtEntityTrailEffectVisualizer, DtRangeLineTextVisualizer, makVrv::DtEnvironmentalVertexVisualizer, makVrv::DtEntitySmokePlumeVisualizer, makVrv::DtEntityDecalEffectVisualizer, makVrv::DtEnvironmentalMilStdIconVisualizer, makVrv::DtEnvironmentalPointKinStateVisualizer, makVrv::DtInteractionVisualizer, makVrv::DtTacticalGraphicImageSymbolVisualizer, makVrv::DtLaserDesignatorVisualizer, makVrv::DtEntityFlamesVisualizer, makVrv::DtMilStdIconVisualizer, makVrv::Dt3DEnvironmentalAreaVisualizer, makVrv::DtDetonationInteractionVisualizer, makVrv::DtScribeBoxVisualizer, makVrv::Dt2DAirCorridorLineVisualizer, makVrv::Dt3DAirCorridorLineVisualizer, makVrv::DtInteractionStateVisualizer, makVrv::Dt2DEllipseVisualizer, makVrv::DtAggregateMilStdIconVisualizer, makVrv::DtImageSymbolVisualizer, makVrv::DtInteractionKinStateVisualizer, makVrv::Dt2DLaserDesignatorVisualizer, and makVrv::Dt3DLaserDesignatorVisualizer.

DtStateListener& makVrv::DtStateVisualizer::listener ( )
inline
DtBaseConnection& makVrv::DtStateVisualizer::simulation ( )
inline

Get the connection for this visualizer.

void makVrv::DtStateVisualizer::setDistribute ( bool  b)
inline

Whether or not to distribute over the network.

bool makVrv::DtStateVisualizer::distribute ( ) const
inline
virtual void makVrv::DtStateVisualizer::slot_mouseDown ( DtMouseState &  mouseState,
const std::string &  displayEngineName,
const std::string &  windowName,
const std::string &  channelName
)
protectedvirtual

Called when the mouse is clicked in this visualizer.

virtual void makVrv::DtStateVisualizer::slot_mouseUp ( DtMouseState &  mouseState,
const std::string &  displayEngineName,
const std::string &  windowName,
const std::string &  channelName
)
protectedvirtual
virtual void makVrv::DtStateVisualizer::slot_mouseDblClick ( DtMouseState &  mouseState,
const std::string &  displayEngineName,
const std::string &  windowName,
const std::string &  channelName
)
protectedvirtual
virtual bool makVrv::DtStateVisualizer::hide ( int  context)
protectedvirtual

Will call destroyModelAgents(), if, when the context is added, it is the first context in the list.

Will return true if model is hidden

Reimplemented in makVrf::VRF_PROTOCOL_NAMESPACE::DtVrfVrlinkEntityDIGuyStateVisualizer, and makVrv::DtSceneObjectVisualizer.

virtual bool makVrv::DtStateVisualizer::show ( int  context)
protectedvirtual

Will call createModelAgents(), if, when context is removed from myShowHideContexts, the list size is zero.

Returns true if model is shown

Reimplemented in makVrv::DtSceneObjectVisualizer.

virtual bool makVrv::DtStateVisualizer::supportsShowHideContext ( int  ) const
protectedvirtual

Default returns true.

Override if want to ignore the specific context and return false

virtual void makVrv::DtStateVisualizer::setModelDefinitionForAgents ( )
protectedpure virtual

Sets model definition for all the agents that this visualizer might be using.

If model agents are not created, should create them. Should not call this directly, but rather call setModelDefinition

Implemented in makVrv::DtEntityKinStateVisualizer, makVrv::DtEnvironmentalLineVisualizer, makVrv::DtEntityWakeVisualizer, makVrv::DtEnvironmentalVolumetricLineVisualizer, makVrf::VRF_PROTOCOL_NAMESPACE::DtVrlinkAggregateArticulatedStateModelVisualizer, makVrv::Dt3DLineStateVisualizer, makVrv::DtEnvironmentalAreaVisualizer, makVrv::DtEntityArticulatedStateModelVisualizer, makVrv::DtHATLineVisualizer, makVrv::Dt2DLineStateVisualizer, makVrv::DtEnvironmentalPointKinStateVisualizer, makVrv::DT_PROTOCOL_NAMESPACE::DtBulletHoleVisualizer, makVrv::DtEllipseVisualizer, makVrv::DtEntityDIGuyStateVisualizer, makVrv::Dt2DRectangleStateVisualizer, makVrv::DtCylinderStateVisualizer, makVrv::Dt3DTextStateVisualizer, makVrv::DtIndicatorVisualizer, makVrf::DtRangeRingVisualizer, makVrv::Dt2DEllipseStateVisualizer, makVrv::DtIntervisibilityLineVisualizer, makVrv::DtTacticalSmokeVisualizer, makVrv::DtSensorFieldOfViewVisualizer, makVrv::DtAttributeGroupStateVisualizer, makVrv::Dt2DTextStateVisualizer, makVrv::DtEllipsoidStateVisualizer, makVrv::DtIntervisibilityFanVisualizer, makVrv::DtCuboidStateVisualizer, makVrv::DtIntervisibilityEntityFanVisualizer, makVrv::Dt2DTriangleStateVisualizer, makVrv::DtEntityTrackHistoryVisualizer, makVrv::DT_PROTOCOL_NAMESPACE::DtVrlinkEntityArticulatedStateModelVisualizer, makVrv::Dt3DAreaStateVisualizer, makVrf::DtEntityExtentVisualizer, makVrf::DtSensorContactLinesVisualizer, makVrf::DtVrfGui3DAggregateMilStdIconVisualizer, makVrv::Dt2DEntityEmitterVolumeVisualizer, makVrv::Dt2DTextBoxVisualizer, makVrv::DtEntityEmitterVolumeVisualizer, makVrv::DtSymbolDecorationVisualizer, DtRangeLineTextVisualizer, makVrv::DtRadioTransmissionVisualizer, makVrf::DtGumballVisualizer, makVrv::DtDetonationLineVisualizer, makVrv::DtRadioCommLineVisualizer, makVrv::DT_PROTOCOL_NAMESPACE::DtVrlink2DAggregateMilStdIconVisualizer, makVrv::DtAggregateExtentVisualizer, makVrf::DtObjectConsoleWarningVisualizer, makVrv::DtEntityRotorWashVisualizer, makVrv::DtEntitySmokePlumeVisualizer, makVrv::DtInteractionVisualizer, makVrv::DtLaserDesignatorVisualizer, makVrv::DtEntityTrailEffectVisualizer, MassLabelVisualizer, makVrv::DtMilStdIconVisualizer, makVrv::DT_PROTOCOL_NAMESPACE::DtVrlink3DAggregateMilStdIconVisualizer, makVrv::DT_PROTOCOL_NAMESPACE::DtVrlinkEntityMilStdIconVisualizer, makVrv::DtEntityDecalEffectVisualizer, makVrv::DtEntityFlamesVisualizer, makVrv::DtSceneObjectVisualizer, makVrv::DT_PROTOCOL_NAMESPACE::DtVrlinkTacticalGraphicMilStdIconVisualizer, makVrv::DtImageSymbolVisualizer, makVrv::DtInteractionStateVisualizer, and makVrv::DtScribeBoxVisualizer.

template<typename T , typename C >
void makVrv::DtStateVisualizer::connectAndUpdate ( boost::signal< void(T)> &  sig,
void(C::*)(T)  fp,
T  val
)
inlineprotected

Connect a signal and update the entity.

References makVrv::bind().

DtStateVisualizer& makVrv::DtStateVisualizer::operator= ( const DtStateVisualizer &  )
private

Assignment Operator.

Note
Not implemented

Member Data Documentation

boost::signal<void (DtStateVisualizer*, DtStateVisualizer*, DtStateVisualizer*)> makVrv::DtStateVisualizer::signal_reparented

Signaled when the parent of this item changes, called before destroying any model agents.

Parameters are the visualizer that is reparent, the old and new parents

boost::signal<void (DtMouseState&, const DtUniqueID&, const std::string&, const std::string&,const std::string&, DtStateVisualizer*)> makVrv::DtStateVisualizer::signal_mouseDown

Emitted when the entity's indicator is clicked.

boost::signal<void (DtMouseState&, const DtUniqueID&, const std::string&, const std::string&,const std::string&, DtStateVisualizer*)> makVrv::DtStateVisualizer::signal_mouseUp
boost::signal<void (DtMouseState&, const DtUniqueID&, const std::string&, const std::string&,const std::string&, DtStateVisualizer*)> makVrv::DtStateVisualizer::signal_mouseDblClick
DtBaseConnection& makVrv::DtStateVisualizer::mySimulation
protected
DtStateListener& makVrv::DtStateVisualizer::myListener
protected
bool makVrv::DtStateVisualizer::myDistributeFlag
protected
DtUniqueID makVrv::DtStateVisualizer::myUniqueID
protected
std::string makVrv::DtStateVisualizer::myName
protected
std::string makVrv::DtStateVisualizer::myModelDefinition
protected
DtSignalConnectionManager makVrv::DtStateVisualizer::myConnections
protected
int makVrv::DtStateVisualizer::myModelSet
protected

Referenced by makVrf::MyStateVisualizer::modelSet().

int makVrv::DtStateVisualizer::myVisualizerType
protected
std::vector<int> makVrv::DtStateVisualizer::myShowHideContexts
protected
bool makVrv::DtStateVisualizer::mySelected
protected
bool makVrv::DtStateVisualizer::myPickable
protected
bool makVrv::DtStateVisualizer::myVisible
protected
DtStateVisualizer* makVrv::DtStateVisualizer::myParent
protected
DtSceneObjectAgent* makVrv::DtStateVisualizer::mySceneObjectAgent
protected
The documentation for this class was generated from the following file:
Document ID: Generated on Tue Mar 8 22:13:38 EST 2016 from SVN revision 162938
Copyright © 2005-2015 VT MÄK. All Rights Reserved (www.mak.com)
