A visualizer for displaying a Image (Bitmap) Symbology Icon. More...

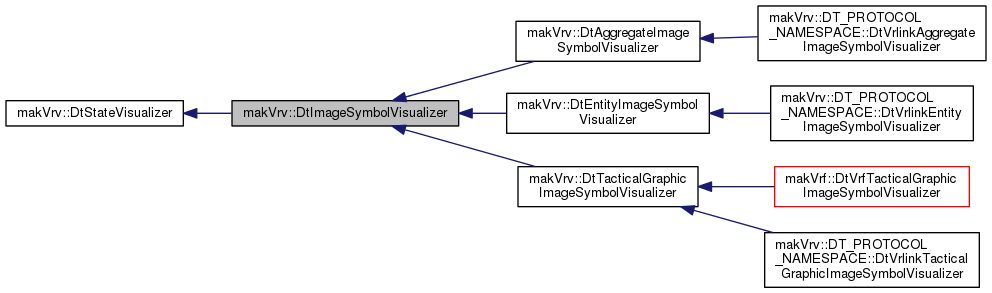

Inheritance diagram for makVrv::DtImageSymbolVisualizer:

Public Member Functions
	DtImageSymbolVisualizer (DtBaseConnection &connection, DtStateListener &listener, int modelSet)
	CTOR. More...

virtual	~DtImageSymbolVisualizer ()
	DTOR. More...

virtual void	setVisualizerDefinition (const DtVisualizerDefinition &visDef)
	Sets the visual definition of the visualizer. More...

virtual void	setModelDefinitionForAgents ()
	Sets the model definition of the agents. More...

virtual void	setSelected (bool selected)
	Set the visualizer to be selected. More...

void	setScale (float scale)
	Sets scale of the item relative to the default size. More...

virtual void	setImageSymbol (int)
	Sets the image to display. More...

virtual int	imageSymbol () const
	Returns the image symbol to display. More...

virtual void	setPickable (bool b)
	Sets whether or not the item is selectable. More...

virtual void	setImageSymbolMap (const DtVisualAttributeSymbolSelector::ImageSymbolMap &)
	Sets the integer to model definition map of this visualizer. More...

const DtVisualAttributeSymbolSelector::ImageSymbolMap &	imageSymbolMap () const
	Returns the map. More...

virtual void	setImageSize (int x, int y)
	Sets the size of the image if scaling is 1.0. More...

void	getImageSize (int &x, int &y)
	Returns the current size of the image if scale is 1.0. More...

virtual void	setDestroyed (bool)
	Sets whether or not this item is destroyed. More...

bool	destroyed () const
	Returns whether or not this object is destroyed. More...

virtual void	setDestroyedModel (const std::string &)
	Sets the model definition to display when item is destroyed. More...

const std::string &	destroyedModel () const
	Returns the model used for the destroyed image. More...

virtual void	rotateSymbolToHeading (double)
	Rotates the object to the given heading as indicated by the radians contents of heading. More...

Public Member Functions inherited from makVrv::DtStateVisualizer
	DtStateVisualizer (DtBaseConnection &connection, DtStateListener &listener, int modelSet)
	CTOR. More...

virtual	~DtStateVisualizer ()
	DTOR. More...

virtual const TypeInfo &	typeInfo () const =0
	Get the type info. More...

virtual void	setParent (DtStateVisualizer *)
	Override to set the parent of this visualizer. More...

void	setModelDefinition (const std::string &definition)
	Sets the model definition and creates agent(s) based on that definition. More...

const std::string &	modelDefinition () const
	Gets the current model definition. More...

virtual void	implementVisibility (bool visible)
	Wrap some of the show/hide functionality so that it can be overloaded (ex. More...

virtual bool	setVisible (bool visible, int context)
	Returns true if this context wants to show or hide the item. More...

virtual void	initialize ()
	Initialize the visualizer. More...

virtual bool	isVisible () const
	Returns true if visible. More...

virtual bool	selected () const

void	setName (const std::string &)
	Internal name of state visualizer. More...

const std::string &	name () const

virtual bool	pickable () const

virtual void	setUniqueID (DtUniqueID id)

DtUniqueID	uniqueID () const

int	visualizerType () const

void	setShowHideContext (const std::vector< int > &s)
	Set show/hide context without changing visibility of item. More...

DtStateListener &	listener ()

DtBaseConnection &	simulation ()
	Get the connection for this visualizer. More...

void	setDistribute (bool b)
	Whether or not to distribute over the network. More...

bool	distribute () const

Protected Member Functions
virtual void	setHasMouse (bool hasMouse)
	Sets whether or not the mouse is on this item. If so will show as "highlighted". More...

virtual void	createModelAgents ()
	Creates the agents used to display this model. More...

virtual void	destroyModelAgents ()
	Destroys agents used to create this mode. More...

virtual void	update ()
	Updates the model with items to display. More...

virtual DtUnicode	imageSymbolDefinition (int) const
	Given an integer, return the image symbol definition for that. If it does not exist, return the first element. More...

Protected Member Functions inherited from makVrv::DtStateVisualizer
virtual void	slot_mouseDown (DtMouseState &mouseState, const std::string &displayEngineName, const std::string &windowName, const std::string &channelName)
	Called when the mouse is clicked in this visualizer. More...

virtual void	slot_mouseUp (DtMouseState &mouseState, const std::string &displayEngineName, const std::string &windowName, const std::string &channelName)

virtual void	slot_mouseDblClick (DtMouseState &mouseState, const std::string &displayEngineName, const std::string &windowName, const std::string &channelName)

virtual bool	hide (int context)
	Will call destroyModelAgents(), if, when the context is added, it is the first context in the list. More...

virtual bool	show (int context)
	Will call createModelAgents(), if, when context is removed from myShowHideContexts, the list size is zero. More...

virtual bool	supportsShowHideContext (int) const
	Default returns true. More...

template<typename T , typename C >
void	connectAndUpdate (boost::signal< void(T)> &sig, void(C::*fp)(T), T val)
	Connect a signal and update the entity. More...

Protected Attributes
DtProjectedWidgetModelAgent *	myProjectIconPosition

DtWidgetAgent *	myIcon

DtWidgetInstanceSignaler *	myIconSignaler

DtWidgetAgent *	mySelectedIcon

bool	myHasMouse

float	myScale

int	myImageSymbol

DtVisualAttributeSymbolSelector::ImageSymbolMap	myImageSymbolMap

unsigned int	myIconGroup

unsigned int	myDestroyedIconGroup

int	mySizeX

int	mySizeY

DtWidgetAgent *	myDestroyedIcon

bool	myDestroyed

std::string	myDestroyedModel

Protected Attributes inherited from makVrv::DtStateVisualizer
DtBaseConnection &	mySimulation

DtStateListener &	myListener

bool	myDistributeFlag

DtUniqueID	myUniqueID

std::string	myName

std::string	myModelDefinition

DtSignalConnectionManager	myConnections

int	myModelSet

int	myVisualizerType

std::vector< int >	myShowHideContexts

bool	mySelected

bool	myPickable

bool	myVisible

DtStateVisualizer *	myParent

DtSceneObjectAgent *	mySceneObjectAgent

Additional Inherited Members
Public Types inherited from makVrv::DtStateVisualizer
enum	Type { AllVisualizerTypes = 0, EntityVisualizerType = 1, EnvironmentalVisualizerType, InteractionVisualizerType, AggregateVisualizerType, IntervisibilityVisualizerType, TacticalSmokeVisualizerType, UserType = 10000 }
	Visualizer class types that are supportable via visualizers. More...

Public Attributes inherited from makVrv::DtStateVisualizer
boost::signal< void(DtStateVisualizer , DtStateVisualizer , DtStateVisualizer *)>	signal_reparented
	Signaled when the parent of this item changes, called before destroying any model agents. More...

boost::signal< void(DtMouseState &, const DtUniqueID &, const std::string &, const std::string &, const std::string &, DtStateVisualizer *)>	signal_mouseDown
	Emitted when the entity's indicator is clicked. More...

boost::signal< void(DtMouseState &, const DtUniqueID &, const std::string &, const std::string &, const std::string &, DtStateVisualizer *)>	signal_mouseUp

boost::signal< void(DtMouseState &, const DtUniqueID &, const std::string &, const std::string &, const std::string &, DtStateVisualizer *)>	signal_mouseDblClick

Detailed Description

A visualizer for displaying a Image (Bitmap) Symbology Icon.

The visualizer stores a map by integer of which image to display. If no image identifier is supplied, the first available image in the map is displayed

Constructor & Destructor Documentation

makVrv::DtImageSymbolVisualizer::DtImageSymbolVisualizer	(	DtBaseConnection &	connection,
		DtStateListener &	listener,
		int	modelSet
	)

CTOR.

virtual makVrv::DtImageSymbolVisualizer::~DtImageSymbolVisualizer ( )

virtual

DTOR.

Member Function Documentation

virtual void makVrv::DtImageSymbolVisualizer::setVisualizerDefinition ( const DtVisualizerDefinition & visDef )

virtual

Sets the visual definition of the visualizer.

Reimplemented from makVrv::DtStateVisualizer.

Reimplemented in makVrv::DtTacticalGraphicImageSymbolVisualizer.

virtual void makVrv::DtImageSymbolVisualizer::setModelDefinitionForAgents ( )

virtual

Sets the model definition of the agents.

Implements makVrv::DtStateVisualizer.

virtual void makVrv::DtImageSymbolVisualizer::setSelected ( bool selected )

virtual

Set the visualizer to be selected.

Reimplemented from makVrv::DtStateVisualizer.

void makVrv::DtImageSymbolVisualizer::setScale ( float scale )

Sets scale of the item relative to the default size.

virtual void makVrv::DtImageSymbolVisualizer::setImageSymbol ( int )

virtual

Sets the image to display.

virtual int makVrv::DtImageSymbolVisualizer::imageSymbol ( ) const

virtual

Returns the image symbol to display.

virtual void makVrv::DtImageSymbolVisualizer::setPickable ( bool b )

virtual

Sets whether or not the item is selectable.

Reimplemented from makVrv::DtStateVisualizer.

virtual void makVrv::DtImageSymbolVisualizer::setImageSymbolMap ( const DtVisualAttributeSymbolSelector::ImageSymbolMap & )

virtual

Sets the integer to model definition map of this visualizer.

const DtVisualAttributeSymbolSelector::ImageSymbolMap& makVrv::DtImageSymbolVisualizer::imageSymbolMap ( ) const

Returns the map.

virtual void makVrv::DtImageSymbolVisualizer::setImageSize	(	int	x,
		int	y
	)

virtual

Sets the size of the image if scaling is 1.0.

void makVrv::DtImageSymbolVisualizer::getImageSize	(	int &	x,
		int &	y
	)

Returns the current size of the image if scale is 1.0.

virtual void makVrv::DtImageSymbolVisualizer::setDestroyed ( bool )

virtual

Sets whether or not this item is destroyed.

If it is the destroyed model definition will be displayed on top of the icon

bool makVrv::DtImageSymbolVisualizer::destroyed ( ) const

inline

Returns whether or not this object is destroyed.

virtual void makVrv::DtImageSymbolVisualizer::setDestroyedModel ( const std::string & )

virtual

Sets the model definition to display when item is destroyed.

const std::string& makVrv::DtImageSymbolVisualizer::destroyedModel ( ) const

inline

Returns the model used for the destroyed image.

virtual void makVrv::DtImageSymbolVisualizer::rotateSymbolToHeading ( double )

virtual

Rotates the object to the given heading as indicated by the radians contents of heading.

virtual void makVrv::DtImageSymbolVisualizer::setHasMouse ( bool hasMouse )

protectedvirtual

Sets whether or not the mouse is on this item. If so will show as "highlighted".

virtual void makVrv::DtImageSymbolVisualizer::createModelAgents ( )

protectedvirtual

Creates the agents used to display this model.

Implements makVrv::DtStateVisualizer.

Reimplemented in makVrv::DT_PROTOCOL_NAMESPACE::DtVrlinkAggregateImageSymbolVisualizer, makVrv::DT_PROTOCOL_NAMESPACE::DtVrlinkEntityImageSymbolVisualizer, and makVrv::DtTacticalGraphicImageSymbolVisualizer.

virtual void makVrv::DtImageSymbolVisualizer::destroyModelAgents ( )

protectedvirtual

Destroys agents used to create this mode.

Implements makVrv::DtStateVisualizer.

Reimplemented in makVrv::DtTacticalGraphicImageSymbolVisualizer.

virtual void makVrv::DtImageSymbolVisualizer::update ( )

protectedvirtual

Updates the model with items to display.

virtual DtUnicode makVrv::DtImageSymbolVisualizer::imageSymbolDefinition ( int ) const

protectedvirtual

Given an integer, return the image symbol definition for that. If it does not exist, return the first element.

Reimplemented in makVrf::DtVrfTacticalGraphicImageSymbolVisualizer.

Member Data Documentation

DtProjectedWidgetModelAgent* makVrv::DtImageSymbolVisualizer::myProjectIconPosition

protected

DtWidgetAgent* makVrv::DtImageSymbolVisualizer::myIcon

protected

DtWidgetInstanceSignaler* makVrv::DtImageSymbolVisualizer::myIconSignaler

protected

DtWidgetAgent* makVrv::DtImageSymbolVisualizer::mySelectedIcon

protected

bool makVrv::DtImageSymbolVisualizer::myHasMouse

protected

float makVrv::DtImageSymbolVisualizer::myScale

protected

int makVrv::DtImageSymbolVisualizer::myImageSymbol

protected

DtVisualAttributeSymbolSelector::ImageSymbolMap makVrv::DtImageSymbolVisualizer::myImageSymbolMap

protected

unsigned int makVrv::DtImageSymbolVisualizer::myIconGroup

protected

unsigned int makVrv::DtImageSymbolVisualizer::myDestroyedIconGroup

protected

int makVrv::DtImageSymbolVisualizer::mySizeX

protected

int makVrv::DtImageSymbolVisualizer::mySizeY

protected

DtWidgetAgent* makVrv::DtImageSymbolVisualizer::myDestroyedIcon

protected

bool makVrv::DtImageSymbolVisualizer::myDestroyed

protected

std::string makVrv::DtImageSymbolVisualizer::myDestroyedModel

protected

The documentation for this class was generated from the following file:

/data/exports/nrhent7-1/nightly/docs/vrForces.vrf4-8-branch/include/vrvCore/DtImageSymbolVisualizer.h

Public Member Functions

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
