An articulated model manipulator for controlling an articulated model. More...

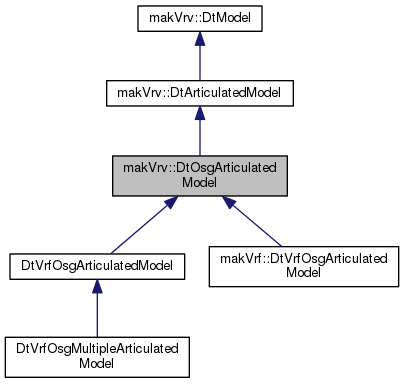

Inheritance diagram for makVrv::DtOsgArticulatedModel:

Public Types
typedef std::vector< osg::Node * >	NodeList

typedef boost::unordered_map < int, NodeList >	NodePathCache

typedef std::map< std::string, std::string >	LinkageConfigMap

Public Types inherited from makVrv::DtArticulatedModel
enum	AnimationState { START, STOP, PAUSE, RESUME }

typedef std::vector< int >	PartList

Public Member Functions
	DtOsgArticulatedModel (DtDe &, DtUniqueID id)
	CTOR. More...

virtual	~DtOsgArticulatedModel ()
	DTOR. More...

virtual void	setModelDefinition (const std::string &str)
	Override the set model definition function. More...

virtual const std::string &	modelDefinition ()

virtual const std::string &	className () const
	Get the class name of the model instance owner. More...

virtual void	setModelScalingEnabled (bool b)
	Indicate whether or not this model may be model-scaled Default is false. More...

virtual bool	modelScalingEnabled ()
	getter for model scaling enabled flag More...

virtual void	setLocalModelScalingEnabled (bool enabled)
	Indicates whether local model scaling for the model is enabled. More...

virtual void	setLocalModelScalingAmount (float localScl)
	Sets the amount of local scaling to apply to the model. More...

virtual void	setPosition (int vtx, const DtVector &position)
	Set the model's position for the specified vertex. More...

virtual void	setOrientation (int vtx, const DtTaitBryan &orientation)
	Set the model's orientation for the specified vertex. More...

virtual void	setPositionOffset (const DtVector &positionOffset)
	Set the position offset of the model. More...

virtual void	setOrientationOffset (const DtTaitBryan &orientationOffset)
	Set the Orientation Offset of the model. More...

virtual void	setVisible (bool isVisible)
	Set the visible state of the model and scene connector. More...

DtUniqueID	sceneObjectId ()
	Get the ID for this model's scene object, if any. More...

virtual void	setElementId (DtUniqueID id)
	Set the element ID for this model. More...

virtual void	setLightPointGroup (const std::string &groupName)
	Set the light point group that this model's light points belong to. More...

virtual std::string	lightPointGroup ()
	Get the light point group that this model's light points belong to. More...

virtual LinkageConfigMap &	linkageConfigMap ()
	Get the mapping of linkage names (NodeName/Annotation) to configName pairs. More...

virtual const LinkageConfigMap &	linkageConfigMap () const
	Get the mapping of linkage names (NodeName/Annotation) to configName pairs. More...


virtual void	setPartTranslation (int partNumber, const DtVector &transform, const DtVector &velocity)
	Update the part translation. More...

virtual void	setPartOrientation (int partNumber, const DtTaitBryan &orientation, const DtVector &rotationalVelocity)
	Rotate the part. More...

virtual void	setPartRotationalVelocity (int partNumber, const DtVector &rotationalVelocity, bool forceUpdate=true)
	Set just the rotational velocity (without having to do orientation) forceUpdate will force an update when instancing is enabled. More...

virtual void	setState (int stateNumber, int stateValue)
	Set the state on the model. More...

virtual void	reapplyState ()
	Set the state on the model. More...

int	state (int stateNumber) const
	Get a state of the model Returns -1 if no such state exists. More...

virtual void	setLightpointMaxDistance (float distance)
	Specify the maximum range at which lightpoints on this model will be visible. More...

virtual void	setDepthMask (osg::Group &parent)
	Sets child nodes as a depth mask, which writes to the depth buffer and does not get sorted as transparent. More...

virtual void	setAnimationFrame (const std::string &animationName, int frameIndex)
	Set the current frame of an animation. More...

virtual void	setAnimationRange (const std::string &animationName, int firstFrameIndex, int lastFrameIndex)
	Set the animation range. More...

virtual void	setAnimationSpeed (const std::string &animationName, double framesPerSecond)
	Set the animation speed. More...

virtual void	setAnimationState (const std::string &animationName, AnimationState mode)
	Set the animation mode. More...

virtual void	setAnimationLastFrameTime (const std::string &animationName, double animationLastFrameTime)
	Set the last frame time in the currnet range in an animation /param animationLastFrameTime should be non-negative value only support in non-instance model. More...

virtual void	setAnimationLoopCount (const std::string &animationName, int loopCount)
	Get the animation loop count in an animation /param loopCount -1:repeat forever 0:no repetitions only support in non-instance model. More...

virtual void	setUvOffset (const std::string &annotation, float uOffset, float vOffset)
	Groups using a texture atlas are identified using an annotation (ex. More...

virtual void	setDynamicSensorRegion (const std::string &region, bool state)
	Set the state of a dynamic sensor region. More...

virtual bool	dynamicSensorRegion (const std::string &region)
	Get the state of a dynamic sensor region. More...

virtual void	setLinkageConfigPair (const std::string &linkageName, const std::string &configName)
	Specifies a linkage/config pair where the linkageName is the name of a node or an annotation on a node that identifies it and configName is a string looked up in the Mappings section of the FeatureData for the linkage in the metafile associated with the model. More...


virtual bool	findPartPositionAndOrientation (int partNumber, DtVector &position, DtQuat &ori)
	Finds the absolute position and orientation of a part. More...

virtual DtVector	partTranslation (int partNumber) const
	Get a part translation. More...

virtual DtTaitBryan	partOrientation (int partNumber) const
	Get a part orientation. More...

virtual int	animationFrameCount (const std::string &animationName) const
	Get number of frames in an animation. More...

virtual int	animationCurrentFrame (const std::string &animationName) const
	Get the current frame of an animation. More...

virtual int	animationFirstFrame (const std::string &animationName) const
	Get the first frame in the current range in an animation. More...

virtual int	animationLastFrame (const std::string &animationName) const
	Get the last frame in the current range in an animation. More...

virtual double	animationSpeed (const std::string &animationName) const
	Get the speed of an animation. More...

virtual AnimationState	animationState (const std::string &animationName) const
	Get the animation mode of an animation. More...

virtual double	animationLastFrameTime (const std::string &animationName) const
	Get the last frame time in the current range in an animation. More...

virtual int	animationLoopCount (const std::string &animationName) const
	Get the animation loop count in an animation. More...

const DtArticulatedModelParser::PartMap &	parts () const
	Get a map of the current parts. More...

virtual void	getParts (PartList &parts) const
	Only a list of all the parts. More...

const DtArticulatedModelParser::StateMap &	states () const
	Get a map of the current states. More...

const DtArticulatedModelParser::AnimationMap &	animations () const
	Get a map of the current animations. More...

virtual void	addPart (int partNumber, osgSim::DOFTransform *node)
	Add a part off the DOF transform node and a part Number. More...

virtual void	addState (int stateNumber, osgSim::MultiSwitch *node)
	Add a switch off the DOF switch node and a part number. More...

virtual void	setStateValueExists (int stateNumber, int stateValue)
	Set when a state value exists; only state values that have had this method called on them will be used. More...

virtual void	addAnimation (const std::string &animationName, osg::Sequence *node)
	Add animation Sequence. More...

virtual void	addAnnotationGroup (const std::string &annotation, osg::Group *group)
	Add a mapping from an annotation to a group node. More...

virtual void	setColor (float r, float g, float b, float a)
	Set the blend color for the model. More...

virtual void	enableColorBlending (bool b)
	enable color blending for the model More...

virtual void	setBlendColor (float r, float g, float b, float a)
	Set the blend color for the model. More...

virtual void	setPartVisibility (int partNumber, bool onOff)
	Set an articulated part visible/invisible by part number. More...

virtual void	setIsSupportModel (bool isSupport)
	Set whether the model is part of the support group (whether or not other scene objects can ground clamp to this model) More...

virtual void	getBoundingBoxComponents (DtVector &minimum, DtVector &maximum)
	Get the minimum and maximum X,Y,Z components of the bounding box. More...

std::vector < DtVirtualBaseClass * > &	modelAttachments ()
	Get the list of dynamic feature objects for this model (created by .meta files) More...

virtual bool	applyMetafile (const DtModelDefinition *definition)
	For a given model definition, get the .medf file name, load the corresponding .meta file and created nodes in the DtOsgModelInstance. More...

virtual void	slot_onShadowStateChanged (bool on)
	Turn on or off the shadow polygon on objects (ex. vehicles) More...

virtual void	slot_atcModeEnableChanged (bool state)
	slot for handling when alpha to coverage on all models is changed More...

Public Member Functions inherited from makVrv::DtArticulatedModel
	DtArticulatedModel (DtDe &, DtUniqueID id)
	CTOR. More...

virtual	~DtArticulatedModel ()
	DTOR. More...

virtual bool	supportsMultithreadedLoad ()
	controls if the model is loaded in the background More...

Public Member Functions inherited from makVrv::DtModel
	DtModel (DtDe &de, DtUniqueID id)
	CTOR. More...

virtual	~DtModel ()
	DTOR. More...

DtModelInstance *	createModelInstance (const std::string &modelDefName, bool realize=true)
	Set the model definition and creates an instance of the model. More...

virtual const std::string &	modelDefinitionName ()
	returns the model definition name. More...

virtual void	saveModelToFile (const std::string &filename)

unsigned int	transformSize () const
	Get the number of position/orientations this model has. More...

virtual const DtVector &	position (int vtx=0) const
	Get the Position of a given point. More...

virtual void	removePosition (int vtx)
	Remove a transform at the given position. More...

virtual const DtVector &	positionOffset () const
	Get the Position Offset of the model. More...

virtual void	setPositionAndOrientation (int vtx, const DtVector &positionOffset, const DtTaitBryan &orientation)
	Set the position and orientation of a vertex in the model at the same time. More...

virtual const DtTaitBryan &	orientation (int vtx=0) const
	Get the Orientation of a given point. More...

virtual const DtTaitBryan &	orientationOffset () const
	Get the Orientation Offset of the model. More...

virtual void	getBlendColor (float &r, float &g, float &b, float &a)
	Returns the blend color. More...

virtual bool	colorBlendingEnabled () const
	Returns whether or not blending is enabled. More...

virtual void	enableLighting (bool l)
	set whether the model is lit; this may not be an option on all models More...

virtual int	modelSet () const
	Get the model set this model is part of. More...

const DtVector &	boundingBoxExtents () const
	Get the bounding box extents of the model instance. More...

void	getBoundingBoxExtents (double &x, double &y, double &z) const
	Get the bounding box extents of the model instance. More...

const DtVector &	boundingBoxCenter () const
	Get the bounding box center of the model instance. More...

virtual void	getBoundingBoxCenter (double &x, double &y, double &z) const
	Get the bounding box center of the model instance. More...

void	setContributesToBound (bool trueOrFalse)
	Set whether this model instance contributes to an object's overall bounding volume. More...

bool	contributesToBound () const
	Get whether this model instance contributes to an object's overall bounding volume. More...

DtDe &	de ()
	Get the DtDe object. More...

virtual void	setModelInstance (DtModelInstance *modelInstance)
	Internally set the model instance pointer. More...

virtual void	promoteBackgroundModelInstance (DtModelDefinition &defintion)
	Internally set the model instance pointer to the background one, also realizes and sends signal. More...

virtual bool	visible () const
	Get the visible state of the model. More...

DtUniqueID	parentSceneObjectID () const
	Parent of the model. More...

virtual void	addedToSceneObjectAsProp (const DtUniqueID &sceneObj)
	Called when a scene object added the model as a prop. More...

virtual void	addedToSceneObject (const DtUniqueID &sceneObj, int modelSet, int visualizerType)
	Called when a scene object added the model with the given model set and visualizer type. More...

virtual void	removedFromSceneObject ()
	Called when the model was removed from a scene object. More...

virtual void	setSolid (bool isSolid)
	Set whether or not other this model is drawn filled in. More...

virtual bool	isProp ()
	Return whether or not this model was added as a prop. More...

virtual void	updateMinLastFrameDistance (float distance)
	updates the closest distance to an observer over the last frame More...

virtual void	resetLastFrameDistance ()
	resets the closest distance to an observer More...

virtual float	minLastFrameDistance () const
	gets the closest distance to an observer last frame More...

virtual DtModelInstance *	modelInstance ()
	Get the model instance. More...

virtual const DtModelInstance *	modelInstance () const

int	visualizerType () const
	The visualizer type determines which channel-specific group node this model will be parented to, and consequently, which observer setting will cause it to be rendered in which channel. More...

virtual bool	isActivelyBackgroundLoading ()
	is this being actively loaded (it has a myInLoadQueueHandle object and it's loading) More...

virtual DtLoaderHandle *	getLoadQueueHandle ()
	returns the load queue object More...

Protected Types
typedef boost::unordered_map < std::string, std::pair < float, float > >	AnnotationNameToUvsMap

typedef boost::unordered_map < std::string, bool >	SensorRegionStateMap

typedef std::map< int, std::pair< DtTaitBryan, DtVector > >	PartOrientationMap

typedef std::map< int, std::pair< DtVector, DtVector > >	PartTranslationMap

Protected Types inherited from makVrv::DtModel
typedef std::vector < ObjectTransform >	TransformList

Protected Member Functions
virtual void	setStateInternal (int stateNumber, int stateValue)
	actually sets the state, it does not cache the state, call setUvOffset to cache the state More...

virtual void	setUvOffsetInternal (const std::string &annotation, float uOffset, float vOffset)
	actually sets the uv offset, it does not cache the state, call setUvOffset to cache the state More...

virtual void	setPartTranslationInternal (int partNumber, const DtVector &transform, const DtVector &velocity)
	Actually update the part translation. Does not cache the state call setPartTranslation to cache the state. More...

virtual void	setPartOrientationInternal (int partNumber, const DtTaitBryan &orientation, const DtVector &rotationalVelocity)
	Actually rotate the part. Does not cache the state call setPartOrientation to cache the state. More...

virtual void	setPartRotationalVelocityInternal (int partNumber, const DtVector &rotationalVelocity, bool forceUpdate=true)
	Actually update the rotational velocity of the part. More...

virtual void	addToScene (const DtUniqueID &sceneObjectId, int modelSet, int visualizerType)
	Virtual Functions to be implemented, add this model to the scene. More...

virtual void	removeFromScene ()
	Virtual Functions to be implemented, remove this model from the scene. More...

virtual void	disablePart (int partNumber)

virtual void	enablePart (int partNumber)

virtual void	modelInstanceToBeDeleted ()

virtual void	modelInstanceCreated (bool castShadows, bool daylightControlledLights, float scale)
	daylightControlled is only used if the light points do not already have a type specified More...

virtual void	mergeCurrentStateWithDefaults (DtArticulatedModelParser *parser)
	applies all the state merging code More...

virtual void	parseModel (osg::Node *root)
	parses the model More...

virtual void	backgroundLoad ()
	multithreaded loading functions More...

virtual void	foregroundLoad ()
	the chunk of loading that must happen happen in the foreground, adding to scene graph etc. More...

Protected Member Functions inherited from makVrv::DtModel
virtual void	addToSceneAsProp (const DtUniqueID &sceneObjectId)
	Add this model to the scene as a prop. More...

virtual void	initializeModelInstance ()
	Push any state maintained by the model to the model instance. More...

void	slot_modelInstanceChanged (DtModelInstance *instance)
	Called when the model instance changed. More...

virtual void	waitAndClearLoadHandle ()
	avoids race condition, on destruction subclasses need to wait for the model to cleanly finish loading this can happen if an object times in and out very quickly More...

virtual void	removedFromLoadQueue ()
	deletes the myInLoadQueueHandle handle More...

virtual void	setDoneBackgroundLoading ()
	called by async task, updates myCurrentlyLoading atomic More...

virtual void	setActivelyBackgroundLoading ()
	called right before tbb task creation More...

Protected Attributes
DtInstanceUtils::InstancedAnimationMap	myInstancedAnimationMap

DtInstanceUtils::InstancedAnnotationMap	myInstancedAnnotationMap

DtArticulatedModelParser::StateExistenceMap	myStateExistenceMap

DtArticulatedModelParser::StateValueMap	myStateValueMap

DtOsgSceneConnector *	mySceneConnector

DtArticulatedModelParser::PartMap	myPartMap

DtArticulatedModelParser::StateMap	myStateMap

DtArticulatedModelParser::AnimationMap	myAnimationMap

DtArticulatedModelParser::AnnotationMap	myAnnotationMap

NodePathCache	myNodePathCache

bool	myUseSwitch

AnnotationNameToUvsMap	myAnnotationsUvMap

SensorRegionStateMap	mySensorRegionMap

DtInstanceManager &	myInstanceManager

DtUniqueID	mySceneObjectId

DtMetaFileManager::LinkageValueVec	myModelMetaFeatures
	List of node pointers that have meta data associated with them. More...

LinkageConfigMap	myLinkageConfigMap
	Map of linkage names (NodeName/Annotation) from the metafile(if it exists) to config names. More...

std::vector< DtVirtualBaseClass * >	myModelMetaAttachments
	Vector of metafile attachment on this object so they can be deleted on object destruction. More...

DtInstanceUtils::PartMapCache *	myPartMapCache

DtInstanceUtils::PartMapCache *	myStateMapCache

PartOrientationMap	myPartOrientationMap

PartTranslationMap	myPartTranslationMap

DtVector	myBoundMin

DtVector	myBoundMax

bool	myIsInstanced

bool	myModelScalingEnabled

DtVector	mySetPosition

bool	myInitialPositionSet

DtTaitBryan	mySetOrientation

bool	myInitialOrientationSet

bool	myInitialPositionOffsetSet

bool	myInitialOrientationOffsetSet

DtUniqueID	myElementId

DtSignalConnectionManager	myConnections

std::string	myLightPointGroup

Protected Attributes inherited from makVrv::DtModel
DtLoaderHandle *	myInLoadQueueHandle

DtDe &	myDe

const DtUniqueID	myUniqueId
	The unique id is constant after initialization. More...

bool	myColorBlendingEnabled
	The color blending enabled is needed to be set by the derived class so it doesn't get down to the model instances when instancing is enabled. More...

DtModelInstance *	myBackgroundModelInstance
	holds the model created in the background for a bit More...

float	myMinLastFrameDistance
	last frames mimimal distance to the camera, calculated by the instancing system More...

TransformList	myTransforms
	We keep our own copy in case we get updates before we get a model instance. More...

DtModelInstance *	myModelInstance

int	myModelSet

int	myVisualizerType

bool	myContributesToBound

DtUniqueID	myParentSceneObjectID

bool	myIsPropFlag

float	myBlendColor [4]

bool	myVisibleFlag

DtVector	myPositionOffset

DtTaitBryan	myOrientationOffset

std::string	myModelDefinitionName

Static Protected Attributes
static const unsigned int	theNodePathCacheSize = 4

static boost::mutex	theBackgroundLoadCloneMutex

Static Protected Attributes inherited from makVrv::DtModel
static bool	theInittedState

Friends
class	DtArticulatedModelAnimationHelper

Additional Inherited Members
Public Attributes inherited from makVrv::DtModel
boost::signal< void(DtModel *)>	signal_modelToBeDestroyed
	Signal emitted when the model is to be destroyed. More...

boost::signal< void(DtModel *)>	signal_modelChanged

boost::signal< bool(DtModel *, bool), SlotReturnOR >	signal_visibilityChangeRequested
	Signal when the visibility has been requested, if any slot returns false, it will not change. More...

boost::signal< void(DtModelInstance , DtModel )>	signal_modelInstanceCreated
	Signal emitted when the model instance is created. More...

boost::signal< void(DtModelInstance , DtModel )>	signal_modelInstanceToBeDestroyed
	Signal emitted when the model instance is to be destroyed. More...

Detailed Description

An articulated model manipulator for controlling an articulated model.

Member Typedef Documentation

typedef std::vector<osg::Node*> makVrv::DtOsgArticulatedModel::NodeList

typedef boost::unordered_map<int, NodeList> makVrv::DtOsgArticulatedModel::NodePathCache

typedef std::map<std::string, std::string> makVrv::DtOsgArticulatedModel::LinkageConfigMap

typedef boost::unordered_map<std::string, std::pair<float, float> > makVrv::DtOsgArticulatedModel::AnnotationNameToUvsMap

protected

typedef boost::unordered_map<std::string, bool> makVrv::DtOsgArticulatedModel::SensorRegionStateMap

protected

typedef std::map<int, std::pair<DtTaitBryan, DtVector> > makVrv::DtOsgArticulatedModel::PartOrientationMap

protected

typedef std::map<int, std::pair<DtVector, DtVector> > makVrv::DtOsgArticulatedModel::PartTranslationMap

protected

Constructor & Destructor Documentation

makVrv::DtOsgArticulatedModel::DtOsgArticulatedModel	(	DtDe &	,
		DtUniqueID	id
	)

CTOR.

virtual makVrv::DtOsgArticulatedModel::~DtOsgArticulatedModel ( )

virtual

DTOR.

Member Function Documentation

virtual void makVrv::DtOsgArticulatedModel::setModelDefinition ( const std::string & str )

virtual

Override the set model definition function.

Use this to parse a model after it is loaded.

Implements makVrv::DtArticulatedModel.

Reimplemented in makVrf::DtVrfOsgArticulatedModel, and DtVrfOsgArticulatedModel.

virtual const std::string& makVrv::DtOsgArticulatedModel::modelDefinition ( )

inlinevirtual

virtual const std::string& makVrv::DtOsgArticulatedModel::className ( ) const

virtual

Get the class name of the model instance owner.

This is used to control how model instances are created.

Implements makVrv::DtArticulatedModel.

virtual void makVrv::DtOsgArticulatedModel::setModelScalingEnabled ( bool b )

virtual

Indicate whether or not this model may be model-scaled Default is false.

Implements makVrv::DtArticulatedModel.

virtual bool makVrv::DtOsgArticulatedModel::modelScalingEnabled ( )

virtual

getter for model scaling enabled flag

virtual void makVrv::DtOsgArticulatedModel::setLocalModelScalingEnabled ( bool enabled )

virtual

Indicates whether local model scaling for the model is enabled.

Local model scaling overrides generic (global) model scaling. Default is false.

Implements makVrv::DtArticulatedModel.

virtual void makVrv::DtOsgArticulatedModel::setLocalModelScalingAmount ( float localScl )

virtual

Sets the amount of local scaling to apply to the model.

Only applies when local model scaling is enabled.

Implements makVrv::DtArticulatedModel.

virtual void makVrv::DtOsgArticulatedModel::setPosition	(	int	vtx,
		const DtVector &	position
	)

virtual

Set the model's position for the specified vertex.

Vertex 0 moves the whole model; other vertices are no-ops

Reimplemented from makVrv::DtModel.

virtual void makVrv::DtOsgArticulatedModel::setOrientation	(	int	vtx,
		const DtTaitBryan &	orientation
	)

virtual

Set the model's orientation for the specified vertex.

Vertex 0 moves the whole model; other vertices are no-ops

Reimplemented from makVrv::DtModel.

virtual void makVrv::DtOsgArticulatedModel::setPositionOffset ( const DtVector & positionOffset )

virtual

Set the position offset of the model.

This offsets the position of the entire model.

Reimplemented from makVrv::DtModel.

virtual void makVrv::DtOsgArticulatedModel::setOrientationOffset ( const DtTaitBryan & orientationOffset )

virtual

Set the Orientation Offset of the model.

This offsets the orientation of the entire model.

Reimplemented from makVrv::DtModel.

virtual void makVrv::DtOsgArticulatedModel::setVisible ( bool isVisible )

virtual

Set the visible state of the model and scene connector.

Parameters

[in] isVisible is the new visible state; true = visible, false = hidden.

Reimplemented from makVrv::DtModel.

virtual void makVrv::DtOsgArticulatedModel::setPartTranslation	(	int	partNumber,
		const DtVector &	transform,
		const DtVector &	velocity
	)

virtual

Update the part translation.

Implements makVrv::DtArticulatedModel.

virtual void makVrv::DtOsgArticulatedModel::setPartOrientation	(	int	partNumber,
		const DtTaitBryan &	orientation,
		const DtVector &	rotationalVelocity
	)

virtual

Rotate the part.

Implements makVrv::DtArticulatedModel.

virtual void makVrv::DtOsgArticulatedModel::setPartRotationalVelocity	(	int	partNumber,
		const DtVector &	rotationalVelocity,
		bool	forceUpdate = `true`
	)

virtual

Set just the rotational velocity (without having to do orientation) forceUpdate will force an update when instancing is enabled.

Implements makVrv::DtArticulatedModel.

virtual void makVrv::DtOsgArticulatedModel::setState	(	int	stateNumber,
		int	stateValue
	)

virtual

Set the state on the model.

Implements makVrv::DtArticulatedModel.

Reimplemented in DtVrfOsgMultipleArticulatedModel.

virtual void makVrv::DtOsgArticulatedModel::reapplyState ( )

virtual

Set the state on the model.

int makVrv::DtOsgArticulatedModel::state ( int stateNumber ) const

Get a state of the model Returns -1 if no such state exists.

virtual void makVrv::DtOsgArticulatedModel::setLightpointMaxDistance ( float distance )

virtual

Specify the maximum range at which lightpoints on this model will be visible.

This sets ALL lightpoints to the same range.

Implements makVrv::DtArticulatedModel.

virtual void makVrv::DtOsgArticulatedModel::setDepthMask ( osg::Group & parent )

virtual

Sets child nodes as a depth mask, which writes to the depth buffer and does not get sorted as transparent.

(Useful for things like masking water out of the inside of ship hulls by placing a transparent polygon above it as a depth mask.)

virtual void makVrv::DtOsgArticulatedModel::setAnimationFrame	(	const std::string &	animationName,
		int	frameIndex
	)

virtual

Set the current frame of an animation.

only support in non-instance model

Implements makVrv::DtArticulatedModel.

virtual void makVrv::DtOsgArticulatedModel::setAnimationRange	(	const std::string &	animationName,
		int	firstFrameIndex,
		int	lastFrameIndex
	)

virtual

Set the animation range.

only support in non-instance model

Implements makVrv::DtArticulatedModel.

virtual void makVrv::DtOsgArticulatedModel::setAnimationSpeed	(	const std::string &	animationName,
		double	framesPerSecond
	)

virtual

Set the animation speed.

Implements makVrv::DtArticulatedModel.

virtual void makVrv::DtOsgArticulatedModel::setAnimationState	(	const std::string &	animationName,
		AnimationState	mode
	)

virtual

Set the animation mode.

Implements makVrv::DtArticulatedModel.

virtual void makVrv::DtOsgArticulatedModel::setAnimationLastFrameTime	(	const std::string &	animationName,
		double	animationLastFrameTime
	)

virtual

Set the last frame time in the currnet range in an animation /param animationLastFrameTime should be non-negative value only support in non-instance model.

virtual void makVrv::DtOsgArticulatedModel::setAnimationLoopCount	(	const std::string &	animationName,
		int	loopCount
	)

virtual

Get the animation loop count in an animation /param loopCount -1:repeat forever 0:no repetitions only support in non-instance model.

virtual void makVrv::DtOsgArticulatedModel::setUvOffset	(	const std::string &	annotation,
		float	uOffset,
		float	vOffset
	)

virtual

Groups using a texture atlas are identified using an annotation (ex.

annotation label_char_1). setUvOffset is used to set the offset into the atlas texture for the group indicated by the annotation.

Implements makVrv::DtArticulatedModel.

virtual void makVrv::DtOsgArticulatedModel::setDynamicSensorRegion	(	const std::string &	region,
		bool	state
	)

virtual

Set the state of a dynamic sensor region.

Implements makVrv::DtArticulatedModel.

virtual bool makVrv::DtOsgArticulatedModel::dynamicSensorRegion ( const std::string & region )

virtual

Get the state of a dynamic sensor region.

Implements makVrv::DtArticulatedModel.

virtual void makVrv::DtOsgArticulatedModel::setLinkageConfigPair	(	const std::string &	linkageName,
		const std::string &	configName
	)

virtual

Specifies a linkage/config pair where the linkageName is the name of a node or an annotation on a node that identifies it and configName is a string looked up in the Mappings section of the FeatureData for the linkage in the metafile associated with the model.

The resultant string from the configName is used to apply textures to the node.

Implements makVrv::DtArticulatedModel.

virtual bool makVrv::DtOsgArticulatedModel::findPartPositionAndOrientation	(	int	partNumber,
		DtVector &	position,
		DtQuat &	ori
	)

virtual

Finds the absolute position and orientation of a part.

This function is more efficient than calling both the position and orientation functions.

Implements makVrv::DtArticulatedModel.

virtual DtVector makVrv::DtOsgArticulatedModel::partTranslation ( int partNumber ) const

virtual

Get a part translation.

Return values

0,0,0 when the part number is invalid.

virtual DtTaitBryan makVrv::DtOsgArticulatedModel::partOrientation ( int partNumber ) const

virtual

Get a part orientation.

Return values

0,0,0 when the part number is invalid.

virtual int makVrv::DtOsgArticulatedModel::animationFrameCount ( const std::string & animationName ) const

virtual

Get number of frames in an animation.

Return values

-1	when the animation number is invalid.

virtual int makVrv::DtOsgArticulatedModel::animationCurrentFrame ( const std::string & animationName ) const

virtual

Get the current frame of an animation.

Return values

-1	when the animation number is invalid.

virtual int makVrv::DtOsgArticulatedModel::animationFirstFrame ( const std::string & animationName ) const

virtual

Get the first frame in the current range in an animation.

Return values

-1	when the animation number is invalid. only support in non-instance model

virtual int makVrv::DtOsgArticulatedModel::animationLastFrame ( const std::string & animationName ) const

virtual

Get the last frame in the current range in an animation.

Return values

-1	when the animation number is invalid. only support in non-instance model

virtual double makVrv::DtOsgArticulatedModel::animationSpeed ( const std::string & animationName ) const

virtual

Get the speed of an animation.

Return values

-1.0	when the animation number is invalid.

virtual AnimationState makVrv::DtOsgArticulatedModel::animationState ( const std::string & animationName ) const

virtual

Get the animation mode of an animation.

Return values

STOP	when the animation name is invalid

virtual double makVrv::DtOsgArticulatedModel::animationLastFrameTime ( const std::string & animationName ) const

virtual

Get the last frame time in the current range in an animation.

Return values

-1	when the animation number is invalid. only support in non-instance model

virtual int makVrv::DtOsgArticulatedModel::animationLoopCount ( const std::string & animationName ) const

virtual

Get the animation loop count in an animation.

only support in non-instance model

const DtArticulatedModelParser::PartMap& makVrv::DtOsgArticulatedModel::parts ( ) const

Get a map of the current parts.

virtual void makVrv::DtOsgArticulatedModel::getParts ( PartList & parts ) const

virtual

Only a list of all the parts.

Implements makVrv::DtArticulatedModel.

const DtArticulatedModelParser::StateMap& makVrv::DtOsgArticulatedModel::states ( ) const

Get a map of the current states.

const DtArticulatedModelParser::AnimationMap& makVrv::DtOsgArticulatedModel::animations ( ) const

Get a map of the current animations.

virtual void makVrv::DtOsgArticulatedModel::addPart	(	int	partNumber,
		osgSim::DOFTransform *	node
	)

virtual

Add a part off the DOF transform node and a part Number.

virtual void makVrv::DtOsgArticulatedModel::addState	(	int	stateNumber,
		osgSim::MultiSwitch *	node
	)

virtual

Add a switch off the DOF switch node and a part number.

virtual void makVrv::DtOsgArticulatedModel::setStateValueExists	(	int	stateNumber,
		int	stateValue
	)

virtual

Set when a state value exists; only state values that have had this method called on them will be used.

virtual void makVrv::DtOsgArticulatedModel::addAnimation	(	const std::string &	animationName,
		osg::Sequence *	node
	)

virtual

Add animation Sequence.

virtual void makVrv::DtOsgArticulatedModel::addAnnotationGroup	(	const std::string &	annotation,
		osg::Group *	group
	)

virtual

Add a mapping from an annotation to a group node.

virtual void makVrv::DtOsgArticulatedModel::setColor	(	float	r,
		float	g,
		float	b,
		float	a
	)

virtual

Set the blend color for the model.

Reimplemented from makVrv::DtModel.

virtual void makVrv::DtOsgArticulatedModel::enableColorBlending ( bool b )

virtual

enable color blending for the model

Reimplemented from makVrv::DtModel.

virtual void makVrv::DtOsgArticulatedModel::setBlendColor	(	float	r,
		float	g,
		float	b,
		float	a
	)

virtual

Set the blend color for the model.

Reimplemented from makVrv::DtModel.

virtual void makVrv::DtOsgArticulatedModel::setPartVisibility	(	int	partNumber,
		bool	onOff
	)

virtual

Set an articulated part visible/invisible by part number.

Implements makVrv::DtArticulatedModel.

virtual void makVrv::DtOsgArticulatedModel::setIsSupportModel ( bool isSupport )

virtual

Set whether the model is part of the support group (whether or not other scene objects can ground clamp to this model)

Implements makVrv::DtModel.

virtual void makVrv::DtOsgArticulatedModel::getBoundingBoxComponents	(	DtVector &	minimum,
		DtVector &	maximum
	)

virtual

Get the minimum and maximum X,Y,Z components of the bounding box.

Reimplemented from makVrv::DtModel.

std::vector<DtVirtualBaseClass*>& makVrv::DtOsgArticulatedModel::modelAttachments ( )

Get the list of dynamic feature objects for this model (created by .meta files)

virtual bool makVrv::DtOsgArticulatedModel::applyMetafile ( const DtModelDefinition * definition )

virtual

For a given model definition, get the .medf file name, load the corresponding .meta file and created nodes in the DtOsgModelInstance.

virtual void makVrv::DtOsgArticulatedModel::slot_onShadowStateChanged ( bool on )

virtual

Turn on or off the shadow polygon on objects (ex. vehicles)

virtual void makVrv::DtOsgArticulatedModel::slot_atcModeEnableChanged ( bool state )

virtual

slot for handling when alpha to coverage on all models is changed

DtUniqueID makVrv::DtOsgArticulatedModel::sceneObjectId ( )

Get the ID for this model's scene object, if any.

Returns 0 if it's not part of a scene object

virtual void makVrv::DtOsgArticulatedModel::setElementId ( DtUniqueID id )

virtual

Set the element ID for this model.

Reimplemented from makVrv::DtModel.

virtual void makVrv::DtOsgArticulatedModel::setLightPointGroup ( const std::string & groupName )

virtual

Set the light point group that this model's light points belong to.

virtual std::string makVrv::DtOsgArticulatedModel::lightPointGroup ( )

virtual

Get the light point group that this model's light points belong to.

virtual LinkageConfigMap& makVrv::DtOsgArticulatedModel::linkageConfigMap ( )

virtual

Get the mapping of linkage names (NodeName/Annotation) to configName pairs.

virtual const LinkageConfigMap& makVrv::DtOsgArticulatedModel::linkageConfigMap ( ) const

virtual

Get the mapping of linkage names (NodeName/Annotation) to configName pairs.

virtual void makVrv::DtOsgArticulatedModel::setStateInternal	(	int	stateNumber,
		int	stateValue
	)

protectedvirtual

actually sets the state, it does not cache the state, call setUvOffset to cache the state

virtual void makVrv::DtOsgArticulatedModel::setUvOffsetInternal	(	const std::string &	annotation,
		float	uOffset,
		float	vOffset
	)

protectedvirtual

actually sets the uv offset, it does not cache the state, call setUvOffset to cache the state

virtual void makVrv::DtOsgArticulatedModel::setPartTranslationInternal	(	int	partNumber,
		const DtVector &	transform,
		const DtVector &	velocity
	)

protectedvirtual

Actually update the part translation. Does not cache the state call setPartTranslation to cache the state.

virtual void makVrv::DtOsgArticulatedModel::setPartOrientationInternal	(	int	partNumber,
		const DtTaitBryan &	orientation,
		const DtVector &	rotationalVelocity
	)

protectedvirtual

Actually rotate the part. Does not cache the state call setPartOrientation to cache the state.

virtual void makVrv::DtOsgArticulatedModel::setPartRotationalVelocityInternal	(	int	partNumber,
		const DtVector &	rotationalVelocity,
		bool	forceUpdate = `true`
	)

protectedvirtual

Actually update the rotational velocity of the part.

Does not cache the state call setPartRotationVelocity to cache the state forceUpdate will force an update when instancing is enabled

virtual void makVrv::DtOsgArticulatedModel::addToScene	(	const DtUniqueID &	sceneObjectId,
		int	modelSet,
		int	visualizerType
	)

protectedvirtual

Virtual Functions to be implemented, add this model to the scene.

Implements makVrv::DtModel.

virtual void makVrv::DtOsgArticulatedModel::removeFromScene ( )

protectedvirtual

Virtual Functions to be implemented, remove this model from the scene.

Implements makVrv::DtModel.

virtual void makVrv::DtOsgArticulatedModel::disablePart ( int partNumber )

protectedvirtual

virtual void makVrv::DtOsgArticulatedModel::enablePart ( int partNumber )

protectedvirtual

virtual void makVrv::DtOsgArticulatedModel::modelInstanceToBeDeleted ( )

protectedvirtual

virtual void makVrv::DtOsgArticulatedModel::modelInstanceCreated	(	bool	castShadows,
		bool	daylightControlledLights,
		float	scale
	)

protectedvirtual

daylightControlled is only used if the light points do not already have a type specified

virtual void makVrv::DtOsgArticulatedModel::mergeCurrentStateWithDefaults ( DtArticulatedModelParser * parser )

protectedvirtual

applies all the state merging code

virtual void makVrv::DtOsgArticulatedModel::parseModel ( osg::Node * root )

protectedvirtual

parses the model

Reimplemented in DtVrfOsgArticulatedModel.

virtual void makVrv::DtOsgArticulatedModel::backgroundLoad ( )

protectedvirtual

multithreaded loading functions

Reimplemented from makVrv::DtModel.

virtual void makVrv::DtOsgArticulatedModel::foregroundLoad ( )

protectedvirtual

the chunk of loading that must happen happen in the foreground, adding to scene graph etc.

Reimplemented from makVrv::DtModel.

Friends And Related Function Documentation

friend class DtArticulatedModelAnimationHelper

friend

Member Data Documentation

DtInstanceUtils::InstancedAnimationMap makVrv::DtOsgArticulatedModel::myInstancedAnimationMap

protected

DtInstanceUtils::InstancedAnnotationMap makVrv::DtOsgArticulatedModel::myInstancedAnnotationMap

protected

DtArticulatedModelParser::StateExistenceMap makVrv::DtOsgArticulatedModel::myStateExistenceMap

protected

DtArticulatedModelParser::StateValueMap makVrv::DtOsgArticulatedModel::myStateValueMap

protected

DtOsgSceneConnector* makVrv::DtOsgArticulatedModel::mySceneConnector

protected

DtArticulatedModelParser::PartMap makVrv::DtOsgArticulatedModel::myPartMap

protected

DtArticulatedModelParser::StateMap makVrv::DtOsgArticulatedModel::myStateMap

protected

DtArticulatedModelParser::AnimationMap makVrv::DtOsgArticulatedModel::myAnimationMap

protected

DtArticulatedModelParser::AnnotationMap makVrv::DtOsgArticulatedModel::myAnnotationMap

protected

NodePathCache makVrv::DtOsgArticulatedModel::myNodePathCache

protected

const unsigned int makVrv::DtOsgArticulatedModel::theNodePathCacheSize = 4

staticprotected

bool makVrv::DtOsgArticulatedModel::myUseSwitch

protected

AnnotationNameToUvsMap makVrv::DtOsgArticulatedModel::myAnnotationsUvMap

protected

SensorRegionStateMap makVrv::DtOsgArticulatedModel::mySensorRegionMap

protected

DtInstanceManager& makVrv::DtOsgArticulatedModel::myInstanceManager

protected

DtUniqueID makVrv::DtOsgArticulatedModel::mySceneObjectId

protected

DtMetaFileManager::LinkageValueVec makVrv::DtOsgArticulatedModel::myModelMetaFeatures

protected

List of node pointers that have meta data associated with them.

LinkageConfigMap makVrv::DtOsgArticulatedModel::myLinkageConfigMap

protected

Map of linkage names (NodeName/Annotation) from the metafile(if it exists) to config names.

Used by applyMetafile function.

std::vector<DtVirtualBaseClass*> makVrv::DtOsgArticulatedModel::myModelMetaAttachments

protected

Vector of metafile attachment on this object so they can be deleted on object destruction.

DtInstanceUtils::PartMapCache* makVrv::DtOsgArticulatedModel::myPartMapCache

protected

DtInstanceUtils::PartMapCache* makVrv::DtOsgArticulatedModel::myStateMapCache

protected

PartOrientationMap makVrv::DtOsgArticulatedModel::myPartOrientationMap

protected

PartTranslationMap makVrv::DtOsgArticulatedModel::myPartTranslationMap

protected

DtVector makVrv::DtOsgArticulatedModel::myBoundMin

protected

DtVector makVrv::DtOsgArticulatedModel::myBoundMax

protected

bool makVrv::DtOsgArticulatedModel::myIsInstanced

protected

bool makVrv::DtOsgArticulatedModel::myModelScalingEnabled

protected

DtVector makVrv::DtOsgArticulatedModel::mySetPosition

protected

bool makVrv::DtOsgArticulatedModel::myInitialPositionSet

protected

DtTaitBryan makVrv::DtOsgArticulatedModel::mySetOrientation

protected

bool makVrv::DtOsgArticulatedModel::myInitialOrientationSet

protected

bool makVrv::DtOsgArticulatedModel::myInitialPositionOffsetSet

protected

bool makVrv::DtOsgArticulatedModel::myInitialOrientationOffsetSet

protected

DtUniqueID makVrv::DtOsgArticulatedModel::myElementId

protected

DtSignalConnectionManager makVrv::DtOsgArticulatedModel::myConnections

protected

std::string makVrv::DtOsgArticulatedModel::myLightPointGroup

protected

boost::mutex makVrv::DtOsgArticulatedModel::theBackgroundLoadCloneMutex

staticprotected

The documentation for this class was generated from the following file:

/data/exports/nrhent7-1/nightly/docs/vrForces.vrf4-8-branch/include/vrvOsg/DtOsgArticulatedModel.h

Public Types

Public Member Functions

Protected Types

Protected Member Functions

Protected Attributes

Static Protected Attributes

Friends

Additional Inherited Members

Detailed Description

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

Friends And Related Function Documentation

Member Data Documentation
