makVrv::DtTickable Class Reference

An abstract base class for objects that require updates. More...

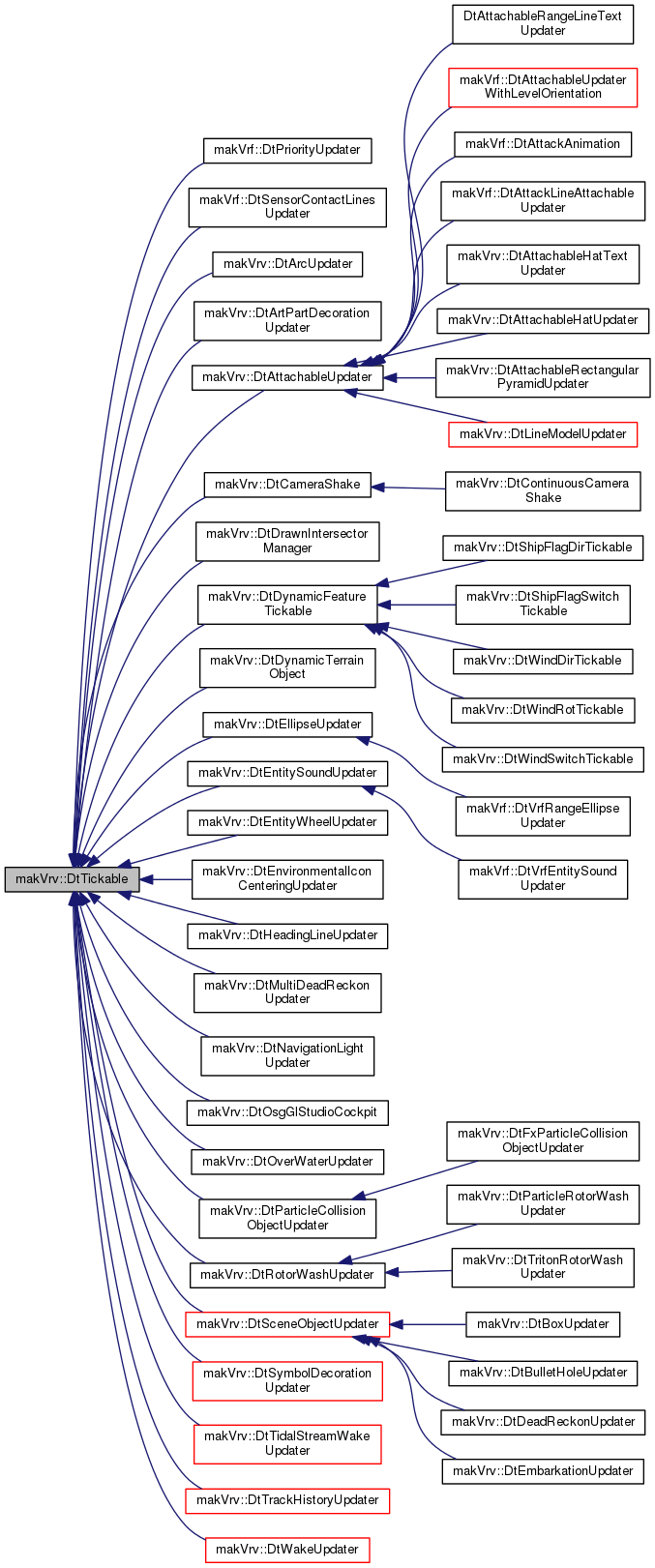

Inheritance diagram for makVrv::DtTickable:

Public Types
enum	TickableListState { TickableNotOnList, TickableOnMainList, TickableOnThreadSafeList }
	Enumeration used to indicate which DtTickableManager's tickable list the tickable is on, if any. More...

Public Member Functions
virtual bool	needsUpdate (DtTime tNow)
	The check function called by DtTickableManager to verify if an update is required. More...
virtual bool	updateIfNeeded (DtTime tNow)
	Calls needsUpdate(), and then calls update() if needsUpdate() is true. More...
virtual void	update (DtTime tNow)=0
	The update function called by DtTickableManager during update-ticks. More...
virtual	~DtTickable ()
	Virtual DTOR. More...
virtual void	setIsThreadSafe (bool safe)
	Get/set whether this tickable can be updated in parallel with other tickables. More...
virtual bool	isThreadSafe () const
virtual void	setTickableListState (TickableListState safeList)
	Track which tickable list (if any) this tickable is on Since the tickable constructor puts ALL tickables on the main (unThreadSafe) to start we need a way to check which list a tickable is on (and this way we can request removals from the correct list instead of having to call DtTickableManager::removeTickableObject(), which tries both lists). More...
virtual TickableListState	tickableListState () const
virtual void	setUpdatePeriod (unsigned int period)
	Specify how often (in # of frames) this tickable should call update. More...
virtual unsigned int	updatePeriod () const
virtual bool	lodSystemEnabled () const
	is the update LOD system enabled, overridden by subclasses More...

Protected Member Functions
	DtTickable (DtTickableManagerInterface *manager)
	CTOR. More...
	DtTickable ()
	Unimplemented default CTOR. More...
virtual void	slot_managerAboutToBeDeleted ()

Protected Attributes
DtTickableManagerInterface *	myManager
	Pointer to manager for removal during destruction. More...
DtSignalConnectionManager	myConnections
unsigned int	myFrameCounter
unsigned int	myFrameToUpdate
unsigned int	myUpdatePeriod
DtTime	myLastUpdateTime
bool	myIsThreadSafe
TickableListState	myTickableListState

Detailed Description

An abstract base class for objects that require updates.

This object automatically adds itself to a DtTickableManager.

Member Enumeration Documentation

enum makVrv::DtTickable::TickableListState

Enumeration used to indicate which DtTickableManager's tickable list the tickable is on, if any.

Enumerator
TickableNotOnList
TickableOnMainList
TickableOnThreadSafeList

Constructor & Destructor Documentation

virtual makVrv::DtTickable::~DtTickable ( )

virtual

Virtual DTOR.

makVrv::DtTickable::DtTickable ( DtTickableManagerInterface *  manager )

protected

CTOR.

Parameters

[in]

manager

is the managing object to update this object; NULL may be passed to create an unticked tickable Do not delete this object explicitly, because the manager now owns it and will delete it on its own

makVrv::DtTickable::DtTickable ( )

protected

Unimplemented default CTOR.

Member Function Documentation

virtual bool makVrv::DtTickable::needsUpdate ( DtTime  tNow )

virtual

The check function called by DtTickableManager to verify if an update is required.

If this function returns true, the DtTickableManager will then call update().

Parameters

[in]

tNow

is the current time-stamp.

Return values

true	if this object needs to be ticked.
false	otherwise. The base class checks handles period checks (for tickables that don't tick every frame. Deriving methods can incorporate that capability by calling down to the base class first.

Reimplemented in makVrv::DtAttachableUpdater, makVrv::DtOsgGlStudioCockpit, makVrv::DtDynamicTerrainObject, makVrv::DtSceneObjectUpdater, makVrv::DtMultiDeadReckonUpdater, makVrv::DtShipFlagDirTickable, makVrv::DtTritonRotorWashUpdater, makVrv::DtCameraShake, makVrv::DtEllipseUpdater, makVrv::DtShipFlagSwitchTickable, makVrf::DtSensorContactLinesUpdater, makVrv::DtArcUpdater, makVrv::DtOverWaterUpdater, makVrv::DtTritonWakeUpdater, makVrf::DtSpotReportTrackHistoryUpdater, makVrf::DtPriorityUpdater, makVrv::DtWindRotTickable, makVrv::DtArtPartDecorationUpdater, makVrv::DtHeadingLineUpdater, makVrv::DtTrackHistoryUpdater, makVrv::DtWindDirTickable, makVrv::DtWindSwitchTickable, makVrv::DtEnvironmentalIconCenteringUpdater, makVrv::DtTritonTidalStreamWakeUpdater, makVrv::DtSymbolDecorationUpdater, makVrv::DtNavigationLightUpdater, and makVrf::DtVrfRangeEllipseUpdater.

virtual bool makVrv::DtTickable::updateIfNeeded ( DtTime  tNow )

virtual

Calls needsUpdate(), and then calls update() if needsUpdate() is true.

virtual void makVrv::DtTickable::update ( DtTime  tNow )

pure virtual

The update function called by DtTickableManager during update-ticks.

Parameters

[in]

tNow

is the current time-stamp.

Implemented in makVrv::DtDrawnIntersectorManager, makVrv::DtAttachableUpdater, makVrv::DtOsgGlStudioCockpit, makVrv::DtEmbarkationUpdater, makVrf::DtVrfEntitySoundUpdater, makVrv::DtMultiPointEmbarkationUpdater, makVrv::DtDynamicTerrainObject, makVrv::DtSceneObjectUpdater, makVrv::DtAttachableEntityFanUpdater, makVrv::DtTritonRotorWashUpdater, makVrv::DtLineModelUpdater, makVrv::DtParticleRotorWashUpdater, makVrv::DtCameraShake, makVrv::DtOverWaterUpdater, makVrv::DtSurfaceClampingUpdater, makVrv::DtMultiDeadReckonUpdater, makVrv::DtVertexUpdater, makVrv::DtGroundClampingUpdater, makVrv::DtMultiPointSceneObjectUpdater, makVrv::DtFxParticleCollisionObjectUpdater, makVrv::DtWakeUpdater, makVrv::DtTritonTidalStreamWakeUpdater, makVrv::DtEnvironmentalIconCenteringUpdater, makVrf::DtExternalDataSymbolDecorationUpdater, makVrv::DtParticleCollisionObjectUpdater, makVrf::DtSpotReportTrackHistoryUpdater, makVrf::DtPriorityUpdater, makVrv::DtNavigationLightUpdater, makVrv::DtSymbolDecorationUpdater, makVrv::DtTidalStreamWakeUpdater, makVrv::DtTritonWakeUpdater, makVrv::DtRotorWashUpdater, makVrv::DtContinuousCameraShake, makVrv::DtWaterClampingUpdater, makVrv::DtShipFlagSwitchTickable, makVrf::DtSensorContactLinesUpdater, makVrv::DtAttachableIntervisibilityUpdater, makVrv::DtShipFlagDirTickable, makVrv::DtDeadReckonUpdater, makVrv::DtHeadingLineUpdater, makVrv::DtTrackHistoryUpdater, makVrv::DtEntitySoundUpdater, makVrv::DtWindRotTickable, makVrv::DtWindDirTickable, makVrv::DtWindSwitchTickable, makVrf::DtVrfAttachableEntityFanUpdater, makVrv::DtTerrainScalingUpdater, and makVrv::DtEntityWheelUpdater.

virtual void makVrv::DtTickable::setIsThreadSafe ( bool  safe )

virtual

Get/set whether this tickable can be updated in parallel with other tickables.

Calling setIsThreadSafe() will put the tickable onto either the tickable manager's main tickable list or its threadSafe list. By default, all tickables are considered NOT thread safe, and start on the main tickable list

Reimplemented in makVrv::DtSceneObjectUpdater.

virtual bool makVrv::DtTickable::isThreadSafe ( ) const

virtual

virtual void makVrv::DtTickable::setTickableListState ( TickableListState  safeList )

virtual

Track which tickable list (if any) this tickable is on Since the tickable constructor puts ALL tickables on the main (unThreadSafe) to start we need a way to check which list a tickable is on (and this way we can request removals from the correct list instead of having to call DtTickableManager::removeTickableObject(), which tries both lists).

virtual TickableListState makVrv::DtTickable::tickableListState ( ) const

virtual

virtual void makVrv::DtTickable::setUpdatePeriod ( unsigned int  period )

virtual

Specify how often (in # of frames) this tickable should call update.

E.g, if period is set to 40, then needsUpdate will return true once every forty frames. Which frame that happens on is randomized (when the period is set) to help distribute intermittent tickables. By default, period is 1, and needsUpdate returns true every frame.

virtual unsigned int makVrv::DtTickable::updatePeriod ( ) const

virtual

virtual bool makVrv::DtTickable::lodSystemEnabled ( ) const

virtual

is the update LOD system enabled, overridden by subclasses

Reimplemented in makVrv::DtSceneObjectUpdater.

virtual void makVrv::DtTickable::slot_managerAboutToBeDeleted ( )

protectedvirtual

Member Data Documentation

DtTickableManagerInterface* makVrv::DtTickable::myManager

protected

Pointer to manager for removal during destruction.

DtSignalConnectionManager makVrv::DtTickable::myConnections

protected

unsigned int makVrv::DtTickable::myFrameCounter

protected

unsigned int makVrv::DtTickable::myFrameToUpdate

protected

unsigned int makVrv::DtTickable::myUpdatePeriod

protected

DtTime makVrv::DtTickable::myLastUpdateTime

protected

bool makVrv::DtTickable::myIsThreadSafe

protected

TickableListState makVrv::DtTickable::myTickableListState

protected

---

The documentation for this class was generated from the following file:

• /data/exports/nrhent7-1/nightly/docs/vrForces.vrf4-8-branch/include/vrvCore/DtTickable.h
