makVrf::DtQtWeatherLookModificationOperation Class Reference

This class will be the interface for deciding what icons or colors to display for weather areas.

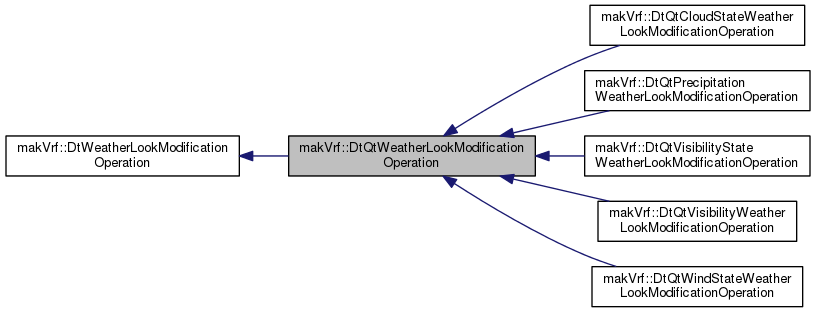

Inheritance diagram for makVrf::DtQtWeatherLookModificationOperation:

Public Member Functions
	DtQtWeatherLookModificationOperation (makVrv::DtDe &de)
	DtQtWeatherLookModificationOperation (const DtQtWeatherLookModificationOperation &orig)
virtual	~DtQtWeatherLookModificationOperation ()
virtual void	modelDefinitionForWeatherLook (const makArchives::DtEnvironmentRecord &, std::string &) const
virtual void	modelDefinitionForWeatherLook (const makArchives::DtEnvironmentRecord &, std::string &modelDefinitionName, QImage &compositeImage) const =0
Public Member Functions inherited from makVrf::DtWeatherLookModificationOperation
	DtWeatherLookModificationOperation (makVrv::DtDe &de)
	DtWeatherLookModificationOperation (const DtWeatherLookModificationOperation &orig)
virtual	~DtWeatherLookModificationOperation ()
virtual DtWeatherLookModificationOperation *	clone () const =0
virtual void	modifyColorForWeather (const makArchives::DtEnvironmentRecord &, float &r, float &g, float &b, float &a) const =0

Protected Member Functions
virtual void	composeImage (const std::string &imageName, std::string &modelDefinition, QImage &compositeImage) const

Additional Inherited Members
Protected Attributes inherited from makVrf::DtWeatherLookModificationOperation
makVrv::DtDe &	myDe

Constructor & Destructor Documentation

makVrf::DtQtWeatherLookModificationOperation::DtQtWeatherLookModificationOperation

(

makVrv::DtDe &

de

)

CTOR.

makVrf::DtQtWeatherLookModificationOperation::DtQtWeatherLookModificationOperation

(

const DtQtWeatherLookModificationOperation &

orig

)

virtual makVrf::DtQtWeatherLookModificationOperation::~DtQtWeatherLookModificationOperation ( )

virtual

DTOR.

Member Function Documentation

virtual void makVrf::DtQtWeatherLookModificationOperation::modelDefinitionForWeatherLook ( const makArchives::DtEnvironmentRecord &  , std::string &    ) const

virtual

Returns the model definition to use for display in the weather area. Calls class with a new QImage of the default size.

Implements makVrf::DtWeatherLookModificationOperation.

virtual void makVrf::DtQtWeatherLookModificationOperation::modelDefinitionForWeatherLook ( const makArchives::DtEnvironmentRecord &  , std::string &  modelDefinitionName, QImage &  compositeImage  ) const

pure virtual

Creates the composite image used for displaying an icon. Also modified the model definition name to point to that image. Note that many operations can modify the name or image.

Implemented in makVrf::DtQtPrecipitationWeatherLookModificationOperation, makVrf::DtQtWindStateWeatherLookModificationOperation, makVrf::DtQtVisibilityWeatherLookModificationOperation, makVrf::DtQtCloudStateWeatherLookModificationOperation, and makVrf::DtQtVisibilityStateWeatherLookModificationOperation.

virtual void makVrf::DtQtWeatherLookModificationOperation::composeImage ( const std::string &  imageName, std::string &  modelDefinition, QImage &  compositeImage  ) const

protectedvirtual

Composes the image (assumed .svg file if no extension is given) and modifies the model def name appropriately.

---

The documentation for this class was generated from the following file:

• /data/exports/nrhent7-1/nightly/docs/vrForces.vrf5-0-branch/include/vrfGuiCommonQt/qtWeatherLookModificationOperation.h
