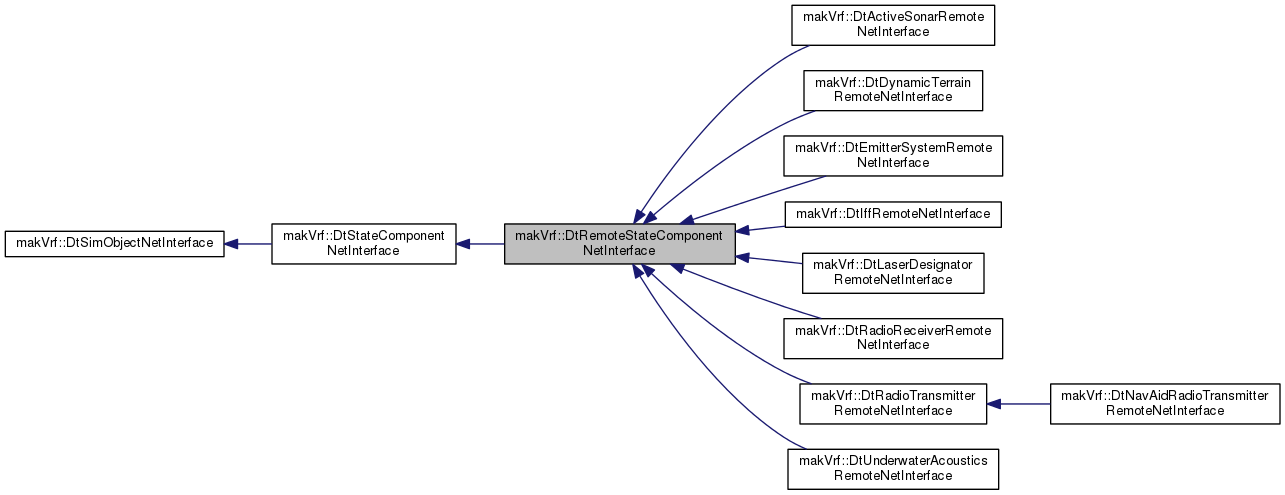

Inheritance diagram for makVrf::DtRemoteStateComponentNetInterface:

Public Member Functions
	DtRemoteStateComponentNetInterface (DtStateData simObject, DtVrlinkNetworkInterface objectManager, bool publishObject=true)

virtual	~DtRemoteStateComponentNetInterface ()

virtual bool	isUnit () const

virtual bool	isEntity () const

virtual bool	isEnvironmental () const

virtual void	onTick ()

virtual bool	isLocal () const

virtual void	init (DtFrameStateInterface , DtReflectedObject )

virtual void	updateComponent ()=0

virtual bool	wantsToCreatePublisher () const

Public Member Functions inherited from makVrf::DtStateComponentNetInterface
	DtStateComponentNetInterface (DtStateData simObject, DtVrlinkNetworkInterface objectManager, bool publishObject=true)

virtual	~DtStateComponentNetInterface ()

virtual bool	init (const DtStateComponent *)

virtual bool	publishObject () const

virtual void	tick ()

Public Member Functions inherited from makVrf::DtSimObjectNetInterface
	DtSimObjectNetInterface (DtStateData simObject, DtVrlinkNetworkInterface , bool publishObject=true)

virtual	~DtSimObjectNetInterface ()

virtual bool	init (const DtEntityIdentifier &id=DtEntityIdentifier())

virtual DtString	type () const =0

virtual int	maxNameLength () const

virtual void	toBeRemoved ()

virtual void	parallelTick ()

virtual void	forceUpdate ()

Protected Member Functions
virtual void	processReflectedObjectUpdated (DtReflectedObject *)

Protected Member Functions inherited from makVrf::DtStateComponentNetInterface
virtual RTI::ObjectClassHandle	objectClassHandle () const

Protected Member Functions inherited from makVrf::DtSimObjectNetInterface
bool	runFullyThreaded () const

const DtStateData *	vrfObject () const

DtStateData *	nextFrameVrfObject ()

virtual const DtStateRepository *	networkState () const

Static Protected Member Functions
static void	reflectedObjectUpdatedCallback (DtReflectedObject , void )

Protected Attributes
DtReflectedObject *	myReflectedObject

DtFrameStateInterface *	myStateComponent

bool	myUpdatedOnNetwork

Protected Attributes inherited from makVrf::DtStateComponentNetInterface
const DtStateComponent *	myStateComponent

Protected Attributes inherited from makVrf::DtSimObjectNetInterface
DtStateData *	mySimObject

DtVrlinkNetworkInterface *	myObjectManager

DtStateRepository *	myNetworkState

bool	myNeedsNetworkSetup

DtNetInterfaceParallelLock	myLock

Private Member Functions
	DtRemoteStateComponentNetInterface ()

	DtRemoteStateComponentNetInterface (const DtRemoteStateComponentNetInterface &orig)

const DtRemoteStateComponentNetInterface &	operator= (const DtRemoteStateComponentNetInterface &orig)

Additional Inherited Members
Static Public Member Functions inherited from makVrf::DtSimObjectNetInterface
static void	setNonVrfUUIDResolver (DtNonVrfUUIDResolver *)

static DtNonVrfUUIDResolver *	nonVrfUUIDResolver ()

static void	addSimObjectNetInterfaceCreatorFcn (const DtString &type, DtSimObjectNetIfaceCreatorFcn fcn)

static void	setFactory (DtSimObjectNetInterfaceFactory *factory)

static DtSimObjectNetInterfaceFactory *	factory ()

static DtSimObjectNetInterface *	createNetInterface (const DtString &type, DtStateData simObject, DtVrlinkNetworkInterface , bool publishObject=true)

static int	maxNameLengthForInterfaceType (const DtString &interfaceTypeString)

static void	setNonVrfObjectsUUIDScheme (const DtString &)

static DtString	nonVrfObjectsUUIDScheme ()

Static Public Attributes inherited from makVrf::DtSimObjectNetInterface
static tbb::spin_rw_mutex	thePublisherCreationMutex

static tbb::spin_rw_mutex	thePublisherTickMutex

Static Protected Attributes inherited from makVrf::DtSimObjectNetInterface
static DtSimObjectNetInterfaceFactory *	theFactory

static DtNonVrfUUIDResolver *	theNonVrfUUIDResolver

Constructor & Destructor Documentation

makVrf::DtRemoteStateComponentNetInterface::DtRemoteStateComponentNetInterface ( )

private

default constructor

makVrf::DtRemoteStateComponentNetInterface::DtRemoteStateComponentNetInterface ( const DtRemoteStateComponentNetInterface & orig )

private

copy constructor

makVrf::DtRemoteStateComponentNetInterface::DtRemoteStateComponentNetInterface	(	DtStateData *	simObject,
		DtVrlinkNetworkInterface *	objectManager,
		bool	publishObject = `true`
	)

read/writable constructor Publish object flag indicate whether or not locally simulated objects should actually publish the object on the network. If flag is false, no PDUs/RPR interactions should be sent over the network for the object.

virtual makVrf::DtRemoteStateComponentNetInterface::~DtRemoteStateComponentNetInterface ( )

virtual

destructor

Member Function Documentation

const DtRemoteStateComponentNetInterface& makVrf::DtRemoteStateComponentNetInterface::operator= ( const DtRemoteStateComponentNetInterface & orig )

private

assignment operator

virtual bool makVrf::DtRemoteStateComponentNetInterface::isUnit ( ) const

inlinevirtual

Is this network interface for a local (true) or remote (false) object? Deriving network interfaces should implement this function to return the appropriate value.

Reimplemented from makVrf::DtStateComponentNetInterface.

virtual bool makVrf::DtRemoteStateComponentNetInterface::isEntity ( ) const

inlinevirtual

Reimplemented from makVrf::DtStateComponentNetInterface.

virtual bool makVrf::DtRemoteStateComponentNetInterface::isEnvironmental ( ) const

inlinevirtual

Reimplemented from makVrf::DtStateComponentNetInterface.

virtual void makVrf::DtRemoteStateComponentNetInterface::onTick ( )

virtual

Calls onTick()

Implements makVrf::DtSimObjectNetInterface.

virtual bool makVrf::DtRemoteStateComponentNetInterface::isLocal ( ) const

inlinevirtual

Is this network interface for a local (true) or remote (false) object? Local network interfaces should implement this function to return true. Remote network interfaces should implement this to return true.

Implements makVrf::DtSimObjectNetInterface.

virtual void makVrf::DtRemoteStateComponentNetInterface::init	(	DtFrameStateInterface *	,
		DtReflectedObject *
	)

virtual

Reimplemented in makVrf::DtActiveSonarRemoteNetInterface, makVrf::DtEmitterSystemRemoteNetInterface, makVrf::DtDynamicTerrainRemoteNetInterface, makVrf::DtIffRemoteNetInterface, makVrf::DtLaserDesignatorRemoteNetInterface, makVrf::DtUnderwaterAcousticsRemoteNetInterface, makVrf::DtRadioReceiverRemoteNetInterface, and makVrf::DtRadioTransmitterRemoteNetInterface.

virtual void makVrf::DtRemoteStateComponentNetInterface::updateComponent ( )

pure virtual

Implemented in makVrf::DtActiveSonarRemoteNetInterface, makVrf::DtEmitterSystemRemoteNetInterface, makVrf::DtRadioTransmitterRemoteNetInterface, makVrf::DtDynamicTerrainRemoteNetInterface, makVrf::DtIffRemoteNetInterface, makVrf::DtLaserDesignatorRemoteNetInterface, makVrf::DtRadioReceiverRemoteNetInterface, makVrf::DtUnderwaterAcousticsRemoteNetInterface, and makVrf::DtNavAidRadioTransmitterRemoteNetInterface.

virtual bool makVrf::DtRemoteStateComponentNetInterface::wantsToCreatePublisher ( ) const

inlinevirtual

Returns true if this interface wants to create a publisher. This cannot be done in parallel.

Implements makVrf::DtSimObjectNetInterface.

static void makVrf::DtRemoteStateComponentNetInterface::reflectedObjectUpdatedCallback	(	DtReflectedObject *	,
		void *
	)

staticprotected

virtual void makVrf::DtRemoteStateComponentNetInterface::processReflectedObjectUpdated ( DtReflectedObject * )

protectedvirtual

Member Data Documentation

DtReflectedObject* makVrf::DtRemoteStateComponentNetInterface::myReflectedObject

protected

DtFrameStateInterface* makVrf::DtRemoteStateComponentNetInterface::myStateComponent

protected

bool makVrf::DtRemoteStateComponentNetInterface::myUpdatedOnNetwork

protected

The documentation for this class was generated from the following file:

/data/exports/nrhent7-1/nightly/docs/vrForces.vrf5-0-branch/include/vrlinkNetworkInterface/remoteStateComponentNetInterface.h
