This class provides an abstract base class for CIGI entities. These are created by the DtCigiEntityVisualizer and updated as CIGI messages that pertain to entities are processed.

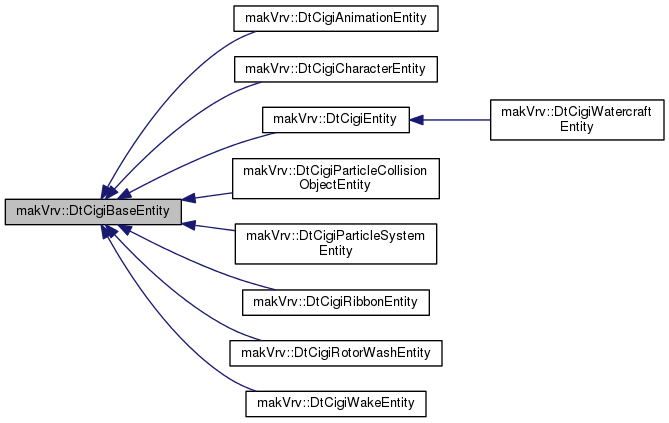

Inheritance diagram for makVrv::DtCigiBaseEntity:

[legend]

Public Types
enum	AnimationStateGroup { Stop = 0, Pause = 1, Play = 2, Continue = 3 }

Public Member Functions
	DtCigiBaseEntity (DtCigiConnection &connection, DtAgentManagerInterface &sceneInterface, int entityId, int entityType)

virtual	~DtCigiBaseEntity ()

virtual DtUniqueID	uniqueId () const

virtual DtUniqueID	elementId () const

virtual int	cigiId () const

virtual void	init ()

virtual void	uninit ()

virtual void	restart ()

virtual void	restartRequest ()

virtual int	entityType () const

virtual bool	extendedEntityTypeOn () const

virtual void	setExtendedEntityTypeOn (bool onOff)

virtual void	setExtendedEntityType (DtEntityType &entityType)

virtual void	setVisible (bool yesNo)

virtual bool	isVisible () const

virtual void	setDeadReckoningOn (bool onOff)

virtual bool	isDeadReckoning () const

virtual void	setPosition (const DtGeodeticCoord &pos, bool force=false)

virtual const DtGeodeticCoord &	position () const

virtual const DtGeodeticCoord &	previousPosition () const

virtual const DtVector &	localPosition () const

virtual void	setOrientation (const DtTaitBryan &orientation, bool force=false)

virtual const DtTaitBryan &	orientation () const

virtual const DtTaitBryan &	localOrientation () const

virtual const DtTaitBryan &	geocentricOrientation () const

virtual void	setLinearRate (const DtVector &rate, bool useWorldCoordinates, bool force=false)

virtual const DtVector &	linearRate () const

virtual void	setAngularRate (const DtVector &rate, bool useWorldCoordinates, bool force=false)

virtual const DtVector &	angularRate () const

virtual void	slot_deadReckoningAllowed (bool allowed)

virtual void	setAlpha (int alpha)

virtual int	alpha () const

virtual void	setInheritAlpha (bool inherit)

virtual bool	isInheritingAlpha () const

virtual void	slot_alphaChanged (int alpha, DtUniqueID id)

virtual void	slot_entityToBeDeleted (int cigiEntityId)

virtual void	setGroundClampingOn (DtGroundClampingUpdater::GroundClampingMode clampType)

virtual DtGroundClampingUpdater::GroundClampingMode	groundClampingType () const

virtual void	setArtPartTranslation (int partId, float xOffset, float yOffset, float zOffset, bool xEnable, bool yEnable, bool zEnable)

virtual bool	getArtPartTranslation (int partId, DtVector &translation)

virtual void	setArtPartOrientation (int partId, float yaw, float pitch, float roll, bool yawEnable, bool pitchEnable, bool rollEnable)

virtual bool	getArtPartOrientation (int partId, DtTaitBryan &orientation)

virtual void	setArtPartLinearRate (int partId, float xRate, float yRate, float zRate)

virtual bool	getArtPartLinearRate (int partId, DtVector &rate)

virtual bool	getArtPartTranslationAndRate (int partId, DtVector &translation, DtVector &rate)

virtual void	setArtPartAngularRate (int partId, float yawRate, float pitchRate, float rollRate)

virtual bool	getArtPartAngularRate (int partId, DtVector &rate)

virtual bool	getArtPartOrientationAndRate (int partId, DtTaitBryan &orientation, DtVector &rate)

virtual void	setArtPartEnable (int partId, bool trueFalse)

virtual DtSceneObjectAgent *	findSceneObjectAgent ()


virtual void	setRelativeTo (DtCigiBaseEntity *parent)

virtual void	setRelativePosition (const DtVector &pos)

virtual void	setRelativeOrientation (const DtTaitBryan &orient)

virtual bool	isEmbarked () const

virtual int	embarkedParentId () const

virtual const DtVector &	relativePosition () const

virtual const DtTaitBryan &	relativeOrientation () const

Public Attributes
boost::signalslib::signal < void(int, DtUniqueID)>	signal_alphaChanged

DtSceneObjectAgent *	mySceneObject

DtModelAgent *	myModel

std::string	myEntityModelDefName

DtDeadReckonUpdaterAgent *	myDeadReckonUpdaterAgent

DtGroundClampingUpdaterAgent *	myGroundClampingUpdaterAgent

DtEmbarkationUpdaterAgent *	myEmbarkationUpdaterAgent

bool	myDeadReckoningOn

bool	myEmbarked

DtGroundClampingUpdater::GroundClampingMode	myGroundClampingType

DtGeodeticCoord	myLastPosition

DtVector	myLastLocalPosition

DtTaitBryan	myLastOrientation

DtTaitBryan	myLastLocalOrientation

DtTaitBryan	myLastGeocentricOrientation

DtVector	myLastRelativePosition

DtTaitBryan	myLastRelativeOrientation

DtVector	myLastVelocity

bool	myLastVelocityWorldCoordinates

DtVector	myLastAngularVelocity

bool	myLastAngularVelocityWorldCoordinates

DtCigiConnection &	myConnection

DtAgentManagerInterface &	mySceneInterface

int	myEntityId

int	myEntityType

bool	myExtendedEntityTypeOn

DtEntityType *	myExtendedEntityType

DtCigiBaseEntity *	myParent

int	myEmbarkedParentID

bool	myInheritAlpha

int	myAlpha

bool	myVisiblity

bool	myPositionSet

bool	myOrientationSet

std::map< int, DtTaitBryan >	myLastArtPartOrientation

std::map< int, DtVector >	myLastArtPartTranslation

std::map< int, DtVector >	myArtPartAngularRate

std::map< int, DtVector >	myArtPartLinearRate

std::list< unsigned int >	myCollisionSegmentIdList

DtSignalConnectionManager	mySignalConnections

virtual void	addCollisionSegmentID (unsigned int segmentId)

virtual void	removeCollisionSegmentID (unsigned int segmentId)

virtual void	delayedStartEmbarked ()

virtual void	startDeadReckoning ()

virtual void	endDeadReckoning ()

virtual void	startEmbarked ()

virtual void	endEmbarked ()

virtual void	startGroundClamping ()

virtual void	buildGroundClampingUpdater ()

virtual void	endGroundClamping ()

virtual bool	isGroundClamping () const

virtual void	getExtrapolatedValuesAndRestart ()

virtual void	queryExtrapolatedPositionAndOrientation (DtUniqueID drAgentId, bool relative)

virtual void	returnExtrapolatedPositionAndOrientation (const DtVector &resultPos, const DtTaitBryan &resultOri, bool relative, bool invokeRestart)

virtual DtDeadReckonUpdater *	findDRUpdaterInRenderThread (DtUniqueID drAgentId) const

Member Enumeration Documentation

enum makVrv::DtCigiBaseEntity::AnimationStateGroup

AnimationStateGroup in Cigi Order.

Enumerator
Stop
Pause
Play
Continue

Constructor & Destructor Documentation

makVrv::DtCigiBaseEntity::DtCigiBaseEntity	(	DtCigiConnection &	connection,
		DtAgentManagerInterface &	sceneInterface,
		int	entityId,
		int	entityType
	)

Constructor takes a DtCigiConnection, scene interface, and the CIGI entity ID/type.

virtual makVrv::DtCigiBaseEntity::~DtCigiBaseEntity ( )

virtual

Destructor.

Member Function Documentation

virtual DtUniqueID makVrv::DtCigiBaseEntity::uniqueId ( ) const

virtual

Returns the element ID of the entity's scene object. Use of this method is deprecated; use elementId()

virtual DtUniqueID makVrv::DtCigiBaseEntity::elementId ( ) const

virtual

Returns the element ID of the entity's scene object.

virtual int makVrv::DtCigiBaseEntity::cigiId ( ) const

virtual

Returns the CIGI Id of the CIGI entity.

virtual void makVrv::DtCigiBaseEntity::init ( )

virtual

Create the scene object used by the entity and report the entity element and its parameters.

Reimplemented in makVrv::DtCigiRotorWashEntity, makVrv::DtCigiCharacterEntity, makVrv::DtCigiWatercraftEntity, makVrv::DtCigiParticleCollisionObjectEntity, makVrv::DtCigiEntity, makVrv::DtCigiRibbonEntity, makVrv::DtCigiParticleSystemEntity, and makVrv::DtCigiAnimationEntity.

virtual void makVrv::DtCigiBaseEntity::uninit ( )

virtual

Destroy the scene object created in init(), any updaters created along the way, and report the element destroyed.

Reimplemented in makVrv::DtCigiRotorWashEntity, makVrv::DtCigiCharacterEntity, makVrv::DtCigiWatercraftEntity, makVrv::DtCigiEntity, makVrv::DtCigiParticleCollisionObjectEntity, makVrv::DtCigiWakeEntity, makVrv::DtCigiRibbonEntity, makVrv::DtCigiParticleSystemEntity, and makVrv::DtCigiAnimationEntity.

virtual void makVrv::DtCigiBaseEntity::restart ( )

virtual

Calls uninit(), init(), and then restores dead reckoning, embarkation, etc. If the entity is embarked, it will schedule restoration of embark state for the beginning of the next tick to ensure that the parent entity restoration is complete.

Reimplemented in makVrv::DtCigiRotorWashEntity, makVrv::DtCigiEntity, makVrv::DtCigiCharacterEntity, makVrv::DtCigiWatercraftEntity, makVrv::DtCigiParticleSystemEntity, and makVrv::DtCigiAnimationEntity.

virtual void makVrv::DtCigiBaseEntity::restartRequest ( )

virtual

This is called to request that the entity be restarted. If not dead reckoned, restart() will be called immediately. Otherwise, the current position and orientation are requested from the render thread (and restart() will be called when those values are available.

Reimplemented in makVrv::DtCigiEntity.

virtual int makVrv::DtCigiBaseEntity::entityType ( ) const

virtual

Get the entity type the entity was created with.

virtual bool makVrv::DtCigiBaseEntity::extendedEntityTypeOn ( ) const

virtual

Get whether the entity has extended type on.

virtual void makVrv::DtCigiBaseEntity::setExtendedEntityTypeOn ( bool onOff )

virtual

Set whether this entity uses extended entity type.

virtual void makVrv::DtCigiBaseEntity::setExtendedEntityType ( DtEntityType & entityType )

virtual

Set the extended type.

virtual void makVrv::DtCigiBaseEntity::setVisible ( bool yesNo )

virtual

Set whether the entity is visible.

Reimplemented in makVrv::DtCigiWakeEntity.

virtual bool makVrv::DtCigiBaseEntity::isVisible ( ) const

virtual

Get the current visibility.

virtual void makVrv::DtCigiBaseEntity::setDeadReckoningOn ( bool onOff )

virtual

Turns dead-reckoning on/off.

virtual bool makVrv::DtCigiBaseEntity::isDeadReckoning ( ) const

virtual

Determine if the entity is ACTUALLY dead reckoning. This is the logical && of its myDeadReckoningOn flag (which means that CIGI has requested that THIS entity be dead reckoned) and DtConnection::extrapolationEnabled(), which CIGI uses to globally allow or disallow dead reckoning.

virtual void makVrv::DtCigiBaseEntity::setPosition	(	const DtGeodeticCoord &	pos,
		bool	force = `false`
	)

virtual

Set the entity's geodetic position.

Parameters

[in]	pos	is the position set from the CIGI entity control message.
[in]	force	is a flag to force handling even if position has not changed.

Reimplemented in makVrv::DtCigiCharacterEntity, makVrv::DtCigiWatercraftEntity, and makVrv::DtCigiWakeEntity.

virtual const DtGeodeticCoord& makVrv::DtCigiBaseEntity::position ( ) const

virtual

Returns the last position set by a CIGI entity control message.

virtual const DtGeodeticCoord& makVrv::DtCigiBaseEntity::previousPosition ( ) const

virtual

Returns the entity's position that was set previously. setPosition() sets the member myLastPosition. This returns that value so we can cache it and use it later when setting orientation to know if we our position has changed. This is necessary for geocentric coordinates, because the CIGI topo orientation needs to be re-converted to geocentric even if it hasn't changed if the entity's position has.

virtual const DtVector& makVrv::DtCigiBaseEntity::localPosition ( ) const

virtual

Returns the last computed local position set.

virtual void makVrv::DtCigiBaseEntity::setOrientation	(	const DtTaitBryan &	orientation,
		bool	force = `false`
	)

virtual

Set the entity's orientation.

Parameters

[in]	orientation	is the orientation set from the CIGI entity control message.
[in]	force	is a flag to force handling even if orientation has not changed.

Reimplemented in makVrv::DtCigiCharacterEntity, makVrv::DtCigiWatercraftEntity, and makVrv::DtCigiWakeEntity.

virtual const DtTaitBryan& makVrv::DtCigiBaseEntity::orientation ( ) const

virtual

Returns the last orientation set by a CIGI entity control message.

virtual const DtTaitBryan& makVrv::DtCigiBaseEntity::localOrientation ( ) const

virtual

Returns the computed last local orientation.

virtual const DtTaitBryan& makVrv::DtCigiBaseEntity::geocentricOrientation ( ) const

virtual

Get the last computed geocentric orientation.

virtual void makVrv::DtCigiBaseEntity::setLinearRate	(	const DtVector &	rate,
		bool	useWorldCoordinates,
		bool	force = `false`
	)

virtual

Sets the entity's linear rate. If useWorldCoordinates is set to true, sets the velocity according to the entity's rate with respect to the tangential reference plane of the entity. Otherwise, sets the velocity with respect to the entity's coordinate system.

Reimplemented in makVrv::DtCigiWakeEntity, and makVrv::DtCigiWatercraftEntity.

virtual const DtVector& makVrv::DtCigiBaseEntity::linearRate ( ) const

virtual

Get the last set linear rate.

virtual void makVrv::DtCigiBaseEntity::setAngularRate	(	const DtVector &	rate,
		bool	useWorldCoordinates,
		bool	force = `false`
	)

virtual

Set's the entity's angular rate. If useWorldCoordinates is set to true, sets the angular velocity with respect to the tangential reference plane of the entity. Otherwise, sets the velocity with respect to the entity's coordinate system.

virtual const DtVector& makVrv::DtCigiBaseEntity::angularRate ( ) const

virtual

Get the last set angular rate.

virtual void makVrv::DtCigiBaseEntity::setRelativeTo ( DtCigiBaseEntity * parent )

virtual

Attachment control.

Attach entity to parent

Reimplemented in makVrv::DtCigiRotorWashEntity, and makVrv::DtCigiWakeEntity.

virtual void makVrv::DtCigiBaseEntity::setRelativePosition ( const DtVector & pos )

virtual

Sets the entity's relative position (if attached).

Reimplemented in makVrv::DtCigiWakeEntity.

virtual void makVrv::DtCigiBaseEntity::setRelativeOrientation ( const DtTaitBryan & orient )

virtual

Sets the entity's relative orientation (relative to the parent's body coordinates) if attached.

Reimplemented in makVrv::DtCigiWakeEntity.

virtual bool makVrv::DtCigiBaseEntity::isEmbarked ( ) const

virtual

Determine if the entity is attached to a parent entity.

virtual int makVrv::DtCigiBaseEntity::embarkedParentId ( ) const

virtual

Get the CIGI ID of the entity to which we are attached.

virtual const DtVector& makVrv::DtCigiBaseEntity::relativePosition ( ) const

virtual

Returns the last relative offset position.

virtual const DtTaitBryan& makVrv::DtCigiBaseEntity::relativeOrientation ( ) const

virtual

Returns the last relative orientation.

virtual void makVrv::DtCigiBaseEntity::slot_deadReckoningAllowed ( bool allowed )

virtual

Called when IG-wide extrapolation is turned on or off. Stops the entity from dead reckoning if it currently is (but remembers if it was) and turns dead reckoning on if the entity has requested dead reckoning and it becomes allowed again.

virtual void makVrv::DtCigiBaseEntity::setAlpha ( int alpha )

virtual

Sets the entity's alpha value.

virtual int makVrv::DtCigiBaseEntity::alpha ( ) const

virtual

Returns the entity's alpha value. This needs to be checked if the entity is inheriting its parent's alpha.

virtual void makVrv::DtCigiBaseEntity::setInheritAlpha ( bool inherit )

virtual

Set whether the entity should inherit alpha from its parent.

virtual bool makVrv::DtCigiBaseEntity::isInheritingAlpha ( ) const

virtual

Determine if the entity is inheriting alpha.

virtual void makVrv::DtCigiBaseEntity::slot_alphaChanged	(	int	alpha,
		DtUniqueID	id
	)

virtual

Slot so we can check if the parent's alpha has changed.

virtual void makVrv::DtCigiBaseEntity::slot_entityToBeDeleted ( int cigiEntityId )

virtual

Connected to the signal raised by the entity manager when an entity is removed, this is used to insure that signals connected to an embarkation parent are managed correctly if/when that parent is deleted.

virtual void makVrv::DtCigiBaseEntity::setGroundClampingOn ( DtGroundClampingUpdater::GroundClampingMode clampType )

virtual

Turns ground clamping on/off.

virtual DtGroundClampingUpdater::GroundClampingMode makVrv::DtCigiBaseEntity::groundClampingType ( ) const

virtual

Get the current ground clamping type.

virtual void makVrv::DtCigiBaseEntity::setArtPartTranslation	(	int	partId,
		float	xOffset,
		float	yOffset,
		float	zOffset,
		bool	xEnable,
		bool	yEnable,
		bool	zEnable
	)

virtual

Set the relative position of an articulated part.

Reimplemented in makVrv::DtCigiCharacterEntity, and makVrv::DtCigiEntity.

virtual bool makVrv::DtCigiBaseEntity::getArtPartTranslation	(	int	partId,
		DtVector &	translation
	)

virtual

Get the art part translation from a specified CIGI part id. Returns false if the part id is not found.

virtual void makVrv::DtCigiBaseEntity::setArtPartOrientation	(	int	partId,
		float	yaw,
		float	pitch,
		float	roll,
		bool	yawEnable,
		bool	pitchEnable,
		bool	rollEnable
	)

virtual

Set the orientation of an articulated part.

Reimplemented in makVrv::DtCigiCharacterEntity, and makVrv::DtCigiEntity.

virtual bool makVrv::DtCigiBaseEntity::getArtPartOrientation	(	int	partId,
		DtTaitBryan &	orientation
	)

virtual

Returns false if the part id is not found.

virtual void makVrv::DtCigiBaseEntity::setArtPartLinearRate	(	int	partId,
		float	xRate,
		float	yRate,
		float	zRate
	)

virtual

Set the linear rate of an articulated part.

Reimplemented in makVrv::DtCigiCharacterEntity, and makVrv::DtCigiEntity.

virtual bool makVrv::DtCigiBaseEntity::getArtPartLinearRate	(	int	partId,
		DtVector &	rate
	)

virtual

Get the art part translation rate from a specified CIGI part id. Returns false if the part id is not found.

virtual bool makVrv::DtCigiBaseEntity::getArtPartTranslationAndRate	(	int	partId,
		DtVector &	translation,
		DtVector &	rate
	)

virtual

Get the art part translation and rate from a specified CIGI part id. Returns false if the part id is not found.

virtual void makVrv::DtCigiBaseEntity::setArtPartAngularRate	(	int	partId,
		float	yawRate,
		float	pitchRate,
		float	rollRate
	)

virtual

Set the angular rate of an articulated part.

Reimplemented in makVrv::DtCigiCharacterEntity, and makVrv::DtCigiEntity.

virtual bool makVrv::DtCigiBaseEntity::getArtPartAngularRate	(	int	partId,
		DtVector &	rate
	)

virtual

Returns false if the part id is not found.

virtual bool makVrv::DtCigiBaseEntity::getArtPartOrientationAndRate	(	int	partId,
		DtTaitBryan &	orientation,
		DtVector &	rate
	)

virtual

Returns false if the part id is not found.

virtual void makVrv::DtCigiBaseEntity::setArtPartEnable	(	int	partId,
		bool	trueFalse
	)

virtual

Enable/disable an articulated part.

Reimplemented in makVrv::DtCigiCharacterEntity, and makVrv::DtCigiEntity.

virtual DtSceneObjectAgent* makVrv::DtCigiBaseEntity::findSceneObjectAgent ( )

virtual

virtual void makVrv::DtCigiBaseEntity::addCollisionSegmentID ( unsigned int segmentId )

virtual

Methods for adding a removing collision segment IDs that are associated with this entity. They modify values in myCollisionSegmentIdList.

virtual void makVrv::DtCigiBaseEntity::removeCollisionSegmentID ( unsigned int segmentId )

virtual

List for Collision Detection Segment IDs from collision segment detection definition packets.

virtual void makVrv::DtCigiBaseEntity::startDeadReckoning ( )

protectedvirtual

Create and set up Dead Reckoning updater.

Reimplemented in makVrv::DtCigiCharacterEntity, and makVrv::DtCigiWatercraftEntity.

virtual void makVrv::DtCigiBaseEntity::endDeadReckoning ( )

protectedvirtual

Remove the Dead Reckoning updater.

Reimplemented in makVrv::DtCigiCharacterEntity, and makVrv::DtCigiWatercraftEntity.

virtual void makVrv::DtCigiBaseEntity::startEmbarked ( )

protectedvirtual

Create and set up Embarkation updater.

Reimplemented in makVrv::DtCigiCharacterEntity, and makVrv::DtCigiWatercraftEntity.

virtual void makVrv::DtCigiBaseEntity::endEmbarked ( )

protectedvirtual

Remove the Embarkation updater.

Reimplemented in makVrv::DtCigiCharacterEntity, and makVrv::DtCigiWatercraftEntity.

virtual void makVrv::DtCigiBaseEntity::startGroundClamping ( )

protectedvirtual

Create and set up Ground Clamping updater; uses buildGroundClampingUpdater() to create the updater agents.

Reimplemented in makVrv::DtCigiCharacterEntity.

virtual void makVrv::DtCigiBaseEntity::buildGroundClampingUpdater ( )

protectedvirtual

Create and intialize the ground clamping updater agents.

virtual void makVrv::DtCigiBaseEntity::endGroundClamping ( )

protectedvirtual

Remove the Ground Clamping updater.

Reimplemented in makVrv::DtCigiCharacterEntity.

virtual bool makVrv::DtCigiBaseEntity::isGroundClamping ( ) const

protectedvirtual

Returns false if ground clamping type is DtGroundClampingUpdater::ClampNone true otherwise.

virtual void makVrv::DtCigiBaseEntity::getExtrapolatedValuesAndRestart ( )

protectedvirtual

Request position and orientation values from the render thread if this entity is dead reckoned.

Reimplemented in makVrv::DtCigiEntity.

virtual void makVrv::DtCigiBaseEntity::delayedStartEmbarked ( )

virtual

When an embarked entity is restarted, it needs to be reattached to its parent at the start of the next frame (after all other entities have been restarted). This is the slot called when the attached-to boost signal preTick is raised. It detaches from the signal and then calls startEkbarked(). This method needs to be public for the DtCigiRotorWashEntity() restart method.

virtual void makVrv::DtCigiBaseEntity::queryExtrapolatedPositionAndOrientation	(	DtUniqueID	drAgentId,
		bool	relative
	)

protectedvirtual

This is the render thread-run method that collects dead reckoned position and orientation. It is queued as a 'driver' function if the CIGI connection is running in its own thread.

virtual void makVrv::DtCigiBaseEntity::returnExtrapolatedPositionAndOrientation	(	const DtVector &	resultPos,
		const DtTaitBryan &	resultOri,
		bool	relative,
		bool	invokeRestart
	)

protectedvirtual

This method returns the position and orientation collected from the render thread in the

connection thread. If the CIGI connection is running in its own thread, then queryExtrapolatedPositionAndOrientation() will queue this as a 'connection' function. If invokeRestart is true, then restart() will be called when before this function returns

virtual DtDeadReckonUpdater* makVrv::DtCigiBaseEntity::findDRUpdaterInRenderThread ( DtUniqueID drAgentId ) const

protectedvirtual

Helper function called by queryExtrapolatedPositionAndOrientation to look up the the dead reckon updater object given its agent id.

Member Data Documentation

boost::signalslib::signal<void (int, DtUniqueID)> makVrv::DtCigiBaseEntity::signal_alphaChanged

Emitted when this entity's alpha has changed.

DtSceneObjectAgent* makVrv::DtCigiBaseEntity::mySceneObject

protected

List for Collision Detection Segment IDs from collision segment detection definition packets.

DtModelAgent* makVrv::DtCigiBaseEntity::myModel

protected

List for Collision Detection Segment IDs from collision segment detection definition packets.

std::string makVrv::DtCigiBaseEntity::myEntityModelDefName

protected

List for Collision Detection Segment IDs from collision segment detection definition packets.

DtDeadReckonUpdaterAgent* makVrv::DtCigiBaseEntity::myDeadReckonUpdaterAgent

protected

List for Collision Detection Segment IDs from collision segment detection definition packets.

DtGroundClampingUpdaterAgent* makVrv::DtCigiBaseEntity::myGroundClampingUpdaterAgent

protected

List for Collision Detection Segment IDs from collision segment detection definition packets.

DtEmbarkationUpdaterAgent* makVrv::DtCigiBaseEntity::myEmbarkationUpdaterAgent

protected

List for Collision Detection Segment IDs from collision segment detection definition packets.

bool makVrv::DtCigiBaseEntity::myDeadReckoningOn

protected

List for Collision Detection Segment IDs from collision segment detection definition packets.

bool makVrv::DtCigiBaseEntity::myEmbarked

protected

List for Collision Detection Segment IDs from collision segment detection definition packets.

DtGroundClampingUpdater::GroundClampingMode makVrv::DtCigiBaseEntity::myGroundClampingType

protected

List for Collision Detection Segment IDs from collision segment detection definition packets.

DtGeodeticCoord makVrv::DtCigiBaseEntity::myLastPosition

protected

List for Collision Detection Segment IDs from collision segment detection definition packets.

DtVector makVrv::DtCigiBaseEntity::myLastLocalPosition

protected

List for Collision Detection Segment IDs from collision segment detection definition packets.

DtTaitBryan makVrv::DtCigiBaseEntity::myLastOrientation

protected

List for Collision Detection Segment IDs from collision segment detection definition packets.

DtTaitBryan makVrv::DtCigiBaseEntity::myLastLocalOrientation

protected

List for Collision Detection Segment IDs from collision segment detection definition packets.

DtTaitBryan makVrv::DtCigiBaseEntity::myLastGeocentricOrientation

protected

List for Collision Detection Segment IDs from collision segment detection definition packets.

DtVector makVrv::DtCigiBaseEntity::myLastRelativePosition

protected

List for Collision Detection Segment IDs from collision segment detection definition packets.

DtTaitBryan makVrv::DtCigiBaseEntity::myLastRelativeOrientation

protected

List for Collision Detection Segment IDs from collision segment detection definition packets.

DtVector makVrv::DtCigiBaseEntity::myLastVelocity

protected

List for Collision Detection Segment IDs from collision segment detection definition packets.

bool makVrv::DtCigiBaseEntity::myLastVelocityWorldCoordinates

protected

List for Collision Detection Segment IDs from collision segment detection definition packets.

DtVector makVrv::DtCigiBaseEntity::myLastAngularVelocity

protected

List for Collision Detection Segment IDs from collision segment detection definition packets.

bool makVrv::DtCigiBaseEntity::myLastAngularVelocityWorldCoordinates

protected

List for Collision Detection Segment IDs from collision segment detection definition packets.

DtCigiConnection& makVrv::DtCigiBaseEntity::myConnection

protected

List for Collision Detection Segment IDs from collision segment detection definition packets.

DtAgentManagerInterface& makVrv::DtCigiBaseEntity::mySceneInterface

protected

List for Collision Detection Segment IDs from collision segment detection definition packets.

int makVrv::DtCigiBaseEntity::myEntityId

protected

List for Collision Detection Segment IDs from collision segment detection definition packets.

int makVrv::DtCigiBaseEntity::myEntityType

protected

List for Collision Detection Segment IDs from collision segment detection definition packets.

bool makVrv::DtCigiBaseEntity::myExtendedEntityTypeOn

protected

List for Collision Detection Segment IDs from collision segment detection definition packets.

DtEntityType* makVrv::DtCigiBaseEntity::myExtendedEntityType

protected

List for Collision Detection Segment IDs from collision segment detection definition packets.

DtCigiBaseEntity* makVrv::DtCigiBaseEntity::myParent

protected

List for Collision Detection Segment IDs from collision segment detection definition packets.

int makVrv::DtCigiBaseEntity::myEmbarkedParentID

protected

List for Collision Detection Segment IDs from collision segment detection definition packets.

bool makVrv::DtCigiBaseEntity::myInheritAlpha

protected

List for Collision Detection Segment IDs from collision segment detection definition packets.

int makVrv::DtCigiBaseEntity::myAlpha

protected

List for Collision Detection Segment IDs from collision segment detection definition packets.

bool makVrv::DtCigiBaseEntity::myVisiblity

protected

List for Collision Detection Segment IDs from collision segment detection definition packets.

bool makVrv::DtCigiBaseEntity::myPositionSet

protected

List for Collision Detection Segment IDs from collision segment detection definition packets.

bool makVrv::DtCigiBaseEntity::myOrientationSet

protected

List for Collision Detection Segment IDs from collision segment detection definition packets.

std::map<int, DtTaitBryan> makVrv::DtCigiBaseEntity::myLastArtPartOrientation

protected

List for Collision Detection Segment IDs from collision segment detection definition packets.

std::map<int, DtVector> makVrv::DtCigiBaseEntity::myLastArtPartTranslation

protected

List for Collision Detection Segment IDs from collision segment detection definition packets.

std::map<int, DtVector> makVrv::DtCigiBaseEntity::myArtPartAngularRate

protected

List for Collision Detection Segment IDs from collision segment detection definition packets.

std::map<int, DtVector> makVrv::DtCigiBaseEntity::myArtPartLinearRate

protected

List for Collision Detection Segment IDs from collision segment detection definition packets.

std::list<unsigned int> makVrv::DtCigiBaseEntity::myCollisionSegmentIdList

protected

List for Collision Detection Segment IDs from collision segment detection definition packets.

DtSignalConnectionManager makVrv::DtCigiBaseEntity::mySignalConnections

protected

List for Collision Detection Segment IDs from collision segment detection definition packets.

The documentation for this class was generated from the following file:

/data/exports/nrhent7-1/nightly/docs/vrForces.vrf5-0-branch/include/vrvCigi/DtCigiBaseEntity.h

Public Types

Public Member Functions

Public Attributes

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
