This DtHumanSimObjectFacadeInterface class will provide API functionality for human objects. These objects are typically ground objects and have the DtHumanParameters object parameter.

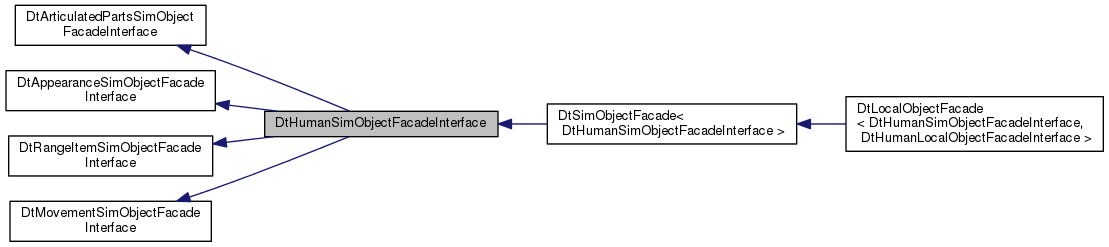

Inheritance diagram for DtHumanSimObjectFacadeInterface:

[legend]

Public Member Functions
	DtHumanSimObjectFacadeInterface ()

virtual	~DtHumanSimObjectFacadeInterface ()

virtual bool	isUsable () const

DtString	diguyCharacter () const

int	currentPosture () const

int	complianceState () const

bool	canPivot () const

double	turningRadius () const

bool	protectEmbarkedFromCollateralDamage () const


double	sensorSignature (const DtSymbolString &sensorDomain) const


virtual bool	intersect (const DtChord &, DtVrfChordIntersectionRecord *record=0) const

Public Member Functions inherited from DtArticulatedPartsSimObjectFacadeInterface
	DtArticulatedPartsSimObjectFacadeInterface ()

virtual	~DtArticulatedPartsSimObjectFacadeInterface ()

bool	isUsable () const

bool	hasArticulatedParts () const

const makVrf::DtArticulatedPartManager &	articulatedPartsManager () const

const DtArticulatedPartCollection &	artPartList () const

const makVrf::DtArticulatedPartStateRepository *	part (DtArtPartType partType) const

Public Member Functions inherited from DtAppearanceSimObjectFacadeInterface
	DtAppearanceSimObjectFacadeInterface ()

virtual	~DtAppearanceSimObjectFacadeInterface ()

bool	isUsable () const

int	damageState () const

bool	isDestroyed () const

bool	firePowerKilled () const

bool	mobilityKilled () const

bool	isConcealed () const

DtReal	healthPct () const

const DtAppearance &	appearance () const

int	capabilities () const

Public Member Functions inherited from DtRangeItemSimObjectFacadeInterface
	DtRangeItemSimObjectFacadeInterface ()

virtual	~DtRangeItemSimObjectFacadeInterface ()

bool	isUsable () const

const DtRangeItems &	rangeItems () const

Public Member Functions inherited from DtMovementSimObjectFacadeInterface
	DtMovementSimObjectFacadeInterface ()

virtual	~DtMovementSimObjectFacadeInterface ()

DtDeadReckonTypes	deadReckoningAlgorithm () const

const DtThresholder &	thresholder () const

bool	isSpatiallyFrozen () const

bool	isFrozen () const

DtStationName	parentStationName () const

const DtVector &	worldVelocity () const

const DtVector &	localVelocity () const

const DtVector	bodyVelocity () const

const DtVector &	relativeVelocity () const

const DtVector &	parentVelocity () const

const DtVector &	rotationalVelocity () const

const DtVector &	worldAcceleration () const

const DtVector &	localAcceleration () const

const DtVector &	relativeAcceleration () const

double	localSpeed () const

double	speed () const

double	forwardSpeed () const

Protected Member Functions
virtual DtSimObjectReference	simObject () const =0

virtual void	setupDecorator () override

Protected Member Functions inherited from DtAppearanceSimObjectFacadeInterface
const makVrf::DtSimulatedObjectStateComponent *	simObjectStateComponent () const

Protected Member Functions inherited from DtMovementSimObjectFacadeInterface
void	setupDecorator ()

const makVrf::DtEntityLocationStateComponent *	entityLocationStateComponent () const

Protected Attributes
DtSensorSignatureSimObjectDecorator *	mySensorSignatureSimObjectDecorator

DtIlluminationSimObjectDecorator *	myIlluminationSimObjectDecorator

DtPlatformGeometrySimObjectDecorator *	myPlatformGeometrySimObjectDecorator

Protected Attributes inherited from DtAppearanceSimObjectFacadeInterface
DtAppearance	myAppearance

const makVrf::DtSimulatedObjectStateComponent *	mySimulatedObjectStateComponent

tbb::spin_rw_mutex	mySimObjectStateComponentMutex

Protected Attributes inherited from DtMovementSimObjectFacadeInterface
const makVrf::DtEntityLocationStateComponent *	myEntityLocationStateComponent

tbb::spin_rw_mutex	myEntityLocationStateComponentMutex

Constructor & Destructor Documentation

DtHumanSimObjectFacadeInterface::DtHumanSimObjectFacadeInterface ( )

CTOR.

virtual DtHumanSimObjectFacadeInterface::~DtHumanSimObjectFacadeInterface ( )

virtual

Member Function Documentation

virtual bool DtHumanSimObjectFacadeInterface::isUsable ( ) const

virtual

Returns true if all the subclasses are usable and this objects parameters are of type DtGroundVehicleParameters.

Reimplemented from DtMovementSimObjectFacadeInterface.

Reimplemented in DtLocalObjectFacade< DtHumanSimObjectFacadeInterface, DtHumanLocalObjectFacadeInterface >.

DtString DtHumanSimObjectFacadeInterface::diguyCharacter ( ) const

The diGuy character this is.

int DtHumanSimObjectFacadeInterface::currentPosture ( ) const

int DtHumanSimObjectFacadeInterface::complianceState ( ) const

double DtHumanSimObjectFacadeInterface::sensorSignature ( const DtSymbolString & sensorDomain ) const

Routines that use associated managers and/or helper classes to calculate the values needed If need be, uses the sensor signature logic to calculate a sensor signature for this object.

bool DtHumanSimObjectFacadeInterface::canPivot ( ) const

Whether or not this object can pivot. Based on parameters.

double DtHumanSimObjectFacadeInterface::turningRadius ( ) const

Turning radius. Based on parameters.

bool DtHumanSimObjectFacadeInterface::protectEmbarkedFromCollateralDamage ( ) const

If embarked, protected from collateral damage if this is true.

virtual bool DtHumanSimObjectFacadeInterface::intersect	(	const DtChord &	,
		DtVrfChordIntersectionRecord *	record = `0`
	)		const

virtual

Object intersection routines.

virtual DtSimObjectReference DtHumanSimObjectFacadeInterface::simObject ( ) const

protectedpure virtual

Implemented by subclasses to return the sim object this class represents.

Implements DtAppearanceSimObjectFacadeInterface.

Implemented in DtSimObjectFacade< DtHumanSimObjectFacadeInterface >.

virtual void DtHumanSimObjectFacadeInterface::setupDecorator ( )

overrideprotectedvirtual

Reimplemented from DtAppearanceSimObjectFacadeInterface.

Reimplemented in DtSimObjectFacade< DtHumanSimObjectFacadeInterface >, and DtLocalObjectFacade< DtHumanSimObjectFacadeInterface, DtHumanLocalObjectFacadeInterface >.

Member Data Documentation

DtSensorSignatureSimObjectDecorator* DtHumanSimObjectFacadeInterface::mySensorSignatureSimObjectDecorator

protected

DtIlluminationSimObjectDecorator* DtHumanSimObjectFacadeInterface::myIlluminationSimObjectDecorator

protected

DtPlatformGeometrySimObjectDecorator* DtHumanSimObjectFacadeInterface::myPlatformGeometrySimObjectDecorator

protected

The documentation for this class was generated from the following file:

/data/exports/nrhent7-1/nightly/docs/vrForces.vrf5-0-branch/include/vrfobjcore/humanSimObjectFacade.h
