Distributed model for drawing polygons on the overlay layer.

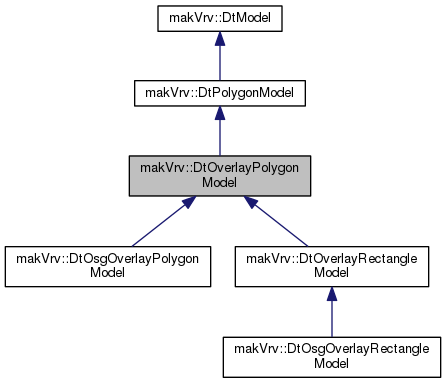

Inheritance diagram for makVrv::DtOverlayPolygonModel:

Public Member Functions
	DtOverlayPolygonModel (DtDe &de, DtUniqueID id)

virtual	~DtOverlayPolygonModel ()

virtual void	setEventsEnabled (bool)=0

virtual void	setEventWidth (float width)=0

virtual void	set2dOffset (int index, float x, float y)=0

virtual void	set3dDirection2dLength (int index, float x, float y, float z, float len)=0

virtual void	setFillPattern (const std::vector< unsigned int > &)=0

virtual void	setOutline (bool)=0

virtual void	setInsideColor (float r, float g, float b, float a)=0

virtual void	setOutsideColor (float r, float g, float b, float a)=0

virtual void	setSolidFillCenter (bool)=0

virtual void	setGroup (int)=0

virtual const DtVector &	origin () const =0

Public Member Functions inherited from makVrv::DtPolygonModel
	DtPolygonModel (DtDe &de, DtUniqueID id)

virtual	~DtPolygonModel ()

virtual void	addPoint (const DtVector &point, int index)=0

virtual void	setPickable (bool enabled)=0

virtual void	removePoint (int index)=0

virtual int	pointCount () const =0

virtual DtVector	point (int) const =0

virtual void	setPoint (int index, const DtVector &)=0

virtual void	setOrigin (const DtVector &)=0

virtual void	setStipplePattern (unsigned int stipplePattern)=0

virtual void	setWidth (float width)=0

virtual void	setTexturePath (const std::string &texturePath)=0

virtual void	setNumTextureTiles (double numTiles)=0

virtual void	setColor (float r, float g, float b, float a)=0

virtual void	setUseDynamicOrigin (bool)=0

virtual void	setFill (bool)

virtual const std::vector < DtVector > &	points () const =0

Public Member Functions inherited from makVrv::DtModel
	DtModel (DtDe &de, DtUniqueID id)

virtual	~DtModel ()

DtModelInstance *	createModelInstance (const std::string &modelDefName, bool realize=true)

virtual void	setModelDefinition (const std::string &str)

virtual const std::string &	modelDefinitionName ()

virtual void	saveModelToFile (const std::string &filename)

virtual const std::string &	className () const

unsigned int	transformSize () const

virtual void	setPosition (int vtx, const DtVector &position)

virtual const DtVector &	position (int vtx=0) const

virtual void	removePosition (int vtx)

virtual void	setPositionOffset (const DtVector &positionOffset)

virtual const DtVector &	positionOffset () const

virtual void	setOrientation (int vtx, const DtTaitBryan &orientation)

virtual void	setPositionAndOrientation (int vtx, const DtVector &positionOffset, const DtTaitBryan &orientation)

virtual const DtTaitBryan &	orientation (int vtx=0) const

virtual void	setOrientationOffset (const DtTaitBryan &orientationOffset)

virtual const DtTaitBryan &	orientationOffset () const

virtual void	enableColorBlending (bool b)

virtual void	setBlendColor (float r, float g, float b, float a)

virtual void	getBlendColor (float &r, float &g, float &b, float &a)

virtual bool	colorBlendingEnabled () const

virtual void	enableLighting (bool l)

virtual int	modelSet () const

const DtVector &	boundingBoxExtents () const

void	getBoundingBoxExtents (double &x, double &y, double &z) const

const DtVector &	boundingBoxCenter () const

virtual void	getBoundingBoxCenter (double &x, double &y, double &z) const

virtual void	getBoundingBoxComponents (DtVector &minimum, DtVector &maximum)

void	setContributesToBound (bool trueOrFalse)

bool	contributesToBound () const

DtDe &	de ()

virtual void	setModelInstance (DtModelInstance *modelInstance)

virtual void	promoteBackgroundModelInstance (DtModelDefinition &defintion)

virtual void	setVisible (bool isVisible)

virtual bool	visible () const

DtUniqueID	parentSceneObjectID () const

virtual void	addedToSceneObjectAsProp (const DtUniqueID &sceneObj)

virtual void	addedToSceneObject (const DtUniqueID &sceneObj, int modelSet, int visualizerType)

virtual void	setElementId (DtUniqueID id)

virtual void	removedFromSceneObject ()

virtual void	setIsSupportModel (bool isSupport)=0

virtual void	setSolid (bool isSolid)

virtual bool	isProp ()

virtual void	updateMinLastFrameDistance (float distance)

virtual void	resetLastFrameDistance ()

virtual float	minLastFrameDistance () const

virtual DtModelInstance *	modelInstance ()

virtual const DtModelInstance *	modelInstance () const

int	visualizerType () const

virtual bool	supportsMultithreadedLoad ()

virtual void	backgroundLoad ()

virtual void	foregroundLoad ()

virtual bool	isActivelyBackgroundLoading ()

virtual DtLoaderHandle *	getLoadQueueHandle ()

Additional Inherited Members
Public Attributes inherited from makVrv::DtModel
boost::signalslib::signal < void(DtModel *)>	signal_modelToBeDestroyed

boost::signalslib::signal < void(DtModel *)>	signal_modelChanged

boost::signalslib::signal < bool(DtModel *, bool), SlotReturnOR >	signal_visibilityChangeRequested

boost::signalslib::signal < void(DtModelInstance , DtModel )>	signal_modelInstanceCreated

boost::signalslib::signal < void(DtModelInstance , DtModel )>	signal_modelInstanceToBeDestroyed

Protected Types inherited from makVrv::DtModel
typedef std::vector < ObjectTransform >	TransformList

Protected Member Functions inherited from makVrv::DtModel
virtual void	addToScene (const DtUniqueID &sceneObjectId, int modelSet, int visualizerType)=0

virtual void	addToSceneAsProp (const DtUniqueID &sceneObjectId)

virtual void	removeFromScene ()=0

virtual void	initializeModelInstance ()

void	slot_modelInstanceChanged (DtModelInstance *instance)

virtual void	waitAndClearLoadHandle ()

virtual void	removedFromLoadQueue ()

virtual void	setDoneBackgroundLoading ()

virtual void	setActivelyBackgroundLoading ()

Protected Attributes inherited from makVrv::DtModel
DtLoaderHandle *	myInLoadQueueHandle

DtDe &	myDe

const DtUniqueID	myUniqueId

bool	myColorBlendingEnabled

DtModelInstance *	myBackgroundModelInstance

float	myMinLastFrameDistance

TransformList	myTransforms

DtModelInstance *	myModelInstance

int	myModelSet

int	myVisualizerType

bool	myContributesToBound

DtUniqueID	myParentSceneObjectID

bool	myIsPropFlag

float	myBlendColor [4]

bool	myVisibleFlag

DtVector	myPositionOffset

DtTaitBryan	myOrientationOffset

std::string	myModelDefinitionName

Static Protected Attributes inherited from makVrv::DtModel
static bool	theInittedState

Constructor & Destructor Documentation

makVrv::DtOverlayPolygonModel::DtOverlayPolygonModel	(	DtDe &	de,
		DtUniqueID	id
	)

CTOR.

virtual makVrv::DtOverlayPolygonModel::~DtOverlayPolygonModel ( )

virtual

DTOR.

Member Function Documentation

virtual void makVrv::DtOverlayPolygonModel::setEventsEnabled ( bool )

pure virtual

Sets whether or not events are enabled.

Implemented in makVrv::DtOsgOverlayPolygonModel, and makVrv::DtOsgOverlayRectangleModel.

virtual void makVrv::DtOverlayPolygonModel::setEventWidth ( float width )

pure virtual

Sets the events line width for the polygon model if it is outlined.

Implemented in makVrv::DtOsgOverlayPolygonModel, and makVrv::DtOsgOverlayRectangleModel.

virtual void makVrv::DtOverlayPolygonModel::set2dOffset	(	int	index,
		float	x,
		float	y
	)

pure virtual

Sets the 2D offset of a vertex.

Implemented in makVrv::DtOsgOverlayPolygonModel, and makVrv::DtOsgOverlayRectangleModel.

virtual void makVrv::DtOverlayPolygonModel::set3dDirection2dLength	(	int	index,
		float	x,
		float	y,
		float	z,
		float	len
	)

pure virtual

Sets a 3D direction with a 2D length of a vertex. This only works with outline polygons.

Implemented in makVrv::DtOsgOverlayPolygonModel, and makVrv::DtOsgOverlayRectangleModel.

virtual void makVrv::DtOverlayPolygonModel::setFillPattern ( const std::vector< unsigned int > & )

pure virtual

Sets the full fill pattern of the polygon. Must also call setFill to enable fill mode.

Implemented in makVrv::DtOsgOverlayPolygonModel, and makVrv::DtOsgOverlayRectangleModel.

virtual void makVrv::DtOverlayPolygonModel::setOutline ( bool )

pure virtual

Sets whether or not to outline the polygon with a scribe as if unfilled, even when filled. Only valid if fill is also true.

Implemented in makVrv::DtOsgOverlayPolygonModel, and makVrv::DtOsgOverlayRectangleModel.

virtual void makVrv::DtOverlayPolygonModel::setInsideColor	(	float	r,
		float	g,
		float	b,
		float	a
	)

pure virtual

Set the color at the center of the ellipse.

Implemented in makVrv::DtOsgOverlayRectangleModel, and makVrv::DtOsgOverlayPolygonModel.

virtual void makVrv::DtOverlayPolygonModel::setOutsideColor	(	float	r,
		float	g,
		float	b,
		float	a
	)

pure virtual

Set the color on the outside of the ellipse.

Implemented in makVrv::DtOsgOverlayRectangleModel, and makVrv::DtOsgOverlayPolygonModel.

virtual void makVrv::DtOverlayPolygonModel::setSolidFillCenter ( bool )

pure virtual

Sets to fill the center solid (if filled) not gradiant. Default is false.

Implemented in makVrv::DtOsgOverlayRectangleModel, and makVrv::DtOsgOverlayPolygonModel.

virtual void makVrv::DtOverlayPolygonModel::setGroup ( int )

pure virtual

The higher the z order the "closer" to the eyepoint this element will be drawn. Use this variable to stack overlay objects in the particular order you want them displayed.

Implemented in makVrv::DtOsgOverlayRectangleModel, and makVrv::DtOsgOverlayPolygonModel.

virtual const DtVector& makVrv::DtOverlayPolygonModel::origin ( ) const

pure virtual

Get the origin of the polygon.

Implemented in makVrv::DtOsgOverlayPolygonModel, and makVrv::DtOsgOverlayRectangleModel.

The documentation for this class was generated from the following file:

/data/exports/nrhent7-1/nightly/docs/vrForces.vrf5-0-branch/include/vrvCore/DtOverlayPolygonModel.h
