A single tactical graphic element. A tactical graphic element may be visualized using multiple visualizer sets one per model set.

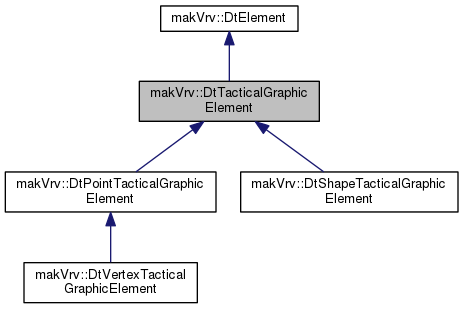

Inheritance diagram for makVrv::DtTacticalGraphicElement:

[legend]

Classes
struct	DtTacticalGraphicModelSetData

Public Types
using	ModelSetDataArray = std::array< DtTacticalGraphicModelSetData, MAX_MODEL_SETS >

Public Types inherited from makVrv::DtElement
using	ModelSetToSceneObjectIdMap = boost::unordered_map< DtModelSetId, DtUniqueID >

Public Member Functions
	DtTacticalGraphicElement (DtBaseConnection &conn, DtStateListener &listener)

virtual	~DtTacticalGraphicElement ()

	DtTacticalGraphicElement ()=delete

	DtTacticalGraphicElement (const DtTacticalGraphicElement &)=delete

DtTacticalGraphicElement &	operator= (const DtTacticalGraphicElement &)=delete

virtual void	visualize (const DtSharedModelSetSettings::ModelSetVisualizedMap &sets) override

virtual void	setModelSetEnabled (DtModelSetId modelSet, bool enabled) override

virtual void	createVisualizersByModelSetAndType (DtModelSetId modelSet, int visualType)

virtual void	destroyVisualizersByModelSetAndType (DtModelSetId modelSet, int visualType)

template<typename VisualizerClass >
void	findVisualizers (std::vector< VisualizerClass * > &visualizers)

template<typename VisualizerClass >
void	findVisualizersByDynamicCast (std::vector< VisualizerClass * > &visualizers)

virtual void	setObjectIsVisible (bool vis)

virtual const ModelSetDataArray &	modelSetDataArray () const

virtual DtEnvironmentalKinematicState *	findKinematicState () const

virtual DtTacticalGraphicStateListener &	tacticalGraphicStateListener ()

virtual const DtElementEntry::ElementType	elementType () const override

virtual void	slot_forceChanged (DtForceType force)

virtual DtEnvironmentalKinematicState *	createKinState ()


virtual const DtTacticalGraphicModelSetData *	findModelSetData (DtModelSetId modelSet) const

virtual DtTacticalGraphicModelSetData *	findModelSetData (DtModelSetId modelSet)

virtual DtSceneObjectAgent *	findSceneObjectForModelSet (DtModelSetId modelSet) const

virtual DtTacticalGraphicVisualizerSet *	findVisualizerSetForModelSet (DtModelSetId modelSet) const


virtual void	setPickable (bool pickable)

virtual void	setPickable (bool pickable, DtModelSetId modelSet)


virtual std::vector< DtUniqueID >	sceneObjectUniqueIds ()

virtual DtUniqueID	sceneObjectIdForModelSet (DtModelSetId modelSet)

Public Member Functions inherited from makVrv::DtElement
	DtElement (DtBaseConnection &conn, DtElementID elementId)

virtual	~DtElement ()

	DtElement ()=delete

	DtElement (const DtElement &)=delete

DtElement &	operator= (const DtElement &)=delete

virtual void	setVisible (bool visible)

virtual bool	visible () const

virtual void	setElementId (const DtElementID)

DtElementID	elementID () const

virtual const DtUnicode &	elementDefinition () const

virtual void	setElementDefinition (const DtUnicode &definition)

virtual std::string	displayUnitCollectionName () const

virtual void	setDisplayUnitCollectionName (const std::string &definition)

virtual void	setDriverType (const std::string &driverType)

virtual void	setElementSubtype (DtElementAttributes::ElementSubtypes subtype)

virtual void	changeElementAttribute (const DtElementAttribute *attr)

virtual void	updateElementDefinitionFromDefinitions ()

virtual void	updateElementDefinitionFromDefinitions (std::vector< DtUnicode > &definitions)

virtual ModelSetToSceneObjectIdMap &	modelSetToSceneObjectIdMap ()

virtual void	setSceneObjectIdForModelSet (DtModelSetId modelSet, DtUniqueID id)

virtual void	removeSceneObjectIdForModelSet (DtModelSetId modelSet)

virtual DtUniqueID	sceneObjectIdForModelSet (DtModelSetId modelSet) const

Static Public Member Functions
static const DtElementEntry::ElementType	theElementType ()

Protected Member Functions
virtual void	processElementParameters ()

void	setKindAndCategory (int kind, int category)

virtual void	reportKindAndCategory ()

virtual void	slot_visibilityChanged (bool vis)

Protected Member Functions inherited from makVrv::DtElement
void	slot_updateOverlayNameRaw (const char *text)

void	slot_updateConnectionObjectID (const std::string &id)

void	slot_updateConnectionObjectType (const std::string &type)

void	slot_updateDisplayName (const std::string &text)

void	slot_updateOverlayName (const std::string &pname)

void	slot_updateDamageState (EntityStateListener::DamageState state)

virtual void	getDefinitions (std::vector< DtUnicode > &definitions)

virtual void	warnVisualizationFailed (const std::string &file, int line, const std::string &function, DtVisualizerSet visSet, DtSceneObjectAgent sceneObject, DtModelSetId modelSet, DtException ex)

virtual void	reportElementCreated ()

virtual void	reportDisplayName ()

virtual void	reportConnectionObjectID ()

virtual void	reportConnectionObjectType ()

virtual void	reportOverlayNameChanged ()

virtual void	reportVisibility ()

virtual void	reportDamageStateChanged ()

virtual void	reportDriverType ()

virtual void	reportElementSubtype ()

virtual void	reportElementDefinitionName ()

virtual void	reportDisplayUnitCollectionName ()

virtual bool	distribute () const

virtual void	setDistribute (const bool distribute)

Protected Attributes
DtTacticalGraphicStateListener &	myListener

DtEnvironmentalKinematicState *	myKinematicState

ModelSetDataArray	myModelSetDataArray

DtSignalConnectionManager	myConnections

std::pair< int, int >	myKindCategory

Protected Attributes inherited from makVrv::DtElement
DtAgentManagerInterface &	mySceneInterface

DtSharedSettingsManager &	mySettingsManager

const DtVisualizerCreationSettings::VisualTypeVisualizerCreationMap &	myVisualTypeVisualizerCreationMap

DtBaseConnection &	myBaseConnection

DtElementID	myElementId

DtUnicode	myElementDefinitionName

const DtElementDefinition *	myElementDefinition

std::string	myDisplayUnitCollectionName

std::string	myConnectionObjectID

std::string	myConnectionObjectType

std::string	myDisplayName

std::string	myElementOverlayName

std::string	myDriverType

DtElementAttributes::ElementSubtypes	myElementSubtype

EntityStateListener::DamageState	myDamageState

bool	myElementVisible

bool	myElementReported

bool	myDistribute

ModelSetToSceneObjectIdMap	myModelSetToSceneObjectIdMap

Member Typedef Documentation

using makVrv::DtTacticalGraphicElement::ModelSetDataArray = std::array<DtTacticalGraphicModelSetData, MAX_MODEL_SETS>

MAX_MODEL_SETS is defined in DtModelSetEnums.h.

Constructor & Destructor Documentation

makVrv::DtTacticalGraphicElement::DtTacticalGraphicElement	(	DtBaseConnection &	conn,
		DtStateListener &	listener
	)

CTOR.

virtual makVrv::DtTacticalGraphicElement::~DtTacticalGraphicElement ( )

virtual

DTOR.

makVrv::DtTacticalGraphicElement::DtTacticalGraphicElement ( )

delete

not allowed - default constructor

makVrv::DtTacticalGraphicElement::DtTacticalGraphicElement ( const DtTacticalGraphicElement & )

delete

not allowed - copy constructor

Member Function Documentation

DtTacticalGraphicElement& makVrv::DtTacticalGraphicElement::operator= ( const DtTacticalGraphicElement & )

delete

not allowed - equals operator

virtual void makVrv::DtTacticalGraphicElement::visualize ( const DtSharedModelSetSettings::ModelSetVisualizedMap & sets )

overridevirtual

Visualize the element. Find the element definition and creates the element wide kinematic state - DtEntityKinematicState. Processes the element wide parameters in preparation for calling DtElement::visualize. Element wide parameters are currently those specified for the 3D Model Set. DtSharedModelSetSettings::ModelSetVisualizedMap contains the model sets that are to be visualized. Each entry in the map is passed to setModelSetEnabled to either be created or destroyed if it has already been created.

Reimplemented from makVrv::DtElement.

Reimplemented in makVrv::DtVertexTacticalGraphicElement, and makVrv::DtShapeTacticalGraphicElement.

virtual void makVrv::DtTacticalGraphicElement::setModelSetEnabled	(	DtModelSetId	modelSet,
		bool	enabled
	)

overridevirtual

Sets the particular model set up. Does nothing if it already exists. This method does a large portion of entity creation. It creates the sceneObject agent and the visualizer set for a model set. It sets information from the visualizer definition on the kin state, and then calls updateVisibilityState If the model set is disabled it will delete the pointers and the stuct in myModelSetToEntityObjectMap.

Implements makVrv::DtElement.

virtual void makVrv::DtTacticalGraphicElement::createVisualizersByModelSetAndType	(	DtModelSetId	modelSet,
		int	visualType
	)

virtual

virtual void makVrv::DtTacticalGraphicElement::destroyVisualizersByModelSetAndType	(	DtModelSetId	modelSet,
		int	visualType
	)

virtual

template<typename VisualizerClass >

void makVrv::DtTacticalGraphicElement::findVisualizers ( std::vector< VisualizerClass * > & visualizers )

inline

Find all visualizers Note this is for all model sets.

References myModelSetDataArray.

template<typename VisualizerClass >

void makVrv::DtTacticalGraphicElement::findVisualizersByDynamicCast ( std::vector< VisualizerClass * > & visualizers )

inline

Find all visualizers in all model sets if they satisfy the dynamic_cast to the VizualizerClass.

References myModelSetDataArray.

virtual void makVrv::DtTacticalGraphicElement::setObjectIsVisible ( bool vis )

virtual

Set the element to be visible.

virtual const ModelSetDataArray& makVrv::DtTacticalGraphicElement::modelSetDataArray ( ) const

virtual

Get the current model set array.

virtual const DtTacticalGraphicModelSetData* makVrv::DtTacticalGraphicElement::findModelSetData ( DtModelSetId modelSet ) const

virtual

Model set object accessors.

virtual DtTacticalGraphicModelSetData* makVrv::DtTacticalGraphicElement::findModelSetData ( DtModelSetId modelSet )

virtual

Model set object accessors.

virtual DtSceneObjectAgent* makVrv::DtTacticalGraphicElement::findSceneObjectForModelSet ( DtModelSetId modelSet ) const

virtual

Model set object accessors.

virtual DtTacticalGraphicVisualizerSet* makVrv::DtTacticalGraphicElement::findVisualizerSetForModelSet ( DtModelSetId modelSet ) const

virtual

Model set object accessors.

virtual DtEnvironmentalKinematicState* makVrv::DtTacticalGraphicElement::findKinematicState ( ) const

virtual

Attempt to find this element's kinematic state, can return nullptr.

virtual DtTacticalGraphicStateListener& makVrv::DtTacticalGraphicElement::tacticalGraphicStateListener ( )

virtual

Get the listener for the entity this visualizer is visualizing.

virtual const DtElementEntry::ElementType makVrv::DtTacticalGraphicElement::elementType ( ) const

overridevirtual

Returns the element type, in this case tactical graphic.

Implements makVrv::DtElement.

Reimplemented in makVrv::DtVertexTacticalGraphicElement, makVrv::DtShapeTacticalGraphicElement, and makVrv::DtPointTacticalGraphicElement.

static const DtElementEntry::ElementType makVrv::DtTacticalGraphicElement::theElementType ( )

static

virtual void makVrv::DtTacticalGraphicElement::slot_forceChanged ( DtForceType force )

virtual

Used to set the elements subtype, which is used to determine force type in the object list panel.

virtual DtEnvironmentalKinematicState* makVrv::DtTacticalGraphicElement::createKinState ( )

virtual

Create a DtEnvironmentalKinematicState object Shape and Vertex elements override this method to create derived types.

Reimplemented in makVrv::DtShapeTacticalGraphicElement, makVrv::DtVertexTacticalGraphicElement, and makVrv::DtPointTacticalGraphicElement.

virtual void makVrv::DtTacticalGraphicElement::setPickable ( bool pickable )

virtual

PickableSet pickable for all model sets.

virtual void makVrv::DtTacticalGraphicElement::setPickable	(	bool	pickable,
		DtModelSetId	modelSet
	)

virtual

Set pickable for a specific model set.

virtual std::vector<DtUniqueID> makVrv::DtTacticalGraphicElement::sceneObjectUniqueIds ( )

virtual

Scene Object Unique IDs.

Get the IDs for all the scene objects in this element There is one scene object per model set

virtual DtUniqueID makVrv::DtTacticalGraphicElement::sceneObjectIdForModelSet ( DtModelSetId modelSet )

virtual

Get the ID of a scene object for a specific model set.

virtual void makVrv::DtTacticalGraphicElement::processElementParameters ( )

protectedvirtual

Process any element parameters for this entity.

void makVrv::DtTacticalGraphicElement::setKindAndCategory	(	int	kind,
		int	category
	)

protected

Set the kind and category for later identification of this tactical Not virtual called from constructor.

virtual void makVrv::DtTacticalGraphicElement::reportKindAndCategory ( )

protectedvirtual

Report that element kind/category was updated.

virtual void makVrv::DtTacticalGraphicElement::slot_visibilityChanged ( bool vis )

protectedvirtual

Called when the listener indicates the element has become visible or not.

Member Data Documentation

DtTacticalGraphicStateListener& makVrv::DtTacticalGraphicElement::myListener

protected

DtEnvironmentalKinematicState* makVrv::DtTacticalGraphicElement::myKinematicState

protected

ModelSetDataArray makVrv::DtTacticalGraphicElement::myModelSetDataArray

protected

Referenced by findVisualizers(), and findVisualizersByDynamicCast().

DtSignalConnectionManager makVrv::DtTacticalGraphicElement::myConnections

protected

std::pair<int, int> makVrv::DtTacticalGraphicElement::myKindCategory

protected

The documentation for this class was generated from the following file:

/data/exports/nrhent7-1/nightly/docs/vrForces.vrf5-1-branch/include/vrvCore/DtTacticalGraphicElement.h

Classes

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
