DtMovingObjectParameters Class Reference

The moving-object-param parameter type is used for objects that are capable of movement, such as individual entities and aggregates.
DtMovingObjectParameters; holds all of the configurable parameters for the DtVrfMovingObjectStateRepository class.
Parameters include support points, maximum speed, maximum reverse speed, turning radius, maximum slope, ordered speed, maximum acceleration, maximum deceleration, and fuel efficiency. Aggregates are moving objects and have this parameter type. All of the platform-specific parameter types derive from this one.
.

Examples

• Space Entity Repository

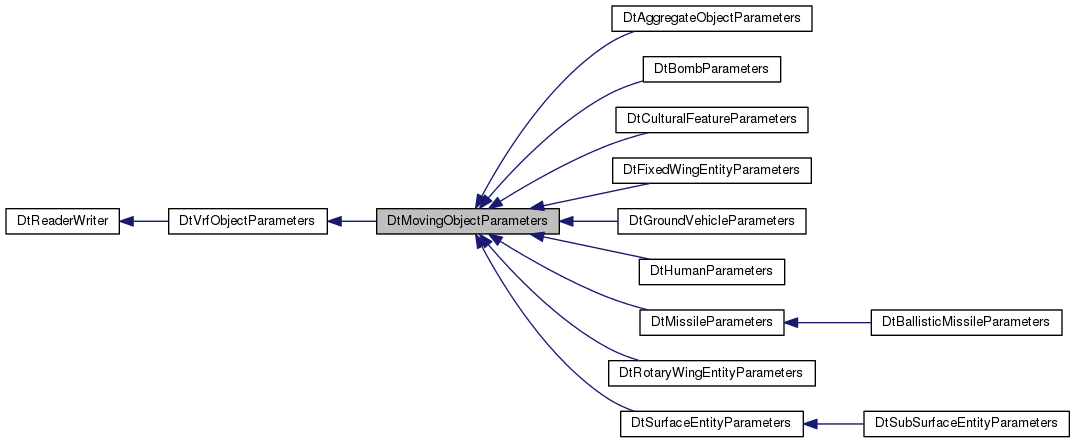

Inheritance diagram for DtMovingObjectParameters:

Public Member Functions
	DtMovingObjectParameters (const DtString &name=DtString::nullString(), DtReaderWriterRegistry *parentRegistry=NULL, DtEnvironmentSP env=DtEnvironmentSP(), DtEnvValueSP *objectNode=NULL)
	DtMovingObjectParameters (const DtSymbolString &name, DtReaderWriterRegistry *parentRegistry=NULL, DtEnvironmentSP env=DtEnvironmentSP(), DtEnvValueSP *objectNode=NULL)
virtual	~DtMovingObjectParameters () override
const DtMovingObjectParameters &	operator= (const DtMovingObjectParameters &orig)
virtual DtVrfObjectParameters *	clone (const DtString &name=DtString::nullString(), DtReaderWriterRegistry *parentRegistry=NULL) const override
virtual DtVrfObjectParameters *	clone (const DtSymbolString &name, DtReaderWriterRegistry *parentRegistry=NULL) const override
virtual DtString	type () const override
virtual bool	inheritValues (const DtVrfObjectParameters *benefactor) override
virtual void	inheritValuesFromThisType (const DtMovingObjectParameters *benefactor)
virtual void	postGetSelf () override
virtual int	illuminationRecalcTime () const
virtual void	setIlluminationRecalcTime (int newValue)
virtual int	weatherAreaRecalcTime () const
virtual void	setWeatherAreaRecalcTime (int newValue)
virtual bool	canPivot () const
virtual void	setCanPivot (bool newValue)
virtual bool	protectEmbarkedFromCollateralDamage () const
virtual void	setProtectEmbarkedFromCollateralDamage (bool newValue)
virtual DtReal	maxPivotSpeed () const
virtual void	setMaxPivotSpeed (DtReal maxSpeed)
virtual const DtVector &	leftSupport () const
virtual void	setLeftSupport (const DtVector &newLeftSupport)
virtual const DtVector &	rightSupport () const
virtual void	setRightSupport (const DtVector &newRightSupport)
virtual const DtVector &	otherSupport () const
virtual void	setOtherSupport (const DtVector &newOtherSupport)
virtual DtReal	maxSpeed () const
virtual void	setMaxSpeed (DtReal speed)
virtual DtReal	maxReverseSpeed () const
virtual void	setMaxReverseSpeed (DtReal speed)
virtual bool	useModelArtPartInformation () const
virtual void	setUseModelArtPartInformation (bool)
virtual DtReal	turningRadius () const
virtual void	setTurningRadius (DtReal turningRadius)
virtual DtReal	maxSlope () const
virtual void	setMaxSlope (DtReal slope)
virtual DtReal	orderedSpeed () const
virtual void	setOrderedSpeed (DtReal speed)
virtual DtReal	maxAcceleration () const
virtual void	setMaxAcceleration (const DtReal maxAcceleration)
virtual DtReal	maxStoppingDeceleration () const
virtual void	setMaxStoppingDeceleration (const DtReal maxStoppingDeceleration)
virtual DtReal	maxLateralAcceleration () const
virtual void	setMaxLateralAcceleration (const DtReal maxLateralAcceleration)
virtual bool	useObjectGeometry () const
virtual void	setUseObjectGeometry (bool)
virtual bool	useObjectVisuals () const
virtual void	setUseObjectVisuals (bool)
virtual const DtString &	objectGeometryFile () const
virtual void	setObjectGeometryFile (const DtFilename &)
virtual bool	embedIntoTerrain () const
virtual void	setEmbedIntoTerrain (bool)
virtual void	setDIGuyCharacterInfo (const DtRwDIGuyCharacterInfo &info)
virtual const DtRwDIGuyCharacterInfo &	diguyCharacterInfo () const
virtual void	setUsingRailMovement (bool rails)
virtual bool	usingRailMovement () const
Public Member Functions inherited from DtVrfObjectParameters
	DtVrfObjectParameters (const DtString &name=DtString::nullString(), DtReaderWriterRegistry *parentRegistry=NULL, DtEnvironmentSP env=DtEnvironmentSP(), DtEnvValueSP *objectNode=NULL)
	DtVrfObjectParameters (const DtSymbolString &name, DtReaderWriterRegistry *parentRegistry=NULL, DtEnvironmentSP env=DtEnvironmentSP(), DtEnvValueSP *objectNode=NULL)
virtual	~DtVrfObjectParameters () override
DtVrfObjectParameters &	operator= (const DtVrfObjectParameters &orig)
virtual bool	init ()
virtual void	inheritValuesFromThisType (const DtVrfObjectParameters *benefactor)
virtual bool	createLocalSubComponentTypes ()
virtual bool	createRemoteSubComponentTypes ()
virtual DtVrfObjectSubComponentTypes *	localVrfSubComponentTypes () const
virtual DtVrfObjectSubComponentTypes *	remoteVrfSubComponentTypes () const
virtual void	setMinTickPeriod (DtReal minTickPeriod)
virtual DtReal	minTickPeriod () const
virtual void	setMinTickPeriodVariance (DtReal minTickPeriodVariance)
virtual DtReal	minTickPeriodVariance () const
virtual DtForceType	forceType () const
virtual void	setForceType (const DtForceType force)
virtual bool	hasGuiKeyword (const DtString &) const
virtual const DtString &	category () const
virtual void	setCategory (const DtString &category)
virtual bool	categorySpecified () const
virtual const DtString &	echelonLevel () const
virtual void	setEchelonLevel (const DtString &echelonLevel)
virtual bool	echelonLevelSpecified () const
virtual const DtString &	callsign () const
virtual void	setCallsign (const DtString &callsign)
virtual bool	callsignSpecified () const
virtual bool	organized () const
virtual void	setOrganized (bool organized)
virtual const DtRwVisualMetaData &	visualMetaData () const
virtual void	setVisualMetaData (const DtRwVisualMetaData &list)
virtual const DtComponentDescriptorList &	sensorDescriptorList () const
virtual DtComponentDescriptorList &	sensorDescriptorList ()
virtual void	setSensorDescriptorList (const DtComponentDescriptorList &list)
virtual const DtComponentDescriptorList &	controllerDescriptorList () const
virtual DtComponentDescriptorList &	controllerDescriptorList ()
virtual void	setControllerDescriptorList (const DtComponentDescriptorList &list)
virtual const DtComponentDescriptorList &	actuatorDescriptorList () const
virtual DtComponentDescriptorList &	actuatorDescriptorList ()
virtual void	setActuatorDescriptorList (const DtComponentDescriptorList &list)
virtual const DtConnectionDescriptorList &	connectionDescriptorList () const
virtual DtConnectionDescriptorList &	connectionDescriptorList ()
virtual void	setConnectionDescriptorList (const DtConnectionDescriptorList &list)
virtual DtDeadReckonTypes	deadReckoningAlgorithm () const
virtual void	setDeadReckoningAlgorithm (DtDeadReckonTypes deadReckoningAlgorithm)
virtual const DtRwNavigationParameters &	navigationParameters () const
virtual DtRwNavigationParameters &	navigationParameters ()
virtual void	setNavigationParameters (const DtRwNavigationParameters &parameters)
virtual const DtRwDeadReckonThresholds &	deadReckoningThresholds () const
virtual void	setDeadReckoningThresholds (const DtRwDeadReckonThresholds &deadReckoningThresholds)
virtual DtReal	mass () const
virtual void	setMass (const DtReal mass)
virtual const DtRwSensorSignatureList &	sensorSignatureList () const
virtual DtRwSensorSignatureList &	sensorSignatureList ()
virtual const DtVrfSubObjectParameterList &	subordinateObjects () const
virtual void	setSubordinateObjects (const DtVrfSubObjectParameterList &subordinateObjects)
virtual const DtVrfSubObjectParameterList &	attachedObjects () const
virtual void	setAttachedObjects (const DtVrfSubObjectParameterList &attachedObjects)
virtual DtVrfObjectSubComponentTypes *	localSubComponentTypes () const
virtual DtVrfObjectSubComponentTypes *	remoteSubComponentTypes () const
virtual void	putData (std::string &fp, int indentLevel=0) override
virtual DtlObjPtr	getData (DtlObjPtr args, const DtReaderWriter::SearchPaths &searchPaths, const DtVariableBindingsList &variableBindings) override
virtual const Dt3dBoundingVolume *	boundingVolume () const
virtual void	setBoundingVolume (const Dt3dBoundingVolume &newBoundingVolume)
virtual void	setBoundingVolume (const DtVector &localBvolDiagonal, const DtVector &offset=DtVector::zero())
virtual DtSimBoundingGeometry::DtSimBoundingGeometryType	boundingGeometryType () const
virtual void	setBoundingGeometryType (DtSimBoundingGeometry::DtSimBoundingGeometryType type)
virtual double	draft () const
virtual DtAggregateFormation	formation () const
virtual void	setFormation (DtAggregateFormation formation)
virtual DtU32	appearance () const
virtual void	setAppearance (const DtU32 appearance)
virtual bool	appearanceSpecified () const
virtual const DtString &	displayName () const
virtual void	setDisplayName (const DtString &s)
virtual const DtEntityType &	defaultEntityType () const
virtual void	setDefaultEntityType (const DtEntityType &s)
virtual const DtString &	displayDescription () const
virtual void	setDisplayDescription (const DtString &s)
virtual const DtString &	engagementRules () const
virtual void	setEngagementRules (const DtString &engagementRules)
virtual const DtSimResourceManager &	resourceManager () const
virtual void	setResourceManager (const DtSimResourceManager &resourceManager)
virtual void	resolveResourceManager (const DtSimResourceManager &)
virtual void	setStateRepositoryUserExtensionType (const DtString &type)
virtual const DtString &	stateRepositoryUserExtensionType () const
virtual DtEntityType	objectType () const
virtual void	setObjectType (const DtEntityType &objectType)
virtual DtEntityType	matchType () const
virtual void	setMatchType (const DtEntityType &objectType)
virtual bool	taskedBySuperiorUponTaskComplete () const
virtual void	setTaskedBySuperiorUponTaskComplete (bool trueOrFalse)
virtual void	setRangeRingPublisherTickTime (double)
virtual double	rangeRingPublisherTickTime () const
void	setParameterType (const DtString &)
const DtString &	parameterType () const
virtual void	setStateRepositoryUserExtension (const DtVrfStateRepositoryUserExtension &userExtension)
virtual DtVrfStateRepositoryUserExtension *	stateRepositoryUserExtension () const
virtual void	getSelf (DtlObjPtr args, const DtReaderWriter::SearchPaths &searchPaths=DtReaderWriter::SearchPaths(), const DtVariableBindingsList &variableBindings=nullVariableReference()) override
virtual void	prePutSelf () override
virtual DtTime	underFireTime () const
virtual void	setUnderFireTime (DtTime time)
virtual bool	underFireTimeSpecified () const
virtual DtReal	underFireDistance () const
virtual void	setUnderFireDistance (DtReal underFireDistance)
virtual bool	underFireDistanceSpecified () const
virtual const DtAutoConnectionsListPtr &	autoConnections () const
virtual DtAutoConnectionsListPtr &	autoConnections ()
virtual const std::list < DtSimArtPartDescriptor * > *	configuredArtPartList () const
virtual const std::list < DtSimArtPartDescriptor * > *	componentDefaultArtPartList () const
virtual void	connectSystems ()
bool	operator== (const DtVrfObjectParameters &) const
bool	operator!= (const DtVrfObjectParameters &) const
virtual DtEnvironmentSP	xmlEnvironment ()
virtual DtEnvValueSP	objectNode ()
virtual const DtReaderWriter *	findVariableBinding (const DtString &) const
virtual const DtVariableBindingsList &	variableBindingsFromLoad () const
virtual DtReaderWriterRegistryData *	findProperty (const DtString &rwName) const
virtual const DtRwProperties &	parameterData () const
virtual DtRwProperties &	parameterData ()
virtual const DtRwProperties &	stateData () const
virtual DtRwProperties &	stateData ()
virtual const DtRwProperties &	internalStateData () const
virtual DtRwProperties &	internalStateData ()
virtual void	setPublishParameterData (bool)
virtual bool	publishParameterData () const
virtual void	setDisplayObjectImage (int)
virtual int	displayObjectImage () const
virtual void	setUiFilename (const DtString &uiFilename)
virtual DtString	uiFilename () const
virtual void	setCanCreateAsNew (bool)
virtual bool	canCreateAsNew () const
virtual void	setCanMoveOntoEmbarked (bool)
virtual bool	canMoveOntoEmbarked (const DtEntityType &=DtEntityType()) const
virtual void	setSameObjectTypeCanAutoEmbark (bool)
virtual bool	sameObjectTypeCanAutoEmbark () const
virtual const DtRwEntityTypes &	canMoveOntoEmbarkedTypes () const
virtual void	setCanMoveOntoEmbarkedTypes (const DtRwEntityTypes &)
virtual bool	dynamicFeatureEnabled () const
virtual void	setDynamicFeatureEnabled (bool enabled)
virtual double	dynamicFeatureWidth () const
virtual void	setDynamicFeatureWidth (double w)
virtual bool	spatiallySearchable () const
virtual void	setSpatiallySearchable (bool searchable)
virtual void	rebuildArtPartList ()
virtual void	updatePartOverridesFromActuator (DtSimArtPartDescriptor &artPartDescriptor, const DtComponentDescriptor &actuatorDescriptor, const DtString &systemName=DtString::nullString())
virtual const DtString &	mainComponent () const
virtual void	setMainComponent (const DtString &)
virtual bool	mainComponentSpecified () const
virtual std::set< std::string >	publicData () const
virtual void	setPublicData (const std::set< std::string > &list)
virtual bool	publicDataSpecified () const
virtual const DtComponentSystemDescriptorList &	systemDescriptorList () const
virtual DtComponentSystemDescriptorList &	systemDescriptorList ()
virtual void	setSystemDescriptorList (const DtComponentSystemDescriptorList &list)
virtual const DtRwBoolean	deadReckoningAllowGuiOverrides () const
virtual void	setDeadReckoningAllowGuiOverrides (bool allow)
virtual const DtRadioDescriptorList &	radioDescriptorList () const
virtual DtRadioDescriptorList &	radioDescriptorList ()
virtual const DtSimSector &	initialSectorOfResponsibility () const
virtual void	setInitialSectorOfResponsibility (const DtSimSector &sor)
virtual DtTaskExecutionRules &	taskExecutionRules ()
virtual const DtTaskExecutionRules &	taskExecutionRules () const
virtual void	setTaskExecutionRulesFilename (const DtFilename &)
virtual const DtReaderWriterFile &	taskExecutionRulesFilename () const
virtual void	setHlaFomClass (const DtString &)
virtual const DtString &	hlaFomClass () const
virtual void	setArtPartList (const DtSimArtPartDescriptorList &partList)
virtual const DtSimArtPartDescriptorList &	artPartList () const
virtual void	setLosTerrainCategoryMask (DtTerrainCategoryMask mask)
virtual DtTerrainCategoryMask	losTerrainCategoryMask () const
virtual void	setMovementTerraincategoryMask (DtTerrainCategoryMask mask)
virtual DtTerrainCategoryMask	movementTerrainCategoryMask () const
Public Member Functions inherited from DtReaderWriter
	DtReaderWriter ()
	DtReaderWriter (const DtString &name, DtReaderWriterRegistry *parentRegistry=NULL, bool readonly=false)
	DtReaderWriter (const DtSymbolString &name, DtReaderWriterRegistry *parentRegistry=NULL, bool readonly=false)
	DtReaderWriter (const DtString &name, const DtReaderWriter &orig, DtReaderWriterRegistry *parentRegistry=NULL)
	DtReaderWriter (const DtSymbolString &name, const DtReaderWriter &orig, DtReaderWriterRegistry *parentRegistry=NULL)
	DtReaderWriter (const DtReaderWriter &, DtReaderWriterRegistry *parentRegistry=NULL)
const DtReaderWriter &	operator= (const DtReaderWriter &orig)
bool	operator== (const DtReaderWriter &) const
bool	operator!= (const DtReaderWriter &rhs) const
virtual	~DtReaderWriter ()
virtual void	putSelf (std::string &fp, int indentLevel=0, bool writeUnspecified=false, const DtFilename &path=DtFilename::nullFilename())
virtual void	postPutSelf ()
virtual void	preGetSelf ()
virtual void	writeSelf (std::string &fp, int indentLevel=0, bool writeUnspecified=false, const DtFilename &path=DtFilename::nullFilename())
virtual DtSymbolString	name () const
virtual void	addAlias (const DtSymbolString &alias)
virtual void	addAlias (const DtString &alias)
virtual bool	hasAlias (const DtSymbolString &alias)
virtual const aliasContainer &	aliases () const
virtual void	setReadonly (bool flag)
bool	isReadonly () const
virtual void	reset ()
virtual int	alignment () const
virtual bool	variableIsBound () const
virtual void	unbindVariable ()
virtual void	setName (const DtString &)
virtual const char *	readerWriterType () const
virtual const char *	xmlType () const
virtual DtString	prettyPrint () const
std::string	debugText () const
virtual void	bindVariables (DtVariableBindingsList variableBindings)
virtual std::list < DtVariableNameType >	unboundVariables () const
bool	invalid () const
virtual bool	hasChild (const DtReaderWriter *p) const
virtual bool	hasVariableReference () const
virtual void	bindLocalVariables (const DtVariableBindingsList &variableBindings)
virtual void	recordUpdateTime () const
virtual bool	changedSinceLastChecked ()
virtual bool	peekChangedSinceLastChecked () const
virtual void	setValueSpecified (bool specified, bool recurse=false)
virtual bool	valueSpecified () const
virtual bool	isVariableReference () const
virtual void	setIsVariableReference (bool value)
virtual void	clearAllVariableReferenceFlags ()
virtual DtSymbolString	variableName () const
virtual void	setVariableName (const DtSymbolString variableName)
virtual const DtReaderWriter *	defaultRWValue () const
virtual DtReaderWriter *	defaultRWValue ()
virtual void	setDefaultRWValue (DtReaderWriter *)
virtual bool	checkAndSetDefaultRWValue (DtlObjPtr args, const DtReaderWriter::SearchPaths &searchPaths=SearchPaths(), const DtVariableBindingsList &variableBindings=nullVariableReference())
const DtReaderWriterRegistry &	registry () const
DtReaderWriterRegistry &	registry ()
virtual DtPropertyInterface *	property ()
virtual const DtPropertyInterface *	property () const
virtual DtString	toXml () const
virtual DtRwVariableBindings *	generateVariableBindings () const
virtual bool	toXml (const DtFilename &) const
virtual bool	fromXml (const DtString &)
virtual bool	fromXmlFile (const DtFilename &)
virtual void	putSelf (DtEnvironmentSP, DtEnvValueSP parent) const
virtual void	putData (DtEnvironmentSP, DtEnvValueSP value) const
virtual void	putVariableReference (DtEnvironmentSP, DtEnvValueSP value) const
virtual void	getSelf (const DtEnvironmentSP, const DtEnvValueSP root, const SearchPaths &searchPaths=SearchPaths(), const DtVariableBindingsList &bindings=DtVariableBindingsList())
virtual void	getData (const DtEnvironmentSP, const DtEnvValueSP, const SearchPaths &searchPaths=SearchPaths(), const DtVariableBindingsList &bindings=DtVariableBindingsList())
virtual void	unrecognizedItem (const DtEnvironmentSP env, const DtEnvValueSP root, const SearchPaths &searchPaths, const DtVariableBindingsList &varBindings)
virtual void	getVariableReference (DtEnvironmentSP, DtEnvValueSP value)

Static Public Member Functions
static DtVrfObjectParameters *	creator (DtEnvironmentSP env, DtEnvValueSP *objectNode)
Static Public Member Functions inherited from DtVrfObjectParameters
static DtVrfObjectParameters *	createParameters (DtlObjPtr mtlStream, const DtReaderWriter::SearchPaths &searchPaths, const DtVariableBindingsList &variableBindings, DtEnvironmentSP env=DtEnvironmentSP(), DtEnvValueSP *objectNode=NULL)
static DtVrfObjectParameters *	createParameters (const char *name, DtEnvironmentSP env=DtEnvironmentSP(), DtEnvValueSP *objectNode=NULL)
static DtVrfObjectParameterFactory *	factory ()
static void	setFactory (DtVrfObjectParameterFactory *factory)
static void	addParameterCreatorFcn (const DtString &type, DtSimObjectParametersCreatorFcn fcn)
static DtVrfObjectParameters *	creator (DtEnvironmentSP env, DtEnvValueSP *objectNode)
Static Public Member Functions inherited from DtReaderWriter
static void	putIndent (std::string &fp, int indentLevel)
static const DtVariableBindingsList &	nullVariableReference ()
static void	setPostGetSelfCallback (DtGetSelfCallbackFcn fcn, void *usrData)
static void	setPrePutSelfCallback (DtPutSelfCallbackFcn fcn, void *usrData)
static void	setPutIndent (bool)
static bool	putIndent ()
static const char *	theXmlType ()
static const DtFilename &	appPath ()
static void	setFactoryCreatorFunction (DtReaderWriterFactoryCreatorFcn fcn)
static void	createReaderWriterFactory ()
static void	cleanupFactory ()
static DtReaderWriterFactory *	factory ()
static void	setOutputStream (DtOutputStream *stream)
static DtOutputStream &	outputStream ()
static DtReaderWriter *	createFromXmlFile (const DtFilename &, bool createAsProperty=false)
static DtReaderWriter *	createFromXml (const DtString &, bool createAsProperty=false)
static DtReaderWriter *	createFromEnvironment (DtEnvironmentSP, bool createAsProperty=false)
static DtString	getAttribute (DtEnvironmentSP env, const DtString &name, DtEnvValueSP root)

Protected Member Functions
	DtMovingObjectParameters (const DtMovingObjectParameters &orig, const DtString &name=DtString::nullString(), DtReaderWriterRegistry *parentRegistry=NULL)
	DtMovingObjectParameters (const DtMovingObjectParameters &orig, const DtSymbolString &name, DtReaderWriterRegistry *parentRegistry=NULL)
Protected Member Functions inherited from DtVrfObjectParameters
	DtVrfObjectParameters (const DtVrfObjectParameters &orig, const DtString &name=DtString::nullString(), DtReaderWriterRegistry *parentRegistry=NULL)
	DtVrfObjectParameters (const DtVrfObjectParameters &orig, const DtSymbolString &name, DtReaderWriterRegistry *parentRegistry=NULL)
virtual DtVrfSubObjectParameterList *	createSubordinateObjectsList (const DtSymbolString &name, DtReaderWriterRegistry *parentRegistry) const
virtual DtVrfSubObjectParameterList *	createAttachedObjectsList (const DtSymbolString &name, DtReaderWriterRegistry *parentRegistry) const
virtual void	addArtPartsFromSystem (DtComponentSystemDescriptor *systemDesc, std::list< DtSimArtPartDescriptor * > &artPartList)
virtual void	createAutomaticConnections (DtRwAutoConnection *autoConnection)
virtual void	addArtPartDescriptorProcessor (const DtString &componentType, const ArtPartDescriptorProcessor &fcn)
virtual void	addStateDataFromComponents ()
virtual void	addStateDataFromSystem (const DtComponentSystemDescriptor *systemDesc)
virtual void	addStateDataFromComponent (const DtComponentDescriptor *systemDesc)
Protected Member Functions inherited from DtReaderWriter
virtual void	bindToRwAsVariable (const DtReaderWriter *rw)

Protected Attributes
parameters
These parameters are available for setting in the OPD files. {@
DtRwBoolean	myCanPivot
DtRwReal	myMaxPivotSpeed
DtRwOffsetVector	myLeftSupport
DtRwOffsetVector	myRightSupport
DtRwOffsetVector	myOtherSupport
DtRwReal	myMaxSpeed
DtRwReal	myMaxReverseSpeed
DtRwReal	myTurningRadius
DtRwReal	myMaxSlope
DtRwReal	myOrderedSpeed
DtRwReal	myMaxAcceleration
DtRwReal	myMaxStoppingDeceleration
DtRwReal	myMaxLateralAcceleration
DtReaderWriterFile	myObjectGeometryFile
DtRwBoolean	myUseObjectGeometry
DtRwBoolean	myUseObjectVisuals
DtRwBoolean	myEmbedIntoTerrain
DtRwDIGuyCharacterInfo	myDIGuyCharacterInfo
DtRwBoolean	myUsingRailMovement
DtRwInt	myIlluminationRecalcTime
DtRwInt	myWeatherAreaRecalcTime
DtRwBoolean	myProtectEmbarkedFromCollateralDamage
DtRwBoolean	myUseModelArtPartInformation
Protected Attributes inherited from DtVrfObjectParameters
DtEntityType	myMatchType
DtEntityType	myObjectType
DtTaskExecutionRules	myTaskExecutionRules
DtString	myParameterType
std::list < DtSimArtPartDescriptor * >	myConfiguredArtPartList
std::list < DtSimArtPartDescriptor * >	myComponentDefaultArtPartList
DtEnvValueSP	myObjectNode
DtEnvironmentSP	myEnvironment
DtAutoConnectionsListPtr	myAutoConnections
DtRwProperties	myParameterData
DtRwProperties	myStateData
DtRwProperties	myInternalStateData
DtRwReal	myRangeRingPublisherTickTime
DtRwBoolean	myPublishParameterData
DtRwBoolean	myIlluminationRecalcTime
DtRwString	myDisplayName
DtRwString	myDisplayDescription
DtRwString	myUiFilename
DtRwBoolean	myCanCreateAsNew
DtRwBoolean	myCanMoveOntoEmbarked
DtRwBoolean	mySameObjectTypeCanAutoEmbark
DtRwEntityTypes	myCanMoveOntoEmbarkedTypes
DtRwString	myHlaFomClass
DtRwEntityType	myDefaultEntityType
DtRwVisualMetaData	myVisualMetaData
DtSimArtPartDescriptorList	myArtPartList
DtRwString	myMainComponent
DtRwNLengthStringVector	myPublicData
DtRwInt	myDisplayObjectImage
DtRwTerrainCategoryMask	myLosTerrainCategoryMask
DtRwTerrainCategoryMask	myMovementTerrainCategoryMask
DtRwBoolean	myDynamicFeatureEnabled
DtRwReal	myDynamicFeatureWidth
DtRwBoolean	mySpatiallySearchable
DtVariableBindingsList	myGetSelfVariableBindings
ArtPartDescProcMap	myArtPartDescProcs
DtRwBoundingGeometryType	myBoundingGeometryType
DtRwBoundingVolume	myBvol
DtVrfObjectSubComponentTypes *	myLocalSubComponentTypes
DtVrfObjectSubComponentTypes *	myRemoteSubComponentTypes
DtRwFormationType	myFormationType
DtRwAppearance	myDefaultAppearance
DtRwForceType	myForceType
DtRwString	myCategory
DtRwString	myEchelonLevel
DtRwString	myCallsign
DtRwBoolean	myOrganized
DtRwReal	myMinTickPeriod
DtRwReal	myMinTickPeriodVariance
DtRwDeadReckonTypes	myDeadReckoningAlgorithm
DtRwNavigationParameters	myNavigationParameters
DtRwDeadReckonThresholds	myDeadReckoningThresholds
DtRwBoolean	myDeadReckoningAllowGuiOverrides
DtRadioDescriptorList	myRadioDescriptorList
DtComponentSystemDescriptorList	mySystemDescriptorList
DtComponentDescriptorList	mySensorDescriptorList
DtComponentDescriptorList	myControllerDescriptorList
DtComponentDescriptorList	myActuatorDescriptorList
DtConnectionDescriptorList	myConnectionDescriptorList
DtRwReal	myMass
DtRwSensorSignatureList	mySensorSignatureList
DtVrfSubObjectParameterList *	mySubordinateObjects
DtVrfSubObjectParameterList *	myAttachedObjects
DtRwString	myEngagementRules
DtSimResourceManager	myResourceManager
DtRwString	myStateRepositoryUserExtensionType
DtRwBoolean	myTaskedBySuperiorUponTaskComplete
DtVrfStateRepositoryUserExtension *	myStateRepositoryUserExtension
DtRwTime	myUnderFireTime
DtRwReal	myUnderFireDistance
DtSimSector	myInitialSectorOfResponsibility
DtReaderWriterFile	myTaskExecutionRulesFilename
Protected Attributes inherited from DtReaderWriter
const DtSymbolString	myName
DtReaderWriterRegistry	myRegistry
DtReaderWriterRegistry *	myParentRegistry
bool	myValueSpecified
bool	myReadOnlyFlag
bool	myIsVariableReference
DtSymbolString	myVariableName
bool	myVariableIsBound
DtReaderWriter *	myDefaultValue
aliasContainer	myAliases
bool	myInvalid
bool	myChangedFlag

Additional Inherited Members
Public Types inherited from DtVrfObjectParameters
typedef DtRwTemplatedListPtr < DtRwAutoConnection, true >	DtAutoConnectionsListPtr
Public Types inherited from DtReaderWriter
typedef std::vector < DtSymbolString >	aliasContainer
typedef std::vector < DtSymbolString >::iterator	aliasIter
typedef std::vector < DtSymbolString > ::const_iterator	aliasConstIter
typedef std::vector< DtFilename >	SearchPaths
typedef std::pair < DtSymbolString, DtString >	DtVariableNameType
typedef DtReaderWriterFactory *(*	DtReaderWriterFactoryCreatorFcn )()
Protected Types inherited from DtVrfObjectParameters
typedef void(*	ArtPartDescriptorProcessor )(const DtComponentDescriptor &compDesc, DtSimArtPartDescriptor &artPartDesc)
typedef std::map< DtString, ArtPartDescriptorProcessor >	ArtPartDescProcMap
Static Protected Member Functions inherited from DtVrfObjectParameters
static void	artPartWeaponDescriptorProcessor (const DtComponentDescriptor &compDesc, DtSimArtPartDescriptor &artPartDesc)
static void	artPartHumanGunDescriptorProcessor (const DtComponentDescriptor &compDesc, DtSimArtPartDescriptor &artPartDesc)
static void	artPartBallisticGunDescriptorProcessor (const DtComponentDescriptor &compDesc, DtSimArtPartDescriptor &artPartDesc)
static void	artPartAzimuthMountDescriptorProcessor (const DtComponentDescriptor &compDesc, DtSimArtPartDescriptor &artPartDesc)
static void	artPartElevationMountDescriptorProcessor (const DtComponentDescriptor &compDesc, DtSimArtPartDescriptor &artPartDesc)
static void	artPartTurretDescriptorProcessor (const DtComponentDescriptor &compDesc, DtSimArtPartDescriptor &artPartDesc)
static void	artPartSensorGimbalDescriptorProcessor (const DtComponentDescriptor &compDesc, DtSimArtPartDescriptor &artPartDesc)
static void	artPartSwingingPartDescriptorProcessor (const DtComponentDescriptor &compDesc, DtSimArtPartDescriptor &artPartDesc)
static void	artPartTranslatablePartDescriptorProcessor (const DtComponentDescriptor &compDesc, DtSimArtPartDescriptor &artPartDesc)
Static Protected Attributes inherited from DtVrfObjectParameters
static DtVrfObjectParameterFactory *	theFactory
Static Protected Attributes inherited from DtReaderWriter
static DtString	theUnspecifiedValue
static DtGetSelfCallbackInfo	thePostGetSelfCallback
static DtPutSelfCallbackInfo	thePrePutSelfCallback
static const DtVariableBindingsList	theEmptyVariableBindingsList
static bool	theCreatorFcnSet
static DtReaderWriterFactory *	theFactory
static DtReaderWriterFactoryCreatorFcn	theFactoryCreatorFcn
static bool	thePutIndent
static DtOutputStream *	theOutputStream

Constructor & Destructor Documentation

DtMovingObjectParameters::DtMovingObjectParameters	(	const DtString &	name = DtString::nullString(),
		DtReaderWriterRegistry *	parentRegistry = NULL,
		DtEnvironmentSP	env = DtEnvironmentSP(),
		DtEnvValueSP *	objectNode = NULL
	)

constructor with parameters to set up read/writability correctly

DtMovingObjectParameters::DtMovingObjectParameters	(	const DtSymbolString &	name,
		DtReaderWriterRegistry *	parentRegistry = NULL,
		DtEnvironmentSP	env = DtEnvironmentSP(),
		DtEnvValueSP *	objectNode = NULL
	)

virtual DtMovingObjectParameters::~DtMovingObjectParameters ( )

overridevirtual

destructor

DtMovingObjectParameters::DtMovingObjectParameters ( const DtMovingObjectParameters &  orig, const DtString &  name = DtString::nullString(), DtReaderWriterRegistry *  parentRegistry = NULL  )

protected

copy constructor. Use clone instead...

DtMovingObjectParameters::DtMovingObjectParameters ( const DtMovingObjectParameters &  orig, const DtSymbolString &  name, DtReaderWriterRegistry *  parentRegistry = NULL  )

protected

Member Function Documentation

const DtMovingObjectParameters& DtMovingObjectParameters::operator=

(

const DtMovingObjectParameters &

orig

)

assignment operator

virtual DtVrfObjectParameters* DtMovingObjectParameters::clone ( const DtString &  name = DtString::nullString(), DtReaderWriterRegistry *  parentRegistry = NULL  ) const

overridevirtual

Reimplemented from DtVrfObjectParameters.

Reimplemented in DtFixedWingEntityParameters, DtRotaryWingEntityParameters, DtAggregateObjectParameters, DtGroundVehicleParameters, DtCulturalFeatureParameters, DtHumanParameters, DtSubSurfaceEntityParameters, DtMissileParameters, DtBombParameters, DtSurfaceEntityParameters, and DtBallisticMissileParameters.

virtual DtVrfObjectParameters* DtMovingObjectParameters::clone ( const DtSymbolString &  name, DtReaderWriterRegistry *  parentRegistry = NULL  ) const

overridevirtual

Reimplemented from DtVrfObjectParameters.

Reimplemented in DtFixedWingEntityParameters, DtAggregateObjectParameters, DtGroundVehicleParameters, DtRotaryWingEntityParameters, DtCulturalFeatureParameters, DtHumanParameters, DtMissileParameters, DtBombParameters, DtSurfaceEntityParameters, DtBallisticMissileParameters, and DtSubSurfaceEntityParameters.

virtual DtString DtMovingObjectParameters::type ( ) const

overridevirtual

Should return the type of object this is a parameter block for. Use the strings in vrfParamTypes.h.

Reimplemented from DtVrfObjectParameters.

Reimplemented in DtMissileParameters, DtFixedWingEntityParameters, DtGroundVehicleParameters, DtBombParameters, DtCulturalFeatureParameters, DtAggregateObjectParameters, DtRotaryWingEntityParameters, DtHumanParameters, DtSubSurfaceEntityParameters, DtSurfaceEntityParameters, and DtBallisticMissileParameters.

static DtVrfObjectParameters* DtMovingObjectParameters::creator ( DtEnvironmentSP  env, DtEnvValueSP *  objectNode  )

static

Returns

Newly created instance of this class, with an empty DtReaderWriter name. Creation methods are registered with a DtComponentDescriptorFactory, so they can be created on demand as they are read in from a parameter database file.

virtual bool DtMovingObjectParameters::inheritValues ( const DtVrfObjectParameters *  benefactor )

overridevirtual

Reimplemented from DtVrfObjectParameters.

Reimplemented in DtFixedWingEntityParameters, DtRotaryWingEntityParameters, DtHumanParameters, DtAggregateObjectParameters, DtGroundVehicleParameters, DtCulturalFeatureParameters, DtSubSurfaceEntityParameters, DtSurfaceEntityParameters, DtBombParameters, and DtMissileParameters.

virtual void DtMovingObjectParameters::inheritValuesFromThisType ( const DtMovingObjectParameters *  benefactor )

virtual

virtual int DtMovingObjectParameters::illuminationRecalcTime ( ) const

virtual

Accessor/mutator for myIlluminationRecalcTime.

virtual void DtMovingObjectParameters::setIlluminationRecalcTime ( int  newValue )

virtual

Accessor/mutator for myIlluminationRecalcTime.

virtual int DtMovingObjectParameters::weatherAreaRecalcTime ( ) const

virtual

Accessor/mutator for myWeatherAreaRecalcTime.

virtual void DtMovingObjectParameters::setWeatherAreaRecalcTime ( int  newValue )

virtual

Accessor/mutator for myWeatherAreaRecalcTime.

virtual bool DtMovingObjectParameters::canPivot ( ) const

virtual

Accessor/mutator for myCanPivot.

virtual void DtMovingObjectParameters::setCanPivot ( bool  newValue )

virtual

Accessor/mutator for myCanPivot.

virtual bool DtMovingObjectParameters::protectEmbarkedFromCollateralDamage ( ) const

virtual

Accessor/mutator for myProtectEmbarkedFromCollateralDamage.

virtual void DtMovingObjectParameters::setProtectEmbarkedFromCollateralDamage ( bool  newValue )

virtual

Accessor/mutator for myProtectEmbarkedFromCollateralDamage.

virtual DtReal DtMovingObjectParameters::maxPivotSpeed ( ) const

virtual

Accessor/mutator for myMaxPivotSpeed.

virtual void DtMovingObjectParameters::setMaxPivotSpeed ( DtReal  maxSpeed )

virtual

Accessor/mutator for myMaxPivotSpeed.

virtual const DtVector& DtMovingObjectParameters::leftSupport ( ) const

virtual

Accessor/mutator for myLeftSupport.

virtual void DtMovingObjectParameters::setLeftSupport ( const DtVector &  newLeftSupport )

virtual

Accessor/mutator for myLeftSupport.

virtual const DtVector& DtMovingObjectParameters::rightSupport ( ) const

virtual

Accessor/mutator for myRightSupport.

virtual void DtMovingObjectParameters::setRightSupport ( const DtVector &  newRightSupport )

virtual

Accessor/mutator for myRightSupport.

virtual const DtVector& DtMovingObjectParameters::otherSupport ( ) const

virtual

Accessor/mutator for myOtherSupport.

virtual void DtMovingObjectParameters::setOtherSupport ( const DtVector &  newOtherSupport )

virtual

Accessor/mutator for myOtherSupport.

virtual DtReal DtMovingObjectParameters::maxSpeed ( ) const

virtual

Accessor/mutator for myMaxSpeed.

virtual void DtMovingObjectParameters::setMaxSpeed ( DtReal  speed )

virtual

Accessor/mutator for myMaxSpeed.

virtual DtReal DtMovingObjectParameters::maxReverseSpeed ( ) const

virtual

Accessor/mutator for myMaxReverseSpeed.

virtual void DtMovingObjectParameters::setMaxReverseSpeed ( DtReal  speed )

virtual

Accessor/mutator for myMaxReverseSpeed.

virtual bool DtMovingObjectParameters::useModelArtPartInformation ( ) const

virtual

Accessor/mutator for myUseModelArtPartInformation.

virtual void DtMovingObjectParameters::setUseModelArtPartInformation ( bool  )

virtual

Accessor/mutator for myUseModelArtPartInformation.

virtual DtReal DtMovingObjectParameters::turningRadius ( ) const

virtual

Accessor/mutator for myTurningRadius.

virtual void DtMovingObjectParameters::setTurningRadius ( DtReal  turningRadius )

virtual

Accessor/mutator for myTurningRadius.

virtual DtReal DtMovingObjectParameters::maxSlope ( ) const

virtual

Accessor/mutator for myMaxSlope.

virtual void DtMovingObjectParameters::setMaxSlope ( DtReal  slope )

virtual

Accessor/mutator for myMaxSlope.

virtual DtReal DtMovingObjectParameters::orderedSpeed ( ) const

virtual

Accessor/mutator for myOrderedSpeed.

virtual void DtMovingObjectParameters::setOrderedSpeed ( DtReal  speed )

virtual

Accessor/mutator for myOrderedSpeed.

virtual DtReal DtMovingObjectParameters::maxAcceleration ( ) const

virtual

Accessor/mutator for myMaxAcceleration.

virtual void DtMovingObjectParameters::setMaxAcceleration ( const DtReal  maxAcceleration )

virtual

Accessor/mutator for myMaxAcceleration.

virtual DtReal DtMovingObjectParameters::maxStoppingDeceleration ( ) const

virtual

Accessor/mutator for myMaxStoppingDeceleration.

virtual void DtMovingObjectParameters::setMaxStoppingDeceleration ( const DtReal  maxStoppingDeceleration )

virtual

Accessor/mutator for myMaxStoppingDeceleration.

virtual DtReal DtMovingObjectParameters::maxLateralAcceleration ( ) const

virtual

Accessor/mutator for myMaxLateralAcceleration.

virtual void DtMovingObjectParameters::setMaxLateralAcceleration ( const DtReal  maxLateralAcceleration )

virtual

Accessor/mutator for myMaxLateralAcceleration.

virtual bool DtMovingObjectParameters::useObjectGeometry ( ) const

virtual

Accessor/mutator for myUseObjectGeometry.

virtual void DtMovingObjectParameters::setUseObjectGeometry ( bool  )

virtual

Accessor/mutator for myUseObjectGeometry.

virtual bool DtMovingObjectParameters::useObjectVisuals ( ) const

virtual

Accessor/mutator for myUseObjectVisuals.

virtual void DtMovingObjectParameters::setUseObjectVisuals ( bool  )

virtual

Accessor/mutator for myUseObjectVisuals.

virtual const DtString& DtMovingObjectParameters::objectGeometryFile ( ) const

virtual

Accessor/mutator for myObjectGeometryFile.

virtual void DtMovingObjectParameters::setObjectGeometryFile ( const DtFilename &  )

virtual

Accessor/mutator for myObjectGeometryFile.

virtual bool DtMovingObjectParameters::embedIntoTerrain ( ) const

virtual

Accessor/mutator for myEmbedIntoTerrain.

virtual void DtMovingObjectParameters::setEmbedIntoTerrain ( bool  )

virtual

Accessor/mutator for myEmbedIntoTerrain.

virtual void DtMovingObjectParameters::setDIGuyCharacterInfo ( const DtRwDIGuyCharacterInfo &  info )

virtual

Accessor/mutator for #myDIGuyCharacter.

virtual const DtRwDIGuyCharacterInfo& DtMovingObjectParameters::diguyCharacterInfo ( ) const

virtual

Accessor/mutator for #myDIGuyCharacter.

virtual void DtMovingObjectParameters::setUsingRailMovement ( bool  rails )

virtual

Accessor/mutator for myUsingRailMovement.

virtual bool DtMovingObjectParameters::usingRailMovement ( ) const

virtual

Accessor/mutator for myUsingRailMovement.

virtual void DtMovingObjectParameters::postGetSelf ( )

overridevirtual

Override to fill out the resource manager with resources provided by systems.

Reimplemented from DtVrfObjectParameters.

Member Data Documentation

DtRwBoolean DtMovingObjectParameters::myCanPivot

protected

Parameter Name: can-pivot
Parameter Description: Indicates whether not the entity can pivot to turn.
Parameter Default: False.

DtRwReal DtMovingObjectParameters::myMaxPivotSpeed

protected

Parameter Name: max-pivot-speed
Parameter Description: The maximum rate at which a ground entity can turn in place.
Parameter Default Value: 0.
Parameter Units: meters/second.

DtRwOffsetVector DtMovingObjectParameters::myLeftSupport

protected

Parameter Name: left-support
Parameter Description: Support contact point in body coordinates.
Sub-parameter:

• offset: Offset, in body coordinates, from the base of the entity for the left support point used to create the support plane. The plane is used to orient the entity with respect to the terrain.
  Parameter Default Value: <0.5 -1.0 0.0>
  Parameter Units: meters

DtRwOffsetVector DtMovingObjectParameters::myRightSupport

protected

Parameter Name: right-support
Parameter Description: Support contact point in body coordinates.
Sub-parameter:

• offset: Offset, in body coordinates, from the base of the entity for the right support point used to create the support plane. The plane is used to orient the entity with respect to the terrain.
  Parameter Default Value: <0.5 1.0 0.0>
  Parameter Units: meters

DtRwOffsetVector DtMovingObjectParameters::myOtherSupport

protected

Parameter Name: other-support
Parameter Description: Support contact point in body coordinates.
Sub-parameter:

• offset: Offset, in body coordinates, from the base of the entity for the third support point used to create the support plane. The plane is used to orient the entity with respect to the terrain.
  Parameter Default Value: <-0.2, 0.0 0.0>
  Parameter Units: meters

DtRwReal DtMovingObjectParameters::myMaxSpeed

protected

Parameter Name: max-speed
Parameter Description: The top speed of the entity.
Parameter Default Value: 15.
Parameter Units: meters/second.

DtRwReal DtMovingObjectParameters::myMaxReverseSpeed

protected

Parameter Name: max-reverse-speed
Parameter Description: The maximum speed at which an entity can move in reverse.
Parameter Default Value: 10.
Parameter Units: meters/second.

DtRwReal DtMovingObjectParameters::myTurningRadius

protected

Parameter Name: turning-radius
Parameter Description: Minimum turning radius. This will be used differently by different movement models, and does not apply to all of them (such as missiles). Used by non-pivoting ground vehicles; used by surface and subsurface entities for low-speed turns (at high speed, lateral acceleration limits minimum turn radius).
Parameter Default Value: 5.
Parameter Units: meters.

DtRwReal DtMovingObjectParameters::myMaxSlope

protected

Parameter Name: max-slope
Parameter Description: For ground entities, the maximum slope, at which the entity can still have acceleration >= 0 in its direction of motion. Therefore, if a ground vehicle is heading up a hill, as soon as the slope of the hill is greater than the max-slope, it will no longer be able to accelerate up the slope. At best, without any friction or other source of negative acceleration, it will remain at its current speed. If the slope increases, it will start decelerating and even start rolling backwards. If the entity is moving down a hill, the opposite is true.
For subsurface entities, this is the maximum pitch that they will adopt in the simple actuator model when ascending or descending.
The units are the fraction rise-over-run, i.e. tangent of the angle of inclination. Parameter Default Value: 1. Parameter Units: ratio.

DtRwReal DtMovingObjectParameters::myOrderedSpeed

protected

Parameter Name: ordered-speed
Parameter Description: The speed the entity will move when tasked, unless or until changed by a set speed message.
Parameter Default Value: 10.
Parameter Units: meters/second.

DtRwReal DtMovingObjectParameters::myMaxAcceleration

protected

Parameter Name: max-acceleration
Parameter Description: The maximum acceleration rate for the entity.
Parameter Default Value: 4.5
Parameter Units: meters/second/second.

DtRwReal DtMovingObjectParameters::myMaxStoppingDeceleration

protected

Parameter Name: max-deceleration
Parameter Description: The maximum (braking) deceleration for the entity.
Parameter Default Value: 4.5
Parameter Units: meters/second/second.

DtRwReal DtMovingObjectParameters::myMaxLateralAcceleration

protected

Parameter Name: max-lateral-acceleration
Parameter Description: The maximum lateral (turning) acceleration for the entity. For fixed wing aircraft, this is the maximum acceleration during flying maneuvers (i.e., in horizontal and vertical turns). FWA default value is 49.0.
Parameter Default Value: 5.0
Parameter Units: meters/second/second.

DtReaderWriterFile DtMovingObjectParameters::myObjectGeometryFile

protected

Parameter Name: object-geometry-file
Parameter Description: If the object geometry is defined (a polygonal model for the entity comparable to a terrain database), it will be used when entities are embarked to task them to move on the embarked item. If this item is not defined (or cannot be loaded) then entities cannot be tasked once embarked on this item.
Parameter Default Value:
.

DtRwBoolean DtMovingObjectParameters::myUseObjectGeometry

protected

Parameter Name: use-object-geometry
Parameter Description: If specified use the geometry file for navigation data, embarkation and line of sight. If false, even if specified, do not use.
Parameter Default Value: True
.

DtRwBoolean DtMovingObjectParameters::myUseObjectVisuals

protected

Parameter Name: use-object-visuals
Parameter Description: If specified, use the visuals as defined for tthe model (including potentially multiple models) rather than the user specified file.
Parameter Default Value: False
.

DtRwBoolean DtMovingObjectParameters::myEmbedIntoTerrain

protected

Parameter Name: embed-into-terrain
Parameter Description: If true this object's geometry will be embedded directly into the terrain Parameter Default: False
.

DtRwDIGuyCharacterInfo DtMovingObjectParameters::myDIGuyCharacterInfo

protected

Parameter Name: di-guy-character
Parameter Description: DI-Guy representation of the entity if any. Set the DI Guy Character, it's default appearance and animation
Parameter Default Value:
.

DtRwBoolean DtMovingObjectParameters::myUsingRailMovement

protected

Parameter Name: using-rail-movement
Parameter Description: If true entity will clamp to a route segment using the segment's heading as it's heading and will use the rail movement system to to provide smoother driving. If no segments are available to follow will default to regular movement system. Parameter Units: Parameter Default Value: false.

DtRwInt DtMovingObjectParameters::myIlluminationRecalcTime

protected

Parameter Name: illumination-recalc-time
Parameter Description: Amount of time (in seconds) to recalculate entity illumination value based on location and time of day Parameter Units: Parameter Default Value: 300 (5 minutes)

DtRwInt DtMovingObjectParameters::myWeatherAreaRecalcTime

protected

Parameter Name: weather-area-recalc-time
Parameter Description: Amount of time (in seconds) to recalculate if an entity is in a new weather area. Parameter Units: Parameter Default Value: 10 seconds.

DtRwBoolean DtMovingObjectParameters::myProtectEmbarkedFromCollateralDamage

protected

Parameter Name: protect-embarked-from-collateral-damage
Parameter Description: If true, entities embarked on this object are protected from collateral damange. This will be true for any entity that is also embarked on any entity embarked on this object (etc.) Parameter Units: Parameter Default Value: True.

DtRwBoolean DtMovingObjectParameters::myUseModelArtPartInformation

protected

Whether or not to load articulated part information from model as well. If there is an object geometry model will use that rather than looking for the model in the definitions Parameter Units: Parameter Default Value: true.

---

The documentation for this class was generated from the following file:

• /data/exports/nrhent7-1/nightly/docs/vrForces.vrf5-2-branch/include/vrfobjparam/movingObjectParameters.h
