Interface class used to define minimal interface for a property. The DtPropertyInterface class provides the basic interface to a VR-Forces state or parameter property. Properties fall into one of three categories:

Basic data types. These include types like integers, reals, bools, and strings.
Structures. Structures are lists of related, but distinct properties of different types.
Lists and Maps. Contains a variable number of properties of the same type. Structures, lists, and maps can be based on any other property data types.

Each sim object has a list of both state properties (which are dynamic) and parameters properties (which are static). All properties are defined in the state-data and parameter-data sections of the OPE file used by the sim object. The VR-Forces Users Guide has more general information on properties.

The state and parameter properties are maintained by the DtVrfObjectStateRepository of the object. These lists of state properties and parameter properties are implemented as DtRwProperties, which is itself a subclass of DtPropertyInterface. Therefore you can find any property of an object using the same API as you would to find a property or field that is a subcomponent of another property (as in a structure).

The DtPropertyInterface has a number of functions to help you find and access state and parameter properties. These are documented with some example code as well. The DtRwPropertiesStructure, DtRwPropertiesList, and DtRwPropertiesMap classes have further functions that will help you access their constituent fields and elements.

Any DtPropertyInterface class or subclass is just a wrapper for some underlying data. It provides a generic interface for storing this data. Because a DtPropertyInterface can in actuality be a structure, list, map, or value wrapper, properties can get arbitrarily complex.

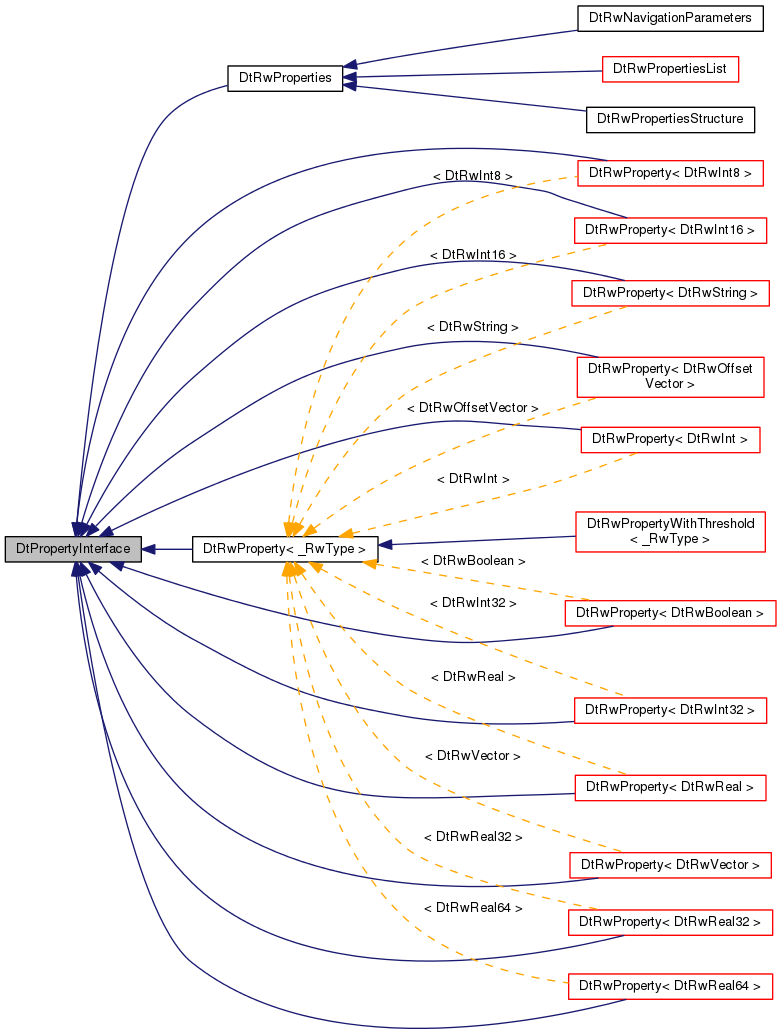

Inheritance diagram for DtPropertyInterface:

[legend]

Public Types
enum	MergeFlags { Replace = 0x00000001, MinimalSimilarityCheck = 0x00000002, RollUp = 0x00000004, AddMissing = 0x00000008, KeepPublishedSettings = 0x00000010 }

Public Member Functions
virtual	~DtPropertyInterface ()

virtual void	copy (const DtPropertyInterface &rhs)=0

virtual const char *	propertyType () const =0

virtual DtSymbolString	propertyName () const =0

virtual void	setPropertyName (const DtString &propertyName)=0

virtual DtString	stringRep (const DtString &root="") const =0

virtual bool	isSimilarProperty (const DtPropertyInterface *rhs, bool strict=true) const

virtual bool	merge (const DtPropertyInterface &target, MergeFlags, const DtMergePath &path=DtMergePath(), const std::set< DtString > &ignore=std::set< DtString >())=0

virtual DtlObjPtr	getData (DtlObjPtr args, const DtReaderWriter::SearchPaths &searchPaths, const DtVariableBindingsList &variableBindings)=0

virtual void	writePublishInformation (std::string &fp, int indentLevel)

virtual bool	isPublishedArg (DtlObjPtr arg, unsigned &disVarRecType)

virtual void	copyPublishingSettings (const DtPropertyInterface &prop)

virtual void	setKeepPublishingSettings (bool keep)=0

virtual bool	keepPublishingSettings () const =0

virtual bool	isUpdateNeeded (DtTime t) const =0

virtual bool	hasReceivedUpdateSince (DtTime t) const =0

virtual DtTime	updateClockTime () const =0

virtual void	reset ()=0

virtual void	processPublicationArgs (DtlObjPtr arg)

virtual void	processPublicationArg (DtlObjPtr arg)

Getting and setting the property value
template<typename ValueType >
boost::optional< ValueType >	propertyValue () const

template<typename ValueType >
bool	setPropertyValue (ValueType val)

Generic property lookup functions
These functions return the DtPropertyInterface for the named property, assuming it is found within this property. This will only work if this property is composed of other properties (i.e. a structure or an overall DtRwProperties). If this property cannot be found, a null pointer is returned. Example: DtPropertyInterface* property = obj->vrfState()->stateProperties().findPropertyInterface("My-Property-Name"); if (property) { // Property was found. } Additionally, if you want to find the a field within a structure, you can use the '.' character to indicate this relationship. So the code to find a field with the name "Field1" in the property "My-Structure" would look like this: DtPropertyInterface* field = obj->vrfState()->stateProperties().findPropertyInterface("My-Structure.Field1");
virtual const DtPropertyInterface *	findPropertyInterface (const DtString &propertyName) const

virtual DtPropertyInterface *	findPropertyInterface (const DtString &propertyName)

Specific property type lookup functions
These functions return the specific property type for the named property, assuming it is found within this property and matches this type. This will only work if this property is composed of other properties (i.e. a structure or an overall DtRwProperties). If this property cannot be found or is of the wrong type, a null pointer is returned. Example: DtRwPropertiesStructure* property = obj->vrfState()->stateProperties().findProperty<DtRwPropertiesStructure>("My-Property-Name"); if (property) { // Property was found and it was of the expected type. } Additionally, if you want to find the a field within a structure, you can use the '.' character to indicate this relationship. So the code to find a field with the name "Field1" in the property "My-Structure" would look like this: DtRwPropertyInt* field = obj->vrfState()->stateProperties().findProperty<DtRwPropertyInt>("My-Structure.Field1");
template<typename SpecificPropType >
const SpecificPropType *	findProperty (const DtString &propertyName) const

template<typename SpecificPropType >
SpecificPropType *	findProperty (const DtString &propertyName)

Convenience functions for finding and getting/setting property value
template<typename ValueType >
boost::optional< ValueType >	findPropertyValue (const DtString &propertyName) const

template<typename ValueType >
bool	findAndSetPropertyValue (const DtString &propertyName, ValueType val)

Property addition functions
These functions can be used to add new properties to a properties container. This can be used to add new fields to a DtRwPropertiesStructure or a new property to a DtRwProperties. If this property is not of supported properties container type these functions will fail.
virtual bool	addProperty (DtPropertyInterface *property)

template<typename SpecificPropType >
SpecificPropType *	addNewProperty (const DtString &propertyName)

Property removal functions
These functions can be used to removed properties from a properties container. This can be used to remove fields from a DtRwPropertiesStructure or an existing property from a DtRwProperties. If this property is not of supported properties container type this function will fail. Returns true if successful.
virtual bool	removeProperty (const DtString &propertyName)

virtual bool	removeProperty (const DtPropertyInterface *property)

Network encoding and decoding
virtual char *	encode (char *) const =0

virtual const char *	decode (const char *)=0

virtual void	getSize (int &size) const =0

int	getSize () const

virtual int	hlaAlignment () const =0


virtual DtReaderWriter *	readerWriter ()=0

virtual const DtReaderWriter *	readerWriter () const =0


virtual bool	isPublished () const =0

virtual void	setIsPublished (bool isPub)=0


virtual unsigned	disRecordType () const =0

virtual void	setDisRecordType (unsigned recType)=0


virtual bool	isDebugEnabled () const =0

virtual void	setDebugEnabled (bool en)=0

Member Enumeration Documentation

enum DtPropertyInterface::MergeFlags

Determines how two lists of properties will be merged by the merge function.

Enumerator
Replace
MinimalSimilarityCheck
RollUp
AddMissing
KeepPublishedSettings

Constructor & Destructor Documentation

virtual DtPropertyInterface::~DtPropertyInterface ( )

virtual

Member Function Documentation

template<typename ValueType >

boost::optional<ValueType> DtPropertyInterface::propertyValue ( ) const

Returns the value of this property. You can only retrieve the value of properties which can contain simple data types. Therefor this call will not work on things such as structures, lists, or maps. If the value cannot be converted to the specified type, the boost::optional will have a value of false. If it can be, the boost::optional will have a value of true and can then be dereferenced to get the value itself. Example:

int val;
boost::optional<int> propVal = property->propertyValue<int>();
if (propVal)
{
   val = *propVal;
}

Referenced by DtSimComponent::getCachedCurrentFrameStatePropertyValue().

template<typename ValueType >

bool DtPropertyInterface::setPropertyValue ( ValueType val )

Sets the value of this property. If the value cannot be converted from the specified type, the operation will fail and false will be returned. Otherwise returns true. Example:

bool success = property->setPropertyValue<DtString>("new value");

Referenced by DtSimComponent::setCachedNextFrameStatePropertyValue().

virtual const DtPropertyInterface* DtPropertyInterface::findPropertyInterface ( const DtString & propertyName ) const

inlinevirtual

Reimplemented in DtRwProperties.

virtual DtPropertyInterface* DtPropertyInterface::findPropertyInterface ( const DtString & propertyName )

inlinevirtual

Reimplemented in DtRwProperties.

template<typename SpecificPropType >

const SpecificPropType* DtPropertyInterface::findProperty ( const DtString & propertyName ) const

template<typename SpecificPropType >

SpecificPropType* DtPropertyInterface::findProperty ( const DtString & propertyName )

template<typename ValueType >

boost::optional<ValueType> DtPropertyInterface::findPropertyValue ( const DtString & propertyName ) const

This is a convenience function that combines the functionality of findProperty and propertyValue to immediately return the value of the property with the given name, assuming it can be found within this property and its value can be converted to the specified type. If not, the boost::optional will be false. Example:

int val;
boost::optional<int> propVal =
   obj->vrfState()->stateProperties().findPropertyValue<int>("My-Property-Name");
if (propVal)
{
   val = *propVal;
}

Additionally, if you want to find the value of a field within a structure, you can use the '.' character to indicate this relationship. So the code to find the value of a field with the name "Field1" in the property "My-Structure" would look like this:

boost::optional<int> fieldVal =

obj->vrfState()->stateProperties().findPropertyValue("My-Structure.Field1");

template<typename ValueType >

bool DtPropertyInterface::findAndSetPropertyValue	(	const DtString &	propertyName,
		ValueType	val
	)

This is a convenience function that combines the functionality of findProperty and setPropertyValue to immediately set the value of the property with the given name, assuming it can be found within this property and its value can be converted from the specified type. If successful, returns true, otherwise returns false. Example:

bool success = obj->vrfState()->stateProperties().findAndSetPropertyValue<int>(

"My-Property-Name", 4);

Additionally, if you want to find and set the value of a field within a structure, you can use the '.' character to indicate this relationship. So the code to find and set the value of a field with the name "Field1" in the property "My-Structure" would look like this:

bool success = obj->vrfState()->stateProperties().findAndSetPropertyValue<double>(

"My-Structure.Field1", 123.45);

virtual bool DtPropertyInterface::addProperty ( DtPropertyInterface * property )

inlinevirtual

Adds an existing property to the properties container. The container will take ownership of the given property. Returns false if this operation was not possible.

DtRwPropertyInt* newProp = new DtRwPropertyInt("Num Soldiers", 4);

obj->vrfState()->stateProperties().addProperty(newProp);

Reimplemented in DtRwProperties.

template<typename SpecificPropType >

SpecificPropType* DtPropertyInterface::addNewProperty ( const DtString & propertyName )

Adds a new property of the specified type and returns pointer to the new item. Returns a null pointer if a property with that name already existed.

DtRwPropertyInt* newProp =

obj->vrfState()->stateProperties().addProperty<DtRwPropertyInt>("Num Soldiers");

virtual bool DtPropertyInterface::removeProperty ( const DtString & propertyName )

inlinevirtual

Reimplemented in DtRwProperties.

virtual bool DtPropertyInterface::removeProperty ( const DtPropertyInterface * property )

inlinevirtual

Reimplemented in DtRwProperties.

virtual void DtPropertyInterface::copy ( const DtPropertyInterface & rhs )

pure virtual

Copies the given property into the current one as long as the types are the same. The details of how the copy is performed are left to the subclasses.

Implemented in DtRwProperties, DtRwProperty< _RwType >, DtRwProperty< DtRwString >, DtRwProperty< DtRwInt >, DtRwProperty< DtRwInt8 >, DtRwProperty< DtRwInt16 >, DtRwProperty< DtRwReal >, DtRwProperty< DtRwVector >, DtRwProperty< DtRwReal64 >, DtRwProperty< DtRwBoolean >, DtRwProperty< DtRwOffsetVector >, DtRwProperty< DtRwInt32 >, and DtRwProperty< DtRwReal32 >.

virtual char* DtPropertyInterface::encode ( char * ) const

pure virtual

Encodes the property into the supplied buffer. Does not align the property. Buffer must already be aligned correctly based on the hlaAlignment() value of this property.

virtual const char* DtPropertyInterface::decode ( const char * )

pure virtual

Decodes the property from the specified buffer. Assumes buffer is the start of the property and preceding padding has been skipped.

Implemented in DtRwPropertySizedString, DtRwProperties, DtRwPropertiesList, DtRwPropertiesFixedArray, DtRwProperty< _RwType >, DtRwProperty< DtRwString >, DtRwProperty< DtRwInt >, DtRwProperty< DtRwInt8 >, DtRwProperty< DtRwInt16 >, DtRwProperty< DtRwReal >, DtRwProperty< DtRwVector >, DtRwProperty< DtRwReal64 >, DtRwProperty< DtRwBoolean >, DtRwProperty< DtRwOffsetVector >, DtRwProperty< DtRwInt32 >, and DtRwProperty< DtRwReal32 >.

virtual void DtPropertyInterface::getSize ( int & size ) const

pure virtual

Adds the network size of this item in bytes. This does not include any upfront padding for alignment.

Implemented in DtRwPropertySizedString, DtRwProperties, DtRwPropertiesList, DtRwPropertiesFixedArray, DtRwProperty< _RwType >, DtRwProperty< DtRwString >, DtRwProperty< DtRwInt >, DtRwProperty< DtRwInt8 >, DtRwProperty< DtRwInt16 >, DtRwProperty< DtRwReal >, DtRwProperty< DtRwVector >, DtRwProperty< DtRwReal64 >, DtRwProperty< DtRwBoolean >, DtRwProperty< DtRwOffsetVector >, DtRwProperty< DtRwInt32 >, and DtRwProperty< DtRwReal32 >.

int DtPropertyInterface::getSize ( ) const

Returns the network size of this item in bytes. This does not include any upfront padding for alignment.

virtual int DtPropertyInterface::hlaAlignment ( ) const

pure virtual

Returns alignment necessary to encode this item in HLA.

Implemented in DtRwPropertySizedString, DtRwPropertiesMap, DtRwProperties, DtRwPropertiesList, DtRwProperty< _RwType >, DtRwProperty< DtRwString >, DtRwProperty< DtRwInt >, DtRwProperty< DtRwInt8 >, DtRwProperty< DtRwInt16 >, DtRwProperty< DtRwReal >, DtRwProperty< DtRwVector >, DtRwProperty< DtRwReal64 >, DtRwProperty< DtRwBoolean >, DtRwProperty< DtRwOffsetVector >, DtRwProperty< DtRwInt32 >, and DtRwProperty< DtRwReal32 >.

virtual const char* DtPropertyInterface::propertyType ( ) const

pure virtual

Typically returns reader/writer type.

Implemented in DtRwProperties, DtRwProperty< _RwType >, DtRwProperty< DtRwString >, DtRwProperty< DtRwInt >, DtRwProperty< DtRwInt8 >, DtRwProperty< DtRwInt16 >, DtRwProperty< DtRwReal >, DtRwProperty< DtRwVector >, DtRwProperty< DtRwReal64 >, DtRwProperty< DtRwBoolean >, DtRwProperty< DtRwOffsetVector >, DtRwProperty< DtRwInt32 >, DtRwProperty< DtRwReal32 >, and DtRwPropertiesRangeItem.

virtual DtSymbolString DtPropertyInterface::propertyName ( ) const

pure virtual

The name of this property.

Implemented in DtRwProperties, DtRwProperty< _RwType >, DtRwProperty< DtRwString >, DtRwProperty< DtRwInt >, DtRwProperty< DtRwInt8 >, DtRwProperty< DtRwInt16 >, DtRwProperty< DtRwReal >, DtRwProperty< DtRwVector >, DtRwProperty< DtRwReal64 >, DtRwProperty< DtRwBoolean >, DtRwProperty< DtRwOffsetVector >, DtRwProperty< DtRwInt32 >, and DtRwProperty< DtRwReal32 >.

Referenced by DtPropertiesIterator::key(), and DtPropertiesConstIterator::key().

virtual void DtPropertyInterface::setPropertyName ( const DtString & propertyName )

pure virtual

Sets name of this property. Should generally only be called when initially created.

Implemented in DtRwProperties, DtRwProperty< _RwType >, DtRwProperty< DtRwString >, DtRwProperty< DtRwInt >, DtRwProperty< DtRwInt8 >, DtRwProperty< DtRwInt16 >, DtRwProperty< DtRwReal >, DtRwProperty< DtRwVector >, DtRwProperty< DtRwReal64 >, DtRwProperty< DtRwBoolean >, DtRwProperty< DtRwOffsetVector >, DtRwProperty< DtRwInt32 >, and DtRwProperty< DtRwReal32 >.

virtual DtString DtPropertyInterface::stringRep ( const DtString & root = "" ) const

pure virtual

Implemented in DtRwProperties, DtRwProperty< _RwType >, DtRwProperty< DtRwString >, DtRwProperty< DtRwInt >, DtRwProperty< DtRwInt8 >, DtRwProperty< DtRwInt16 >, DtRwProperty< DtRwReal >, DtRwProperty< DtRwVector >, DtRwProperty< DtRwReal64 >, DtRwProperty< DtRwBoolean >, DtRwProperty< DtRwOffsetVector >, DtRwProperty< DtRwInt32 >, and DtRwProperty< DtRwReal32 >.

Referenced by DtVrfStatePropertyPrinter::processObjectUpdated().

virtual DtReaderWriter* DtPropertyInterface::readerWriter ( )

pure virtual

Returns a ReaderWriter pointer of the property. If property is not a ReaderWriter, this should be overridden to return 0.

Implemented in DtRwProperties, DtRwProperty< _RwType >, DtRwProperty< DtRwString >, DtRwProperty< DtRwInt >, DtRwProperty< DtRwInt8 >, DtRwProperty< DtRwInt16 >, DtRwProperty< DtRwReal >, DtRwProperty< DtRwVector >, DtRwProperty< DtRwReal64 >, DtRwProperty< DtRwBoolean >, DtRwProperty< DtRwOffsetVector >, DtRwProperty< DtRwInt32 >, and DtRwProperty< DtRwReal32 >.

virtual const DtReaderWriter* DtPropertyInterface::readerWriter ( ) const

pure virtual

Returns a ReaderWriter pointer of the property. If property is not a ReaderWriter, this should be overridden to return 0.

Implemented in DtRwProperties, DtRwProperty< _RwType >, DtRwProperty< DtRwString >, DtRwProperty< DtRwInt >, DtRwProperty< DtRwInt8 >, DtRwProperty< DtRwInt16 >, DtRwProperty< DtRwReal >, DtRwProperty< DtRwVector >, DtRwProperty< DtRwReal64 >, DtRwProperty< DtRwBoolean >, DtRwProperty< DtRwOffsetVector >, DtRwProperty< DtRwInt32 >, and DtRwProperty< DtRwReal32 >.

virtual bool DtPropertyInterface::isSimilarProperty	(	const DtPropertyInterface *	rhs,
		bool	strict = `true`
	)		const

virtual

Returns true if the readerWriterType is the same. Subclasses can do extra checking. If strict is true, some property types will do extra checking and fail if the types do not exactly match. If false, these types will do a basic check, which can be useful when the the types are similar enough to perform a merge.

Reimplemented in DtRwPropertyReal64, DtRwPropertyReal32, DtRwPropertyReal, DtRwPropertyInt32, DtRwPropertyInt16, DtRwPropertyInt8, DtRwPropertyInt, DtRwPropertiesMap, DtRwPropertiesStructure, DtRwPropertiesList, and DtRwPropertiesFixedArray.

virtual bool DtPropertyInterface::merge	(	const DtPropertyInterface &	target,
		MergeFlags	,
		const DtMergePath &	path = `DtMergePath()`,
		const std::set< DtString > &	ignore = `std::set< DtString >()`
	)

pure virtual

Takes the contents of the supplied properties and merges with the following rules if replace is false: 1) If the same named property of the same type (and prototype and key) exists regardless of what the contents are in this property, it is replaced with the contents of the target 2) If a property in the target does not exist in source, it is not merged in 3) All other items are kept in the source.

If replace is true, any matching items are replaced by their target. This will add/remove properties

This is a non-recursive function. It only looks at top level property items. Returns true if merge was successful

virtual DtlObjPtr DtPropertyInterface::getData	(	DtlObjPtr	args,
		const DtReaderWriter::SearchPaths &	searchPaths,
		const DtVariableBindingsList &	variableBindings
	)

pure virtual

Override to allow a variable to be assigned to a property of derived type.

Implemented in DtRwProperties, DtRwPropertiesList, DtRwProperty< _RwType >, DtRwProperty< DtRwString >, DtRwProperty< DtRwInt >, DtRwProperty< DtRwInt8 >, DtRwProperty< DtRwInt16 >, DtRwProperty< DtRwReal >, DtRwProperty< DtRwVector >, DtRwProperty< DtRwReal64 >, DtRwProperty< DtRwBoolean >, DtRwProperty< DtRwOffsetVector >, DtRwProperty< DtRwInt32 >, and DtRwProperty< DtRwReal32 >.

virtual void DtPropertyInterface::writePublishInformation	(	std::string &	fp,
		int	indentLevel
	)

virtual

Writes information specific to publishing on the network.

Reimplemented in DtRwProperties, DtRwPropertyWithThreshold< _RwType >, DtRwPropertyWithThreshold< DtRwInt >, DtRwPropertyWithThreshold< DtRwInt8 >, DtRwPropertyWithThreshold< DtRwInt16 >, DtRwPropertyWithThreshold< DtRwReal >, DtRwPropertyWithThreshold< DtRwVector >, DtRwPropertyWithThreshold< DtRwReal64 >, DtRwPropertyWithThreshold< DtRwOffsetVector >, DtRwPropertyWithThreshold< DtRwInt32 >, and DtRwPropertyWithThreshold< DtRwReal32 >.

virtual bool DtPropertyInterface::isPublishedArg	(	DtlObjPtr	arg,
		unsigned &	disVarRecType
	)

virtual

Tests whether the argument specified indicates this property should be published. If a specific DIS variable record type is indicated, this is returned in disVarRecType.

virtual void DtPropertyInterface::copyPublishingSettings ( const DtPropertyInterface & prop )

virtual

Copies the publishing settings from another property to use for this one.

Reimplemented in DtRwPropertyWithThreshold< _RwType >, DtRwPropertyWithThreshold< DtRwInt >, DtRwPropertyWithThreshold< DtRwInt8 >, DtRwPropertyWithThreshold< DtRwInt16 >, DtRwPropertyWithThreshold< DtRwReal >, DtRwPropertyWithThreshold< DtRwVector >, DtRwPropertyWithThreshold< DtRwReal64 >, DtRwPropertyWithThreshold< DtRwOffsetVector >, DtRwPropertyWithThreshold< DtRwInt32 >, and DtRwPropertyWithThreshold< DtRwReal32 >.

virtual void DtPropertyInterface::setKeepPublishingSettings ( bool keep )

pure virtual

Specifies whether the publishing settings for this property should be retained when it is updated from another property.

Implemented in DtRwProperties, DtRwProperty< _RwType >, DtRwProperty< DtRwString >, DtRwProperty< DtRwInt >, DtRwProperty< DtRwInt8 >, DtRwProperty< DtRwInt16 >, DtRwProperty< DtRwReal >, DtRwProperty< DtRwVector >, DtRwProperty< DtRwReal64 >, DtRwProperty< DtRwBoolean >, DtRwProperty< DtRwOffsetVector >, DtRwProperty< DtRwInt32 >, and DtRwProperty< DtRwReal32 >.

virtual bool DtPropertyInterface::keepPublishingSettings ( ) const

pure virtual

Implemented in DtRwProperties, DtRwProperty< _RwType >, DtRwProperty< DtRwString >, DtRwProperty< DtRwInt >, DtRwProperty< DtRwInt8 >, DtRwProperty< DtRwInt16 >, DtRwProperty< DtRwReal >, DtRwProperty< DtRwVector >, DtRwProperty< DtRwReal64 >, DtRwProperty< DtRwBoolean >, DtRwProperty< DtRwOffsetVector >, DtRwProperty< DtRwInt32 >, and DtRwProperty< DtRwReal32 >.

virtual bool DtPropertyInterface::isUpdateNeeded ( DtTime t ) const

pure virtual

Returns true if the value has been updated since the specified time and needs to be sent on the network.

virtual bool DtPropertyInterface::hasReceivedUpdateSince ( DtTime t ) const

pure virtual

Returns true if an update was received remotely since the specified time.

Implemented in DtRwProperties, DtRwProperty< _RwType >, DtRwProperty< DtRwString >, DtRwProperty< DtRwInt >, DtRwProperty< DtRwInt8 >, DtRwProperty< DtRwInt16 >, DtRwProperty< DtRwReal >, DtRwProperty< DtRwVector >, DtRwProperty< DtRwReal64 >, DtRwProperty< DtRwBoolean >, DtRwProperty< DtRwOffsetVector >, DtRwProperty< DtRwInt32 >, and DtRwProperty< DtRwReal32 >.

Referenced by DtVrfStatePropertyPrinter::processObjectUpdated().

virtual DtTime DtPropertyInterface::updateClockTime ( ) const

pure virtual

Returns the current time on the update clock. Can be used to pass into a future call to hasReceivedUpdateSince(t) to see if an update has been processed in the meantime.

Implemented in DtRwProperties, DtRwProperty< _RwType >, DtRwProperty< DtRwString >, DtRwProperty< DtRwInt >, DtRwProperty< DtRwInt8 >, DtRwProperty< DtRwInt16 >, DtRwProperty< DtRwReal >, DtRwProperty< DtRwVector >, DtRwProperty< DtRwReal64 >, DtRwProperty< DtRwBoolean >, DtRwProperty< DtRwOffsetVector >, DtRwProperty< DtRwInt32 >, and DtRwProperty< DtRwReal32 >.

virtual bool DtPropertyInterface::isPublished ( ) const

pure virtual

Whether this property should be published.

Implemented in DtRwProperties, DtRwProperty< _RwType >, DtRwProperty< DtRwString >, DtRwProperty< DtRwInt >, DtRwProperty< DtRwInt8 >, DtRwProperty< DtRwInt16 >, DtRwProperty< DtRwReal >, DtRwProperty< DtRwVector >, DtRwProperty< DtRwReal64 >, DtRwProperty< DtRwBoolean >, DtRwProperty< DtRwOffsetVector >, DtRwProperty< DtRwInt32 >, and DtRwProperty< DtRwReal32 >.

Referenced by makVrf::DtStatePropertiesStateComponentData::copyOnlPublishedStateProperties().

virtual void DtPropertyInterface::setIsPublished ( bool isPub )

pure virtual

Whether this property should be published.

Implemented in DtRwProperties, DtRwProperty< _RwType >, DtRwProperty< DtRwString >, DtRwProperty< DtRwInt >, DtRwProperty< DtRwInt8 >, DtRwProperty< DtRwInt16 >, DtRwProperty< DtRwReal >, DtRwProperty< DtRwVector >, DtRwProperty< DtRwReal64 >, DtRwProperty< DtRwBoolean >, DtRwProperty< DtRwOffsetVector >, DtRwProperty< DtRwInt32 >, and DtRwProperty< DtRwReal32 >.

virtual unsigned DtPropertyInterface::disRecordType ( ) const

pure virtual

If this property is published, which DIS record type should it use. Default is 0, which indicates that the normal VRF generic attribute record type should be used.

Implemented in DtRwProperties, DtRwProperty< _RwType >, DtRwProperty< DtRwString >, DtRwProperty< DtRwInt >, DtRwProperty< DtRwInt8 >, DtRwProperty< DtRwInt16 >, DtRwProperty< DtRwReal >, DtRwProperty< DtRwVector >, DtRwProperty< DtRwReal64 >, DtRwProperty< DtRwBoolean >, DtRwProperty< DtRwOffsetVector >, DtRwProperty< DtRwInt32 >, and DtRwProperty< DtRwReal32 >.

virtual void DtPropertyInterface::setDisRecordType ( unsigned recType )

pure virtual

If this property is published, which DIS record type should it use. Default is 0, which indicates that the normal VRF generic attribute record type should be used.

Implemented in DtRwProperties, DtRwProperty< _RwType >, DtRwProperty< DtRwString >, DtRwProperty< DtRwInt >, DtRwProperty< DtRwInt8 >, DtRwProperty< DtRwInt16 >, DtRwProperty< DtRwReal >, DtRwProperty< DtRwVector >, DtRwProperty< DtRwReal64 >, DtRwProperty< DtRwBoolean >, DtRwProperty< DtRwOffsetVector >, DtRwProperty< DtRwInt32 >, and DtRwProperty< DtRwReal32 >.
