template<typename _RwType>
class DtRwProperty< _RwType >

Templated class that allows for the definition of a property. Only templates of this type can be added into the DtRwProperties class.

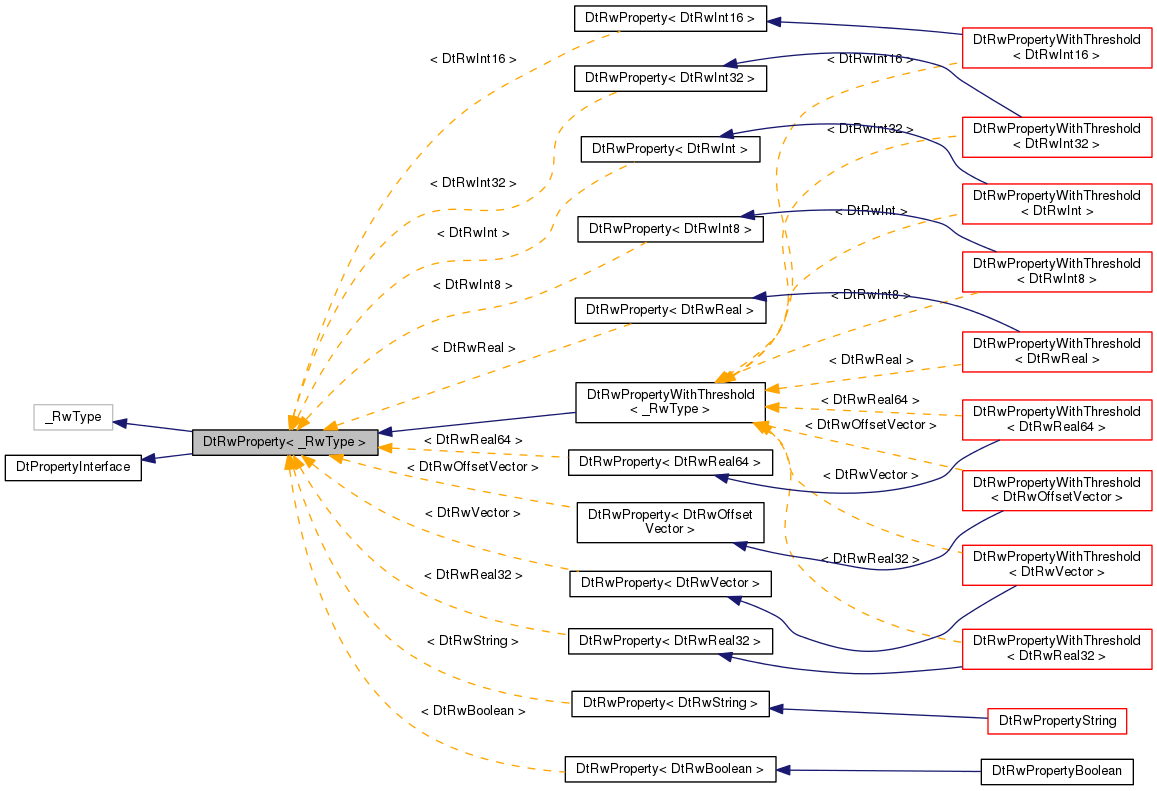

Inheritance diagram for DtRwProperty< _RwType >:

[legend]

Public Member Functions
	DtRwProperty (const DtString &name, DtReaderWriterRegistry *parentRegistry=0)

	DtRwProperty (const DtString &name, const DtRwProperty &orig, DtReaderWriterRegistry *parentRegistry=0)

DtRwProperty &	operator= (const DtRwProperty &orig)

virtual	~DtRwProperty () override

virtual void	copy (const DtPropertyInterface &rhs) override

virtual DtString	stringRep (const DtString &root="") const override

virtual const char *	propertyType () const override

virtual DtSymbolString	propertyName () const override

virtual void	setPropertyName (const DtString &propertyName) override

virtual void	getSelf (DtlObjPtr args, const DtReaderWriter::SearchPaths &searchPaths=DtReaderWriter::SearchPaths(), const DtVariableBindingsList &variableBindings=DtReaderWriter::nullVariableReference())

virtual DtlObjPtr	getData (DtlObjPtr args, const DtReaderWriter::SearchPaths &searchPaths, const DtVariableBindingsList &variableBindings) override

virtual bool	merge (const DtPropertyInterface &target, MergeFlags, const DtMergePath &path=DtMergePath(), const std::set< DtString > &ignore=std::set< DtString >()) override

virtual void	recordUpdateTime () const

virtual bool	isUpdateNeeded (DtTime t) const override

virtual bool	hasReceivedUpdateSince (DtTime t) const override

virtual DtTime	updateClockTime () const override

virtual void	reset () override

virtual void	setKeepPublishingSettings (bool keep) override

virtual bool	keepPublishingSettings () const override

Network encoding and decoding
virtual char *	encode (char *) const override

virtual const char *	decode (const char *) override

virtual void	getSize (int &size) const override

virtual int	hlaAlignment () const override


virtual DtReaderWriter *	readerWriter () override

virtual const DtReaderWriter *	readerWriter () const override


virtual DtPropertyInterface *	property ()

virtual const DtPropertyInterface *	property () const


virtual bool	isPublished () const override

virtual void	setIsPublished (bool isPub) override


virtual unsigned	disRecordType () const override

virtual void	setDisRecordType (unsigned recType) override


virtual bool	isDebugEnabled () const override

virtual void	setDebugEnabled (bool en) override

Public Member Functions inherited from DtPropertyInterface
virtual	~DtPropertyInterface ()

virtual bool	isSimilarProperty (const DtPropertyInterface *rhs, bool strict=true) const

virtual void	writePublishInformation (std::string &fp, int indentLevel)

virtual bool	isPublishedArg (DtlObjPtr arg, unsigned &disVarRecType)

virtual void	copyPublishingSettings (const DtPropertyInterface &prop)

virtual void	processPublicationArgs (DtlObjPtr arg)

virtual void	processPublicationArg (DtlObjPtr arg)

template<typename ValueType >
boost::optional< ValueType >	propertyValue () const

template<typename ValueType >
bool	setPropertyValue (ValueType val)

virtual const DtPropertyInterface *	findPropertyInterface (const DtString &propertyName) const

virtual DtPropertyInterface *	findPropertyInterface (const DtString &propertyName)

template<typename SpecificPropType >
const SpecificPropType *	findProperty (const DtString &propertyName) const

template<typename SpecificPropType >
SpecificPropType *	findProperty (const DtString &propertyName)

template<typename ValueType >
boost::optional< ValueType >	findPropertyValue (const DtString &propertyName) const

template<typename ValueType >
bool	findAndSetPropertyValue (const DtString &propertyName, ValueType val)

virtual bool	addProperty (DtPropertyInterface *property)

template<typename SpecificPropType >
SpecificPropType *	addNewProperty (const DtString &propertyName)

virtual bool	removeProperty (const DtString &propertyName)

virtual bool	removeProperty (const DtPropertyInterface *property)

int	getSize () const

Protected Attributes
DtClock	myClock

DtTime	myUpdateTime

unsigned	myDisRecordType

bool	myIsPublished

bool	myKeepPublishingSettingsOnCopy

bool	myDebugEnabled

Private Member Functions
	DtRwProperty ()

Additional Inherited Members
Public Types inherited from DtPropertyInterface
enum	MergeFlags { Replace = 0x00000001, MinimalSimilarityCheck = 0x00000002, RollUp = 0x00000004, AddMissing = 0x00000008, KeepPublishedSettings = 0x00000010 }

Constructor & Destructor Documentation

template<typename _RwType>

DtRwProperty< _RwType >::DtRwProperty ( )

private

Not implemented.

template<typename _RwType>

DtRwProperty< _RwType >::DtRwProperty	(	const DtString &	name,
		DtReaderWriterRegistry *	parentRegistry = `0`
	)

template<typename _RwType>

DtRwProperty< _RwType >::DtRwProperty	(	const DtString &	name,
		const DtRwProperty< _RwType > &	orig,
		DtReaderWriterRegistry *	parentRegistry = `0`
	)

template<typename _RwType>

virtual DtRwProperty< _RwType >::~DtRwProperty ( )

overridevirtual

Member Function Documentation

template<typename _RwType>

DtRwProperty& DtRwProperty< _RwType >::operator= ( const DtRwProperty< _RwType > & orig )

template<typename _RwType>

virtual void DtRwProperty< _RwType >::copy ( const DtPropertyInterface & rhs )

overridevirtual

Copies the given property into the current one as long as the types are the same.

Implements DtPropertyInterface.

template<typename _RwType>

virtual char* DtRwProperty< _RwType >::encode ( char * ) const

overridevirtual

Encodes the property into the supplied buffer. Does not align the property. Buffer must already be aligned correctly based on the hlaAlignment() value of this property.

Implements DtPropertyInterface.

Reimplemented in DtRwPropertySizedString, DtRwPropertyWithThreshold< _RwType >, DtRwPropertyWithThreshold< DtRwInt >, DtRwPropertyWithThreshold< DtRwInt8 >, DtRwPropertyWithThreshold< DtRwInt16 >, DtRwPropertyWithThreshold< DtRwReal >, DtRwPropertyWithThreshold< DtRwVector >, DtRwPropertyWithThreshold< DtRwReal64 >, DtRwPropertyWithThreshold< DtRwOffsetVector >, DtRwPropertyWithThreshold< DtRwInt32 >, and DtRwPropertyWithThreshold< DtRwReal32 >.

template<typename _RwType>

virtual const char* DtRwProperty< _RwType >::decode ( const char * )

overridevirtual

Decodes the property from the specified buffer. Assumes buffer is the start of the property and preceding padding has been skipped.

Implements DtPropertyInterface.

Reimplemented in DtRwPropertySizedString.

template<typename _RwType>

virtual void DtRwProperty< _RwType >::getSize ( int & size ) const

overridevirtual

Adds the network size of this item in bytes. This does not include any upfront padding for alignment.

Implements DtPropertyInterface.

Reimplemented in DtRwPropertySizedString.

template<typename _RwType>

virtual int DtRwProperty< _RwType >::hlaAlignment ( ) const

overridevirtual

Returns alignment necessary to encode this item in HLA.

Implements DtPropertyInterface.

Reimplemented in DtRwPropertySizedString.

template<typename _RwType>

virtual DtString DtRwProperty< _RwType >::stringRep ( const DtString & root = "" ) const

overridevirtual

Implements DtPropertyInterface.

template<typename _RwType>

virtual const char* DtRwProperty< _RwType >::propertyType ( ) const

overridevirtual

Typically returns reader/writer type.

Implements DtPropertyInterface.

Reimplemented in DtRwPropertiesRangeItem.

template<typename _RwType>

virtual DtSymbolString DtRwProperty< _RwType >::propertyName ( ) const

inlineoverridevirtual

The name of this property.

Implements DtPropertyInterface.

template<typename _RwType>

virtual void DtRwProperty< _RwType >::setPropertyName ( const DtString & propertyName )

inlineoverridevirtual

Sets name of this property. Should generally only be called when initially created.

Implements DtPropertyInterface.

template<typename _RwType>

virtual void DtRwProperty< _RwType >::getSelf	(	DtlObjPtr	args,
		const DtReaderWriter::SearchPaths &	searchPaths = `DtReaderWriter::SearchPaths()`,
		const DtVariableBindingsList &	variableBindings = `DtReaderWriter::nullVariableReference()`
	)

virtual

template<typename _RwType>

virtual DtlObjPtr DtRwProperty< _RwType >::getData	(	DtlObjPtr	args,
		const DtReaderWriter::SearchPaths &	searchPaths,
		const DtVariableBindingsList &	variableBindings
	)

overridevirtual

Override to allow a variable to be assigned to a property of derived type.

Implements DtPropertyInterface.

template<typename _RwType>

virtual bool DtRwProperty< _RwType >::merge	(	const DtPropertyInterface &	target,
		MergeFlags	,
		const DtMergePath &	path = `DtMergePath()`,
		const std::set< DtString > &	ignore = `std::set< DtString >()`
	)

overridevirtual

In this case replace does not matter – will replace value regardless.

Implements DtPropertyInterface.

Reimplemented in DtRwPropertyWithThreshold< _RwType >, DtRwPropertyWithThreshold< DtRwInt >, DtRwPropertyWithThreshold< DtRwInt8 >, DtRwPropertyWithThreshold< DtRwInt16 >, DtRwPropertyWithThreshold< DtRwReal >, DtRwPropertyWithThreshold< DtRwVector >, DtRwPropertyWithThreshold< DtRwReal64 >, DtRwPropertyWithThreshold< DtRwOffsetVector >, DtRwPropertyWithThreshold< DtRwInt32 >, and DtRwPropertyWithThreshold< DtRwReal32 >.

template<typename _RwType>

virtual DtReaderWriter* DtRwProperty< _RwType >::readerWriter ( )

overridevirtual

Returns a ReaderWriter pointer of the property.

Implements DtPropertyInterface.

template<typename _RwType>

virtual const DtReaderWriter* DtRwProperty< _RwType >::readerWriter ( ) const

overridevirtual

Returns a ReaderWriter pointer of the property.

Implements DtPropertyInterface.

template<typename _RwType>

virtual DtPropertyInterface* DtRwProperty< _RwType >::property ( )

virtual

Returns a PropertyInterface pointer of the ReaderWriter.

template<typename _RwType>

virtual const DtPropertyInterface* DtRwProperty< _RwType >::property ( ) const

virtual

Returns a PropertyInterface pointer of the ReaderWriter.

template<typename _RwType>

virtual void DtRwProperty< _RwType >::recordUpdateTime ( ) const

virtual

Stamps the time when updated.

template<typename _RwType>

virtual bool DtRwProperty< _RwType >::isUpdateNeeded ( DtTime t ) const

overridevirtual

Returns true if the value has been updated since the specified time and needs to be sent on the network.

Implements DtPropertyInterface.

Reimplemented in DtRwPropertyWithThreshold< _RwType >, DtRwPropertyWithThreshold< DtRwInt >, DtRwPropertyWithThreshold< DtRwInt8 >, DtRwPropertyWithThreshold< DtRwInt16 >, DtRwPropertyWithThreshold< DtRwReal >, DtRwPropertyWithThreshold< DtRwVector >, DtRwPropertyWithThreshold< DtRwReal64 >, DtRwPropertyWithThreshold< DtRwOffsetVector >, DtRwPropertyWithThreshold< DtRwInt32 >, and DtRwPropertyWithThreshold< DtRwReal32 >.

template<typename _RwType>

virtual bool DtRwProperty< _RwType >::hasReceivedUpdateSince ( DtTime t ) const

overridevirtual

Returns true if an update was received remotely since the specified time.

Implements DtPropertyInterface.

template<typename _RwType>

virtual DtTime DtRwProperty< _RwType >::updateClockTime ( ) const

overridevirtual

Returns the current time on the update clock. Can be used to pass into a future call to hasReceivedUpdateSince(t) to see if an update has been processed in the meantime.

Implements DtPropertyInterface.

template<typename _RwType>

virtual bool DtRwProperty< _RwType >::isPublished ( ) const

overridevirtual

Whether this property should be published.

Implements DtPropertyInterface.

template<typename _RwType>

virtual void DtRwProperty< _RwType >::setIsPublished ( bool isPub )

overridevirtual

Whether this property should be published.

Implements DtPropertyInterface.

template<typename _RwType>

virtual unsigned DtRwProperty< _RwType >::disRecordType ( ) const

overridevirtual

If this property is published, which DIS record type should it use. Default is 0, which indicates that the normal VRF generic attribute record type should be used.

Implements DtPropertyInterface.

template<typename _RwType>

virtual void DtRwProperty< _RwType >::setDisRecordType ( unsigned recType )

overridevirtual

If this property is published, which DIS record type should it use. Default is 0, which indicates that the normal VRF generic attribute record type should be used.

Implements DtPropertyInterface.

template<typename _RwType>

virtual bool DtRwProperty< _RwType >::isDebugEnabled ( ) const

overridevirtual

Enables debug output. Generally this should be left off.

Implements DtPropertyInterface.

template<typename _RwType>

virtual void DtRwProperty< _RwType >::setDebugEnabled ( bool en )

overridevirtual

Enables debug output. Generally this should be left off.

Implements DtPropertyInterface.

template<typename _RwType>

virtual void DtRwProperty< _RwType >::reset ( )

overridevirtual

Override to clear out variable value.

Implements DtPropertyInterface.

template<typename _RwType>

virtual void DtRwProperty< _RwType >::setKeepPublishingSettings ( bool keep )

overridevirtual

Specifies whether the publishing settings for this property should be retained when it is updated from another property.

Implements DtPropertyInterface.

template<typename _RwType>

virtual bool DtRwProperty< _RwType >::keepPublishingSettings ( ) const

overridevirtual

Implements DtPropertyInterface.

Member Data Documentation

template<typename _RwType>

DtClock DtRwProperty< _RwType >::myClock

protected

template<typename _RwType>

DtTime DtRwProperty< _RwType >::myUpdateTime

mutableprotected

template<typename _RwType>

unsigned DtRwProperty< _RwType >::myDisRecordType

protected

template<typename _RwType>

bool DtRwProperty< _RwType >::myIsPublished

protected

template<typename _RwType>

bool DtRwProperty< _RwType >::myKeepPublishingSettingsOnCopy

protected

template<typename _RwType>

bool DtRwProperty< _RwType >::myDebugEnabled

protected

The documentation for this class was generated from the following file:

/data/exports/nrhent7-1/nightly/docs/vrForces.vrf5-2-branch/include/readerWriter/rwProperty.h

template<typename _RwType> class DtRwProperty< _RwType >

Public Member Functions

Protected Attributes

Private Member Functions

Additional Inherited Members

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation

template<typename _RwType>
class DtRwProperty< _RwType >
