DtRwPropertyWithThreshold< _RwType > Class Template Reference

template<typename _RwType>
class DtRwPropertyWithThreshold< _RwType >

This class is similar to DtRwProperty, but allows you to specify a threshold at which the value should be considered different enough to require an update. isUpdatedNeeded() will return false until the threshold is met. The threshold is defined as a percentage of the current value.

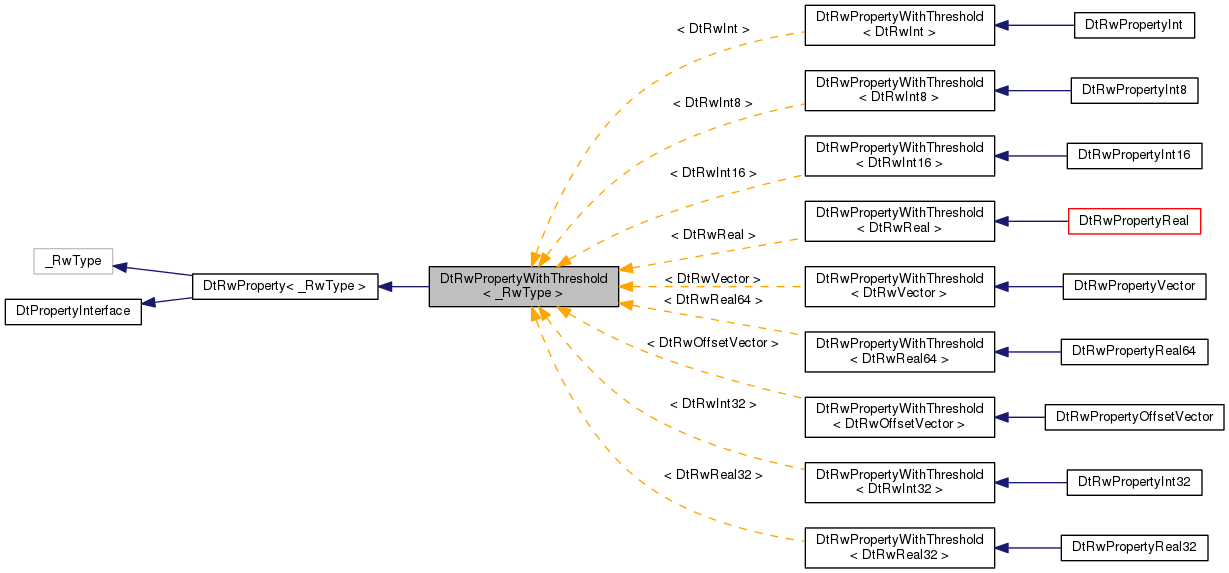

Inheritance diagram for DtRwPropertyWithThreshold< _RwType >:
Inheritance graph
[legend]

Public Member Functions

 DtRwPropertyWithThreshold (const DtString &name, DtReaderWriterRegistry *parentRegistry=0)

 DtRwPropertyWithThreshold (const DtString &name, const DtRwPropertyWithThreshold &orig, DtReaderWriterRegistry *parentRegistry=0)

DtRwPropertyWithThreshold & operator= (const DtRwPropertyWithThreshold &orig)

virtual ~DtRwPropertyWithThreshold () override

virtual char * encode (char *) const override

virtual bool isUpdateNeeded (DtTime t) const override

virtual void setThresholdAlgorithm (DtThresholdAlgorithm alg)

virtual DtThresholdAlgorithm thresholdAlgorithm () const

virtual void setDefaultThresholdAlgorithm (DtThresholdAlgorithm alg)

virtual void setThreshold (double value)

virtual double threshold () const

virtual void setMaxUpdateInterval (DtTime interval)

virtual DtTime maxUpdateInterval () const

virtual void setMaxUnchangedUpdateInterval (DtTime interval)

virtual DtTime maxUnchangedUpdateInterval () const

virtual void processPublicationArg (DtlObjPtr arg) override

virtual void copyPublishingSettings (const DtPropertyInterface &prop) override

virtual double percentChanged () const

virtual double amountChanged () const

virtual bool merge (const DtPropertyInterface &target, DtPropertyInterface::MergeFlags, const DtMergePath &path=DtMergePath(), const std::set< DtString > &ignore=std::set< DtString >()) override

virtual void writePublishInformation (std::string &fp, int indentLevel) override

- Public Member Functions inherited from DtRwProperty< _RwType >
 DtRwProperty (const DtString &name, DtReaderWriterRegistry *parentRegistry=0)

 DtRwProperty (const DtString &name, const DtRwProperty &orig, DtReaderWriterRegistry *parentRegistry=0)

DtRwProperty & operator= (const DtRwProperty &orig)

virtual ~DtRwProperty () override

virtual void copy (const DtPropertyInterface &rhs) override

virtual DtString stringRep (const DtString &root="") const override

virtual const char * propertyType () const override

virtual DtSymbolString propertyName () const override

virtual void setPropertyName (const DtString &propertyName) override

virtual void getSelf (DtlObjPtr args, const DtReaderWriter::SearchPaths &searchPaths=DtReaderWriter::SearchPaths(), const DtVariableBindingsList &variableBindings=DtReaderWriter::nullVariableReference())

virtual DtlObjPtr getData (DtlObjPtr args, const DtReaderWriter::SearchPaths &searchPaths, const DtVariableBindingsList &variableBindings) override

virtual void recordUpdateTime () const

virtual bool hasReceivedUpdateSince (DtTime t) const override

virtual DtTime updateClockTime () const override

virtual void reset () override

virtual void setKeepPublishingSettings (bool keep) override

virtual bool keepPublishingSettings () const override

virtual const char * decode (const char *) override

virtual void getSize (int &size) const override

virtual int hlaAlignment () const override

virtual DtReaderWriter * readerWriter () override

virtual const DtReaderWriter * readerWriter () const override

virtual DtPropertyInterface * property ()

virtual const DtPropertyInterface * property () const

virtual bool isPublished () const override

virtual void setIsPublished (bool isPub) override

virtual unsigned disRecordType () const override

virtual void setDisRecordType (unsigned recType) override

virtual bool isDebugEnabled () const override

virtual void setDebugEnabled (bool en) override

- Public Member Functions inherited from DtPropertyInterface
virtual ~DtPropertyInterface ()

virtual bool isSimilarProperty (const DtPropertyInterface *rhs, bool strict=true) const

virtual bool isPublishedArg (DtlObjPtr arg, unsigned &disVarRecType)

virtual void processPublicationArgs (DtlObjPtr arg)

template<typename ValueType >
boost::optional< ValueType > propertyValue () const

template<typename ValueType >
bool setPropertyValue (ValueType val)

virtual const DtPropertyInterface * findPropertyInterface (const DtString &propertyName) const

virtual DtPropertyInterface * findPropertyInterface (const DtString &propertyName)

template<typename SpecificPropType >
const SpecificPropType * findProperty (const DtString &propertyName) const

template<typename SpecificPropType >
SpecificPropType * findProperty (const DtString &propertyName)

template<typename ValueType >
boost::optional< ValueType > findPropertyValue (const DtString &propertyName) const

template<typename ValueType >
bool findAndSetPropertyValue (const DtString &propertyName, ValueType val)

virtual bool addProperty (DtPropertyInterface *property)

template<typename SpecificPropType >
SpecificPropType * addNewProperty (const DtString &propertyName)

virtual bool removeProperty (const DtString &propertyName)

virtual bool removeProperty (const DtPropertyInterface *property)

int getSize () const


Static Public Member Functions

static void setDefaultThreshold (double value)

static void setDefaultMaxUpdateInterval (DtTime interval)

static void setDefaultMaxUnchangedUpdateInterval (DtTime interval)


Protected Attributes

_RwType myLastEncodedValue

DtTime myLastEncodeTime

DtThresholdAlgorithm myThresholdAlgorithm

double myThreshold

DtTime myMaxUpdateInterval

DtTime myMaxUnchangedUpdateInterval

- Protected Attributes inherited from DtRwProperty< _RwType >
DtClock myClock

DtTime myUpdateTime

unsigned myDisRecordType

bool myIsPublished

bool myKeepPublishingSettingsOnCopy

bool myDebugEnabled


Static Protected Attributes

static DtThresholdAlgorithm myDefaultThresholdAlgorithm

static double myDefaultThreshold

static DtTime myDefaultMaxUpdateInterval

static DtTime myDefaultMaxUnchangedUpdateInterval


Private Member Functions

 DtRwPropertyWithThreshold ()


Additional Inherited Members

- Public Types inherited from DtPropertyInterface
enum  MergeFlags {
  Replace = 0x00000001, MinimalSimilarityCheck = 0x00000002, RollUp = 0x00000004, AddMissing = 0x00000008,
  KeepPublishedSettings = 0x00000010
}


Constructor & Destructor Documentation

template<typename _RwType>
DtRwPropertyWithThreshold< _RwType >::DtRwPropertyWithThreshold ( )
private

Not implemented.

template<typename _RwType>
DtRwPropertyWithThreshold< _RwType >::DtRwPropertyWithThreshold ( const DtString &  name,
DtReaderWriterRegistry *  parentRegistry = 0
)
template<typename _RwType>
DtRwPropertyWithThreshold< _RwType >::DtRwPropertyWithThreshold ( const DtString &  name,
const DtRwPropertyWithThreshold< _RwType > &  orig,
DtReaderWriterRegistry *  parentRegistry = 0
)
template<typename _RwType>
virtual DtRwPropertyWithThreshold< _RwType >::~DtRwPropertyWithThreshold ( )
overridevirtual

Member Function Documentation

template<typename _RwType>
DtRwPropertyWithThreshold& DtRwPropertyWithThreshold< _RwType >::operator= ( const DtRwPropertyWithThreshold< _RwType > &  orig)
template<typename _RwType>
virtual char* DtRwPropertyWithThreshold< _RwType >::encode ( char *  ) const
overridevirtual

These methods are for network encoding/decoding for Hla encoding decoding reasons. Implemented at templated rw level. Encodes the variable bindings into the supplied buffer. In addition, stores the value in myLastEncodedValue for threshold testing.

Reimplemented from DtRwProperty< _RwType >.

template<typename _RwType>
virtual bool DtRwPropertyWithThreshold< _RwType >::isUpdateNeeded ( DtTime  t) const
overridevirtual

Returns true if the value has been updated since the specified time and needs to be sent on the network.

Reimplemented from DtRwProperty< _RwType >.

template<typename _RwType>
virtual void DtRwPropertyWithThreshold< _RwType >::setThresholdAlgorithm ( DtThresholdAlgorithm  alg)
virtual

Sets the threshold algorithm to use.

template<typename _RwType>
virtual DtThresholdAlgorithm DtRwPropertyWithThreshold< _RwType >::thresholdAlgorithm ( ) const
virtual
template<typename _RwType>
virtual void DtRwPropertyWithThreshold< _RwType >::setDefaultThresholdAlgorithm ( DtThresholdAlgorithm  alg)
virtual

Sets the default threshold algorithm to use for cases when setThresholdAlgorithm() has not been set.

template<typename _RwType>
virtual void DtRwPropertyWithThreshold< _RwType >::setThreshold ( double  value)
virtual

Sets the threshold for when an update should be sent. If, based on the chosen threshold algorithm, the change in the value exceeds this threshold, isUpdateNeeded() will return true.

template<typename _RwType>
virtual double DtRwPropertyWithThreshold< _RwType >::threshold ( ) const
virtual
template<typename _RwType>
static void DtRwPropertyWithThreshold< _RwType >::setDefaultThreshold ( double  value)
static

Changes the default threshold for cases when setThreshold() has not been called.

template<typename _RwType>
virtual void DtRwPropertyWithThreshold< _RwType >::setMaxUpdateInterval ( DtTime  interval)
virtual

Changes the maximum time between updates if data has changed but has not crossed the threshold for an update. This ensures that periodically subscribers receive current data, even if the value has only changed a small amount.

template<typename _RwType>
virtual DtTime DtRwPropertyWithThreshold< _RwType >::maxUpdateInterval ( ) const
virtual
template<typename _RwType>
static void DtRwPropertyWithThreshold< _RwType >::setDefaultMaxUpdateInterval ( DtTime  interval)
static

Changes the default max update interval for cases when setMaxUpdateInterval() has not been called.

template<typename _RwType>
virtual void DtRwPropertyWithThreshold< _RwType >::setMaxUnchangedUpdateInterval ( DtTime  interval)
virtual

Changes the maximum time between updates if data has changed but has not crossed the threshold for an update, but seems to have settled on a new value. For instance, if the threshold his 2%, and a value goes from 99 to 100 where it caps out, it will never hit the 2% mark, and therefore an update would otherwise not be sent for a full minute. This setting indicates how long a value should stabilize, remaining unchanged, before we send it. Should be greater than the tick rate but less than the max update interval.

template<typename _RwType>
virtual DtTime DtRwPropertyWithThreshold< _RwType >::maxUnchangedUpdateInterval ( ) const
virtual
template<typename _RwType>
static void DtRwPropertyWithThreshold< _RwType >::setDefaultMaxUnchangedUpdateInterval ( DtTime  interval)
static

Changes the default max unchanged update interval for cases when setMaxUnchangedUpdateInterval() has not been called.

template<typename _RwType>
virtual void DtRwPropertyWithThreshold< _RwType >::processPublicationArg ( DtlObjPtr  arg)
overridevirtual

Processes publication a publication argument specified in the SMS for this property. Overloaded to handle "thresholdPercent", "maxUnchangedInterval", and "maxInterval" arguments.

Reimplemented from DtPropertyInterface.

template<typename _RwType>
virtual void DtRwPropertyWithThreshold< _RwType >::copyPublishingSettings ( const DtPropertyInterface &  prop)
overridevirtual

Copies the publishing settings from another property to use for this one.

Reimplemented from DtPropertyInterface.

template<typename _RwType>
virtual double DtRwPropertyWithThreshold< _RwType >::percentChanged ( ) const
virtual

Returns the percentage the value has changed since the last update.

template<typename _RwType>
virtual double DtRwPropertyWithThreshold< _RwType >::amountChanged ( ) const
virtual

Returns the amount the value has changed since the last update.

template<typename _RwType>
virtual bool DtRwPropertyWithThreshold< _RwType >::merge ( const DtPropertyInterface &  target,
DtPropertyInterface::MergeFlags  ,
const DtMergePath &  path = DtMergePath(),
const std::set< DtString > &  ignore = std::set< DtString >()
)
overridevirtual

In this case replace does not matter – will replace value regardless.

Reimplemented from DtRwProperty< _RwType >.

template<typename _RwType>
virtual void DtRwPropertyWithThreshold< _RwType >::writePublishInformation ( std::string &  fp,
int  indentLevel
)
overridevirtual

Writes threshold specific information.

Reimplemented from DtPropertyInterface.

Member Data Documentation

template<typename _RwType>
_RwType DtRwPropertyWithThreshold< _RwType >::myLastEncodedValue
mutableprotected

The value at the last time the value was encoded.

template<typename _RwType>
DtTime DtRwPropertyWithThreshold< _RwType >::myLastEncodeTime
mutableprotected

The time the value was last encoded.

template<typename _RwType>
DtThresholdAlgorithm DtRwPropertyWithThreshold< _RwType >::myDefaultThresholdAlgorithm
staticprotected
template<typename _RwType>
DtThresholdAlgorithm DtRwPropertyWithThreshold< _RwType >::myThresholdAlgorithm
protected
template<typename _RwType>
double DtRwPropertyWithThreshold< _RwType >::myDefaultThreshold
staticprotected
template<typename _RwType>
double DtRwPropertyWithThreshold< _RwType >::myThreshold
protected
template<typename _RwType>
DtTime DtRwPropertyWithThreshold< _RwType >::myDefaultMaxUpdateInterval
staticprotected
template<typename _RwType>
DtTime DtRwPropertyWithThreshold< _RwType >::myMaxUpdateInterval
protected
template<typename _RwType>
DtTime DtRwPropertyWithThreshold< _RwType >::myDefaultMaxUnchangedUpdateInterval
staticprotected
template<typename _RwType>
DtTime DtRwPropertyWithThreshold< _RwType >::myMaxUnchangedUpdateInterval
protected
The documentation for this class was generated from the following file:
Document ID: Generated on Thu Oct 23 22:29:17 EDT 2025 from SVN revision 280951
Copyright © 2005-2024 MAK Technologies. All Rights Reserved (www.mak.com)
