Acts as a DtRwList for properties. Only real difference between this class and a DtRwProperties class is that items can have the same name and the encode/decode/getSelf add an integer at the beginning with is the number of elements in the list (int). The list must also be passed a homogeneous reader/writer type that will be used as the template for storing the items. During getSelf this template will be used as a means to read the default values, so, the mtl definition would look like:

(DtRwList HealthList DtRwReal 1.0 2.0 3.0)
or
(DtRwList CombatRange
  (DtRwStruct CombatRange
  (DtRwReal Range)
  (DtRwInt Number)
)
 (100.0 20) (200.0 40) (300.0 60)
)

As a subclass of DtRwProperties, DtRwPropertiesList supports an STL-like iterator for iterating over its items. It also has convenience functions for adding new items and erasing existing items by iterator. Because this list is designed to be accessed and set frequently by Lua, and the Lua API does not guarantee a particular ordering of items, a consistent order is also not guaranteed in C++.

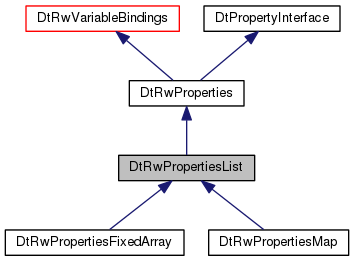

Inheritance diagram for DtRwPropertiesList:

[legend]

Public Member Functions
virtual const char *	readerWriterType () const override

virtual const char *	xmlType () const override

virtual char *	encode (char *) const override

virtual const char *	decode (const char *) override

virtual void	getSize (int &size) const override

virtual int	hlaAlignment () const override

virtual bool	isValidProperty (const DtPropertyInterface *) const override

virtual int	count () const override

virtual void	getSelf (DtlObjPtr args, const DtReaderWriter::SearchPaths &searchPaths=DtReaderWriter::SearchPaths(), const DtVariableBindingsList &variableBindings=nullVariableReference()) override

virtual void	writeSelf (std::string &fp, int indentLevel=0, bool writeUnspecified=false, const DtFilename &path=DtFilename::nullFilename()) override

virtual void	writeData (std::string &fp, int indentLevel=0, bool writeUnspecified=false, const DtFilename &path=DtFilename::nullFilename()) override

virtual void	setPrototype (const DtPropertyInterface *)

virtual const DtPropertyInterface *	prototype () const

virtual DtPropertyInterface *	clonePrototype (DtReaderWriterRegistry *parent=0)

DtRwPropertiesList &	operator= (const DtRwPropertiesList &)

virtual bool	isSimilarProperty (const DtPropertyInterface *rhs, bool strict=true) const override

bool	operator== (const DtRwPropertiesList &) const

virtual bool	matchPrototype (const DtReaderWriter *) const

Constructors
	DtRwPropertiesList (const DtString &name, DtReaderWriterRegistry *parentRegistry=0)

	DtRwPropertiesList (const DtString &name, const DtPropertyInterface prototype, DtReaderWriterRegistry parentRegistry=0)

	DtRwPropertiesList (const DtString &name, const DtRwPropertiesList &orig, DtReaderWriterRegistry *parentRegistry=0)

virtual	~DtRwPropertiesList () override

Add New Items
virtual bool	addItem (DtPropertyInterface *item)

virtual DtPropertyInterface *	addItem ()

Erase Items
virtual void	erase (DtPropertyInterface *item)

virtual void	erase (iterator pos)

Public Member Functions inherited from DtRwProperties
DtRwProperties &	operator= (const DtRwProperties &orig)

virtual	~DtRwProperties () override

virtual unsigned	size () const

virtual bool	addProperty (DtPropertyInterface *) override

virtual bool	addPropertyAtIndex (DtPropertyInterface *, unsigned index)

virtual void	copy (const DtPropertyInterface &rhs) override

virtual DtPropertyInterface *	createProperty (DtlObjPtr args, DtReaderWriterRegistry *parentRegistry)

virtual void	copyVariables (const DtRwVariableBindings &other) override

virtual bool	isReadonly () const

virtual int	requiredPadding (const char buf, const DtPropertyInterface field) const

virtual const char *	propertyType () const override

virtual DtString	stringRep (const DtString &root="") const override

virtual bool	merge (const DtPropertyInterface &target, MergeFlags, const DtMergePath &path=DtMergePath(), const std::set< DtString > &ignore=std::set< DtString >()) override

virtual DtRwProperties	createFromPercentages (const DtRwProperties &percentages, const DtRwProperties &baseValues, const DtString &base="Base-")

virtual bool	findRootAndVariable (const DtString &varName, DtReaderWriter &root, DtReaderWriter &variable) const

virtual DtSymbolString	propertyName () const override

virtual void	setPropertyName (const DtString &propertyName) override

virtual bool	isUpdateNeeded (DtTime t) const override

virtual bool	hasReceivedUpdateSince (DtTime t) const override

virtual DtTime	updateClockTime () const override

virtual void	clearVariables () override

virtual void	reset () override

virtual void	invalidateCache ()

virtual void	invalidateCacheForProperty (const DtString &propName)

virtual bool	setWritePrototypeHeader (bool)

virtual bool	writePrototypeHeader () const

virtual void	setKeepPublishingSettings (bool keep) override

virtual bool	keepPublishingSettings () const override

	DtRwProperties (const DtString &name, DtReaderWriterRegistry *parentRegistry=0)

	DtRwProperties (const DtString &name, const DtRwProperties &orig, DtReaderWriterRegistry *parentRegistry=0)

	DtRwProperties (const DtRwProperties &orig, DtReaderWriterRegistry *parentRegistry=0)

virtual const_iterator	begin () const

virtual iterator	begin ()

virtual const_iterator	end () const

virtual iterator	end ()

virtual const DtPropertyInterface *	findPropertyInterface (const DtString &propertyName) const override

virtual DtPropertyInterface *	findPropertyInterface (const DtString &propertyName) override

virtual bool	removeProperty (const DtString &propertyName) override

virtual bool	removeProperty (const DtPropertyInterface *property) override

virtual const DtReaderWriter *	findPropertyRw (const DtString &propName) const

virtual DtReaderWriter *	findPropertyRw (const DtString &propName)

virtual DtReaderWriter *	readerWriter () override

virtual const DtReaderWriter *	readerWriter () const override

virtual DtPropertyInterface *	property () override

virtual const DtPropertyInterface *	property () const override

virtual bool	isPublished () const override

virtual void	setIsPublished (bool isPub) override

virtual unsigned	disRecordType () const override

virtual void	setDisRecordType (unsigned recType) override

virtual void	removeVariable (DtReaderWriter *) override

virtual void	removeVariable (const DtReaderWriter *) override

Public Member Functions inherited from DtRwVariableBindings
	DtRwVariableBindings (const DtString &name, DtReaderWriterRegistry *parentRegistry=0)

	DtRwVariableBindings (const DtString &name, const DtRwVariableBindings &orig, DtReaderWriterRegistry *parentRegistry=0, bool copyVariables=true)

	DtRwVariableBindings (const DtRwVariableBindings &orig, DtReaderWriterRegistry *parentRegistry=0, bool copyVariables=true)

DtRwVariableBindings &	operator= (const DtRwVariableBindings &orig)

virtual	~DtRwVariableBindings () override

template<typename RW_Type >
const RW_Type *	findAndCastVariableBinding (const DtString &variableName) const

virtual DtReaderWriter *	addVariableBinding (const DtSymbolString &name, const char *type)

virtual void	addVariable (DtReaderWriter *)

virtual int	getSize () const

bool	operator== (const DtRwVariableBindings &) const

bool	operator!= (const DtRwVariableBindings &) const

virtual DtString	prettyPrint () const override

virtual void	setVariableSubstitutions (const std::map< DtString, DtString > &)

virtual const std::map < DtString, DtString > &	variableSubstitutions () const

virtual void	merge (const DtRwVariableBindings &)

virtual const DtReaderWriter *	findVariableBinding (const DtString &rwTypeString, const DtString &variableName, const std::map< DtString, DtString > &variableSubstitutions=std::map< DtString, DtString >()) const

virtual DtReaderWriter *	findVariableBinding (const DtString &rwTypeString, const DtString &variableName, const std::map< DtString, DtString > &variableSubstitutions=std::map< DtString, DtString >())

virtual const DtReaderWriter *	findVariableBinding (const DtString &variableName, const std::map< DtString, DtString > &variableSubstitutions=std::map< DtString, DtString >()) const

virtual DtReaderWriter *	findVariableBinding (const DtString &variableName, const std::map< DtString, DtString > &variableSubstitutions=std::map< DtString, DtString >())

Public Member Functions inherited from DtReaderWriter
	DtReaderWriter ()

	DtReaderWriter (const DtString &name, DtReaderWriterRegistry *parentRegistry=NULL, bool readonly=false)

	DtReaderWriter (const DtSymbolString &name, DtReaderWriterRegistry *parentRegistry=NULL, bool readonly=false)

	DtReaderWriter (const DtString &name, const DtReaderWriter &orig, DtReaderWriterRegistry *parentRegistry=NULL)

	DtReaderWriter (const DtSymbolString &name, const DtReaderWriter &orig, DtReaderWriterRegistry *parentRegistry=NULL)

	DtReaderWriter (const DtReaderWriter &, DtReaderWriterRegistry *parentRegistry=NULL)

const DtReaderWriter &	operator= (const DtReaderWriter &orig)

bool	operator== (const DtReaderWriter &) const

bool	operator!= (const DtReaderWriter &rhs) const

virtual	~DtReaderWriter ()

virtual void	putSelf (std::string &fp, int indentLevel=0, bool writeUnspecified=false, const DtFilename &path=DtFilename::nullFilename())

virtual void	postPutSelf ()

virtual void	prePutSelf ()

virtual void	postGetSelf ()

virtual void	preGetSelf ()

virtual DtSymbolString	name () const

virtual void	addAlias (const DtSymbolString &alias)

virtual void	addAlias (const DtString &alias)

virtual bool	hasAlias (const DtSymbolString &alias)

virtual const aliasContainer &	aliases () const

virtual void	setReadonly (bool flag)

bool	isReadonly () const

virtual int	alignment () const

virtual bool	variableIsBound () const

virtual void	unbindVariable ()

virtual void	setName (const DtString &)

std::string	debugText () const

virtual void	bindVariables (DtVariableBindingsList variableBindings)

virtual std::list < DtVariableNameType >	unboundVariables () const

bool	invalid () const

virtual bool	hasChild (const DtReaderWriter *p) const

virtual bool	hasVariableReference () const

virtual void	bindLocalVariables (const DtVariableBindingsList &variableBindings)

virtual void	recordUpdateTime () const

virtual bool	changedSinceLastChecked ()

virtual bool	peekChangedSinceLastChecked () const

virtual void	setValueSpecified (bool specified, bool recurse=false)

virtual bool	valueSpecified () const

virtual bool	isVariableReference () const

virtual void	setIsVariableReference (bool value)

virtual void	clearAllVariableReferenceFlags ()

virtual DtSymbolString	variableName () const

virtual void	setVariableName (const DtSymbolString variableName)

virtual const DtReaderWriter *	defaultRWValue () const

virtual DtReaderWriter *	defaultRWValue ()

virtual void	setDefaultRWValue (DtReaderWriter *)

virtual bool	checkAndSetDefaultRWValue (DtlObjPtr args, const DtReaderWriter::SearchPaths &searchPaths=SearchPaths(), const DtVariableBindingsList &variableBindings=nullVariableReference())

const DtReaderWriterRegistry &	registry () const

DtReaderWriterRegistry &	registry ()

virtual DtString	toXml () const

virtual DtRwVariableBindings *	generateVariableBindings () const

virtual bool	toXml (const DtFilename &) const

virtual bool	fromXml (const DtString &)

virtual bool	fromXmlFile (const DtFilename &)

virtual void	putSelf (DtEnvironmentSP, DtEnvValueSP parent) const

virtual void	putVariableReference (DtEnvironmentSP, DtEnvValueSP value) const

virtual void	getSelf (const DtEnvironmentSP, const DtEnvValueSP root, const SearchPaths &searchPaths=SearchPaths(), const DtVariableBindingsList &bindings=DtVariableBindingsList())

virtual void	getVariableReference (DtEnvironmentSP, DtEnvValueSP value)

Public Member Functions inherited from DtPropertyInterface
virtual	~DtPropertyInterface ()

virtual bool	isPublishedArg (DtlObjPtr arg, unsigned &disVarRecType)

virtual void	copyPublishingSettings (const DtPropertyInterface &prop)

virtual void	processPublicationArgs (DtlObjPtr arg)

virtual void	processPublicationArg (DtlObjPtr arg)

template<typename ValueType >
boost::optional< ValueType >	propertyValue () const

template<typename ValueType >
bool	setPropertyValue (ValueType val)

template<typename SpecificPropType >
const SpecificPropType *	findProperty (const DtString &propertyName) const

template<typename SpecificPropType >
SpecificPropType *	findProperty (const DtString &propertyName)

template<typename ValueType >
boost::optional< ValueType >	findPropertyValue (const DtString &propertyName) const

template<typename ValueType >
bool	findAndSetPropertyValue (const DtString &propertyName, ValueType val)

template<typename SpecificPropType >
SpecificPropType *	addNewProperty (const DtString &propertyName)

int	getSize () const

Static Public Member Functions
static const char *	theXmlType ()

Static Public Member Functions inherited from DtRwProperties
static DtReaderWriterPropertyFactory *	propertyFactory ()

static void	cleanupPropertyFactory ()

static const DtRwProperties &	emptyProperties ()

static bool	rollUpInteger (const DtReaderWriter source, DtReaderWriter destination, const DtMergePath &path)

static bool	rollUpReal (const DtReaderWriter source, DtReaderWriter destination, const DtMergePath &path)

static bool	rollUpString (const DtReaderWriter source, DtReaderWriter destination, const DtMergePath &path)

static bool	rollUpBoolean (const DtReaderWriter source, DtReaderWriter destination, const DtMergePath &path)

Static Public Member Functions inherited from DtRwVariableBindings
static DtRwVariableBindings *	createBinding (const std::list< DtReaderWriter::DtVariableNameType > &)

Static Public Member Functions inherited from DtReaderWriter
static void	putIndent (std::string &fp, int indentLevel)

static const DtVariableBindingsList &	nullVariableReference ()

static void	setPostGetSelfCallback (DtGetSelfCallbackFcn fcn, void *usrData)

static void	setPrePutSelfCallback (DtPutSelfCallbackFcn fcn, void *usrData)

static void	setPutIndent (bool)

static bool	putIndent ()

static const char *	theXmlType ()

static const DtFilename &	appPath ()

static void	setFactoryCreatorFunction (DtReaderWriterFactoryCreatorFcn fcn)

static void	createReaderWriterFactory ()

static void	cleanupFactory ()

static DtReaderWriterFactory *	factory ()

static void	setOutputStream (DtOutputStream *stream)

static DtOutputStream &	outputStream ()

static DtReaderWriter *	createFromXmlFile (const DtFilename &, bool createAsProperty=false)

static DtReaderWriter *	createFromXml (const DtString &, bool createAsProperty=false)

static DtReaderWriter *	createFromEnvironment (DtEnvironmentSP, bool createAsProperty=false)

static DtString	getAttribute (DtEnvironmentSP env, const DtString &name, DtEnvValueSP root)

Protected Member Functions
virtual void	writePrototype (const DtReaderWriter *, std::string &fp, int indentLevel, bool writeHeader=true) const

virtual void	bindToRwAsVariable (const DtReaderWriter *rw) override

virtual void	createListEntry (DtPropertyInterface *iFace, DtlObjPtr variableItem, const DtReaderWriter::SearchPaths &searchPaths, const DtVariableBindingsList &variableBindings)

virtual DtPropertyInterface *	createPrototype (DtlObjPtr)

virtual DtlObjPtr	variablesStart (DtlObjPtr args) const

virtual const char *	decode (DtPropertyInterface , const char ) override

virtual DtlObjPtr	getData (DtlObjPtr variableList, const DtReaderWriter::SearchPaths &searchPaths, const DtVariableBindingsList &variableBindings) override

virtual void	getData (const DtEnvironmentSP env, const DtEnvValueSP root, const DtReaderWriter::SearchPaths &searchPaths, const DtVariableBindingsList &varBindings) override

virtual void	putData (DtEnvironmentSP, DtEnvValueSP value) const override

virtual void	assignPrototypeToChildren ()

virtual void	setPrototypeIntoTarget (const DtPropertyInterface prototype, DtReaderWriter target)

virtual void	postWriteItem (std::string &fp, DtReaderWriter *rw, int indentLevel)

virtual void	preWriteItem (std::string &fp, DtReaderWriter *rw, int indentLevel)

virtual bool	matchPrototype (const DtReaderWriter prototype, const DtReaderWriter match) const

virtual void	cloneAndAddProperty (const DtReaderWriter &rw) override

Protected Member Functions inherited from DtRwProperties
virtual void	filterIgnoredProperties (DtReaderWriter *rw, const std::set< DtString > &ignore)

virtual void	getInterface (DtPropertyInterface *pFace, DtlObjPtr args, const DtReaderWriter::SearchPaths &searchPaths=SearchPaths(), const DtVariableBindingsList &variableBindings=nullVariableReference())

virtual void	putData (std::string &, int indentLevel=0) override

virtual int	hlaAlignment (const DtPropertyInterface *field) const

virtual void	getSize (const DtPropertyInterface *, int &size) const

virtual char *	encode (const DtPropertyInterface , char buf) const

virtual void	unrecognizedItem (const DtEnvironmentSP env, const DtEnvValueSP root, const DtReaderWriter::SearchPaths &searchPaths, const DtVariableBindingsList &varBindings) override

virtual bool	traverseAndModifyPercentage (DtRwProperties &results, const DtRwProperties &baseValues, const DtReaderWriter *percentage, const DtString &base) const

virtual void	writePrototypeHeader (std::string &fp, const DtReaderWriter *rw, int indentLevel) const

virtual void	writePropertyData (DtReaderWriter *rw, std::string &fp, int indentLevel, bool writeUnspecified, const DtFilename &path)

virtual void	writePublishInformation (std::string &fp, int indentLevel) override

virtual void	getSortedProperties (const DtRwVariableBindings &varBindings, std::vector< const DtReaderWriter * > &propertyList) const

virtual void	getSortedProperties (DtRwVariableBindings &varBindings, std::vector< DtReaderWriter * > &propertyList)

virtual bool	isDebugEnabled () const override

virtual void	setDebugEnabled (bool en) override

Protected Member Functions inherited from DtRwVariableBindings
virtual const DtReaderWriter *	internalFindVariableBinding (const DtString &rwTypeString, const DtString &variableName, const std::map< DtString, DtString > &variableSubstitutions=std::map< DtString, DtString >()) const

virtual bool	keywordMatches (const DtSymbolString &lhs, const DtString &rhs, const std::map< DtString, DtString > &variableSubstitutions) const

Protected Attributes
DtPropertyInterface *	myPrototype

DtRwPropertyInt	myCount

Protected Attributes inherited from DtRwProperties
std::multimap< DtString, DtReaderWriter * >	myRwPropertyCache

tbb::spin_mutex *	myCacheMutex

DtClock	myClock

DtTime	myLastTimeSizeChanged

int	mySizeAtLastCheck

unsigned	myDisRecordType

bool	myIsPublished

bool	myWritePrototypeHeader

bool	myDebugEnabled

bool	myKeepPublishingSettingsOnCopy

DtPropertyInterface *	myPreviousParentProp

DtString	myPreviousParentPropFullName

Protected Attributes inherited from DtRwVariableBindings
std::map< DtString, DtString >	myVariableSubstitutions

Protected Attributes inherited from DtReaderWriter
const DtSymbolString	myName

DtReaderWriterRegistry	myRegistry

DtReaderWriterRegistry *	myParentRegistry

bool	myValueSpecified

bool	myReadOnlyFlag

bool	myIsVariableReference

DtSymbolString	myVariableName

bool	myVariableIsBound

DtReaderWriter *	myDefaultValue

aliasContainer	myAliases

bool	myInvalid

bool	myChangedFlag

Private Member Functions
	DtRwPropertiesList ()

Additional Inherited Members
Public Types inherited from DtRwProperties
typedef DtPropertiesIterator	iterator

typedef DtPropertiesConstIterator	const_iterator

Public Types inherited from DtReaderWriter
typedef std::vector < DtSymbolString >	aliasContainer

typedef std::vector < DtSymbolString >::iterator	aliasIter

typedef std::vector < DtSymbolString > ::const_iterator	aliasConstIter

typedef std::vector< DtFilename >	SearchPaths

typedef std::pair < DtSymbolString, DtString >	DtVariableNameType

typedef DtReaderWriterFactory (	DtReaderWriterFactoryCreatorFcn )()

Public Types inherited from DtPropertyInterface
enum	MergeFlags { Replace = 0x00000001, MinimalSimilarityCheck = 0x00000002, RollUp = 0x00000004, AddMissing = 0x00000008, KeepPublishedSettings = 0x00000010 }

Static Protected Attributes inherited from DtRwProperties
static DtReaderWriterPropertyFactory *	thePropertyFactory

Static Protected Attributes inherited from DtReaderWriter
static DtString	theUnspecifiedValue

static DtGetSelfCallbackInfo	thePostGetSelfCallback

static DtPutSelfCallbackInfo	thePrePutSelfCallback

static const DtVariableBindingsList	theEmptyVariableBindingsList

static bool	theCreatorFcnSet

static DtReaderWriterFactory *	theFactory

static DtReaderWriterFactoryCreatorFcn	theFactoryCreatorFcn

static bool	thePutIndent

static DtOutputStream *	theOutputStream

Constructor & Destructor Documentation

DtRwPropertiesList::DtRwPropertiesList ( )

private

Not implemented.

DtRwPropertiesList::DtRwPropertiesList	(	const DtString &	name,
		DtReaderWriterRegistry *	parentRegistry = `0`
	)

DtRwPropertiesList::DtRwPropertiesList	(	const DtString &	name,
		const DtPropertyInterface *	prototype,
		DtReaderWriterRegistry *	parentRegistry = `0`
	)

DtRwPropertiesList::DtRwPropertiesList	(	const DtString &	name,
		const DtRwPropertiesList &	orig,
		DtReaderWriterRegistry *	parentRegistry = `0`
	)

virtual DtRwPropertiesList::~DtRwPropertiesList ( )

overridevirtual

Member Function Documentation

virtual bool DtRwPropertiesList::addItem ( DtPropertyInterface * item )

virtual

Adds a new item to the end of the list. Fails if the item's type does not match that of myPrototype, in which case it returns false. Takes ownership of the item.

DtRwPropertyInt* newItem = new DtRwPropertyInt("new-item", 4);

propertiesList.add(newItem);

Reimplemented in DtRwPropertiesFixedArray.

virtual DtPropertyInterface* DtRwPropertiesList::addItem ( )

virtual

Adds a new item to the end of the list of the same type as myPrototype. Returns this item so that it may be set by the caller.

DtRwPropertiesStructure* newItem =
   static_cast<DtRwPropertiesStructure*>(propertiesList.add());
newItem->findAndSetPropertyValue<int>("Count", 4);

Reimplemented in DtRwPropertiesFixedArray.

virtual void DtRwPropertiesList::erase ( DtPropertyInterface * item )

virtual

Erases the specified item.

Reimplemented in DtRwPropertiesFixedArray.

virtual void DtRwPropertiesList::erase ( iterator pos )

virtual

Erases the item at the specified iterator position.

DtRwPropertiesList::iterator iter = propertiesList.begin();
for (; iter != propertiesList.end(); ++iter)
{
   // Check for the one we want and break out if found
}
propertiesList.erase(iter);

Reimplemented in DtRwPropertiesFixedArray.

virtual const char* DtRwPropertiesList::readerWriterType ( ) const

overridevirtual

Used to supply a string type that this reader writer type is. This can be used in place of dynamic-casting. Also used by the OPD Editor to determine which type of control to create.

Reimplemented from DtRwProperties.

Reimplemented in DtRwPropertiesMap, and DtRwPropertiesFixedArray.

static const char* DtRwPropertiesList::theXmlType ( )

static

The type that is used when archiving to an XML stream.

Referenced by DtRwPropertiesFixedArray::xmlType(), and DtRwPropertiesMap::xmlType().

virtual const char* DtRwPropertiesList::xmlType ( ) const

inlineoverridevirtual

Reimplemented from DtReaderWriter.

Reimplemented in DtRwPropertiesMap, and DtRwPropertiesFixedArray.

References DtReaderWriter::theXmlType().

virtual char* DtRwPropertiesList::encode ( char * ) const

overridevirtual

Encodes the property into the supplied buffer. Does not align the property. Buffer must already be aligned correctly based on the hlaAlignment() value of this property.

Reimplemented from DtRwProperties.

Reimplemented in DtRwPropertiesFixedArray.

virtual const char* DtRwPropertiesList::decode ( const char * )

overridevirtual

Decodes the property from the specified buffer. Assumes buffer is the start of the property and preceding padding has been skipped.

Reimplemented from DtRwProperties.

Reimplemented in DtRwPropertiesFixedArray.

virtual void DtRwPropertiesList::getSize ( int & size ) const

overridevirtual

Adds the network size of this item in bytes. This does not include any upfront padding for alignment.

Reimplemented from DtRwProperties.

Reimplemented in DtRwPropertiesFixedArray.

virtual int DtRwPropertiesList::hlaAlignment ( ) const

overridevirtual

The required byte alignment of this property when encoding to HLA.

Reimplemented from DtRwProperties.

Reimplemented in DtRwPropertiesMap.

virtual bool DtRwPropertiesList::isValidProperty ( const DtPropertyInterface * ) const

overridevirtual

Returns true if this is a valid property for the properties list.

Reimplemented from DtRwProperties.

virtual int DtRwPropertiesList::count ( ) const

overridevirtual

Returns the number of valid items in this list.

Reimplemented from DtRwProperties.

virtual void DtRwPropertiesList::getSelf	(	DtlObjPtr	args,
		const DtReaderWriter::SearchPaths &	searchPaths = `DtReaderWriter::SearchPaths()`,
		const DtVariableBindingsList &	variableBindings = `nullVariableReference()`
	)

overridevirtual

Reads in items, using the factory to read the correct types.

Reimplemented from DtRwProperties.

virtual void DtRwPropertiesList::writeSelf	(	std::string &	fp,
		int	indentLevel = `0`,
		bool	writeUnspecified = `false`,
		const DtFilename &	path = `DtFilename::nullFilename()`
	)

overridevirtual

Writes out registry data, but includes the type strings when writing.

Reimplemented from DtRwProperties.

virtual void DtRwPropertiesList::writeData	(	std::string &	fp,
		int	indentLevel = `0`,
		bool	writeUnspecified = `false`,
		const DtFilename &	path = `DtFilename::nullFilename()`
	)

overridevirtual

Reimplemented from DtRwProperties.

virtual void DtRwPropertiesList::setPrototype ( const DtPropertyInterface * )

virtual

Sets the prototype for this list. Will be cloned and kept as part of this object.

virtual const DtPropertyInterface* DtRwPropertiesList::prototype ( ) const

virtual

Returns the prototype for this list.

virtual DtPropertyInterface* DtRwPropertiesList::clonePrototype ( DtReaderWriterRegistry * parent = 0 )

virtual

Returns a clone of the prototype that belongs to this list.

Reimplemented in DtRwPropertiesFixedArray.

DtRwPropertiesList& DtRwPropertiesList::operator= ( const DtRwPropertiesList & )

virtual bool DtRwPropertiesList::isSimilarProperty	(	const DtPropertyInterface *	rhs,
		bool	strict = `true`
	)		const

overridevirtual

Returns true prototype is the same.

Reimplemented from DtPropertyInterface.

Reimplemented in DtRwPropertiesMap, and DtRwPropertiesFixedArray.

bool DtRwPropertiesList::operator== ( const DtRwPropertiesList & ) const

virtual bool DtRwPropertiesList::matchPrototype ( const DtReaderWriter * ) const

virtual

virtual void DtRwPropertiesList::writePrototype	(	const DtReaderWriter *	,
		std::string &	fp,
		int	indentLevel,
		bool	writeHeader = `true`
	)		const

protectedvirtual

Reimplemented in DtRwPropertiesMap.

virtual void DtRwPropertiesList::bindToRwAsVariable ( const DtReaderWriter * rw )

overrideprotectedvirtual

Copies values from the specified DtReaderWriter. rw must point to the same subclassed type of DtReaderWriter as this instance is. Sets myVariableIsBound to true if variable binding is successful.

Reimplemented from DtReaderWriter.

virtual void DtRwPropertiesList::createListEntry	(	DtPropertyInterface *	iFace,
		DtlObjPtr	variableItem,
		const DtReaderWriter::SearchPaths &	searchPaths,
		const DtVariableBindingsList &	variableBindings
	)

protectedvirtual

Reimplemented in DtRwPropertiesMap.

virtual DtPropertyInterface* DtRwPropertiesList::createPrototype ( DtlObjPtr )

protectedvirtual

Reimplemented in DtRwPropertiesMap, and DtRwPropertiesFixedArray.

virtual DtlObjPtr DtRwPropertiesList::variablesStart ( DtlObjPtr args ) const

protectedvirtual

Reimplemented in DtRwPropertiesMap, and DtRwPropertiesFixedArray.

virtual const char* DtRwPropertiesList::decode	(	DtPropertyInterface *	,
		const char *
	)

overrideprotectedvirtual

Decodes the variable bindings from the specified buffer.

Reimplemented from DtRwProperties.

Reimplemented in DtRwPropertiesMap.

virtual DtlObjPtr DtRwPropertiesList::getData	(	DtlObjPtr	args,
		const DtReaderWriter::SearchPaths &	searchPaths,
		const DtVariableBindingsList &	variableBindings
	)

overrideprotectedvirtual

Override to allow a variable to be assigned to a property of derived type.

Reimplemented from DtRwProperties.

virtual void DtRwPropertiesList::getData	(	const DtEnvironmentSP	,
		const DtEnvValueSP	,
		const DtReaderWriter::SearchPaths &	searchPaths,
		const DtVariableBindingsList &	bindings
	)

overrideprotectedvirtual

Gets data from the environment value.

Reimplemented from DtReaderWriter.

Reimplemented in DtRwPropertiesMap.

virtual void DtRwPropertiesList::putData	(	DtEnvironmentSP	,
		DtEnvValueSP	value
	)		const

overrideprotectedvirtual

Override to add attributes of actual data.

Reimplemented from DtReaderWriter.

Reimplemented in DtRwPropertiesMap.

virtual void DtRwPropertiesList::assignPrototypeToChildren ( )

protectedvirtual

virtual void DtRwPropertiesList::setPrototypeIntoTarget	(	const DtPropertyInterface *	prototype,
		DtReaderWriter *	target
	)

protectedvirtual

virtual void DtRwPropertiesList::postWriteItem	(	std::string &	fp,
		DtReaderWriter *	rw,
		int	indentLevel
	)

protectedvirtual

Reimplemented in DtRwPropertiesMap.

virtual void DtRwPropertiesList::preWriteItem	(	std::string &	fp,
		DtReaderWriter *	rw,
		int	indentLevel
	)

protectedvirtual

Reimplemented in DtRwPropertiesMap.

virtual bool DtRwPropertiesList::matchPrototype	(	const DtReaderWriter *	prototype,
		const DtReaderWriter *	match
	)		const

protectedvirtual

virtual void DtRwPropertiesList::cloneAndAddProperty ( const DtReaderWriter & rw )

overrideprotectedvirtual

Clones the given RW and tries to add it to this list.

Reimplemented from DtRwProperties.

Member Data Documentation

DtPropertyInterface* DtRwPropertiesList::myPrototype

protected

DtRwPropertyInt DtRwPropertiesList::myCount

mutableprotected

The documentation for this class was generated from the following file:

/data/exports/nrhent7-1/nightly/docs/vrForces.vrf5-2-branch/include/readerWriter/rwPropertiesList.h

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Private Member Functions

Additional Inherited Members

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
