DtNavigationLocalObjectFacadeInterface Class Reference

The DtNavigationLocalObjectFacadeInterface class is a wrapper around the DtNavigationLocalObjectDecorator which contains the navigation interface.

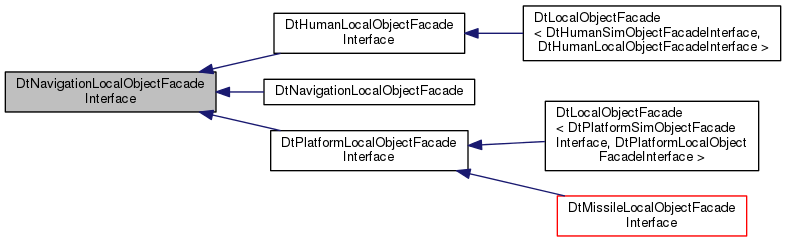

Inheritance diagram for DtNavigationLocalObjectFacadeInterface:

Public Member Functions
	DtNavigationLocalObjectFacadeInterface ()
	~DtNavigationLocalObjectFacadeInterface ()
bool	isUsable () const
const DtVrfObjectNavInterface *	nextFrameNavInterface () const
DtVrfObjectNavInterface *	nextFrameNavInterface ()
bool	nextFrameNavigationEnabled () const
void	setNextFrameNavigationEnabled (bool)
DtNavPathEvalFunction	nextFrameNavigationPathEvalFunction () const
void	setNextFrameNavigationPathEvalFunction (const DtNavPathEvalFunction &eval)

Protected Member Functions
virtual DtLocalObject *	localObject () const =0
virtual void	setupDecorator ()

Protected Attributes
DtNavigationLocalObjectDecorator *	myNavigationLocalDecorator

Constructor & Destructor Documentation

DtNavigationLocalObjectFacadeInterface::DtNavigationLocalObjectFacadeInterface

(

)

CTOR.

DtNavigationLocalObjectFacadeInterface::~DtNavigationLocalObjectFacadeInterface

(

)

DTOR.

Member Function Documentation

bool DtNavigationLocalObjectFacadeInterface::isUsable

(

)

const

Referenced by DtNavigationLocalObjectFacade::isUsable().

const DtVrfObjectNavInterface* DtNavigationLocalObjectFacadeInterface::nextFrameNavInterface

(

)

const

Returns

The DtVrfObjectNavInterface for this object. This is the entry point for interfacing with the navigation mesh subsystem of VRF for a specific sim object.

DtVrfObjectNavInterface* DtNavigationLocalObjectFacadeInterface::nextFrameNavInterface

(

)

bool DtNavigationLocalObjectFacadeInterface::nextFrameNavigationEnabled

(

)

const

Accessors for navigation enabled. The actual state is stored in the internalState(). This will also be changed in the navigation interface (if created). If not created will be set into the interface when it is.

void DtNavigationLocalObjectFacadeInterface::setNextFrameNavigationEnabled

(

bool

)

DtNavPathEvalFunction DtNavigationLocalObjectFacadeInterface::nextFrameNavigationPathEvalFunction

(

)

const

Accessor/mutator for the navigation path evaluation function. The actual state is stored in the internalState(). This will also be changed in the navigation interface (if created). If not created will be set into the interface when it is.

void DtNavigationLocalObjectFacadeInterface::setNextFrameNavigationPathEvalFunction

(

const DtNavPathEvalFunction &

eval

)

virtual DtLocalObject* DtNavigationLocalObjectFacadeInterface::localObject ( ) const

protectedpure virtual

Implemented in DtNavigationLocalObjectFacade, DtHumanLocalObjectFacadeInterface, DtPlatformLocalObjectFacadeInterface, DtMissileLocalObjectFacadeInterface, DtLocalObjectFacade< DtHumanSimObjectFacadeInterface, DtHumanLocalObjectFacadeInterface >, DtLocalObjectFacade< DtPlatformSimObjectFacadeInterface, DtPlatformLocalObjectFacadeInterface >, and DtLocalObjectFacade< DtMissileSimObjectFacadeInterface, DtMissileLocalObjectFacadeInterface >.

virtual void DtNavigationLocalObjectFacadeInterface::setupDecorator ( )

protectedvirtual

Reimplemented in DtNavigationLocalObjectFacade, DtPlatformLocalObjectFacadeInterface, DtHumanLocalObjectFacadeInterface, DtMissileLocalObjectFacadeInterface, DtLocalObjectFacade< DtHumanSimObjectFacadeInterface, DtHumanLocalObjectFacadeInterface >, DtLocalObjectFacade< DtPlatformSimObjectFacadeInterface, DtPlatformLocalObjectFacadeInterface >, and DtLocalObjectFacade< DtMissileSimObjectFacadeInterface, DtMissileLocalObjectFacadeInterface >.

Referenced by DtNavigationLocalObjectFacade::setupDecorator().

Member Data Documentation

DtNavigationLocalObjectDecorator* DtNavigationLocalObjectFacadeInterface::myNavigationLocalDecorator

protected

---

The documentation for this class was generated from the following file:

• /data/exports/nrhent7-1/nightly/docs/vrForces.vrf5-2-branch/include/vrfobjcore/navigationLocalObjectFacade.h
