DtSimStatement Class Reference

class DtSimStatement:

Instances of DtSimStatement represent any kind of statement used in a Plan.

Related Examples

• Add Task

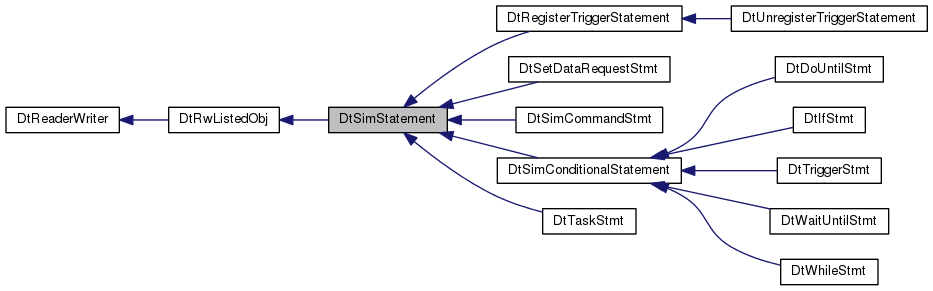

Inheritance diagram for DtSimStatement:

Public Member Functions
	DtSimStatement ()
	DtSimStatement (const DtString &name, DtReaderWriterRegistry *parentRegistry=NULL)
	DtSimStatement (const DtSimStatement &orig, DtReaderWriterRegistry *parentRegistry=NULL)
virtual	~DtSimStatement () override
virtual bool	init ()
DtSimStatement &	operator= (const DtSimStatement &orig)
virtual DtSimStatement *	clone (DtReaderWriterRegistry *parentRegistry=NULL) const =0
virtual int	type () const =0
virtual bool	validate ()
virtual void	execute (DtPlan &planContext)=0
virtual void	step (DtPlan &planContext, bool forceStep=false)
DtSimStatement *	nextStmt () const
DtSimStatement *	prevStmt () const
virtual DtStmtIdType	statementId () const
virtual void	setStatementId (DtStmtIdType arg)
virtual DtSimBlock *	parentBlock () const
virtual void	setParentBlock (DtSimBlock *arg)
virtual int	subBlockCount () const
virtual DtSimBlock *	subBlock (int index)
virtual DtRecursiveSimStatementIterator *	spawnRecursiveIterator () const
virtual DtSimStatement *	lookupStatement (DtStmtIdType statementId)
virtual void	setStatementDescription (const DtString &)
virtual const DtString &	statementDescription () const
virtual DtString	stringRep (int subBlockIndex=DtSR_STMT) const =0
virtual char *	netRep ()
virtual int	netRepSize () const
virtual bool	setFromNet (const char *contentBuffer, unsigned contentSize)
virtual bool	setToNet ()
virtual bool	isSameStatement (DtSimStatement *)
virtual void	upgradeTriggerUUID (const boost::unordered_map< DtUUID, DtUUID > &)
virtual void	reset () override
Public Member Functions inherited from DtRwListedObj
	DtRwListedObj ()
	DtRwListedObj (const DtString &name, DtReaderWriterRegistry *parentRegistry=NULL)
	DtRwListedObj (const DtSymbolString &name, DtReaderWriterRegistry *parentRegistry=NULL)
	DtRwListedObj (const DtRwListedObj &orig)
virtual	~DtRwListedObj () override
DtRwListedObj &	operator= (const DtRwListedObj &orig)
DtRwListedObj *	next () const
DtRwListedObj *	prev () const
DtRwListedObj *	wrapNext () const
DtRwListedObj *	wrapPrev () const
virtual const char *	readerWriterType () const override
Public Member Functions inherited from DtReaderWriter
	DtReaderWriter ()
	DtReaderWriter (const DtString &name, DtReaderWriterRegistry *parentRegistry=NULL, bool readonly=false)
	DtReaderWriter (const DtSymbolString &name, DtReaderWriterRegistry *parentRegistry=NULL, bool readonly=false)
	DtReaderWriter (const DtString &name, const DtReaderWriter &orig, DtReaderWriterRegistry *parentRegistry=NULL)
	DtReaderWriter (const DtSymbolString &name, const DtReaderWriter &orig, DtReaderWriterRegistry *parentRegistry=NULL)
	DtReaderWriter (const DtReaderWriter &, DtReaderWriterRegistry *parentRegistry=NULL)
const DtReaderWriter &	operator= (const DtReaderWriter &orig)
bool	operator== (const DtReaderWriter &) const
bool	operator!= (const DtReaderWriter &rhs) const
virtual	~DtReaderWriter ()
virtual void	putSelf (std::string &fp, int indentLevel=0, bool writeUnspecified=false, const DtFilename &path=DtFilename::nullFilename())
virtual void	postPutSelf ()
virtual void	prePutSelf ()
virtual void	getSelf (DtlObjPtr args, const DtReaderWriter::SearchPaths &searchPaths=SearchPaths(), const DtVariableBindingsList &variableBindings=nullVariableReference())
virtual void	postGetSelf ()
virtual void	preGetSelf ()
virtual void	writeSelf (std::string &fp, int indentLevel=0, bool writeUnspecified=false, const DtFilename &path=DtFilename::nullFilename())
virtual DtSymbolString	name () const
virtual void	addAlias (const DtSymbolString &alias)
virtual void	addAlias (const DtString &alias)
virtual bool	hasAlias (const DtSymbolString &alias)
virtual const aliasContainer &	aliases () const
virtual void	setReadonly (bool flag)
bool	isReadonly () const
virtual int	alignment () const
virtual bool	variableIsBound () const
virtual void	unbindVariable ()
virtual void	setName (const DtString &)
virtual const char *	xmlType () const
virtual DtString	prettyPrint () const
std::string	debugText () const
virtual void	bindVariables (DtVariableBindingsList variableBindings)
virtual std::list < DtVariableNameType >	unboundVariables () const
bool	invalid () const
virtual bool	hasChild (const DtReaderWriter *p) const
virtual bool	hasVariableReference () const
virtual void	bindLocalVariables (const DtVariableBindingsList &variableBindings)
virtual void	recordUpdateTime () const
virtual bool	changedSinceLastChecked ()
virtual bool	peekChangedSinceLastChecked () const
virtual void	putData (std::string &fp, int indentLevel=0)
virtual DtlObjPtr	getData (DtlObjPtr args, const SearchPaths &searchPaths, const DtVariableBindingsList &variableBindings)
virtual void	setValueSpecified (bool specified, bool recurse=false)
virtual bool	valueSpecified () const
virtual bool	isVariableReference () const
virtual void	setIsVariableReference (bool value)
virtual void	clearAllVariableReferenceFlags ()
virtual DtSymbolString	variableName () const
virtual void	setVariableName (const DtSymbolString variableName)
virtual const DtReaderWriter *	defaultRWValue () const
virtual DtReaderWriter *	defaultRWValue ()
virtual void	setDefaultRWValue (DtReaderWriter *)
virtual bool	checkAndSetDefaultRWValue (DtlObjPtr args, const DtReaderWriter::SearchPaths &searchPaths=SearchPaths(), const DtVariableBindingsList &variableBindings=nullVariableReference())
const DtReaderWriterRegistry &	registry () const
DtReaderWriterRegistry &	registry ()
virtual DtPropertyInterface *	property ()
virtual const DtPropertyInterface *	property () const
virtual DtString	toXml () const
virtual DtRwVariableBindings *	generateVariableBindings () const
virtual bool	toXml (const DtFilename &) const
virtual bool	fromXml (const DtString &)
virtual bool	fromXmlFile (const DtFilename &)
virtual void	putSelf (DtEnvironmentSP, DtEnvValueSP parent) const
virtual void	putData (DtEnvironmentSP, DtEnvValueSP value) const
virtual void	putVariableReference (DtEnvironmentSP, DtEnvValueSP value) const
virtual void	getSelf (const DtEnvironmentSP, const DtEnvValueSP root, const SearchPaths &searchPaths=SearchPaths(), const DtVariableBindingsList &bindings=DtVariableBindingsList())
virtual void	getData (const DtEnvironmentSP, const DtEnvValueSP, const SearchPaths &searchPaths=SearchPaths(), const DtVariableBindingsList &bindings=DtVariableBindingsList())
virtual void	unrecognizedItem (const DtEnvironmentSP env, const DtEnvValueSP root, const SearchPaths &searchPaths, const DtVariableBindingsList &varBindings)
virtual void	getVariableReference (DtEnvironmentSP, DtEnvValueSP value)

Static Public Member Functions
static DtStmtIdType	generateNewStmtId ()
static DtSimStatement *	createStatement (DtlObjPtr mtlStream, DtReaderWriterRegistry *parentRegistry=NULL)
static DtSimStatement *	createStatement (int statementType, DtReaderWriterRegistry *parentRegistry=NULL)
static void	addStatementCreatorFcn (const DtString &type, int intType, DtStatementCreatorFcn fcn)
static void	setFactory (DtStatementFactory *factory)
static DtStatementFactory *	factory ()
static bool	getStatementNameFromStatementType (int statementType, DtString &statementName)
static bool	getStatementTypeFromStatementName (const DtString &statementName, int &statementType)
static bool	addStatementTypeMapping (const DtString &statementName, int taskType)
static bool	removeStatementTypeMapping (const DtString &statementName, int statementType)
Static Public Member Functions inherited from DtReaderWriter
static void	putIndent (std::string &fp, int indentLevel)
static const DtVariableBindingsList &	nullVariableReference ()
static void	setPostGetSelfCallback (DtGetSelfCallbackFcn fcn, void *usrData)
static void	setPrePutSelfCallback (DtPutSelfCallbackFcn fcn, void *usrData)
static void	setPutIndent (bool)
static bool	putIndent ()
static const char *	theXmlType ()
static const DtFilename &	appPath ()
static void	setFactoryCreatorFunction (DtReaderWriterFactoryCreatorFcn fcn)
static void	createReaderWriterFactory ()
static void	cleanupFactory ()
static DtReaderWriterFactory *	factory ()
static void	setOutputStream (DtOutputStream *stream)
static DtOutputStream &	outputStream ()
static DtReaderWriter *	createFromXmlFile (const DtFilename &, bool createAsProperty=false)
static DtReaderWriter *	createFromXml (const DtString &, bool createAsProperty=false)
static DtReaderWriter *	createFromEnvironment (DtEnvironmentSP, bool createAsProperty=false)
static DtString	getAttribute (DtEnvironmentSP env, const DtString &name, DtEnvValueSP root)

Static Public Attributes
static const int	DtSR_STMT = -1

Protected Member Functions
virtual char *	createNetworkBuffer ()
virtual bool	compare (DtSimStatement *)
Protected Member Functions inherited from DtReaderWriter
virtual void	bindToRwAsVariable (const DtReaderWriter *rw)

Protected Attributes
DtStmtIdType	myStatementId
DtSimBlock *	myParentBlock
char *	myNetRep
DtRwString	myStatementDescription
Protected Attributes inherited from DtRwListedObj
DtList *	myList
DtListItem *	myItem
Protected Attributes inherited from DtReaderWriter
const DtSymbolString	myName
DtReaderWriterRegistry	myRegistry
DtReaderWriterRegistry *	myParentRegistry
bool	myValueSpecified
bool	myReadOnlyFlag
bool	myIsVariableReference
DtSymbolString	myVariableName
bool	myVariableIsBound
DtReaderWriter *	myDefaultValue
aliasContainer	myAliases
bool	myInvalid
bool	myChangedFlag

Static Protected Attributes
static DtStatementFactory *	myFactory
static DtStringIntMapper	theStatementNameMapper
Static Protected Attributes inherited from DtReaderWriter
static DtString	theUnspecifiedValue
static DtGetSelfCallbackInfo	thePostGetSelfCallback
static DtPutSelfCallbackInfo	thePrePutSelfCallback
static const DtVariableBindingsList	theEmptyVariableBindingsList
static bool	theCreatorFcnSet
static DtReaderWriterFactory *	theFactory
static DtReaderWriterFactoryCreatorFcn	theFactoryCreatorFcn
static bool	thePutIndent
static DtOutputStream *	theOutputStream

Friends
class	DtStmtIndex

Additional Inherited Members
Public Types inherited from DtReaderWriter
typedef std::vector < DtSymbolString >	aliasContainer
typedef std::vector < DtSymbolString >::iterator	aliasIter
typedef std::vector < DtSymbolString > ::const_iterator	aliasConstIter
typedef std::vector< DtFilename >	SearchPaths
typedef std::pair < DtSymbolString, DtString >	DtVariableNameType
typedef DtReaderWriterFactory *(*	DtReaderWriterFactoryCreatorFcn )()

Constructor & Destructor Documentation

DtSimStatement::DtSimStatement

(

)

Default constructor.

DtSimStatement::DtSimStatement	(	const DtString &	name,
		DtReaderWriterRegistry *	parentRegistry = NULL
	)

Usual constructor NOTE: "name" should be the statement type string.

DtSimStatement::DtSimStatement	(	const DtSimStatement &	orig,
		DtReaderWriterRegistry *	parentRegistry = NULL
	)

Copy constructor.

virtual DtSimStatement::~DtSimStatement ( )

overridevirtual

Destructor.

Member Function Documentation

virtual bool DtSimStatement::init ( )

virtual

Base class init does nothing, but this will be called by create, in case any other deriving class needs to do virtual allocation.

DtSimStatement& DtSimStatement::operator=

(

const DtSimStatement &

orig

)

Assignment operator (protected because this is an abstract base class).

virtual DtSimStatement* DtSimStatement::clone ( DtReaderWriterRegistry *  parentRegistry = NULL ) const

pure virtual

virtual copy constructor A typical clone function. It must be overridden by derived classes to return an exact copy of the object.

Implemented in DtUnregisterTriggerStatement, DtTriggerStmt, DtIfStmt, DtTaskStmt, DtRegisterTriggerStatement, DtDoUntilStmt, DtSimCommandStmt, DtSetDataRequestStmt, DtWhileStmt, and DtWaitUntilStmt.

virtual int DtSimStatement::type ( ) const

pure virtual

Returns the type of statement Type (defined in simStmtTypes.h)

Implemented in DtUnregisterTriggerStatement, DtTriggerStmt, DtRegisterTriggerStatement, DtIfStmt, DtTaskStmt, DtDoUntilStmt, DtSimCommandStmt, DtSetDataRequestStmt, DtWhileStmt, and DtWaitUntilStmt.

virtual bool DtSimStatement::validate ( )

virtual

Checks the statement for validity, and potentially fixes the statement to be valid.

Returns

True if the statement is valid.

Reimplemented in DtDoUntilStmt, and DtWhileStmt.

virtual void DtSimStatement::execute ( DtPlan &  planContext )

pure virtual

Execute the current statement and make any changes to the Plan state as appropriate. Tells the statement to activate its own behavior. Each kind of statement implements this function differently. It is passed a reference to the executing DtPlan object as a “context of execution”.

Implemented in DtTriggerStmt, DtRegisterTriggerStatement, DtDoUntilStmt, DtIfStmt, DtWhileStmt, DtTaskStmt, DtSimCommandStmt, DtSetDataRequestStmt, and DtWaitUntilStmt.

virtual void DtSimStatement::step ( DtPlan &  planContext, bool  forceStep = false  )

virtual

Asks the statement to step the context DtPlan to the next statement. The default implementation steps to the next statement in the same parent DtSimBlock. If this is the last statement in the Block, step() calls the block’s exitFromBlock() member function.

forceStep is unused

Reimplemented in DtSimCommandStmt, DtWaitUntilStmt, and DtIfStmt.

DtSimStatement * DtSimStatement::nextStmt ( ) const

inline

Return next (previous) statements in the block, or NULL if hit the end (beginning) of the list. Statement objects are derived from DtRwListedObj and these functions are wrappers for the base class next() and prev() member functions, which cast their return values to DtSimStatement pointers.

Inline functions.

References DtRwListedObj::next().

DtSimStatement * DtSimStatement::prevStmt ( ) const

inline

References DtRwListedObj::prev().

virtual DtStmtIdType DtSimStatement::statementId ( ) const

virtual

Statement Id accessors.

virtual void DtSimStatement::setStatementId ( DtStmtIdType  arg )

virtual

virtual DtSimBlock* DtSimStatement::parentBlock ( ) const

virtual

The parent statement Block. Returns a pointer to the surrounding DtSimBlock.

virtual void DtSimStatement::setParentBlock ( DtSimBlock *  arg )

virtual

virtual int DtSimStatement::subBlockCount ( ) const

virtual

Get the number of blocks nested inside this statement.

Reimplemented in DtTriggerStmt, DtIfStmt, DtRegisterTriggerStatement, DtDoUntilStmt, DtWhileStmt, and DtWaitUntilStmt.

virtual DtSimBlock* DtSimStatement::subBlock ( int  index )

virtual

Get a pointer to any particular block nested inside this statement. Sub-blocks are indexed as C arrays are (i.e. starting with block #0).

Reimplemented in DtTriggerStmt, DtIfStmt, DtDoUntilStmt, DtRegisterTriggerStatement, DtWhileStmt, and DtWaitUntilStmt.

virtual DtRecursiveSimStatementIterator* DtSimStatement::spawnRecursiveIterator ( ) const

virtual

Spawns an iterator that iterates over the subblocks in this statement, and all their children, sub children, etc.. The caller MUST DELETE the iterator when doen using it!

virtual DtSimStatement* DtSimStatement::lookupStatement ( DtStmtIdType  statementId )

virtual

If statementId matches our statement, returns a pointer to us. Otherwise calls lookupStatement() for each of our subblocks, if any.

virtual void DtSimStatement::setStatementDescription ( const DtString &  )

virtual

If supported for display a description of this statement that can be used for display.

Reimplemented in DtTriggerStmt.

virtual const DtString& DtSimStatement::statementDescription ( ) const

virtual

virtual DtString DtSimStatement::stringRep ( int  subBlockIndex = DtSR_STMT ) const

pure virtual

Get a readable string representation of this statement.

The subBlockIndex argument indicates which stringRep to get if this statement can have sub-blocks. If a sub-block index >= 0 is given, the string returned will be the one that should precede that sub-block. A sub-block index of DtSimStatement::DtSR_STMT requests the string that should follow any and all sub-blocks, this is the value that should be used for statements that have no subBlocks (i.e. subBlockCount() == 0).

Implemented in DtTriggerStmt, DtIfStmt, DtRegisterTriggerStatement, DtDoUntilStmt, DtWhileStmt, DtWaitUntilStmt, DtTaskStmt, DtSimCommandStmt, and DtSetDataRequestStmt.

virtual char* DtSimStatement::netRep ( )

virtual

virtual int DtSimStatement::netRepSize ( ) const

virtual

Returns sizeof(DtNetSimStatement). Derived classes should add this size to the size of their net representation (dervied class net reps should always put the DtNetSimStatement at the start of their buffer, and put their class specific data immediately following that).

Reimplemented in DtTriggerStmt, DtIfStmt, DtDoUntilStmt, DtWhileStmt, DtTaskStmt, DtRegisterTriggerStatement, DtSetDataRequestStmt, DtSimCommandStmt, and DtWaitUntilStmt.

virtual bool DtSimStatement::setFromNet ( const char *  contentBuffer, unsigned  contentSize  )

virtual

Extracts statement Id from buffer. First 16 bytes are a DtNetSimStatement structure. Derived class data should immediately follow this. Derived classes should call down to this one to make sure statement id gets set.

Reimplemented in DtTriggerStmt, DtIfStmt, DtDoUntilStmt, DtWhileStmt, DtTaskStmt, DtRegisterTriggerStatement, DtSetDataRequestStmt, DtSimCommandStmt, and DtWaitUntilStmt.

virtual bool DtSimStatement::setToNet ( )

virtual

Casts myNetRep to DtNetSimStatement* and fills in structure. Derived classes should always call down to this base class version to set the DtNetSimStatement structure at the beginning of the buffer. Any dervied data should immediately follow the DtNetSimStatement structure.

Reimplemented in DtTriggerStmt, DtIfStmt, DtDoUntilStmt, DtWhileStmt, DtRegisterTriggerStatement, DtTaskStmt, DtSetDataRequestStmt, DtSimCommandStmt, and DtWaitUntilStmt.

static DtStmtIdType DtSimStatement::generateNewStmtId ( )

static

static DtSimStatement* DtSimStatement::createStatement ( DtlObjPtr  mtlStream, DtReaderWriterRegistry *  parentRegistry = NULL  )

static

Static functions.

Construct an empty conditional expression of the appropriate type. Creates a new statement, given a pointer to an MTL stream. It parses the stream to extract the type of statement to create. Then it calls the statement factory’s create() member function with the statement type. This returns a new instance of the statement type. The statement’s getData() member function is then called to retrieve the statement from the stream. The pointer to the new statement is returned.

static DtSimStatement* DtSimStatement::createStatement ( int  statementType, DtReaderWriterRegistry *  parentRegistry = NULL  )

static

static void DtSimStatement::addStatementCreatorFcn ( const DtString &  type, int  intType, DtStatementCreatorFcn  fcn  )

static

Decodes a legacy stealth statement (VRF 3.9 and previous) and returns the proper statement for the current version. static DtSimStatement* createLegacyStealthStatement(DtlObjPtr mtlStream, DtReaderWriterRegistry* parentRegistry = NULL);.

Adds a statement creator member function to the statement factory.

static void DtSimStatement::setFactory ( DtStatementFactory *  factory )

static

static DtStatementFactory* DtSimStatement::factory ( )

static

static bool DtSimStatement::getStatementNameFromStatementType ( int  statementType, DtString &  statementName  )

static

static bool DtSimStatement::getStatementTypeFromStatementName ( const DtString &  statementName, int &  statementType  )

static

static bool DtSimStatement::addStatementTypeMapping ( const DtString &  statementName, int  taskType  )

static

static bool DtSimStatement::removeStatementTypeMapping ( const DtString &  statementName, int  statementType  )

static

virtual bool DtSimStatement::isSameStatement ( DtSimStatement *  )

virtual

Returns true if statements are equivalent. Will not check statementId.

virtual void DtSimStatement::upgradeTriggerUUID ( const boost::unordered_map< DtUUID, DtUUID > &  )

virtual

For those statements that need to, map from the old to new trigger UUID.

Reimplemented in DtTriggerStmt, DtIfStmt, DtRegisterTriggerStatement, DtDoUntilStmt, and DtWhileStmt.

virtual void DtSimStatement::reset ( )

overridevirtual

Called when the plan is reset, will iterate over all statements to reset as well.

Reimplemented from DtReaderWriter.

Reimplemented in DtTriggerStmt, DtIfStmt, DtDoUntilStmt, and DtWhileStmt.

virtual char* DtSimStatement::createNetworkBuffer ( )

protectedvirtual

virtual bool DtSimStatement::compare ( DtSimStatement *  )

protectedvirtual

Called from isSameStatement. Compares net reps to see if they are the same. Override to do different comparrison.

Reimplemented in DtTriggerStmt, DtIfStmt, DtDoUntilStmt, DtWhileStmt, and DtWaitUntilStmt.

Friends And Related Function Documentation

friend class DtStmtIndex

friend

Member Data Documentation

const int DtSimStatement::DtSR_STMT = -1

static

A constant for use as the subBlockIndex argument to stringRep().

DtStmtIdType DtSimStatement::myStatementId

protected

A semi-unique Id value that helps trace the original identity of this statement if/when it gets copied.

DtSimBlock* DtSimStatement::myParentBlock

protected

The containing DtSimBlock object (if any).

DtStatementFactory* DtSimStatement::myFactory

staticprotected

Factory for this class.

char* DtSimStatement::myNetRep

protected

DtStringIntMapper DtSimStatement::theStatementNameMapper

staticprotected

DtRwString DtSimStatement::myStatementDescription

protected

---

The documentation for this class was generated from the following file:

• /data/exports/nrhent7-1/nightly/docs/vrForces.vrf5-2-branch/include/vrfplan/simStatement.h
