DtTerrainImplementation Class Reference

This is the abstract base class for all terrain implementations. A terrain implementation is used by the DtTerrainInterface to interact with a terrain representation.

Related Examples

• Extent Terrain Implementation

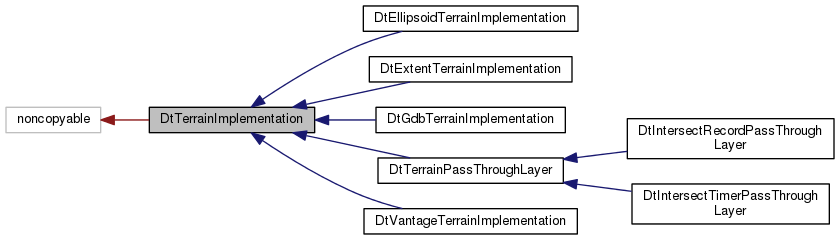

Inheritance diagram for DtTerrainImplementation:

Public Types
typedef boost::function< void(const makVrv::DtDynamicTerrainFeature &)>	DtDynamicTerrainQueryCallback

Public Member Functions
	DtTerrainImplementation (DtConsoleCommandManager *cmdManager)
virtual	~DtTerrainImplementation ()
virtual MAKVRinTerra::DtFeatureDatabase &	featureDatabase ()
virtual const MAKVRinTerra::DtFeatureDatabase &	featureDatabase () const
virtual MAKVRinTerra::DtFeatureContext &	featureContext ()
virtual const MAKVRinTerra::DtFeatureContext &	featureContext () const
virtual MAKVRinTerra::DtAerodromeLoader &	aerodromeLoader ()
virtual const MAKVRinTerra::DtAerodromeLoader &	aerodromeLoader () const
virtual void	cacheAerodromes ()
virtual void	init ()
virtual void	finishedLoading (const MAKVRinTerra::DtProj &proj)
virtual bool	loadTerrain (const makArchives::DtGenericTerrainRecord &rec)=0
virtual void	clearCache ()
virtual void	shutdown (bool block=true)
virtual const Coordinate_System *	coordinateSystem () const =0
virtual double	modelHeightDifferencesFromAppearances (int oldApp, int newApp) const
virtual bool	createFromExtent (const Dt3dBoundingVolume &)
virtual bool	loadModel (const DtFilename &, const DtEntityType &t=DtEntityType())
virtual DtTerrainInterfaceConfig &	configurationOptions ()
virtual const DtTerrainInterfaceConfig &	configurationOptions () const
virtual bool	chordIntersect (DtTerrainIntersectStatus &status, const DtChord &chord, DtVrfChordIntersectionRecord &record, const DtTerrainIntersectOptions &options) const =0
virtual bool	allIntersectsAlongChord (DtTerrainIntersectStatus &status, const DtChord &chord, DtVrfChordIntersectRecordList &intList, const DtTerrainIntersectOptions &options) const =0
virtual void	preloadTerrainAreas (const DtTerrainPagingGeometryList &preloadGeometry)
virtual bool	dataAvailable (const DtTerrainPagingGeometryList &geometry, DtTerrainIntersectOptions::Fidelity=DtTerrainIntersectOptions::MAX_FIDELITY)
virtual const DtTerrainCapabilities *	terrainCapabilities () const =0
virtual void	setIntersectDataLoadExpireTime (const double &expireTime)
virtual void	expireDataLoadRequestsBeforeTime (const double &currentTime)
virtual void	processTrianglesInArea (DtTriangleOutputInterface &, const DtTerrainProcessPolygonsBox &, DtTerrainCategoryMask terrainCategoryMask) const =0
virtual void	processTrianglesForGeometry (DtTriangleOutputInterface &, DtTerrainGeometryId) const
virtual DtTerrainInformation *	terrainInformation ()
virtual void	breakUpChords (const MAKVRinTerra::DtProj &, const DtChord &chord, std::vector< DtChord > &chords)
virtual bool	hasFeatureContext () const
virtual DtTerrainGeometryHandle *	createEntityGeometry (const DtFilename &file)
virtual DtTerrainGeometryHandle *	createEntityGeometry (const DtEntityType &file)
virtual void	loadVisuals (const DtScenarioExplorer &)
virtual DtDynamicTerrainRequestHandle	addDynamicTerrainChangeRequest (double time, makVrv::DtDynamicTerrainChange *command)
virtual DtDynamicTerrainQueryHandle	queryDynamicTerrainFeatures (const DtDynamicTerrainQueryCallback &callback, makVrv::DtDynamicTerrainGeometry *geometry=0, bool useOriginalGeometry=false)
virtual void	queryCurrentDynamicTerrainFeatures (const DtDynamicTerrainQueryCallback &callback, makVrv::DtDynamicTerrainGeometry *geometry=0, bool useOriginalGeometry=false)
virtual void	cacheTerrainArea (int requestId, unsigned minLOD, unsigned maxLOD, const DtExtent &cacheArea, DtCacheProgressCallbackFunction fcn=0, void *usr=0)
virtual void	cancelCacheTerrainArea (int requestId)
virtual void	writeTerrainIndex (const DtString &name)
virtual void	addTerrainChangeNotificationCallback (DtTerrainChangeNotificationCallbackFcn fcn, void *user)
virtual void	removeTerrainChangeNotificationCallback (DtTerrainChangeNotificationCallbackFcn fcn, void *user)
virtual void	invokeTerrainChangeNotificationCallBacks ()
virtual void	blockOnPendingOperations ()
virtual void	setAssertOnBlockingTerrainCalls (bool assertBlock)
virtual bool	assertOnBlockingTerrainCalls () const
virtual void	setWarnOnBlockingTerrainCalls (bool warnBlock)
virtual bool	warnOnBlockingTerrainCalls () const

Public Attributes
boost::signals2::signal< void(bool)>	signal_terrainPaging

Protected Attributes
DtTerrainInterfaceConfig	myConfig
bool	myAssertOnBlockingTerrainCalls
bool	myWarnOnBlockingTerrainCalls
std::unique_ptr < MAKVRinTerra::DtFeatureDatabase >	myFeatureDatabase
std::unique_ptr < MAKVRinTerra::DtFeatureContext >	myFeatureContext
std::shared_ptr < MAKVRinTerra::DtAerodromeLoader >	myAerodromeLoader

Member Typedef Documentation

typedef boost::function<void (const makVrv::DtDynamicTerrainFeature&)> DtTerrainImplementation::DtDynamicTerrainQueryCallback

Constructor & Destructor Documentation

DtTerrainImplementation::DtTerrainImplementation

(

DtConsoleCommandManager *

cmdManager

)

virtual DtTerrainImplementation::~DtTerrainImplementation ( )

virtual

Member Function Documentation

virtual MAKVRinTerra::DtFeatureDatabase& DtTerrainImplementation::featureDatabase ( )

virtual

Access feature database.

Reimplemented in DtTerrainPassThroughLayer.

virtual const MAKVRinTerra::DtFeatureDatabase& DtTerrainImplementation::featureDatabase ( ) const

virtual

Reimplemented in DtTerrainPassThroughLayer.

virtual MAKVRinTerra::DtFeatureContext& DtTerrainImplementation::featureContext ( )

virtual

Access feature context.

Reimplemented in DtTerrainPassThroughLayer.

virtual const MAKVRinTerra::DtFeatureContext& DtTerrainImplementation::featureContext ( ) const

virtual

Reimplemented in DtTerrainPassThroughLayer.

virtual MAKVRinTerra::DtAerodromeLoader& DtTerrainImplementation::aerodromeLoader ( )

virtual

virtual const MAKVRinTerra::DtAerodromeLoader& DtTerrainImplementation::aerodromeLoader ( ) const

virtual

virtual void DtTerrainImplementation::cacheAerodromes ( )

virtual

Reimplemented in DtVantageTerrainImplementation.

virtual void DtTerrainImplementation::init ( )

virtual

Called immediately after creation.

Reimplemented in DtVantageTerrainImplementation.

virtual void DtTerrainImplementation::finishedLoading ( const MAKVRinTerra::DtProj &  proj )

virtual

Called after terrain loaded successfully.

Parameters

proj	DtProj object for local coordinate system.

virtual bool DtTerrainImplementation::loadTerrain ( const makArchives::DtGenericTerrainRecord &  rec )

pure virtual

Loads a terrain given the terrain record.

Implemented in DtVantageTerrainImplementation, DtTerrainPassThroughLayer, DtGdbTerrainImplementation, DtExtentTerrainImplementation, and DtEllipsoidTerrainImplementation.

virtual void DtTerrainImplementation::clearCache ( )

virtual

Tells the terrain implementation (if it cares) to clear any terrain cache it hold.

Reimplemented in DtVantageTerrainImplementation.

virtual void DtTerrainImplementation::shutdown ( bool  block = true )

virtual

Shutdown the terrain.

Reimplemented in DtVantageTerrainImplementation, and DtTerrainPassThroughLayer.

virtual const Coordinate_System* DtTerrainImplementation::coordinateSystem ( ) const

pure virtual

Implemented in DtVantageTerrainImplementation, DtTerrainPassThroughLayer, DtGdbTerrainImplementation, DtExtentTerrainImplementation, and DtEllipsoidTerrainImplementation.

virtual double DtTerrainImplementation::modelHeightDifferencesFromAppearances ( int  oldApp, int  newApp  ) const

virtual

If supported by the implementation, return the height difference from the currently loaded model as a transition from the old appearance to the new appearance.

Reimplemented in DtVantageTerrainImplementation.

virtual bool DtTerrainImplementation::createFromExtent ( const Dt3dBoundingVolume &  )

virtual

Creates an extent from the given extent. Not all implementations will support this.

Reimplemented in DtGdbTerrainImplementation.

virtual bool DtTerrainImplementation::loadModel ( const DtFilename &  , const DtEntityType &  t = DtEntityType()  )

virtual

Defaults to loading terrain for gdb. Supply option entity for for use by implementation to mutate loaded model based on appearance.

Reimplemented in DtVantageTerrainImplementation.

virtual DtTerrainInterfaceConfig& DtTerrainImplementation::configurationOptions ( )

virtual

virtual const DtTerrainInterfaceConfig& DtTerrainImplementation::configurationOptions ( ) const

virtual

virtual bool DtTerrainImplementation::chordIntersect ( DtTerrainIntersectStatus &  status, const DtChord &  chord, DtVrfChordIntersectionRecord &  record, const DtTerrainIntersectOptions &  options  ) const

pure virtual

Returns topmost intersection of chord with terrain in record.

Parameters

Input
chord	the chord to test
options	See DtTerrainIntersectOptions
Output
record	the results of the intersection
status	See DtTerrainIntersectStatus

Implemented in DtVantageTerrainImplementation, DtIntersectRecordPassThroughLayer, DtTerrainPassThroughLayer, DtGdbTerrainImplementation, DtExtentTerrainImplementation, DtEllipsoidTerrainImplementation, and DtIntersectTimerPassThroughLayer.

virtual bool DtTerrainImplementation::allIntersectsAlongChord ( DtTerrainIntersectStatus &  status, const DtChord &  chord, DtVrfChordIntersectRecordList &  intList, const DtTerrainIntersectOptions &  options  ) const

pure virtual

Returns all intersections of chord with terrain.

Parameters

Input
chord	the chord to test
options	See DtTerrainIntersectOptions
Output
intList	the results of the intersection
status	See DtTerrainIntersectStatus

Implemented in DtVantageTerrainImplementation, DtIntersectRecordPassThroughLayer, DtTerrainPassThroughLayer, DtGdbTerrainImplementation, DtExtentTerrainImplementation, DtEllipsoidTerrainImplementation, and DtIntersectTimerPassThroughLayer.

virtual void DtTerrainImplementation::preloadTerrainAreas ( const DtTerrainPagingGeometryList &  preloadGeometry )

inlinevirtual

Specifies a list of terrain areas that should be preloaded by the terrain implementation, in the case of a paging or streaming terrain source. The typical use of this is to specify parts of the terrain that are expected to be needed in the near future.

The terrain may not be loaded immediately upon making this call, and there is no guarantee that the terrain areas will be available for intersection immediately after making this call.

Parameters

preloadGeometry

A list of the geometric areas that should be preloaded. They can be specified using any of the subclasses of DtTerrainPagingGeometry.

Note

The geometry set with this call completely replaces any geometry previously set using this call.

The default implementation for this is a noop.

Reimplemented in DtVantageTerrainImplementation, and DtTerrainPassThroughLayer.

virtual bool DtTerrainImplementation::dataAvailable ( const DtTerrainPagingGeometryList &  geometry, DtTerrainIntersectOptions::Fidelity  = DtTerrainIntersectOptions::MAX_FIDELITY  )

inlinevirtual

Returns true if all of the terrain which intersects the geometry list is paged in.

Reimplemented in DtVantageTerrainImplementation.

virtual const DtTerrainCapabilities* DtTerrainImplementation::terrainCapabilities ( ) const

pure virtual

Returns

A DtTerrainCapabilites structure that describes the capabilities of the currently loaded terrain.

Implemented in DtVantageTerrainImplementation, DtTerrainPassThroughLayer, DtGdbTerrainImplementation, DtExtentTerrainImplementation, and DtEllipsoidTerrainImplementation.

virtual void DtTerrainImplementation::setAssertOnBlockingTerrainCalls ( bool  assertBlock )

virtual

Determines if an exception should be thrown if a blocking terrain call is made. This can help to track down blocking terrain calls which are causing problems with a running simulation. Note that calling the blocking form of any terrain intersection function will cause an assertion; it is not necessary for the call to actually block and even non-paging implementations will assert. This is done to make it easier to find potential problems regardless of the particular terrain or location being used.

Returns

myAssertOnBlockingTerrainCalls

virtual bool DtTerrainImplementation::assertOnBlockingTerrainCalls ( ) const

virtual

Determines if an exception should be thrown if a blocking terrain call is made. This can help to track down blocking terrain calls which are causing problems with a running simulation. Note that calling the blocking form of any terrain intersection function will cause an assertion; it is not necessary for the call to actually block and even non-paging implementations will assert. This is done to make it easier to find potential problems regardless of the particular terrain or location being used.

Returns

myAssertOnBlockingTerrainCalls

virtual void DtTerrainImplementation::setWarnOnBlockingTerrainCalls ( bool  warnBlock )

virtual

Determines if a warning should be printed out if a blocking terrain call is made.

virtual bool DtTerrainImplementation::warnOnBlockingTerrainCalls ( ) const

virtual

Determines if a warning should be printed out if a blocking terrain call is made.

virtual void DtTerrainImplementation::setIntersectDataLoadExpireTime ( const double &  expireTime )

inlinevirtual

No-op. Override to set the default expiration time for data load requests generated by intersect calls that require data that has not yet been loaded (paged-in).

Parameters

expireTime

The expiration time to be assigned to load data requests generated by intersect calls on the terrain implementation.

Reimplemented in DtVantageTerrainImplementation, and DtTerrainPassThroughLayer.

virtual void DtTerrainImplementation::expireDataLoadRequestsBeforeTime ( const double &  currentTime )

inlinevirtual

No-op. Override to expire data load requests generated before the given time. See comment for #setIntersectLoadDataExpireTime.

Parameters

currentTime

The time to compare to data load requests to determine if they should be expired rather than executed.

Reimplemented in DtVantageTerrainImplementation, and DtTerrainPassThroughLayer.

virtual void DtTerrainImplementation::processTrianglesInArea ( DtTriangleOutputInterface &  , const DtTerrainProcessPolygonsBox &  , DtTerrainCategoryMask  terrainCategoryMask  ) const

pure virtual

Implemented in DtVantageTerrainImplementation, DtTerrainPassThroughLayer, DtExtentTerrainImplementation, DtGdbTerrainImplementation, and DtEllipsoidTerrainImplementation.

virtual void DtTerrainImplementation::processTrianglesForGeometry ( DtTriangleOutputInterface &  , DtTerrainGeometryId    ) const

inlinevirtual

Reimplemented in DtVantageTerrainImplementation.

virtual DtTerrainInformation* DtTerrainImplementation::terrainInformation ( )

inlinevirtual

Return the terrain information pointer of the terrain implementation (null if none exist) this is a debug/optional function call (return null if not implemented)

Reimplemented in DtVantageTerrainImplementation, DtTerrainPassThroughLayer, DtGdbTerrainImplementation, and DtEllipsoidTerrainImplementation.

virtual void DtTerrainImplementation::breakUpChords ( const MAKVRinTerra::DtProj &  , const DtChord &  chord, std::vector< DtChord > &  chords  )

virtual

virtual bool DtTerrainImplementation::hasFeatureContext ( ) const

virtual

Returns true if there is an active feature context.

virtual DtTerrainGeometryHandle* DtTerrainImplementation::createEntityGeometry ( const DtFilename &  file )

inlinevirtual

Create geometry in the terrain which represents the entity.

Reimplemented in DtVantageTerrainImplementation.

virtual DtTerrainGeometryHandle* DtTerrainImplementation::createEntityGeometry ( const DtEntityType &  file )

inlinevirtual

Create geometry in the terrain which represents the entity by the given type, looking up visuals.

Reimplemented in DtVantageTerrainImplementation.

virtual void DtTerrainImplementation::loadVisuals ( const DtScenarioExplorer &  )

inlinevirtual

Tells the terrain implementation (if it cares) to load visuals to support terrain/model usage.

Reimplemented in DtVantageTerrainImplementation.

virtual DtDynamicTerrainRequestHandle DtTerrainImplementation::addDynamicTerrainChangeRequest ( double  time, makVrv::DtDynamicTerrainChange *  command  )

inlinevirtual

Add a dynamic terrain change request to the system.

Parameters

time	Time at which this request takes place.
command	Command which describes this change. Takes ownership.
geometry	Only change features which match this geometry. Takes ownership.

Return values

Handle

object for removing this request.

Reimplemented in DtVantageTerrainImplementation.

virtual DtDynamicTerrainQueryHandle DtTerrainImplementation::queryDynamicTerrainFeatures ( const DtDynamicTerrainQueryCallback &  callback, makVrv::DtDynamicTerrainGeometry *  geometry = 0, bool  useOriginalGeometry = false  )

inlinevirtual

Install a query which will call the supplied callback on matching dynamic terrain features as they are paged in. Callbacks can then be installed on the feature itself to monitor it for changes and page out.

Reimplemented in DtVantageTerrainImplementation.

virtual void DtTerrainImplementation::queryCurrentDynamicTerrainFeatures ( const DtDynamicTerrainQueryCallback &  callback, makVrv::DtDynamicTerrainGeometry *  geometry = 0, bool  useOriginalGeometry = false  )

inlinevirtual

Reimplemented in DtVantageTerrainImplementation.

virtual void DtTerrainImplementation::cacheTerrainArea ( int  requestId, unsigned  minLOD, unsigned  maxLOD, const DtExtent &  cacheArea, DtCacheProgressCallbackFunction  fcn = 0, void *  usr = 0  )

virtual

Call this to start the process of caching terrain data (if supported for the open terrain) using the given request id and extent. Note that the extent coordinates are in lat/lon degrees (not radians). The callback is given to give progress on the load.

Reimplemented in DtVantageTerrainImplementation, and DtTerrainPassThroughLayer.

virtual void DtTerrainImplementation::cancelCacheTerrainArea ( int  requestId )

virtual

Call this routine to cancel a potential cache in progress.

Reimplemented in DtVantageTerrainImplementation, DtExtentTerrainImplementation, and DtTerrainPassThroughLayer.

virtual void DtTerrainImplementation::writeTerrainIndex ( const DtString &  name )

virtual

Write terrain index.

Reimplemented in DtVantageTerrainImplementation.

virtual void DtTerrainImplementation::addTerrainChangeNotificationCallback ( DtTerrainChangeNotificationCallbackFcn  fcn, void *  user  )

virtual

Adds a terrain change notification callback.

Reimplemented in DtVantageTerrainImplementation.

virtual void DtTerrainImplementation::removeTerrainChangeNotificationCallback ( DtTerrainChangeNotificationCallbackFcn  fcn, void *  user  )

virtual

Removes terrain change notification callback.

Reimplemented in DtVantageTerrainImplementation.

virtual void DtTerrainImplementation::invokeTerrainChangeNotificationCallBacks ( )

virtual

Invokes terrain change notification callbacks.

Reimplemented in DtVantageTerrainImplementation.

virtual void DtTerrainImplementation::blockOnPendingOperations ( )

inlinevirtual

Reimplemented in DtVantageTerrainImplementation.

Member Data Documentation

boost::signals2::signal<void(bool)> DtTerrainImplementation::signal_terrainPaging

If the implementation is currently paging in terrain, this signal will be sent for the start/stop of terrain paging.

DtTerrainInterfaceConfig DtTerrainImplementation::myConfig

protected

bool DtTerrainImplementation::myAssertOnBlockingTerrainCalls

protected

Determines if an exception should be thrown if a blocking terrain call is made. This can help to track down blocking terrain calls which are causing problems with a running simulation.

bool DtTerrainImplementation::myWarnOnBlockingTerrainCalls

protected

std::unique_ptr<MAKVRinTerra::DtFeatureDatabase> DtTerrainImplementation::myFeatureDatabase

protected

std::unique_ptr<MAKVRinTerra::DtFeatureContext> DtTerrainImplementation::myFeatureContext

protected

std::shared_ptr<MAKVRinTerra::DtAerodromeLoader> DtTerrainImplementation::myAerodromeLoader

protected

---

The documentation for this class was generated from the following file:

• /data/exports/nrhent7-1/nightly/docs/vrForces.vrf5-2-branch/include/terrainInterface/terrainImplementation.h
