A widget class for encapsulating radio commands for tasks or sets.

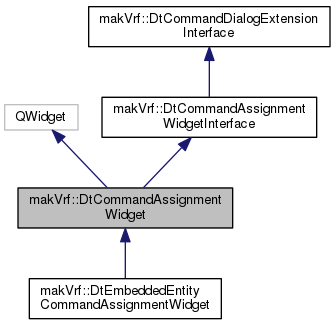

Inheritance diagram for makVrf::DtCommandAssignmentWidget:

Public Slots
virtual void	onCancel () override

virtual void	onPickOK ()

Signals
void	unlockPlan ()

Public Member Functions
	DtCommandAssignmentWidget (makVrv::DtDe &de, DtCommandDialogExtensionInterface , QWidget parent=0, Qt::WindowFlags flags=Qt::Dialog\|Qt::CustomizeWindowHint\|Qt::WindowTitleHint, int partOfPlan=false)

virtual	~DtCommandAssignmentWidget () override

virtual void	run (const std::set< makVrv::DtUniqueID > &) override

virtual void	setupUi (const std::set< makVrv::DtUniqueID > &, const DtSimStatement *stmt=NULL) override

virtual void	connectSignals (const std::set< makVrv::DtUniqueID > &) override

virtual void	selectionChanged (const DtUUID &selection) override

virtual bool	insertMapFocusHandler (DtMapFocusHandlerInterface *, int index=-1) override

virtual void	setPartOfPlan (int b) override

virtual void	setBroadcastTitle (const QString &) override

virtual DtCommandDialogExtensionInterface *	extension () override

virtual QWidget *	takeOKCancelButtonCanvas (QWidget *newParent) override

virtual void	giveOKCancelButtonCanvas (QWidget *) override

virtual bool	alwaysPopOut () const override

virtual bool	okEnabled () const override

virtual void	setReadOnlyMode (bool b) override

Public Member Functions inherited from makVrf::DtCommandAssignmentWidgetInterface
	DtCommandAssignmentWidgetInterface ()

virtual	~DtCommandAssignmentWidgetInterface () override

void	setParentMenu (DtVrfTaskSetMenu *p)

void	setParentContainer (DtCommandAssignmentWidgetInterface *p)

DtCommandAssignmentWidgetInterface *	parentContainer ()

void	setAllowExtensionChange (bool b)

bool	allowExtensionChange () const

virtual const std::set < makVrv::DtUniqueID > &	connectedTo () const =0

Public Member Functions inherited from makVrf::DtCommandDialogExtensionInterface
virtual	~DtCommandDialogExtensionInterface ()

virtual bool	initiallyBroadcast () const

virtual bool	allowBroadcasting () const

virtual bool	hasUserEntry () const

virtual QString	entitySelectionGroupBoxTitle () const

virtual void	filterAboutToBeAdded (DtVrfSelectionFilter *)

virtual void	parentShown (QWidget *)

virtual void	onCancel ()=0

virtual makVrv::DtUnicode	broadcastTitle () const

Public Attributes
DtCommandDialogExtensionInterface *	myExtension

QSplitter *	mySplitter

QWidget *	myOriginalExtensionParent

QCheckBox *	myBroadcast

QWidget *	myEntitySelectionGroupBox

QLabel *	myEntitySelectionGroupBoxLabel

QFrame *	myEntitySelectionGroupBoxLine

DtVrfFilteredListView *	myEntitySelectionWidget

QVBoxLayout *	myMasterLayout

QVBoxLayout *	myWidgetLayout

QFrame *	mySeparator

QWidget *	myOKCancelButtonCanvas

QHBoxLayout *	myButtonLayout

QSpacerItem *	myButtonSpacer

QPushButton *	myOKButton

QToolButton *	myLockButton

QPushButton *	myCancelButton

Public Attributes inherited from makVrf::DtCommandAssignmentWidgetInterface
boost::signals2::signal< void(const std::set< makVrv::DtUniqueID > &)>	signal_stopWatching

boost::signals2::signal< void(DtCommandAssignmentWidgetInterface *)>	signal_dialogDestroyed

Public Attributes inherited from makVrf::DtCommandDialogExtensionInterface
boost::signals2::signal< void()>	signal_cancelled

boost::signals2::signal< void(bool)>	signal_enableCommandModeSelection

boost::signals2::signal< void(bool)>	signal_validStateChanged

boost::signals2::signal< void(bool)>	signal_disableCancel

boost::signals2::signal< void(std::vector < DtUUID > names, const DtSetDataRequest &)>	signal_sendSetRequest

boost::signals2::signal< void(std::vector < DtUUID > names, const DtSimTask &)>	signal_sendTaskRequest

boost::signals2::signal< void(const DtSimCommandObjectWrapper &)>	signal_sendCommandRequest

boost::signals2::signal< void(const std::vector< DtUUID > &, const DtSimTask &, DtVrfTaskSetMenu *)>	signal_commandActivated

boost::signals2::signal< void(const DtSimCommandObjectWrapper &)>	signal_simCommandActivated

boost::signals2::signal< void(const std::set< makVrv::DtUniqueID > &)>	signal_stopWatching

Protected Slots
virtual void	onBroadcastChanged ()

virtual const std::set < makVrv::DtUniqueID > &	connectedTo () const override

Protected Member Functions
virtual QWidget *	widget () override

virtual void	setAllowBroadcast (bool) override

virtual bool	broadcasting () const override

virtual void	setBroadcasting (bool) override

virtual void	enableEntitySelectionWidget (bool) override

virtual std::vector< std::string >	commandDialogFiltersFor (const std::set< makVrv::DtUniqueID > &data, const DtSimStatement *stmt, int &initialSelection) const override

virtual void	addFilter (const DtVrfSelectionFilter *filter) override

virtual void	setSelectedName (const DtUUID &) override

virtual DtUUID	selectedName () const override

virtual void	selectFilter (int) override

virtual void	selectFirstNonEmptyFilter () override

virtual void	setApplyVisible (bool) override

virtual void	setOKEnabled (bool) override

virtual void	setCancelEnabled (bool) override

virtual void	setCancelButtonText (const QString &) override

virtual bool	extensionValid () const override

virtual void	initializeFromAction (DtVrfTaskSetAction *) override

virtual void	commandActivated (const DtSimTask &, const std::vector< DtUUID > &, bool immediate) override

virtual void	commandActivated (const DtSimCommandObjectWrapper &, bool immediate) override

virtual QWidget *	sizeToParent () const

virtual void	closeEvent (QCloseEvent *) override

virtual void	changeEvent (QEvent *event) override

virtual void	slot_objectAboutToBeRemoved (DtSimObjectReference)

virtual void	attachExtension (const std::set< makVrv::DtUniqueID > &data, DtCommandDialogExtensionInterface , const DtSimStatement stmt=NULL)

virtual void	detachExtension ()

virtual void	setPickMode (bool)

virtual bool	editStatement (const std::set< makVrv::DtUniqueID > &, const DtSimStatement *) override

virtual std::vector < DtSimObjectReference >	selectedObjects () const override

virtual void	setAllowObjectSelection (bool b) override

virtual bool	canSelectObjects () const override

virtual bool	wantsSelectionOfObjectInCommandMode (const std::set< makVrv::DtUniqueID > &) const override

virtual bool	valid () const override

virtual void	setupFrom (const std::set< makVrv::DtUniqueID > &) override

virtual void	unknownObjectSelected (const DtUUID &) override

virtual void	noObjectsSelected () override

virtual void	onOK () override

virtual void	hideButtons (bool) override

virtual void	showEvent (QShowEvent *) override

Protected Attributes
makVrv::DtDe &	myDe

DtCommandAssignmentWidgetLogic *	myLogic

int	myPartOfPlan

std::set< makVrv::DtUniqueID >	myConnectedTo

DtSimTask *	myImmediateTask

std::vector< DtUUID >	myImmediateNames

DtSimCommandObjectWrapper *	myCommandObjectWrapper

DtCommandDialogExtensionInterface *	myInitialExtension

QString	myBroadcastTitle

makVrv::DtSignalConnectionManager	myConnections

bool	myReadOnlyMode = false

bool	myOKEnabled = false

DtMapFocusHandler	myMapFocusHandler

bool	mySignaled = false

Protected Attributes inherited from makVrf::DtCommandAssignmentWidgetInterface
DtVrfTaskSetMenu *	myTaskSetMenu

DtCommandAssignmentWidgetInterface *	myParentContainer

bool	myAllowExtensionChange

Constructor & Destructor Documentation

makVrf::DtCommandAssignmentWidget::DtCommandAssignmentWidget	(	makVrv::DtDe &	de,
		DtCommandDialogExtensionInterface *	,
		QWidget *	parent = `0`,
		Qt::WindowFlags	flags = `Qt::Dialog\|Qt::CustomizeWindowHint\|Qt::WindowTitleHint`,
		int	partOfPlan = `false`
	)

CTOR.

virtual makVrf::DtCommandAssignmentWidget::~DtCommandAssignmentWidget ( )

overridevirtual

DTOR.

Member Function Documentation

virtual void makVrf::DtCommandAssignmentWidget::run ( const std::set< makVrv::DtUniqueID > & )

overridevirtual

Override to run the dialog. Supplies data of entities that are selected for this dialog.

Implements makVrf::DtCommandDialogExtensionInterface.

virtual void makVrf::DtCommandAssignmentWidget::setupUi	(	const std::set< makVrv::DtUniqueID > &	,
		const DtSimStatement *	stmt = `NULL`
	)

overridevirtual

Sets up the UI.

Implements makVrf::DtCommandAssignmentWidgetInterface.

Reimplemented in makVrf::DtEmbeddedEntityCommandAssignmentWidget.

virtual void makVrf::DtCommandAssignmentWidget::connectSignals ( const std::set< makVrv::DtUniqueID > & )

overridevirtual

Call to remove dialog if an entity is destroyed that is part of the supplied list.

Implements makVrf::DtCommandAssignmentWidgetInterface.

virtual void makVrf::DtCommandAssignmentWidget::selectionChanged ( const DtUUID & selection )

overridevirtual

Called when myEntitySelectionWidget selection has changed. Checks if there is an extension dialog associated with this widget and if so calls down to it's selectionChanged. This allows the command widget to share selection changes with its extension when needed.

Implements makVrf::DtCommandDialogExtensionInterface.

virtual bool makVrf::DtCommandAssignmentWidget::insertMapFocusHandler	(	DtMapFocusHandlerInterface *	,
		int	index = `-1`
	)

overridevirtual

If a dialog has manages map focus handlers, inserts this map focus handler into the chain. Will call the initial extension to do the work. Will return true if inserted into focus chain.

Implements makVrf::DtCommandDialogExtensionInterface.

Reimplemented in makVrf::DtEmbeddedEntityCommandAssignmentWidget.

virtual void makVrf::DtCommandAssignmentWidget::setPartOfPlan ( int b )

inlineoverridevirtual

0 - Not part of plan dialog 1 - Part of plan dialog 2 - Part of command widget

Implements makVrf::DtCommandAssignmentWidgetInterface.

virtual void makVrf::DtCommandAssignmentWidget::setBroadcastTitle ( const QString & )

overridevirtual

Implements makVrf::DtCommandAssignmentWidgetInterface.

virtual DtCommandDialogExtensionInterface* makVrf::DtCommandAssignmentWidget::extension ( )

overridevirtual

Implements makVrf::DtCommandAssignmentWidgetInterface.

virtual QWidget* makVrf::DtCommandAssignmentWidget::takeOKCancelButtonCanvas ( QWidget * newParent )

overridevirtual

This will return the OK/Cancel cavas that the current OK/Cancel buttons are on. You can use this to reparent to another widget.

Implements makVrf::DtCommandDialogExtensionInterface.

virtual void makVrf::DtCommandAssignmentWidget::giveOKCancelButtonCanvas ( QWidget * )

overridevirtual

Gives the canvas back to this widget.

Implements makVrf::DtCommandDialogExtensionInterface.

virtual bool makVrf::DtCommandAssignmentWidget::alwaysPopOut ( ) const

overridevirtual

Check extension, if it exists, to see if it wants to pop out.

Reimplemented from makVrf::DtCommandDialogExtensionInterface.

virtual bool makVrf::DtCommandAssignmentWidget::okEnabled ( ) const

overridevirtual

Whether or not the OK button is enabled.

Implements makVrf::DtCommandDialogExtensionInterface.

virtual void makVrf::DtCommandAssignmentWidget::setReadOnlyMode ( bool b )

overridevirtual

Implements makVrf::DtCommandAssignmentWidgetInterface.

void makVrf::DtCommandAssignmentWidget::unlockPlan ( )

signal

virtual QWidget* makVrf::DtCommandAssignmentWidget::widget ( )

inlineoverrideprotectedvirtual

Returns the widget.

Implements makVrf::DtCommandDialogExtensionInterface.

virtual void makVrf::DtCommandAssignmentWidget::setAllowBroadcast ( bool )

overrideprotectedvirtual

Implements makVrf::DtCommandAssignmentWidgetInterface.

Reimplemented in makVrf::DtEmbeddedEntityCommandAssignmentWidget.

virtual bool makVrf::DtCommandAssignmentWidget::broadcasting ( ) const

overrideprotectedvirtual

Implements makVrf::DtCommandAssignmentWidgetInterface.

virtual void makVrf::DtCommandAssignmentWidget::setBroadcasting ( bool )

overrideprotectedvirtual

Implements makVrf::DtCommandAssignmentWidgetInterface.

virtual void makVrf::DtCommandAssignmentWidget::enableEntitySelectionWidget ( bool )

overrideprotectedvirtual

Implements makVrf::DtCommandAssignmentWidgetInterface.

virtual std::vector<std::string> makVrf::DtCommandAssignmentWidget::commandDialogFiltersFor	(	const std::set< makVrv::DtUniqueID > &	data,
		const DtSimStatement *	stmt,
		int &	initialSelection
	)		const

overrideprotectedvirtual

If part of a command dialog the filters to use for the command dialog selection.

Implements makVrf::DtCommandDialogExtensionInterface.

Reimplemented in makVrf::DtEmbeddedEntityCommandAssignmentWidget.

virtual void makVrf::DtCommandAssignmentWidget::addFilter ( const DtVrfSelectionFilter * filter )

overrideprotectedvirtual

Implements makVrf::DtCommandAssignmentWidgetInterface.

virtual void makVrf::DtCommandAssignmentWidget::setSelectedName ( const DtUUID & )

overrideprotectedvirtual

Implements makVrf::DtCommandAssignmentWidgetInterface.

virtual DtUUID makVrf::DtCommandAssignmentWidget::selectedName ( ) const

overrideprotectedvirtual

Implements makVrf::DtCommandAssignmentWidgetInterface.

virtual void makVrf::DtCommandAssignmentWidget::selectFilter ( int )

overrideprotectedvirtual

Implements makVrf::DtCommandAssignmentWidgetInterface.

virtual void makVrf::DtCommandAssignmentWidget::selectFirstNonEmptyFilter ( )

overrideprotectedvirtual

Implements makVrf::DtCommandAssignmentWidgetInterface.

virtual void makVrf::DtCommandAssignmentWidget::setApplyVisible ( bool )

overrideprotectedvirtual

No-op. No apply button for this widget.

Implements makVrf::DtCommandDialogExtensionInterface.

virtual void makVrf::DtCommandAssignmentWidget::setOKEnabled ( bool )

overrideprotectedvirtual

Sets whether or not the OK button is enabled.

Implements makVrf::DtCommandDialogExtensionInterface.

virtual void makVrf::DtCommandAssignmentWidget::setCancelEnabled ( bool )

overrideprotectedvirtual

Sets whether or not the Cancel button is enabled.

Implements makVrf::DtCommandDialogExtensionInterface.

virtual void makVrf::DtCommandAssignmentWidget::setCancelButtonText ( const QString & )

overrideprotectedvirtual

Sets the Cancel button text.

Implements makVrf::DtCommandDialogExtensionInterface.

virtual bool makVrf::DtCommandAssignmentWidget::extensionValid ( ) const

overrideprotectedvirtual

Implements makVrf::DtCommandAssignmentWidgetInterface.

virtual void makVrf::DtCommandAssignmentWidget::initializeFromAction ( DtVrfTaskSetAction * )

overrideprotectedvirtual

Called to initialize from the given action.

Implements makVrf::DtCommandAssignmentWidgetInterface.

virtual void makVrf::DtCommandAssignmentWidget::commandActivated	(	const DtSimTask &	,
		const std::vector< DtUUID > &	,
		bool	immediate
	)

overrideprotectedvirtual

If immediate is true, puts command assignment widget into pick mode before finishing command activated code. Pick mode will create ok and cancel buttons. The ok and cancel buttons of this class will be NULL unless in pick mode.

Implements makVrf::DtCommandAssignmentWidgetInterface.

virtual void makVrf::DtCommandAssignmentWidget::commandActivated	(	const DtSimCommandObjectWrapper &	,
		bool	immediate
	)

overrideprotectedvirtual

Implements makVrf::DtCommandAssignmentWidgetInterface.

virtual QWidget* makVrf::DtCommandAssignmentWidget::sizeToParent ( ) const

protectedvirtual

virtual void makVrf::DtCommandAssignmentWidget::closeEvent ( QCloseEvent * )

overrideprotectedvirtual

virtual void makVrf::DtCommandAssignmentWidget::changeEvent ( QEvent * event )

overrideprotectedvirtual

virtual void makVrf::DtCommandAssignmentWidget::slot_objectAboutToBeRemoved ( DtSimObjectReference )

protectedvirtual

virtual void makVrf::DtCommandAssignmentWidget::attachExtension	(	const std::set< makVrv::DtUniqueID > &	data,
		DtCommandDialogExtensionInterface *	,
		const DtSimStatement *	stmt = `NULL`
	)

protectedvirtual

Reimplemented in makVrf::DtEmbeddedEntityCommandAssignmentWidget.

virtual void makVrf::DtCommandAssignmentWidget::detachExtension ( )

protectedvirtual

virtual void makVrf::DtCommandAssignmentWidget::setPickMode ( bool )

protectedvirtual

virtual bool makVrf::DtCommandAssignmentWidget::editStatement	(	const std::set< makVrv::DtUniqueID > &	,
		const DtSimStatement *
	)

overrideprotectedvirtual

Edits the current statement. Return true if the statement can be edited.

Implements makVrf::DtCommandAssignmentWidgetInterface.

virtual std::vector<DtSimObjectReference> makVrf::DtCommandAssignmentWidget::selectedObjects ( ) const

overrideprotectedvirtual

Implements makVrf::DtCommandAssignmentWidgetInterface.

virtual void makVrf::DtCommandAssignmentWidget::setAllowObjectSelection ( bool b )

overrideprotectedvirtual

If false will hide broadcast and object selection.

Implements makVrf::DtCommandAssignmentWidgetInterface.

virtual bool makVrf::DtCommandAssignmentWidget::canSelectObjects ( ) const

overrideprotectedvirtual

Implements makVrf::DtCommandAssignmentWidgetInterface.

virtual bool makVrf::DtCommandAssignmentWidget::wantsSelectionOfObjectInCommandMode ( const std::set< makVrv::DtUniqueID > & ) const

overrideprotectedvirtual

Override to return false if, when this task is used as part of a simulation command, it does not want to allow to choose an object to apply the command to. Calls down to logic with method of same name.

Implements makVrf::DtCommandDialogExtensionInterface.

virtual bool makVrf::DtCommandAssignmentWidget::valid ( ) const

overrideprotectedvirtual

Override to return whether or not extension is valid.

Implements makVrf::DtCommandDialogExtensionInterface.

virtual void makVrf::DtCommandAssignmentWidget::setupFrom ( const std::set< makVrv::DtUniqueID > & )

overrideprotectedvirtual

Sets up the extension for the given entries.

Implements makVrf::DtCommandDialogExtensionInterface.

virtual void makVrf::DtCommandAssignmentWidget::unknownObjectSelected ( const DtUUID & )

overrideprotectedvirtual

Sets up from an empty set.

Implements makVrf::DtCommandAssignmentWidgetInterface.

virtual void makVrf::DtCommandAssignmentWidget::noObjectsSelected ( )

overrideprotectedvirtual

Called when no objects are selected.

Implements makVrf::DtCommandAssignmentWidgetInterface.

virtual void makVrf::DtCommandAssignmentWidget::onOK ( )

overrideprotectedvirtual

Implements makVrf::DtCommandDialogExtensionInterface.

virtual void makVrf::DtCommandAssignmentWidget::hideButtons ( bool )

inlineoverrideprotectedvirtual

If OK and Cancel buttons are present, hide them (or not)

Implements makVrf::DtCommandDialogExtensionInterface.

virtual void makVrf::DtCommandAssignmentWidget::showEvent ( QShowEvent * )

overrideprotectedvirtual

virtual void makVrf::DtCommandAssignmentWidget::onCancel ( )

overridevirtualslot

Emits cancel signal and closes dialog.

virtual void makVrf::DtCommandAssignmentWidget::onPickOK ( )

virtualslot

Only used in pick mode.

virtual void makVrf::DtCommandAssignmentWidget::onBroadcastChanged ( )

protectedvirtualslot

Calls down to logic to let it know the broadcast value has changed.

virtual const std::set<makVrv::DtUniqueID>& makVrf::DtCommandAssignmentWidget::connectedTo ( ) const

inlineoverrideprotectedvirtualslot

Member Data Documentation

makVrv::DtDe& makVrf::DtCommandAssignmentWidget::myDe

protected

DtCommandAssignmentWidgetLogic* makVrf::DtCommandAssignmentWidget::myLogic

protected

int makVrf::DtCommandAssignmentWidget::myPartOfPlan

protected

std::set<makVrv::DtUniqueID> makVrf::DtCommandAssignmentWidget::myConnectedTo

protected

DtSimTask* makVrf::DtCommandAssignmentWidget::myImmediateTask

protected

std::vector<DtUUID> makVrf::DtCommandAssignmentWidget::myImmediateNames

protected

DtSimCommandObjectWrapper* makVrf::DtCommandAssignmentWidget::myCommandObjectWrapper

protected

DtCommandDialogExtensionInterface* makVrf::DtCommandAssignmentWidget::myInitialExtension

protected

QString makVrf::DtCommandAssignmentWidget::myBroadcastTitle

protected

makVrv::DtSignalConnectionManager makVrf::DtCommandAssignmentWidget::myConnections

protected

bool makVrf::DtCommandAssignmentWidget::myReadOnlyMode = false

protected

bool makVrf::DtCommandAssignmentWidget::myOKEnabled = false

protected

DtMapFocusHandler makVrf::DtCommandAssignmentWidget::myMapFocusHandler

protected

bool makVrf::DtCommandAssignmentWidget::mySignaled = false

protected

DtCommandDialogExtensionInterface* makVrf::DtCommandAssignmentWidget::myExtension

QSplitter* makVrf::DtCommandAssignmentWidget::mySplitter

QWidget* makVrf::DtCommandAssignmentWidget::myOriginalExtensionParent

QCheckBox* makVrf::DtCommandAssignmentWidget::myBroadcast

QWidget* makVrf::DtCommandAssignmentWidget::myEntitySelectionGroupBox

QLabel* makVrf::DtCommandAssignmentWidget::myEntitySelectionGroupBoxLabel

QFrame* makVrf::DtCommandAssignmentWidget::myEntitySelectionGroupBoxLine

DtVrfFilteredListView* makVrf::DtCommandAssignmentWidget::myEntitySelectionWidget

QVBoxLayout* makVrf::DtCommandAssignmentWidget::myMasterLayout

QVBoxLayout* makVrf::DtCommandAssignmentWidget::myWidgetLayout

QFrame* makVrf::DtCommandAssignmentWidget::mySeparator

QWidget* makVrf::DtCommandAssignmentWidget::myOKCancelButtonCanvas

QHBoxLayout* makVrf::DtCommandAssignmentWidget::myButtonLayout

QSpacerItem* makVrf::DtCommandAssignmentWidget::myButtonSpacer

QPushButton* makVrf::DtCommandAssignmentWidget::myOKButton

QToolButton* makVrf::DtCommandAssignmentWidget::myLockButton

QPushButton* makVrf::DtCommandAssignmentWidget::myCancelButton

The documentation for this class was generated from the following file:

/data/exports/nrhent7-1/nightly/docs/vrForces.vrf5-2-branch/include/vrfGuiTaskSetQt/commandAssignmentWidget.h

Public Slots

Signals

Public Member Functions

Public Attributes

Protected Slots

Protected Member Functions

Protected Attributes

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
