makVrf::DtSimpleVariableWidget Class Reference

These classes will define simple data entry widgets that can be used in scripted (or other) tasks.

Related Examples

• Add Set Encumbrance
• Add Set

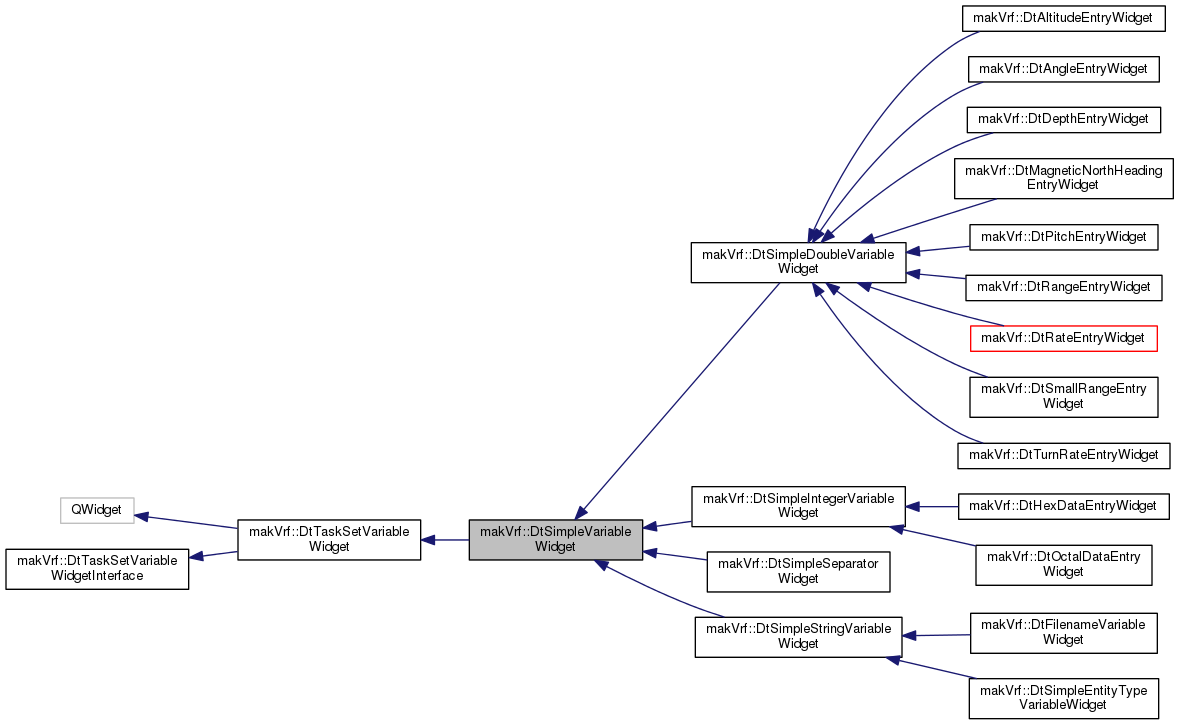

Inheritance diagram for makVrf::DtSimpleVariableWidget:

Public Slots
virtual void	setText (const QString &)
virtual void	validateTextByEdit (const QString &)
virtual void	validateTextByChange (const QString &)

Signals
void	textChanged (const QString &)
void	textEdited (const QString &)
Signals inherited from makVrf::DtTaskSetVariableWidget
void	validityUpdated ()

Public Member Functions
	DtSimpleVariableWidget (makVrv::DtDe &de, QWidget *parent, const Qt::WindowFlags &flags=0, const CreationFlags &cflags=NormalMode)
virtual	~DtSimpleVariableWidget () override
virtual void	setLabel (const std::string &) override
virtual void	setDefaultValue (const std::string &) override
virtual void	setLabel (const QString &) override
virtual QString	label () const override
virtual QString	text () const
virtual void	setShowWarningLabel (bool b)
virtual bool	showWarningLabel () const
virtual void	setEntryInvalid (bool b)
virtual bool	isValid () const override
virtual bool	checkValidity (const QString &)
Public Member Functions inherited from makVrf::DtTaskSetVariableWidget
	DtTaskSetVariableWidget (makVrv::DtDe &de, QWidget *parent, const Qt::WindowFlags &flags=0, const CreationFlags &cflags=NormalMode)
virtual	~DtTaskSetVariableWidget () override
virtual void	setToolTip (const QString &) override
virtual void	setVariableData (const std::string &) override
virtual void	setVariableData (const QString &)
virtual QString	variableData () const
virtual void	setupFrom (const std::set< makVrv::DtUniqueID > &) override
virtual void	setIsInternal (bool)
virtual bool	isInternal () const
virtual void	setTopLineVisible (bool) override
virtual bool	topLineVisible () const override
virtual void	createTopLine ()
virtual void	setIndent (int) override
virtual int	indent () const
virtual void	setTopLabelChecked (bool)
virtual bool	topLabelChecked () const
virtual void	setRange (double, double) override
virtual void	setRange (const DtRange &)
virtual void	setRangeTop (double)
virtual void	setRangeTop (int)
virtual double	rangeTop () const
virtual void	setRangeBottom (double)
virtual void	setRangeBottom (int)
virtual double	rangeBottom () const
virtual const DtRange &	getRange () const
virtual void	setTopLabelIsCheckable (bool)
virtual bool	topLabelIsCheckable () const
virtual void	getDefaultSpecificTitles (QString &defaultTitle, QString &specificTitle) const
virtual void	setDefaultSpecificTitles (const QString &defaultTitle, const QString &specificTitle)
virtual void	setupDefaultSpecificFromVariableData (const DtString &var)
virtual std::string	variableDataFromUiDesigner (const QDomElement &, const DtScriptedTaskVariableLayoutConverter &) const override
virtual std::string	scriptedTaskVariableName () const override
virtual void	setSelection (const std::set< makVrv::DtUniqueID > &selection) override
virtual const std::set < makVrv::DtUniqueID > &	selection () const override
virtual void	setDefaultValueFromStateProperty (const DtPropertyInterface &) override
Public Member Functions inherited from makVrf::DtTaskSetVariableWidgetInterface
	DtTaskSetVariableWidgetInterface ()
virtual	~DtTaskSetVariableWidgetInterface ()
virtual void	widgetInitializedForDialog (DtScriptedTaskDialog *, const std::set< makVrv::DtUniqueID > &data)
virtual DtReaderWriter *	createBoundVariable (const std::string &variableName)=0
virtual void	setupFromBoundVariable (const DtReaderWriter *variableName)=0
virtual DtTaskSetVariableWidgetExtensionInterface *	parameterContents (QWidget *parent, const Qt::WindowFlags &flags=0) const
virtual bool	guiElementOnly () const

Public Attributes
boost::signals2::signal< void(bool)>	signal_validityChanged
QHBoxLayout *	myLayout
QHBoxLayout *	myValueLayout
QLabel *	myLabel
QLineEdit *	myValue
QWidget *	myValueCanvas
QLabel *	myWarningLabel
Public Attributes inherited from makVrf::DtTaskSetVariableWidget
boost::signals2::signal< void(bool)>	signal_topLevelCheckStateChanged
int	myIndent
QVBoxLayout *	myVariableWidgetLayout
QHBoxLayout *	mySpacedLayout
QVBoxLayout *	myVariableContentLayout
QWidget *	myTopLine
QLabel *	myTopLabel
QWidget *	myChoiceCanvas
QRadioButton *	myUseDefault
QRadioButton *	myUseSpecific
QSpacerItem *	myTopSeparator
QHBoxLayout *	myTopLineLayout
QSpacerItem *	mySpacerItem

Protected Attributes
bool	myShowWarningLabel = true
bool	myEntryInvalid = false
Protected Attributes inherited from makVrf::DtTaskSetVariableWidget
makVrv::DtDe &	myDe
makVrv::DtSignalConnectionManager	myConnections
bool	myTopLabelIsCheckable
DtRange	myRange
bool	myIsInternal
CreationFlags	myCreationFlags
QString	myVariableData
std::set< makVrv::DtUniqueID >	mySelection

Additional Inherited Members
Public Types inherited from makVrf::DtTaskSetVariableWidgetInterface
enum	CreationFlags { NormalMode = 0x00000000, QtDesignerMode = 0x00000001 }
Static Public Member Functions inherited from makVrf::DtTaskSetVariableWidget
static bool	includeInQtDesigner ()
Static Public Member Functions inherited from makVrf::DtTaskSetVariableWidgetInterface
static bool	canBeUsedAsWidget ()
static void	initializeForQtDesignerExtension (makVrv::DtDe &de, QDesignerFormEditorInterface *core)
static bool	includeInQtDesigner ()
Protected Slots inherited from makVrf::DtTaskSetVariableWidget
virtual void	topLabelCheckStateChanged ()
Protected Member Functions inherited from makVrf::DtTaskSetVariableWidget
virtual void	selectionChanged (const std::set< makVrv::DtUniqueID > &oldSelection)
Properties inherited from makVrf::DtTaskSetVariableWidget
QString	label
bool	isInternal
int	indent
QString	variableData

Constructor & Destructor Documentation

makVrf::DtSimpleVariableWidget::DtSimpleVariableWidget	(	makVrv::DtDe &	de,
		QWidget *	parent,
		const Qt::WindowFlags &	flags = 0,
		const CreationFlags &	cflags = NormalMode
	)

virtual makVrf::DtSimpleVariableWidget::~DtSimpleVariableWidget ( )

overridevirtual

Member Function Documentation

virtual void makVrf::DtSimpleVariableWidget::setLabel ( const std::string &  )

overridevirtual

Display label.

Reimplemented from makVrf::DtTaskSetVariableWidget.

virtual void makVrf::DtSimpleVariableWidget::setDefaultValue ( const std::string &  )

overridevirtual

Default value to set in control.

Implements makVrf::DtTaskSetVariableWidgetInterface.

Reimplemented in makVrf::DtSimpleEntityTypeVariableWidget, makVrf::DtSimpleDoubleVariableWidget, makVrf::DtSimpleIntegerVariableWidget, makVrf::DtSimpleSeparatorWidget, makVrf::DtOctalDataEntryWidget, makVrf::DtRateEntryWidget, makVrf::DtMagneticNorthHeadingEntryWidget, makVrf::DtRangeEntryWidget, makVrf::DtSmallRangeEntryWidget, makVrf::DtAltitudeEntryWidget, makVrf::DtAngleEntryWidget, makVrf::DtDepthEntryWidget, makVrf::DtTurnRateEntryWidget, makVrf::DtHexDataEntryWidget, and makVrf::DtPitchEntryWidget.

virtual void makVrf::DtSimpleVariableWidget::setLabel ( const QString &  )

overridevirtual

QString version for property.

Reimplemented from makVrf::DtTaskSetVariableWidget.

Reimplemented in makVrf::DtMagneticNorthHeadingEntryWidget, makVrf::DtRateEntryWidget, makVrf::DtRangeEntryWidget, makVrf::DtSmallRangeEntryWidget, makVrf::DtAltitudeEntryWidget, makVrf::DtAngleEntryWidget, makVrf::DtDepthEntryWidget, makVrf::DtTurnRateEntryWidget, and makVrf::DtPitchEntryWidget.

virtual QString makVrf::DtSimpleVariableWidget::label ( ) const

overridevirtual

Reimplemented from makVrf::DtTaskSetVariableWidget.

Reimplemented in makVrf::DtRateEntryWidget, makVrf::DtRangeEntryWidget, makVrf::DtSmallRangeEntryWidget, makVrf::DtAltitudeEntryWidget, makVrf::DtAngleEntryWidget, makVrf::DtDepthEntryWidget, makVrf::DtTurnRateEntryWidget, and makVrf::DtPitchEntryWidget.

virtual QString makVrf::DtSimpleVariableWidget::text ( ) const

virtual

virtual void makVrf::DtSimpleVariableWidget::setShowWarningLabel ( bool  b )

virtual

virtual bool makVrf::DtSimpleVariableWidget::showWarningLabel ( ) const

inlinevirtual

virtual void makVrf::DtSimpleVariableWidget::setEntryInvalid ( bool  b )

virtual

virtual bool makVrf::DtSimpleVariableWidget::isValid ( ) const

overridevirtual

Indicates the current selection is valid.

Reimplemented from makVrf::DtTaskSetVariableWidget.

Reimplemented in makVrf::DtSimpleSeparatorWidget.

virtual bool makVrf::DtSimpleVariableWidget::checkValidity ( const QString &  )

virtual

Default just returns true.

Reimplemented in makVrf::DtSimpleDoubleVariableWidget, makVrf::DtSimpleIntegerVariableWidget, and makVrf::DtHexDataEntryWidget.

virtual void makVrf::DtSimpleVariableWidget::setText ( const QString &  )

virtualslot

virtual void makVrf::DtSimpleVariableWidget::validateTextByEdit ( const QString &  )

virtualslot

virtual void makVrf::DtSimpleVariableWidget::validateTextByChange ( const QString &  )

virtualslot

void makVrf::DtSimpleVariableWidget::textChanged ( const QString &  )

signal

void makVrf::DtSimpleVariableWidget::textEdited ( const QString &  )

signal

Member Data Documentation

boost::signals2::signal<void(bool)> makVrf::DtSimpleVariableWidget::signal_validityChanged

QHBoxLayout* makVrf::DtSimpleVariableWidget::myLayout

QHBoxLayout* makVrf::DtSimpleVariableWidget::myValueLayout

QLabel* makVrf::DtSimpleVariableWidget::myLabel

QLineEdit* makVrf::DtSimpleVariableWidget::myValue

QWidget* makVrf::DtSimpleVariableWidget::myValueCanvas

QLabel* makVrf::DtSimpleVariableWidget::myWarningLabel

bool makVrf::DtSimpleVariableWidget::myShowWarningLabel = true

protected

bool makVrf::DtSimpleVariableWidget::myEntryInvalid = false

protected

---

The documentation for this class was generated from the following file:

• /data/exports/nrhent7-1/nightly/docs/vrForces.vrf5-2-branch/include/vrfGuiDataEntryWidgets/simpleVariableWidget.h
