The attribute layout tells DtAttributes where to draw.

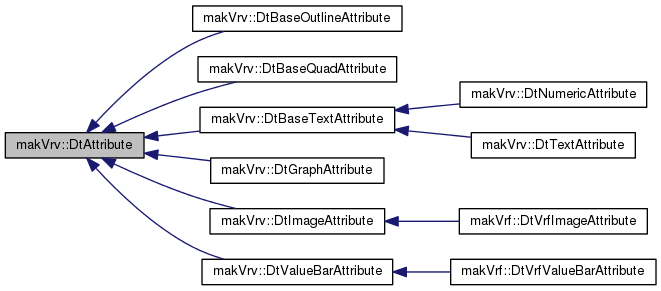

Inheritance diagram for makVrv::DtAttribute:

Public Member Functions
	DtAttribute ()

virtual	~DtAttribute ()

	DtAttribute (const DtAttribute &other)=delete

DtAttribute &	operator= (const DtAttribute &other)=delete

virtual void	setPosition (float x, float y, float z, float w)=0

virtual void	setOffset (double x, double y)

virtual void	getMinSize (double &xOut, double &yOut)=0

virtual void	setColor (float r, float g, float b, float a)=0

virtual void	setSize (double x, double y)=0

virtual void	setShadowText (bool enabled)=0

virtual void	setVisible (bool visible)=0

virtual bool	visible () const =0

virtual void	setLodOutAltitude (double lodOutAltitude)=0

virtual double	lodOutAltitude () const =0

virtual void	setIsLodOutAltitudeEnabled (bool isEnabled)=0

virtual bool	isLodOutAltitudeEnabled () const =0

virtual void	setOverlay (unsigned int overlayId)=0

virtual void	setGroup (unsigned int group)=0

virtual void	setForegroundGroup (unsigned int group)

virtual void	setBackgroundGroup (unsigned int group)

Public Attributes
boost::signalslib::signal < void(DtAttribute *, double, double)>	signal_sizeChanged

Constructor & Destructor Documentation

makVrv::DtAttribute::DtAttribute ( )

CTOR.

virtual makVrv::DtAttribute::~DtAttribute ( )

virtual

DTOR.

makVrv::DtAttribute::DtAttribute ( const DtAttribute & other )

delete

Copy Constructor not implemented - Copy not allowed.

Member Function Documentation

DtAttribute& makVrv::DtAttribute::operator= ( const DtAttribute & other )

delete

Assignment Operator not implemented - Assignment not allowed.

virtual void makVrv::DtAttribute::setPosition	(	float	x,
		float	y,
		float	z,
		float	w
	)

pure virtual

Set the position of the attribute in world space, using vrvGraphics float packing.

Implemented in makVrv::DtGraphAttribute, makVrv::DtBaseTextAttribute, makVrv::DtImageAttribute, makVrv::DtBaseQuadAttribute, makVrv::DtValueBarAttribute, and makVrv::DtBaseOutlineAttribute.

virtual void makVrv::DtAttribute::setOffset	(	double	x,
		double	y
	)

virtual

Set the offset of the attribute.

Reimplemented in makVrv::DtBaseTextAttribute, makVrv::DtImageAttribute, makVrv::DtGraphAttribute, makVrv::DtBaseQuadAttribute, makVrv::DtValueBarAttribute, and makVrv::DtBaseOutlineAttribute.

virtual void makVrv::DtAttribute::getMinSize	(	double &	xOut,
		double &	yOut
	)

pure virtual

Get the minimum size of the attribute.

Implemented in makVrv::DtGraphAttribute, makVrv::DtImageAttribute, makVrv::DtBaseTextAttribute, makVrv::DtBaseOutlineAttribute, makVrv::DtBaseQuadAttribute, makVrv::DtValueBarAttribute, makVrf::DtVrfImageAttribute, and makVrf::DtVrfValueBarAttribute.

virtual void makVrv::DtAttribute::setColor	(	float	r,
		float	g,
		float	b,
		float	a
	)

pure virtual

Set the color of the attribute.

Implemented in makVrv::DtBaseTextAttribute, makVrv::DtGraphAttribute, makVrv::DtValueBarAttribute, makVrv::DtBaseOutlineAttribute, makVrv::DtImageAttribute, and makVrv::DtBaseQuadAttribute.

virtual void makVrv::DtAttribute::setSize	(	double	x,
		double	y
	)

pure virtual

Set the size of the attribute.

Implemented in makVrv::DtBaseTextAttribute, makVrv::DtImageAttribute, makVrv::DtGraphAttribute, makVrv::DtBaseOutlineAttribute, makVrv::DtBaseQuadAttribute, makVrv::DtValueBarAttribute, makVrf::DtVrfImageAttribute, and makVrf::DtVrfValueBarAttribute.

virtual void makVrv::DtAttribute::setShadowText ( bool enabled )

pure virtual

Set whether attribute text should have shadows.

Implemented in makVrv::DtBaseTextAttribute, makVrv::DtGraphAttribute, makVrv::DtBaseOutlineAttribute, makVrv::DtImageAttribute, makVrv::DtValueBarAttribute, and makVrv::DtBaseQuadAttribute.

virtual void makVrv::DtAttribute::setVisible ( bool visible )

pure virtual

Set the attribute visible or hidden.

Implemented in makVrv::DtGraphAttribute, makVrv::DtBaseOutlineAttribute, makVrv::DtImageAttribute, makVrv::DtValueBarAttribute, makVrv::DtBaseQuadAttribute, makVrv::DtBaseTextAttribute, makVrf::DtVrfImageAttribute, makVrv::DtNumericAttribute, and makVrv::DtTextAttribute.

virtual bool makVrv::DtAttribute::visible ( ) const

pure virtual

Get the visibility of the attribute.

Implemented in makVrv::DtBaseTextAttribute, makVrv::DtGraphAttribute, makVrv::DtBaseOutlineAttribute, makVrv::DtImageAttribute, makVrv::DtValueBarAttribute, and makVrv::DtBaseQuadAttribute.

virtual void makVrv::DtAttribute::setLodOutAltitude ( double lodOutAltitude )

pure virtual

Set the altitude, in meters, at which this attribute no longer appears. Only used if setIsLodOutAltitudeEnabled(true).

Implemented in makVrv::DtGraphAttribute, makVrv::DtBaseOutlineAttribute, makVrv::DtImageAttribute, makVrv::DtBaseQuadAttribute, makVrv::DtValueBarAttribute, and makVrv::DtBaseTextAttribute.

virtual double makVrv::DtAttribute::lodOutAltitude ( ) const

pure virtual

Get the altitude, in meters, at which this attribute no longer appears.

Implemented in makVrv::DtGraphAttribute, makVrv::DtBaseOutlineAttribute, makVrv::DtImageAttribute, makVrv::DtBaseQuadAttribute, makVrv::DtValueBarAttribute, and makVrv::DtBaseTextAttribute.

virtual void makVrv::DtAttribute::setIsLodOutAltitudeEnabled ( bool isEnabled )

pure virtual

Set whether or not this attribute will use the LOD Out Altitude property.

Implemented in makVrv::DtGraphAttribute, makVrv::DtBaseOutlineAttribute, makVrv::DtImageAttribute, makVrv::DtBaseQuadAttribute, makVrv::DtValueBarAttribute, and makVrv::DtBaseTextAttribute.

virtual bool makVrv::DtAttribute::isLodOutAltitudeEnabled ( ) const

pure virtual

Get whether or not this attribute will use the LOD Out Altitude property.

Implemented in makVrv::DtGraphAttribute, makVrv::DtBaseOutlineAttribute, makVrv::DtImageAttribute, makVrv::DtBaseQuadAttribute, makVrv::DtValueBarAttribute, and makVrv::DtBaseTextAttribute.

virtual void makVrv::DtAttribute::setOverlay ( unsigned int overlayId )

pure virtual

Set the overlay to draw the attribute on. Overlay ids are defined in DtOverlayManager.

Implemented in makVrv::DtGraphAttribute, makVrv::DtBaseTextAttribute, makVrv::DtBaseOutlineAttribute, makVrv::DtBaseQuadAttribute, makVrv::DtImageAttribute, and makVrv::DtValueBarAttribute.

virtual void makVrv::DtAttribute::setGroup ( unsigned int group )

pure virtual

Set the group to draw the atribute on. The group specifies the z order of the attribute on the overlay.

Implemented in makVrv::DtGraphAttribute, makVrv::DtBaseTextAttribute, makVrv::DtBaseOutlineAttribute, makVrv::DtBaseQuadAttribute, makVrv::DtImageAttribute, and makVrv::DtValueBarAttribute.

virtual void makVrv::DtAttribute::setForegroundGroup ( unsigned int group )

virtual

Set the group to draw the atribute's foreground on. The group specifies the z order of the attribute on the overlay. By default, this method just calls setGroup(unsigned int).

Reimplemented in makVrv::DtBaseTextAttribute.

virtual void makVrv::DtAttribute::setBackgroundGroup ( unsigned int group )

virtual

Set the group to draw the atribute's background on. The group specifies the z order of the attribute on the overlay. By default, this method just calls setGroup(unsigned int).

Reimplemented in makVrv::DtBaseTextAttribute.

Member Data Documentation

boost::signalslib::signal<void (DtAttribute*,double,double)> makVrv::DtAttribute::signal_sizeChanged

Emitted when the attribute's size changes.

Parameters

_1	the attribute that changed.
_2	the new x size of the attribute.
_3	the new y size of the attribute.

The documentation for this class was generated from the following file:

/data/exports/nrhent7-1/nightly/docs/vrForces.vrf5-2-branch/include/vrvCore/DtAttribute.h
