makVrv::DtDeMainWindow Class Reference

The abstract main window class.

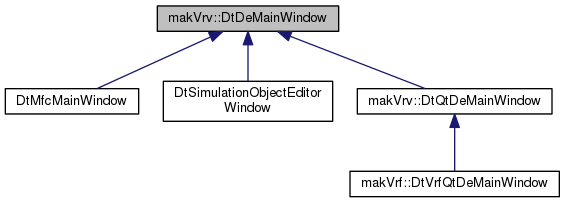

Inheritance diagram for makVrv::DtDeMainWindow:

Public Member Functions
virtual	~DtDeMainWindow ()
virtual void	setApplicationTitle (const std::string &appName)=0
virtual std::string	applicationTitle () const =0
virtual void	setApplicationIcon (const std::string &iconName)=0
virtual void	setSplashScreen (DtDeSplashScreen *splashScreen)=0
virtual void	showBasedOnSettings ()=0
virtual void	destroyWindow ()=0
virtual void	quit ()=0
DtDe &	de ()

Public Attributes
boost::signalslib::signal < void(bool)>	signal_fullScreenModeChanged

Protected Member Functions
	DtDeMainWindow (DtDe &de)

Protected Attributes
DtDe &	myDe

Constructor & Destructor Documentation

makVrv::DtDeMainWindow::DtDeMainWindow ( DtDe &  de )

protected

The constructor for the abstract base class is protected.

virtual makVrv::DtDeMainWindow::~DtDeMainWindow ( )

virtual

Virtual destructor.

Member Function Documentation

virtual void makVrv::DtDeMainWindow::setApplicationTitle ( const std::string &  appName )

pure virtual

Set the application's name, typically for the Title Bar.

Implemented in DtSimulationObjectEditorWindow, makVrv::DtQtDeMainWindow, and DtMfcMainWindow.

virtual std::string makVrv::DtDeMainWindow::applicationTitle ( ) const

pure virtual

Get the application's name.

Implemented in DtSimulationObjectEditorWindow, makVrv::DtQtDeMainWindow, and DtMfcMainWindow.

virtual void makVrv::DtDeMainWindow::setApplicationIcon ( const std::string &  iconName )

pure virtual

Set the application's icon, typically use a resource name.

Implemented in DtSimulationObjectEditorWindow, makVrv::DtQtDeMainWindow, and DtMfcMainWindow.

virtual void makVrv::DtDeMainWindow::setSplashScreen ( DtDeSplashScreen *  splashScreen )

pure virtual

The main window will hide the splash screen when it is shown.

Implemented in makVrv::DtQtDeMainWindow, and DtMfcMainWindow.

virtual void makVrv::DtDeMainWindow::showBasedOnSettings ( )

pure virtual

Show the main window based on application settings. This also handles the creation of the startup dialog.

Implemented in makVrv::DtQtDeMainWindow, DtMfcMainWindow, and makVrf::DtVrfQtDeMainWindow.

virtual void makVrv::DtDeMainWindow::destroyWindow ( )

pure virtual

Destroy the window.

Implemented in DtSimulationObjectEditorWindow, makVrv::DtQtDeMainWindow, and DtMfcMainWindow.

virtual void makVrv::DtDeMainWindow::quit ( )

pure virtual

Quit the application.

Implemented in DtSimulationObjectEditorWindow, makVrv::DtQtDeMainWindow, and DtMfcMainWindow.

DtDe& makVrv::DtDeMainWindow::de ( )

inline

Member Data Documentation

boost::signalslib::signal<void(bool)> makVrv::DtDeMainWindow::signal_fullScreenModeChanged

DtDe& makVrv::DtDeMainWindow::myDe

protected

---

The documentation for this class was generated from the following file:

• /data/exports/nrhent7-1/nightly/docs/vrForces.vrf5-2-branch/include/vrvCore/DtDeMainWindow.h
