A variable vertex convex filled 2D polygon.

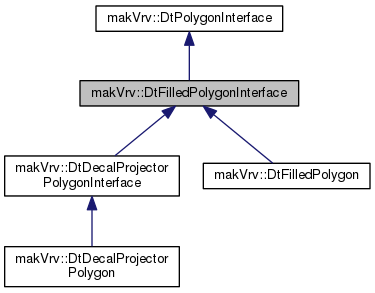

Inheritance diagram for makVrv::DtFilledPolygonInterface:

Public Types
enum	FillType { Fill_Solid = 0, Fill_Stipple, Fill_Texture, FillType_End }

Public Member Functions
	DtFilledPolygonInterface ()

virtual	~DtFilledPolygonInterface ()

virtual void	setFillType (FillType type)=0

virtual FillType	fillType () const =0

virtual void	setFillParameter (unsigned int param, unsigned int fullStipplePattern[32]=0)=0

virtual void	setFillTexture (DtTextureInterface *textureHandle)=0

virtual void	clearFillPattern ()=0

virtual void	getFillParameter (unsigned int &paramOut, unsigned int fullStipplePatternOut[32]) const =0

virtual void	setFillPatternFrequency (float frequency)=0

virtual void	setEventsEnabled (bool enabled, unsigned long long=0)=0

virtual bool	eventsEnabled () const =0

virtual void	setVertexCount (unsigned int vertexCount)=0

virtual unsigned int	vertexCount () const =0

virtual void	set2DPositions (const std::vector< float > &vertices)=0

virtual void	set2DPosition (unsigned int vertexIndex, float x, float y)=0

virtual void	set2DCentroidPosition (float x, float y)=0

virtual void	get2DPosition (unsigned int vertexIndex, float &x, float &y) const =0

virtual void	set3DPosition (unsigned int vertexIndex, float x, float y, float z, float w)=0

virtual void	set3DCentroidPosition (float x, float y, float z, float w)=0

virtual void	get3DPosition (unsigned int index, float &x, float &y, float &z, float &w) const =0

virtual void	set3DDirectionAndLength (unsigned int index, float x, float y, float z, float l)=0

virtual void	projectUVCoordinates (const DtVector &origin, const DtVector &axisU, const DtVector &axisV, float scale=1.0f)=0

virtual void	setStipple (unsigned int stipplePattern)=0

virtual void	setCentroidColor (float r, float g, float b, float a)=0

virtual void	setColor (float r, float g, float b, float a)=0

virtual void	getColor (float &r, float &g, float &b, float &a) const =0

virtual int	group () const =0

virtual void	setGroup (int)=0

virtual void	triangulate ()=0

virtual void	set2DPositionsTriangles (const std::vector< float > &vertices)=0

virtual void	setVertexCountTriangles (unsigned int vertexCount)=0

virtual void	setIsNormalisedScreenCoordinates (bool isNormalisedScreenCoords)=0


virtual void	setVertexColor (unsigned int index, float r, float g, float b, float a)=0

virtual void	getVertexColor (unsigned int index, float &r, float &g, float &b, float &a)=0

Public Member Functions inherited from makVrv::DtPolygonInterface
	DtPolygonInterface ()=default

	DtPolygonInterface (DtPolygonInterface &)=delete

	DtPolygonInterface (DtPolygonInterface &&)=delete

DtPolygonInterface &	operator= (DtPolygonInterface &)=delete

DtPolygonInterface &	operator= (DtPolygonInterface &&)=delete

virtual	~DtPolygonInterface ()

virtual void	triangulationComplete (bool crossingLines)

Member Enumeration Documentation

enum makVrv::DtFilledPolygonInterface::FillType

Enumerator
Fill_Solid
Fill_Stipple
Fill_Texture
FillType_End

Constructor & Destructor Documentation

makVrv::DtFilledPolygonInterface::DtFilledPolygonInterface ( )

CTOR.

virtual makVrv::DtFilledPolygonInterface::~DtFilledPolygonInterface ( )

virtual

DTOR.

Member Function Documentation

virtual void makVrv::DtFilledPolygonInterface::setFillType ( FillType type )

pure virtual

Set the quad fill type. Calling fill type resets the fill parameter, thus the fill parameter must be reset after calling setFillType.

Implemented in makVrv::DtDecalProjectorPolygon, and makVrv::DtFilledPolygon.

virtual FillType makVrv::DtFilledPolygonInterface::fillType ( ) const

pure virtual

Get the fill type.

Implemented in makVrv::DtDecalProjectorPolygon, and makVrv::DtFilledPolygon.

virtual void makVrv::DtFilledPolygonInterface::setFillParameter	(	unsigned int	param,
		unsigned int	fullStipplePattern[32] = `0`
	)

pure virtual

Set the quad fill parameter.

If the full stippledPattern (aka a full 32x32 bit array) the initial param is ignored.

Implemented in makVrv::DtDecalProjectorPolygon, and makVrv::DtFilledPolygon.

virtual void makVrv::DtFilledPolygonInterface::setFillTexture ( DtTextureInterface * textureHandle )

pure virtual

Sets the texture to fill the polygon with. The texture is visualized to be centered in the polygon and to fill the polygon with minimal tiling.

Implemented in makVrv::DtDecalProjectorPolygon, and makVrv::DtFilledPolygon.

virtual void makVrv::DtFilledPolygonInterface::clearFillPattern ( )

pure virtual

Clears the fill pattern of the quad.

Implemented in makVrv::DtDecalProjectorPolygon, and makVrv::DtFilledPolygon.

virtual void makVrv::DtFilledPolygonInterface::getFillParameter	(	unsigned int &	paramOut,
		unsigned int	fullStipplePatternOut[32]
	)		const

pure virtual

Get the quad fill parameters.

Implemented in makVrv::DtDecalProjectorPolygon, and makVrv::DtFilledPolygon.

virtual void makVrv::DtFilledPolygonInterface::setFillPatternFrequency ( float frequency )

pure virtual

Sets the fill pattern tiling frequency. The frequency needs to be 1 / x where x is a whole number. examples: frequency = 1.0 : the tiled pattern will tile normally frequency = 0.5 : the tiled pattern will appear half as often.

Implemented in makVrv::DtDecalProjectorPolygon, and makVrv::DtFilledPolygon.

virtual void makVrv::DtFilledPolygonInterface::setEventsEnabled	(	bool	enabled,
		unsigned long	long = `0`
	)

pure virtual

Set whether the sprite has widget events. Disabling events disconnects all of the DtFilledPolygonInterface signals The user data is set when enabling the events, to change only the user data make multiple calls with enabled=true.

Implements makVrv::DtPolygonInterface.

Implemented in makVrv::DtDecalProjectorPolygon, and makVrv::DtFilledPolygon.

virtual bool makVrv::DtFilledPolygonInterface::eventsEnabled ( ) const

pure virtual

Get whether events are already enabled.

Implemented in makVrv::DtDecalProjectorPolygon, and makVrv::DtFilledPolygon.

virtual void makVrv::DtFilledPolygonInterface::setVertexCount ( unsigned int vertexCount )

pure virtual

Set the number of vertices, any newly created vertices will be black and add 0,0,0 so setColor/setPosition may be necessary.

Implements makVrv::DtPolygonInterface.

Implemented in makVrv::DtDecalProjectorPolygon, and makVrv::DtFilledPolygon.

virtual unsigned int makVrv::DtFilledPolygonInterface::vertexCount ( ) const

pure virtual

Get the vertex count.

Implements makVrv::DtPolygonInterface.

Implemented in makVrv::DtDecalProjectorPolygon, and makVrv::DtFilledPolygon.

virtual void makVrv::DtFilledPolygonInterface::set2DPositions ( const std::vector< float > & vertices )

pure virtual

Set the number of vertices and their positions.

Implements makVrv::DtPolygonInterface.

Implemented in makVrv::DtDecalProjectorPolygon, and makVrv::DtFilledPolygon.

virtual void makVrv::DtFilledPolygonInterface::set2DPosition	(	unsigned int	vertexIndex,
		float	x,
		float	y
	)

pure virtual

Set one vertex position. NOTE it is much more efficient to update all vertices using setPositions if several change.

Implements makVrv::DtPolygonInterface.

Implemented in makVrv::DtDecalProjectorPolygon, and makVrv::DtFilledPolygon.

virtual void makVrv::DtFilledPolygonInterface::set2DCentroidPosition	(	float	x,
		float	y
	)

pure virtual

Sets the position of the polygon's centroid.

Implemented in makVrv::DtDecalProjectorPolygon, and makVrv::DtFilledPolygon.

virtual void makVrv::DtFilledPolygonInterface::get2DPosition	(	unsigned int	vertexIndex,
		float &	x,
		float &	y
	)		const

pure virtual

Get the vertex position.

Implements makVrv::DtPolygonInterface.

Implemented in makVrv::DtDecalProjectorPolygon, and makVrv::DtFilledPolygon.

virtual void makVrv::DtFilledPolygonInterface::set3DPosition	(	unsigned int	vertexIndex,
		float	x,
		float	y,
		float	z,
		float	w
	)

pure virtual

Set one vertex position.

Implements makVrv::DtPolygonInterface.

Implemented in makVrv::DtDecalProjectorPolygon, and makVrv::DtFilledPolygon.

virtual void makVrv::DtFilledPolygonInterface::set3DCentroidPosition	(	float	x,
		float	y,
		float	z,
		float	w
	)

pure virtual

Sets the position of the polygon's centroid.

Implemented in makVrv::DtDecalProjectorPolygon, and makVrv::DtFilledPolygon.

virtual void makVrv::DtFilledPolygonInterface::get3DPosition	(	unsigned int	index,
		float &	x,
		float &	y,
		float &	z,
		float &	w
	)		const

pure virtual

Get the vertex position.

Implements makVrv::DtPolygonInterface.

Implemented in makVrv::DtDecalProjectorPolygon, and makVrv::DtFilledPolygon.

virtual void makVrv::DtFilledPolygonInterface::set3DDirectionAndLength	(	unsigned int	index,
		float	x,
		float	y,
		float	z,
		float	l
	)

pure virtual

Sets an optional 3D direction with a 2D length value for a vertex.

Parameters

index	the index of the vertex to get the position of
x	x component of the position
y	y component of the position
z	z component of the position
l	l length of the vector offset in 2D.

Implements makVrv::DtPolygonInterface.

Implemented in makVrv::DtDecalProjectorPolygon, and makVrv::DtFilledPolygon.

virtual void makVrv::DtFilledPolygonInterface::projectUVCoordinates	(	const DtVector &	origin,
		const DtVector &	axisU,
		const DtVector &	axisV,
		float	scale = `1.0f`
	)

pure virtual

Does uv coordinate projection based on the current vertex positions and the given projection parameters.

Parameters

origin	- each vertex position will subtract the origin.
axisU	- the X axis to project the position along for the u coordinate.
axisV	- the Y axis to project the position along for the v coordinate.
scale	- the scale to apply to the final uv coordinates.

Implemented in makVrv::DtDecalProjectorPolygon, and makVrv::DtFilledPolygon.

virtual void makVrv::DtFilledPolygonInterface::setStipple ( unsigned int stipplePattern )

pure virtual

Set the stipple pattern.

Implements makVrv::DtPolygonInterface.

Implemented in makVrv::DtDecalProjectorPolygon, and makVrv::DtFilledPolygon.

virtual void makVrv::DtFilledPolygonInterface::setVertexColor	(	unsigned int	index,
		float	r,
		float	g,
		float	b,
		float	a
	)

pure virtual

Set / Get the color of a specific vertex.

Implements makVrv::DtPolygonInterface.

Implemented in makVrv::DtDecalProjectorPolygon, and makVrv::DtFilledPolygon.

virtual void makVrv::DtFilledPolygonInterface::getVertexColor	(	unsigned int	index,
		float &	r,
		float &	g,
		float &	b,
		float &	a
	)

pure virtual

Set / Get the color of a specific vertex.

Implements makVrv::DtPolygonInterface.

Implemented in makVrv::DtDecalProjectorPolygon, and makVrv::DtFilledPolygon.

virtual void makVrv::DtFilledPolygonInterface::setCentroidColor	(	float	r,
		float	g,
		float	b,
		float	a
	)

pure virtual

Set the color of the polygon's centroid.

Implemented in makVrv::DtDecalProjectorPolygon, and makVrv::DtFilledPolygon.

virtual void makVrv::DtFilledPolygonInterface::setColor	(	float	r,
		float	g,
		float	b,
		float	a
	)

pure virtual

Set the color.

Implements makVrv::DtPolygonInterface.

Implemented in makVrv::DtDecalProjectorPolygon, and makVrv::DtFilledPolygon.

virtual void makVrv::DtFilledPolygonInterface::getColor	(	float &	r,
		float &	g,
		float &	b,
		float &	a
	)		const

pure virtual

Get the color.

Implements makVrv::DtPolygonInterface.

Implemented in makVrv::DtDecalProjectorPolygon, and makVrv::DtFilledPolygon.

virtual int makVrv::DtFilledPolygonInterface::group ( ) const

pure virtual

Returns the group that the polygon is on (for Z-Ordering). Default is zero.

Implements makVrv::DtPolygonInterface.

Implemented in makVrv::DtDecalProjectorPolygon, and makVrv::DtFilledPolygon.

virtual void makVrv::DtFilledPolygonInterface::setGroup ( int )

pure virtual

Sets the group for Z-Ordering.

Implements makVrv::DtPolygonInterface.

Implemented in makVrv::DtDecalProjectorPolygon, and makVrv::DtFilledPolygon.

virtual void makVrv::DtFilledPolygonInterface::triangulate ( )

pure virtual

As long as there are a divisible by three of triangle proxies, reworks them to be a triangle of three related points, using the center as an anchor point.

Implemented in makVrv::DtDecalProjectorPolygon, and makVrv::DtFilledPolygon.

virtual void makVrv::DtFilledPolygonInterface::set2DPositionsTriangles ( const std::vector< float > & vertices )

pure virtual

Set the number of vertices and their positions. This method is to be used instead of set2DPositions. This method does not calculate/use the center of the polygon as the third vertex for each two passed in like set2DPositions. It expects the triangles to already be calculated, the loop in here skips 6 floats per iteration.

Implemented in makVrv::DtDecalProjectorPolygon, and makVrv::DtFilledPolygon.

virtual void makVrv::DtFilledPolygonInterface::setVertexCountTriangles ( unsigned int vertexCount )

pure virtual

Set the number of vertices, any newly created vertices will be black and add 0,0,0 so setColor/setPosition may be necessary.This method is used instead of setVertexCount when you are calling set2DPositionsTriangles.

Implemented in makVrv::DtDecalProjectorPolygon, and makVrv::DtFilledPolygon.

virtual void makVrv::DtFilledPolygonInterface::setIsNormalisedScreenCoordinates ( bool isNormalisedScreenCoords )

pure virtual

Set whether the graphic is normalised screen coordinates Used by window object API, passed to shader.

Implemented in makVrv::DtDecalProjectorPolygon, and makVrv::DtFilledPolygon.

The documentation for this class was generated from the following file:

/data/exports/nrhent7-1/nightly/docs/vrForces.vrf5-2-branch/include/vrvCore/DtFilledPolygonInterface.h

Public Types

Public Member Functions

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation
