makVrv::DtHeaderParser Class Reference

Abstract header parser class.

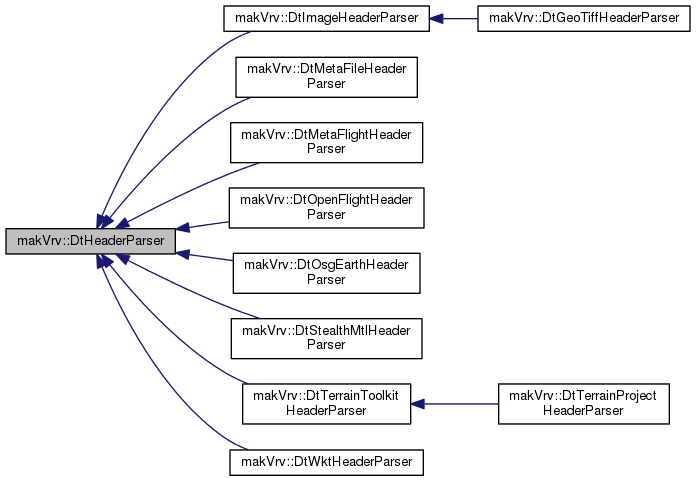

Inheritance diagram for makVrv::DtHeaderParser:

Public Types
typedef std::list < makArchives::DtTerrainPatchRecord >	TerrainPatchRecords

Public Member Functions
	DtHeaderParser (const std::string &filePath)
virtual	~DtHeaderParser ()
virtual bool	isValid ()=0
virtual const std::string &	terrainCoordinateSystem ()
virtual const std::string &	terrainCoordinateSystemParameters ()
virtual const std::string &	filePath ()
const TerrainPatchRecords &	terrainPatchRecords () const
TerrainPatchRecords &	terrainPatchRecords ()

Protected Attributes
std::string	myFilePath
std::string	myTerrainCoordinateSystem
std::string	myTerrainCoordinateSystemParameters
TerrainPatchRecords	myTerrainPatchRecords

Member Typedef Documentation

typedef std::list<makArchives::DtTerrainPatchRecord> makVrv::DtHeaderParser::TerrainPatchRecords

Constructor & Destructor Documentation

makVrv::DtHeaderParser::DtHeaderParser

(

const std::string &

filePath

)

CTOR.

virtual makVrv::DtHeaderParser::~DtHeaderParser ( )

virtual

DTOR.

Member Function Documentation

virtual bool makVrv::DtHeaderParser::isValid ( )

pure virtual

Returns true if the file was loaded and produced acceptable coordinate system information and origin information.

Implemented in makVrv::DtImageHeaderParser, makVrv::DtGeoTiffHeaderParser, makVrv::DtOpenFlightHeaderParser, makVrv::DtWktHeaderParser, makVrv::DtMetaFlightHeaderParser, makVrv::DtTerrainProjectHeaderParser, makVrv::DtTerrainToolkitHeaderParser, makVrv::DtStealthMtlHeaderParser, makVrv::DtMetaFileHeaderParser, and makVrv::DtOsgEarthHeaderParser.

virtual const std::string& makVrv::DtHeaderParser::terrainCoordinateSystem ( )

virtual

Returns the terrain coordinate system parameter for use in creation of a model definition.

virtual const std::string& makVrv::DtHeaderParser::terrainCoordinateSystemParameters ( )

virtual

Returns the terrain Coordinate System Parameters for use in creation of a model definition.

virtual const std::string& makVrv::DtHeaderParser::filePath ( )

virtual

Returns myFilePath.

const TerrainPatchRecords& makVrv::DtHeaderParser::terrainPatchRecords

(

)

const

TerrainPatchRecords const accessor.

TerrainPatchRecords& makVrv::DtHeaderParser::terrainPatchRecords

(

)

TerrainPatchRecords accessor.

Member Data Documentation

std::string makVrv::DtHeaderParser::myFilePath

protected

std::string makVrv::DtHeaderParser::myTerrainCoordinateSystem

protected

std::string makVrv::DtHeaderParser::myTerrainCoordinateSystemParameters

protected

TerrainPatchRecords makVrv::DtHeaderParser::myTerrainPatchRecords

protected

---

The documentation for this class was generated from the following file:

• /data/exports/nrhent7-1/nightly/docs/vrForces.vrf5-2-branch/include/vrvCore/DtHeaderParser.h
