The model interface for remote graphics segmented lines.

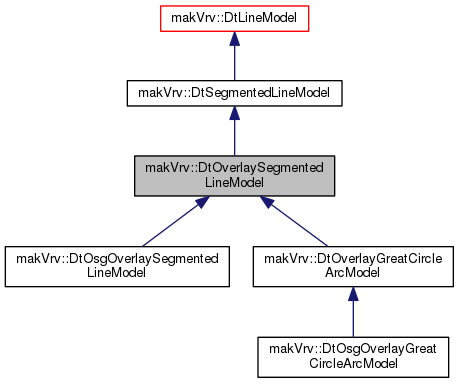

Inheritance diagram for makVrv::DtOverlaySegmentedLineModel:

Public Member Functions
	DtOverlaySegmentedLineModel (DtDe &de, DtUniqueID id)

virtual	~DtOverlaySegmentedLineModel ()

virtual void	setEventsEnabled (bool)=0

virtual void	setEventWidth (float width)=0

virtual void	setLineStyle (int)=0

virtual void	setFixedWidthSizing (bool)=0

virtual void	setGroup (int)=0


virtual void	setIsMeasurementTextRenderingEnabled (bool isDecorated)=0

virtual bool	isMeasurementTextRenderingEnabled () const =0


virtual void	setScreenIntervaledTextCollection (const DtOverlayScreenIntervaledTextInstance::DtScreenIntervaledTextCollection &)=0

virtual void	setIsScreenIntervaledTextRenderingEnabled (bool)=0

virtual void	setScreenIntervaledTextPrefix (const std::string &prefixString)=0

virtual void	setScreenIntervaledTextPostfix (const std::string &postfixString)=0

virtual void	setScreenIntervaledTextInterval (int intervalInScreenSpaceCM)=0

virtual void	setScreenIntervaledTextFont (const std::string &fontFile, float fontPointSize)=0

virtual void	setScreenIntervaledTextColor (float r, float g, float b, float a)=0

virtual void	setScreenIntervaledTextBackgroundColor (float r, float g, float b, float a)=0

Public Member Functions inherited from makVrv::DtSegmentedLineModel
	DtSegmentedLineModel (DtDe &de, DtUniqueID id)

virtual	~DtSegmentedLineModel ()

virtual void	setStyleSegments (const std::vector< double > &segmentPercentages)=0

virtual void	setSegmentColor (unsigned int segmentIndex, float r, float g, float b, float a)=0

virtual void	setSegmentLightningStyle (unsigned int segmentIndex, bool enableLightningStyle)=0

virtual void	setSegmentStartArrow (unsigned int segmentIndex, bool enableArrow)=0

virtual void	setSegmentEndArrow (unsigned int segmentIndex, bool enableArrow)=0

virtual void	setSegmentStipplePattern (unsigned int segmentIndex, unsigned int stipplePattern, int repeatFactor=1)=0

virtual void	setSegmentWidth (unsigned int segmentIndex, double width)=0

virtual void	setSegmentStartColor (unsigned int segmentIndex, float r, float g, float b, float a)=0

virtual void	setSegmentEndColor (unsigned int segmentIndex, float r, float g, float b, float a)=0

virtual void	setArrowSize (double)=0

virtual void	setArrowStyle (int)=0

Public Member Functions inherited from makVrv::DtLineModel
	DtLineModel (DtDe &de, DtUniqueID id)

virtual	~DtLineModel ()

virtual void	setColor (float r, float g, float b, float a)=0

virtual void	setWidth (float width)=0

virtual void	setStipplePattern (unsigned int pattern, int repeatFactor=1)=0

virtual const std::vector < DtVector > &	points () const =0

Public Member Functions inherited from makVrv::DtModel
	DtModel (DtDe &de, DtUniqueID id)

virtual	~DtModel ()

DtModelInstance *	createModelInstance (const std::string &modelDefName, bool realize=true)

virtual void	setModelDefinition (const std::string &str)

virtual const std::string &	modelDefinitionName ()

virtual void	saveModelToFile (const std::string &filename)

virtual const std::string &	className () const

virtual DtUniqueID	uniqueId () const

unsigned int	transformSize () const

virtual void	setPosition (int vtx, const DtVector &position)

virtual const DtVector &	position (int vtx=0) const

virtual void	removePosition (int vtx)

virtual void	setPositionOffset (const DtVector &positionOffset)

virtual const DtVector &	positionOffset () const

virtual void	setOrientation (int vtx, const DtTaitBryan &orientation)

virtual void	setPositionAndOrientation (int vtx, const DtVector &positionOffset, const DtTaitBryan &orientation)

virtual const DtTaitBryan &	orientation (int vtx=0) const

virtual void	setOrientationOffset (const DtTaitBryan &orientationOffset)

virtual const DtTaitBryan &	orientationOffset () const

virtual void	enableColorBlending (bool b)

virtual void	setBlendColor (float r, float g, float b, float a)

virtual void	getBlendColor (float &r, float &g, float &b, float &a)

virtual bool	colorBlendingEnabled () const

virtual void	enableLighting (bool l)

virtual DtModelSetId	modelSet () const

const DtVector &	boundingBoxExtents () const

void	getBoundingBoxExtents (double &x, double &y, double &z) const

const DtVector &	boundingBoxCenter () const

virtual void	getBoundingBoxCenter (double &x, double &y, double &z) const

virtual void	getBoundingBoxComponents (DtVector &minimum, DtVector &maximum)

void	setContributesToBound (bool trueOrFalse)

bool	contributesToBound () const

DtDe &	de ()

virtual void	setModelInstance (DtModelInstance *modelInstance)

virtual void	promoteBackgroundModelInstance (const DtModelDefinition &defintion)

virtual void	setVisible (bool isVisible)

virtual bool	visible () const

DtUniqueID	sceneObjectId () const

virtual void	addedToSceneObjectAsProp (const DtUniqueID &sceneObj)

virtual void	addedToSceneObject (const DtUniqueID &sceneObj, DtModelSetId modelSet, int visualizerType)

virtual void	setElementId (DtElementID id)

virtual void	removedFromSceneObject ()

virtual void	setIsSupportModel (bool isSupport)=0

virtual void	setSolid (bool isSolid)

virtual bool	isProp ()

virtual void	updateMinLastFrameDistance (float distance)

virtual void	resetLastFrameDistance ()

virtual float	minLastFrameDistance () const

virtual DtModelInstance *	modelInstance ()

virtual const DtModelInstance *	modelInstance () const

int	visualizerType () const

virtual bool	supportsMultithreadedLoad ()

virtual void	backgroundLoad ()

virtual void	foregroundLoad ()

virtual bool	isActivelyBackgroundLoading ()

virtual DtLoaderHandle *	getLoadQueueHandle ()

Additional Inherited Members
Public Attributes inherited from makVrv::DtModel
boost::signalslib::signal < void(DtModel *)>	signal_modelToBeDestroyed

boost::signalslib::signal < void(DtModel *)>	signal_modelChanged

boost::signalslib::signal < bool(DtModel *, bool), SlotReturnOR >	signal_visibilityChangeRequested

boost::signalslib::signal < void(DtModelInstance , DtModel )>	signal_modelInstanceCreated

boost::signalslib::signal < void(DtModelInstance , DtModel )>	signal_modelInstanceToBeDestroyed

Protected Types inherited from makVrv::DtModel
typedef std::vector < ObjectTransform >	TransformList

Protected Member Functions inherited from makVrv::DtModel
virtual void	addToScene (const DtUniqueID &sceneObjectId, DtModelSetId modelSet, int visualizerType)=0

virtual void	addToSceneAsProp (const DtUniqueID &sceneObjectId)

virtual void	removeFromScene ()=0

virtual void	initializeModelInstance ()

void	slot_modelInstanceChanged (DtModelInstance *instance)

virtual void	waitAndClearLoadHandle ()

virtual void	removedFromLoadQueue ()

virtual void	setDoneBackgroundLoading ()

virtual void	setActivelyBackgroundLoading ()

Protected Attributes inherited from makVrv::DtModel
DtLoaderHandle *	myInLoadQueueHandle

DtDe &	myDe

const DtUniqueID	myUniqueId

DtUniqueID	myElementId

DtUniqueID	myParentSceneObjectID

bool	myColorBlendingEnabled

DtModelInstance *	myBackgroundModelInstance

float	myMinLastFrameDistance

TransformList	myTransforms

DtModelInstance *	myModelInstance

DtModelSetId	myModelSet

int	myVisualizerType

bool	myContributesToBound

bool	myIsPropFlag

float	myBlendColor [4]

bool	myVisibleFlag

DtVector	myPositionOffset

DtTaitBryan	myOrientationOffset

std::string	myModelDefinitionName

bool	myRequireModelInstance = true

Static Protected Attributes inherited from makVrv::DtModel
static bool	theInittedState

Constructor & Destructor Documentation

makVrv::DtOverlaySegmentedLineModel::DtOverlaySegmentedLineModel	(	DtDe &	de,
		DtUniqueID	id
	)

Constructor.

virtual makVrv::DtOverlaySegmentedLineModel::~DtOverlaySegmentedLineModel ( )

virtual

Destructor.

Member Function Documentation

virtual void makVrv::DtOverlaySegmentedLineModel::setEventsEnabled ( bool )

pure virtual

Enable or disable widget events, such as picking and mouse-over.

Implemented in makVrv::DtOsgOverlaySegmentedLineModel, and makVrv::DtOsgOverlayGreatCircleArcModel.

virtual void makVrv::DtOverlaySegmentedLineModel::setEventWidth ( float width )

pure virtual

Set the line width for handling events.

Implemented in makVrv::DtOsgOverlaySegmentedLineModel, and makVrv::DtOsgOverlayGreatCircleArcModel.

virtual void makVrv::DtOverlaySegmentedLineModel::setLineStyle ( int )

pure virtual

Sets the style of line to use. See DtLineFacadeBase.h for styles.

Implemented in makVrv::DtOsgOverlayGreatCircleArcModel, and makVrv::DtOsgOverlaySegmentedLineModel.

virtual void makVrv::DtOverlaySegmentedLineModel::setFixedWidthSizing ( bool )

pure virtual

For those lines that support it, whether or not the lines sizes when zooming to pixel space (fixed width) or to the database (non-fixed width). Default is fixed width. If changing modes, be sure to change the arrow size.

Implemented in makVrv::DtOsgOverlayGreatCircleArcModel, and makVrv::DtOsgOverlaySegmentedLineModel.

virtual void makVrv::DtOverlaySegmentedLineModel::setGroup ( int )

pure virtual

The higher the z order the "closer" to the eyepoint this element will be drawn. Use this variable to stack overlay objects in the particular order you want them displayed.

Implemented in makVrv::DtOsgOverlayGreatCircleArcModel, and makVrv::DtOsgOverlaySegmentedLineModel.

virtual void makVrv::DtOverlaySegmentedLineModel::setIsMeasurementTextRenderingEnabled ( bool isDecorated )

pure virtual

Set/Get whether or not this segmented line will render measurement text. When measurement text rendering is enabled, informative labels appear between each vertex indicating the distance to the next vertex and the angle between vertices.

Implemented in makVrv::DtOsgOverlaySegmentedLineModel, and makVrv::DtOsgOverlayGreatCircleArcModel.

virtual bool makVrv::DtOverlaySegmentedLineModel::isMeasurementTextRenderingEnabled ( ) const

pure virtual

Set/Get whether or not this segmented line will render measurement text. When measurement text rendering is enabled, informative labels appear between each vertex indicating the distance to the next vertex and the angle between vertices.

Implemented in makVrv::DtOsgOverlaySegmentedLineModel, and makVrv::DtOsgOverlayGreatCircleArcModel.

virtual void makVrv::DtOverlaySegmentedLineModel::setScreenIntervaledTextCollection ( const DtOverlayScreenIntervaledTextInstance::DtScreenIntervaledTextCollection & )

pure virtual

For text rendering along the line.

Sets the collection of strings that will be rendered and wrapped around the perimeter of the polygon. The order they will be rendered in will depend on their order in the passed DtScreenIntervaledTextCollection.

Implemented in makVrv::DtOsgOverlaySegmentedLineModel, and makVrv::DtOsgOverlayGreatCircleArcModel.

virtual void makVrv::DtOverlaySegmentedLineModel::setIsScreenIntervaledTextRenderingEnabled ( bool )

pure virtual

Whether or not to render perimeter wrapped text.

Implemented in makVrv::DtOsgOverlaySegmentedLineModel, and makVrv::DtOsgOverlayGreatCircleArcModel.

virtual void makVrv::DtOverlaySegmentedLineModel::setScreenIntervaledTextPrefix ( const std::string & prefixString )

pure virtual

Set the prefix string that will be applied to all screen intervaled text, if rendered.

Implemented in makVrv::DtOsgOverlaySegmentedLineModel, and makVrv::DtOsgOverlayGreatCircleArcModel.

virtual void makVrv::DtOverlaySegmentedLineModel::setScreenIntervaledTextPostfix ( const std::string & postfixString )

pure virtual

Set the postfix string that will be applied to all screen intervaled text, if rendered.

Implemented in makVrv::DtOsgOverlaySegmentedLineModel, and makVrv::DtOsgOverlayGreatCircleArcModel.

virtual void makVrv::DtOverlaySegmentedLineModel::setScreenIntervaledTextInterval ( int intervalInScreenSpaceCM )

pure virtual

Set the interval, in centimeters of screen space, at which the perimeter wrapped text will appear at. If the perimeter of the polygon does not exceed: minimumScreenSpacePerimeterRequired = # of perimeter wrapped text strings * interval in CM) then, the perimeter wrapped text is not rendered at all.

Implemented in makVrv::DtOsgOverlaySegmentedLineModel, and makVrv::DtOsgOverlayGreatCircleArcModel.

virtual void makVrv::DtOverlaySegmentedLineModel::setScreenIntervaledTextFont	(	const std::string &	fontFile,
		float	fontPointSize
	)

pure virtual

Set the font that the perimeter wrapped text will use.

Implemented in makVrv::DtOsgOverlaySegmentedLineModel, and makVrv::DtOsgOverlayGreatCircleArcModel.

virtual void makVrv::DtOverlaySegmentedLineModel::setScreenIntervaledTextColor	(	float	r,
		float	g,
		float	b,
		float	a
	)

pure virtual

Set the color that the perimeter wrapped text will use.

Implemented in makVrv::DtOsgOverlaySegmentedLineModel, and makVrv::DtOsgOverlayGreatCircleArcModel.

virtual void makVrv::DtOverlaySegmentedLineModel::setScreenIntervaledTextBackgroundColor	(	float	r,
		float	g,
		float	b,
		float	a
	)

pure virtual

Set the background color that the perimeter wrapped text will use.

Implemented in makVrv::DtOsgOverlaySegmentedLineModel, and makVrv::DtOsgOverlayGreatCircleArcModel.

The documentation for this class was generated from the following file:

/data/exports/nrhent7-1/nightly/docs/vrForces.vrf5-2-branch/include/vrvCore/DtOverlaySegmentedLineModel.h
