Abstract Base class.

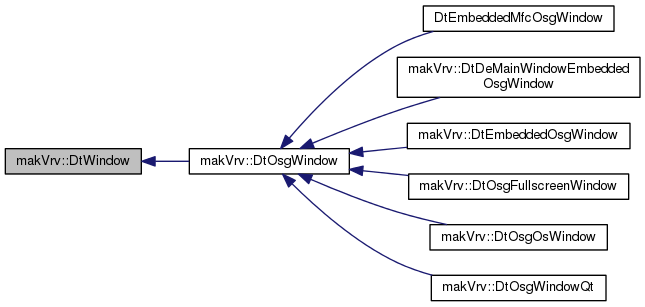

Inheritance diagram for makVrv::DtWindow:

Public Member Functions
	DtWindow (DtDe &, DtWindowConfiguration &wc)

virtual void	realize ()

virtual	~DtWindow ()

virtual bool	isValid () const =0

virtual bool	canResize () const

virtual void	setPosition (int x, int y)=0

virtual void	resize (int width, int height)=0

virtual void	sizeChanged (int width, int height)=0

virtual int	width () const

virtual bool	isChildWindow () const

virtual int	height () const

virtual int	pixelRatio () const

virtual float	pixelRatioF () const

virtual int	physicalDpiX () const

virtual int	physicalDpiY () const

virtual const DtWindowConfiguration &	configuration () const

virtual bool	tick ()

virtual DtChannelManager &	channelManager ()

virtual const DtChannelManager &	channelManager () const

virtual DtChannel *	findChannel (const std::string &name)

DtDe &	de ()

virtual void	clearEmptyWindow (const std::string &messageLine1, const std::string &messageLine2, const std::string &messageLine3)

virtual void	toggleFullScreen ()

virtual bool	isFullScreen () const

virtual int	screenNumber () const

Public Attributes
boost::signalslib::signal < void(bool)>	signal_fullScreenModeChanged

boost::signalslib::signal < void(float)>	signal_pixelRatioChanged

Protected Attributes
DtDe &	myDe

DtChannelManager *	myChannelManager

DtWindowConfiguration &	myWindowConfiguration

bool	myIsChildWindow

Constructor & Destructor Documentation

makVrv::DtWindow::DtWindow	(	DtDe &	,
		DtWindowConfiguration &	wc
	)

CTOR.

virtual makVrv::DtWindow::~DtWindow ( )

virtual

DTOR.

Member Function Documentation

virtual void makVrv::DtWindow::realize ( )

virtual

Realize the current configured channels.

virtual bool makVrv::DtWindow::isValid ( ) const

pure virtual

Check to see if the window is still valid. A window should become invalid if it is closed.

Implemented in DtEmbeddedMfcOsgWindow, makVrv::DtDeMainWindowEmbeddedOsgWindow, makVrv::DtOsgWindowQt, and makVrv::DtOsgWindow.

virtual bool makVrv::DtWindow::canResize ( ) const

virtual

Check to see if the window can be resized.

virtual void makVrv::DtWindow::setPosition	(	int	x,
		int	y
	)

pure virtual

Set the position of the window in screen coordinates.

Implemented in DtEmbeddedMfcOsgWindow, makVrv::DtDeMainWindowEmbeddedOsgWindow, makVrv::DtOsgWindowQt, makVrv::DtOsgFullscreenWindow, makVrv::DtEmbeddedOsgWindow, and makVrv::DtOsgOsWindow.

virtual void makVrv::DtWindow::resize	(	int	width,
		int	height
	)

pure virtual

Resize the window.

Implemented in DtEmbeddedMfcOsgWindow, makVrv::DtDeMainWindowEmbeddedOsgWindow, makVrv::DtOsgWindowQt, makVrv::DtOsgFullscreenWindow, makVrv::DtEmbeddedOsgWindow, and makVrv::DtOsgOsWindow.

virtual void makVrv::DtWindow::sizeChanged	(	int	width,
		int	height
	)

pure virtual

Called when the size of the window has changed. This is necessary since often the window system will allow the use to resize a window.

Implemented in DtEmbeddedMfcOsgWindow, and makVrv::DtOsgWindow.

virtual int makVrv::DtWindow::width ( ) const

virtual

Get the window width.

Reimplemented in makVrv::DtDeMainWindowEmbeddedOsgWindow, and makVrv::DtOsgWindowQt.

virtual bool makVrv::DtWindow::isChildWindow ( ) const

virtual

Get the window is child window flag. Set this flag to true in a derived class that shares the graphics context with another window. Currently used for the DtOsgHmdWindow class.

virtual int makVrv::DtWindow::height ( ) const

virtual

Get the window height.

Reimplemented in makVrv::DtDeMainWindowEmbeddedOsgWindow, and makVrv::DtOsgWindowQt.

virtual int makVrv::DtWindow::pixelRatio ( ) const

virtual

Get the (rounded) window pixel ratio for high dpi scaling.

Reimplemented in makVrv::DtDeMainWindowEmbeddedOsgWindow, makVrv::DtOsgWindowQt, and makVrv::DtEmbeddedOsgWindow.

virtual float makVrv::DtWindow::pixelRatioF ( ) const

virtual

Get the window pixel ratio for high dpi scaling.

Reimplemented in makVrv::DtDeMainWindowEmbeddedOsgWindow, makVrv::DtOsgWindowQt, and makVrv::DtEmbeddedOsgWindow.

virtual int makVrv::DtWindow::physicalDpiX ( ) const

virtual

Get the pixel density along the X axis, in pixels per inch.

Reimplemented in makVrv::DtDeMainWindowEmbeddedOsgWindow, makVrv::DtOsgWindowQt, and makVrv::DtEmbeddedOsgWindow.

virtual int makVrv::DtWindow::physicalDpiY ( ) const

virtual

Get the pixel density along the Y axis, in pixels per inch.

Reimplemented in makVrv::DtDeMainWindowEmbeddedOsgWindow, makVrv::DtOsgWindowQt, and makVrv::DtEmbeddedOsgWindow.

virtual const DtWindowConfiguration& makVrv::DtWindow::configuration ( ) const

virtual

Get the window configuration.

virtual bool makVrv::DtWindow::tick ( )

virtual

Tick the window.

virtual DtChannelManager& makVrv::DtWindow::channelManager ( )

virtual

Get the window's channel manager.

virtual const DtChannelManager& makVrv::DtWindow::channelManager ( ) const

virtual

Get the window's channel manager.

virtual DtChannel* makVrv::DtWindow::findChannel ( const std::string & name )

virtual

Find a channel.

DtDe& makVrv::DtWindow::de ( )

inline

Accessor to get the de;.

virtual void makVrv::DtWindow::clearEmptyWindow	(	const std::string &	messageLine1,
		const std::string &	messageLine2,
		const std::string &	messageLine3
	)

virtual

Called every tick by the renderer on windows with no channels.

Reimplemented in makVrv::DtOsgWindow.

virtual void makVrv::DtWindow::toggleFullScreen ( )

inlinevirtual

toggle fullscreen mode, for windows that support it. The base class does nothing

Reimplemented in makVrv::DtDeMainWindowEmbeddedOsgWindow, and makVrv::DtOsgWindowQt.

virtual bool makVrv::DtWindow::isFullScreen ( ) const

inlinevirtual

Reimplemented in makVrv::DtDeMainWindowEmbeddedOsgWindow, and makVrv::DtOsgWindowQt.

virtual int makVrv::DtWindow::screenNumber ( ) const

inlinevirtual

Get the screen number of the screen that this window is on.

Reimplemented in makVrv::DtDeMainWindowEmbeddedOsgWindow, and makVrv::DtOsgWindowQt.

Member Data Documentation

boost::signalslib::signal<void(bool)> makVrv::DtWindow::signal_fullScreenModeChanged

Signal that indicates when the window toggles between full screen and Windowed mode.

boost::signalslib::signal<void(float)> makVrv::DtWindow::signal_pixelRatioChanged

Signal that indicates when the high dpi scaling factor has changed.

DtDe& makVrv::DtWindow::myDe

protected

DtChannelManager* makVrv::DtWindow::myChannelManager

protected

DtWindowConfiguration& makVrv::DtWindow::myWindowConfiguration

protected

bool makVrv::DtWindow::myIsChildWindow

protected

The documentation for this class was generated from the following file:

/data/exports/nrhent7-1/nightly/docs/vrForces.vrf5-2-branch/include/vrvCore/DtWindow.h
