DtEmitterSystemPublisher Class Reference

Instances of DtEmitterSystemPublisher are used to take care of the details associated with publishing the state of an emitter system. More...

Inheritance diagram for DtEmitterSystemPublisher:

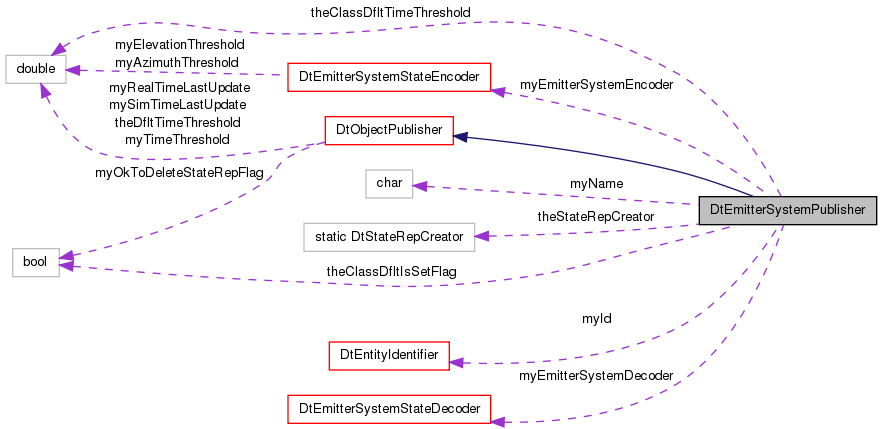

Collaboration diagram for DtEmitterSystemPublisher:

List of all members.

Public Types
typedef DtEmitterSystemRepository *(*	DtStateRepCreator )()
	Function prototype for functions that create DtEmitterSystemRepositories.
Public Member Functions
	DtEmitterSystemPublisher (DtEmitterSystemRepository *stateRepToUse, DtExerciseConn *conn, const DtObjectId &id=DtObjectId::defaultId())
	Constructor defaultId returns an id of (-1,-1,-1).
	DtEmitterSystemPublisher (DtExerciseConn *conn, const DtObjectId &id=DtObjectId::defaultId())
	Constructor defaultId returns an id of (-1,-1,-1).
	DtEmitterSystemPublisher (DtExerciseConn *conn, const char *name, const DtObjectId &id=DtObjectId::defaultId())
	Constructor defaultId() returns an id of (-1,-1,-1).
virtual	~DtEmitterSystemPublisher ()
	destructor
virtual void	forceUpdate ()
	force a pdu to be sent on the next tick call, even if it is not needed.
virtual void	tick ()
	Tick the publisher.
virtual DtEmitterSystemRepository *	emitterSystemStateRep ()
	Get the emitter system state repository for this emitter system publisher.
virtual DtEmitterSystemRepository *	esr ()
virtual const DtObjectId &	id () const
	Get the entity's identifier.
virtual const DtObjectId &	localId () const
	The localId is the same as the globalId, a DtEntityIdentifier unique to this object.
virtual const DtGlobalObjectDesignator &	globalId () const
	Get the global object designator - same as id for DIS.
virtual void	setBeamAzimuthThreshold (double threshold)
	Set the EE_AZ_THRSH_DFLT.
virtual double	beamAzimuthThreshold () const
	Returns the azimuth threshold (in radians).
virtual void	setBeamElevationThreshold (double threshold)
	Set the EE_EL_THRSH_DFLT.
virtual double	beamElevationThreshold () const
	Returns the elevation threshold (in radians).
Static Public Member Functions
static void	setStateRepCreator (DtStateRepCreator creator)
	Give us a function to be used for creating SRs.
static DtStateRepCreator	stateRepCreator (void)
static void	setClassDfltTimeThreshold (DtTime threshold)
Protected Member Functions
void	init (const char *name, const DtEntityIdentifier &id)
	Not virtual since called from constructor.
	DtEmitterSystemPublisher (const DtEmitterSystemPublisher &orig)
	copy constructor -- Not Implemented
DtEmitterSystemPublisher &	operator= (const DtEmitterSystemPublisher &orig)
	assignment operator -- Not Implemented
Protected Attributes
DtObjectId	myId
DtEmitterSystemStateDecoder *	myEmitterSystemDecoder
DtEmitterSystemStateEncoder *	myEmitterSystemEncoder
char *	myName
Static Protected Attributes
static DtStateRepCreator	theStateRepCreator
static DtTime	theClassDfltTimeThreshold
static bool	theClassDfltIsSetFlag

---

Detailed Description

Instances of DtEmitterSystemPublisher are used to take care of the details associated with publishing the state of an emitter system.

---

Member Typedef Documentation

typedef DtEmitterSystemRepository*(* DtEmitterSystemPublisher::DtStateRepCreator)()

Function prototype for functions that create DtEmitterSystemRepositories.

---

Constructor & Destructor Documentation

DtEmitterSystemPublisher::DtEmitterSystemPublisher	(	DtEmitterSystemRepository *	stateRepToUse,
		DtExerciseConn *	conn,
		const DtObjectId &	id = DtObjectId::defaultId()
	)

Constructor defaultId returns an id of (-1,-1,-1).

DtEmitterSystemPublisher::DtEmitterSystemPublisher	(	DtExerciseConn *	conn,
		const DtObjectId &	id = DtObjectId::defaultId()
	)

Constructor defaultId returns an id of (-1,-1,-1).

DtEmitterSystemPublisher::DtEmitterSystemPublisher	(	DtExerciseConn *	conn,
		const char *	name,
		const DtObjectId &	id = DtObjectId::defaultId()
	)

Constructor defaultId() returns an id of (-1,-1,-1).

virtual DtEmitterSystemPublisher::~DtEmitterSystemPublisher

(

)

[virtual]

destructor

DtEmitterSystemPublisher::DtEmitterSystemPublisher

(

const DtEmitterSystemPublisher &

orig

)

[protected]

copy constructor -- Not Implemented

---

Member Function Documentation

virtual double DtEmitterSystemPublisher::beamAzimuthThreshold

(

)

const [virtual]

Returns the azimuth threshold (in radians).

virtual double DtEmitterSystemPublisher::beamElevationThreshold

(

)

const [virtual]

Returns the elevation threshold (in radians).

virtual DtEmitterSystemRepository* DtEmitterSystemPublisher::emitterSystemStateRep

(

)

[virtual]

Get the emitter system state repository for this emitter system publisher.

DtEmitterSystemRepository * DtEmitterSystemPublisher::esr

(

)

[inline, virtual]

References DtObjectPublisher::myStateRep.

virtual void DtEmitterSystemPublisher::forceUpdate

(

)

[virtual]

force a pdu to be sent on the next tick call, even if it is not needed.

Implements DtObjectPublisher.

virtual const DtGlobalObjectDesignator& DtEmitterSystemPublisher::globalId

(

)

const [virtual]

Get the global object designator - same as id for DIS.

Implements DtObjectPublisher.

virtual const DtObjectId& DtEmitterSystemPublisher::id

(

)

const [virtual]

Get the entity's identifier.

Implements DtObjectPublisher.

void DtEmitterSystemPublisher::init	(	const char *	name,
		const DtEntityIdentifier &	id
	)		[protected]

Not virtual since called from constructor.

virtual const DtObjectId& DtEmitterSystemPublisher::localId

(

)

const [virtual]

The localId is the same as the globalId, a DtEntityIdentifier unique to this object.

Implements DtObjectPublisher.

DtEmitterSystemPublisher& DtEmitterSystemPublisher::operator=

(

const DtEmitterSystemPublisher &

orig

)

[protected]

assignment operator -- Not Implemented

virtual void DtEmitterSystemPublisher::setBeamAzimuthThreshold

(

double

threshold

)

[virtual]

Set the EE_AZ_THRSH_DFLT.

Default value is 1 degree.

Parameters:

threshold

Threshold in radians.

virtual void DtEmitterSystemPublisher::setBeamElevationThreshold

(

double

threshold

)

[virtual]

Set the EE_EL_THRSH_DFLT.

Default value is 1 degree.

Parameters:

threshold

Threshold in radians.

static void DtEmitterSystemPublisher::setClassDfltTimeThreshold

(

DtTime

threshold

)

[static]

static void DtEmitterSystemPublisher::setStateRepCreator

(

DtStateRepCreator

creator

)

[static]

Give us a function to be used for creating SRs.

static DtStateRepCreator DtEmitterSystemPublisher::stateRepCreator

(

void

)

[static]

virtual void DtEmitterSystemPublisher::tick

(

)

[virtual]

Tick the publisher.

Implements DtObjectPublisher.

---

Member Data Documentation

DtEmitterSystemStateDecoder* DtEmitterSystemPublisher::myEmitterSystemDecoder [protected]

DtEmitterSystemStateEncoder* DtEmitterSystemPublisher::myEmitterSystemEncoder [protected]

DtObjectId DtEmitterSystemPublisher::myId [protected]

char* DtEmitterSystemPublisher::myName [protected]

bool DtEmitterSystemPublisher::theClassDfltIsSetFlag [static, protected]

DtTime DtEmitterSystemPublisher::theClassDfltTimeThreshold [static, protected]

DtStateRepCreator DtEmitterSystemPublisher::theStateRepCreator [static, protected]

---

The documentation for this class was generated from the following file:

• dEmittrSysPub.h
