Instances of DtRadioTransmitterPublisher are used for local or source simulations of radio transmitters, (i.e. More...

Inheritance diagram for DtRadioTransmitterPublisher:

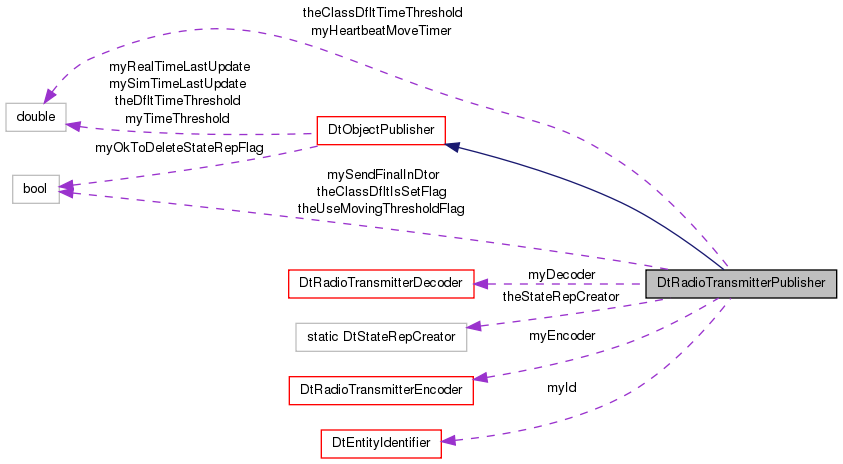

Collaboration diagram for DtRadioTransmitterPublisher:

Public Types
typedef DtRadioTransmitterRepository (	DtStateRepCreator )()
	Function prototype for functions that create DtRadioTransmitterRepositorys.
Public Member Functions
	DtRadioTransmitterPublisher (DtRadioTransmitterRepository stateRepToUse, DtExerciseConn conn, const DtObjectId &entityId=DtObjectId::defaultId())
	Constructor -- State Rep must contain a radioId.
	DtRadioTransmitterPublisher (DtExerciseConn *conn, const DtObjectId &entityId=DtObjectId::defaultId(), int radioId=1)
	Constructor.
virtual	~DtRadioTransmitterPublisher ()
	Destructor.
virtual void	tick ()
	This function should be called once per frame for each environment process object.
virtual DtRadioTransmitterRepository *	radioXmitRep ()
	Returns a pointer to the EnvironmentProcessRepository - through which you can set or inspect current state information.
virtual DtRadioTransmitterRepository *	tsr ()
	Synonym for environmentProcessStateRep()
virtual DtRadioTransmitterDecoder *	decoder ()
	Returns a pointer to the Decoder being used to decode PDUs that we send back into the asSeenByRemote ESR.
virtual DtRadioTransmitterEncoder *	encoder ()
	Returns a pointer to the Encoder being used to encode current state into an entity state PDU.
virtual const DtObjectId &	id () const
	Get the environment process's identifier.
virtual const DtObjectId &	localId () const
	Get the environment process's localId - same as id for DIS.
virtual const DtGlobalObjectDesignator &	globalId () const
	Get the global object designator - same as id for DIS.
virtual int	radioId () const
	Get the radio ID.
virtual void	sendFinalPduOnDestruction (bool onOff)
	Set flag indicating whether to send a final PDU with the "FinalPdu" appearance bit set, from within the DtRadioTransmitterPublisher destructor.
virtual void	forceUpdate ()
	Force a state update to be sent during the next call to tick, even if nothing would normally cause a send.
virtual void	setHeartbeatMoveTimer (DtTime time)
	Sets the time threshold used for moving radio transmitters.
virtual DtTime	heartbeatMoveTimer () const
	Returns the time threshold used for moving radio transmitters.
virtual DtTime	transmitterTimeThreshold () const
	Returns the time threshold being used.
virtual void	setAntennaLocationThreshold (double threshold)
	Sets the antenna location threshold.
virtual double	antennaLocationThreshold () const
	Returns the antenna location threshold.
virtual void	setAntennaOrientationThreshold (double threshold)
	Sets the antenna orientation threshold.
virtual double	antennaOrientationThreshold () const
	Returns the antenna orientation threshold.
Static Public Member Functions
static void	setStateRepCreator (DtStateRepCreator creator)
	Give us a function to be used for creating SRs.
static DtStateRepCreator	stateRepCreator (void)
static void	setUseMovingThresholdFlag (bool flag)
	Sets the flag to determine whether to use a separate threshold value if the entity that the transmitter is attached to is moving.
static bool	useMovingThresholdFlag ()
	Returns the flag described above.
static void	setClassDfltTimeThreshold (DtTime threshold)
Protected Member Functions
void	sendFinalPdu ()
	not virtual since called from destructor.
void	init (const DtEntityIdentifier &vehId)
	not virtual since called from constructor
	DtRadioTransmitterPublisher (const DtRadioTransmitterPublisher &orig)
	copy constructor -- not implemented
DtRadioTransmitterPublisher &	operator= (const DtRadioTransmitterPublisher &orig)
	copy constructor -- not implemented
Protected Attributes
DtObjectId	myId
DtRadioTransmitterDecoder *	myDecoder
DtRadioTransmitterEncoder *	myEncoder
bool	mySendFinalInDtor
DtTime	myHeartbeatMoveTimer
Static Protected Attributes
static DtStateRepCreator	theStateRepCreator
static bool	theUseMovingThresholdFlag
static DtTime	theClassDfltTimeThreshold
static bool	theClassDfltIsSetFlag

Detailed Description

Instances of DtRadioTransmitterPublisher are used for local or source simulations of radio transmitters, (i.e.

these entities are not dependent on data being produced elsewhere on the network for their existence). These radio transmitters send data to the network.

Member Typedef Documentation

typedef DtRadioTransmitterRepository*(* DtRadioTransmitterPublisher::DtStateRepCreator)()

Function prototype for functions that create DtRadioTransmitterRepositorys.

Constructor & Destructor Documentation

DtRadioTransmitterPublisher::DtRadioTransmitterPublisher	(	DtRadioTransmitterRepository *	stateRepToUse,
		DtExerciseConn *	conn,
		const DtObjectId &	entityId = `DtObjectId::defaultId()`
	)

Constructor -- State Rep must contain a radioId.

DtRadioTransmitterPublisher::DtRadioTransmitterPublisher	(	DtExerciseConn *	conn,
		const DtObjectId &	entityId = `DtObjectId::defaultId()`,
		int	radioId = `1`
	)

Constructor.

virtual DtRadioTransmitterPublisher::~DtRadioTransmitterPublisher ( ) [virtual]

Destructor.

DtRadioTransmitterPublisher::DtRadioTransmitterPublisher ( const DtRadioTransmitterPublisher & orig ) [protected]

copy constructor -- not implemented

Member Function Documentation

virtual double DtRadioTransmitterPublisher::antennaLocationThreshold ( ) const [virtual]

Returns the antenna location threshold.

Returns:: The location threshold in meters.

Deprecated:: Users should now call: tsr()->thresholder()->antennaLocationThreshold()

Exceptions:

DtException if state rep is null.

virtual double DtRadioTransmitterPublisher::antennaOrientationThreshold ( ) const [virtual]

Returns the antenna orientation threshold.

Returns:: The orientation threshold in radians.

Deprecated:: Users should now call: tsr()->thresholder()->antennaOrientationThreshold()

Exceptions:

DtException if state rep is null.

virtual DtRadioTransmitterDecoder* DtRadioTransmitterPublisher::decoder ( ) [virtual]

Returns a pointer to the Decoder being used to decode PDUs that we send back into the asSeenByRemote ESR.

virtual DtRadioTransmitterEncoder* DtRadioTransmitterPublisher::encoder ( ) [virtual]

Returns a pointer to the Encoder being used to encode current state into an entity state PDU.

virtual void DtRadioTransmitterPublisher::forceUpdate ( ) [virtual]

Force a state update to be sent during the next call to tick, even if nothing would normally cause a send.

Implements DtObjectPublisher.

virtual const DtGlobalObjectDesignator& DtRadioTransmitterPublisher::globalId ( ) const [virtual]

Get the global object designator - same as id for DIS.

Implements DtObjectPublisher.

virtual DtTime DtRadioTransmitterPublisher::heartbeatMoveTimer ( ) const [virtual]

Returns the time threshold used for moving radio transmitters.

virtual const DtObjectId& DtRadioTransmitterPublisher::id ( ) const [virtual]

Get the environment process's identifier.

Implements DtObjectPublisher.

void DtRadioTransmitterPublisher::init ( const DtEntityIdentifier & vehId ) [protected]

not virtual since called from constructor

virtual const DtObjectId& DtRadioTransmitterPublisher::localId ( ) const [virtual]

Get the environment process's localId - same as id for DIS.

Implements DtObjectPublisher.

DtRadioTransmitterPublisher& DtRadioTransmitterPublisher::operator= ( const DtRadioTransmitterPublisher & orig ) [protected]

copy constructor -- not implemented

virtual int DtRadioTransmitterPublisher::radioId ( ) const [virtual]

Get the radio ID.

virtual DtRadioTransmitterRepository* DtRadioTransmitterPublisher::radioXmitRep ( ) [virtual]

Returns a pointer to the EnvironmentProcessRepository - through which you can set or inspect current state information.

void DtRadioTransmitterPublisher::sendFinalPdu ( ) [protected]

not virtual since called from destructor.

virtual void DtRadioTransmitterPublisher::sendFinalPduOnDestruction ( bool onOff ) [virtual]

Set flag indicating whether to send a final PDU with the "FinalPdu" appearance bit set, from within the DtRadioTransmitterPublisher destructor.

virtual void DtRadioTransmitterPublisher::setAntennaLocationThreshold ( double threshold ) [virtual]

Sets the antenna location threshold.

Sets the distance that the antenna must have moved for another PDU to be sent.

Parameters:

threshold Threshold in meters defaulted to 500 m.

Deprecated:: Users should now call: tsr()->thresholder()->setAntennaLocationThreshold()

virtual void DtRadioTransmitterPublisher::setAntennaOrientationThreshold ( double threshold ) [virtual]

Sets the antenna orientation threshold.

Parameters:

threshold Threshold in radians defaulted to 180 degrees.

Deprecated:: Users should now call: tsr()->thresholder()->setAntennaOrientationThreshold()

static void DtRadioTransmitterPublisher::setClassDfltTimeThreshold ( DtTime threshold ) [static]

virtual void DtRadioTransmitterPublisher::setHeartbeatMoveTimer ( DtTime time ) [virtual]

Sets the time threshold used for moving radio transmitters.

static void DtRadioTransmitterPublisher::setStateRepCreator ( DtStateRepCreator creator ) [static]

Give us a function to be used for creating SRs.

static void DtRadioTransmitterPublisher::setUseMovingThresholdFlag ( bool flag ) [static]

Sets the flag to determine whether to use a separate threshold value if the entity that the transmitter is attached to is moving.

static DtStateRepCreator DtRadioTransmitterPublisher::stateRepCreator ( void ) [static]

virtual void DtRadioTransmitterPublisher::tick ( ) [virtual]

This function should be called once per frame for each environment process object.

It determines if any data needs to be sent to the other exercise participants, and sends that data.

Implements DtObjectPublisher.

virtual DtTime DtRadioTransmitterPublisher::transmitterTimeThreshold ( ) const [virtual]

Returns the time threshold being used.

DtRadioTransmitterRepository * DtRadioTransmitterPublisher::tsr ( ) [inline, virtual]

Synonym for environmentProcessStateRep()

References DtObjectPublisher::myStateRep.

static bool DtRadioTransmitterPublisher::useMovingThresholdFlag ( ) [static]

Returns the flag described above.

See also:: setUseMovingThresholdFlag

Member Data Documentation

DtRadioTransmitterDecoder* DtRadioTransmitterPublisher::myDecoder [protected]

DtRadioTransmitterEncoder* DtRadioTransmitterPublisher::myEncoder [protected]

DtTime DtRadioTransmitterPublisher::myHeartbeatMoveTimer [protected]

DtObjectId DtRadioTransmitterPublisher::myId [protected]

bool DtRadioTransmitterPublisher::mySendFinalInDtor [protected]

bool DtRadioTransmitterPublisher::theClassDfltIsSetFlag [static, protected]

DtTime DtRadioTransmitterPublisher::theClassDfltTimeThreshold [static, protected]

DtStateRepCreator DtRadioTransmitterPublisher::theStateRepCreator [static, protected]

bool DtRadioTransmitterPublisher::theUseMovingThresholdFlag [static, protected]

The documentation for this class was generated from the following file:

dRadioXmitPub.h
