DtReflectedEntityList Class Reference

Instances of this class provide a protocol independent interface to a list of reflected entities in a DIS environment. More...

Inheritance diagram for DtReflectedEntityList:

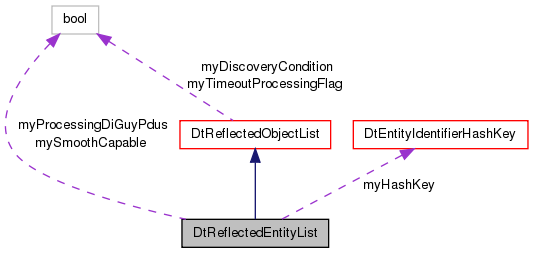

Collaboration diagram for DtReflectedEntityList:

List of all members.

Public Member Functions
	DtReflectedEntityList (DtExerciseConn *exConn, bool smoothCapable=false, bool processDiGuyPdus=false)
	Constructor.
virtual	~DtReflectedEntityList ()
	Destructor.
virtual DtReflectedEntity *	lookup (const DtObjectId &id) const
	Lookup an entity from its object ID.
virtual DtReflectedEntity *	first () const
	Get the first and last elements of the entity list.
virtual DtReflectedEntity *	last () const
virtual void	addEntityAdditionCallback (DtEntityCallbackFunction cb, void *userData)
	Entity added callback registration/deregistration.
virtual void	removeEntityAdditionCallback (DtEntityCallbackFunction cb, void *userData)
virtual void	addEntityRemovalCallback (DtEntityCallbackFunction cb, void *userData)
	Entity removed callback registration/deregistration.
virtual void	removeEntityRemovalCallback (DtEntityCallbackFunction cb, void *userData)
virtual void	print ()
	Print the SRs of all objects.
virtual DtReflectedEntity *	processEntityState (const DtEntityStatePdu &pdu)
	Process an incoming entity state pdu.
virtual void	processRelativeLocationPdu (const DtRelativeLocationPdu &pdu)
	Process an incoming relativeLocation pdu.
virtual void	processEntityStateUpdatePdu (const DtEntityStateUpdatePdu &pdu)
	Process an incoming relativeLocation pdu.
virtual void	processDiGuyPdu (const DtDIGuyCustomPdu &pdu)
	Process an incoming DI Guy Custom PDU.
virtual void	processSeesPdu (const DtSuppEmisEntStatePdu &pdu)
	Process an incoming SEES PDU.
virtual void	setProcessDiGuyPdus (bool trueFalse)
	Tells the reflected list whether to process DI-Guy PDU's or not.
virtual void	discoverOnlyWhenEntityTypeKnown (bool yesNo)
	Allows one to specify whether the REL should wait until the entity type is known before adding the entity to the list.
Protected Member Functions
DtReflectedEntityList &	operator= (const DtReflectedEntityList &orig)
	Assignment operator -- not implemented.
	DtReflectedEntityList (const DtReflectedEntityList &orig)
	Copy constructor -- not implemented.
virtual DtReflectedObject *	newReflectedObj (const DtStateMsg &msg)
	Create a new object from a state message.
virtual DtReflectedObject *	processStateMessage (const DtStateMsg &msg)
	Process an incoming state message. Calls processEntityState().
virtual void	objectAdded (DtReflectedObject *obj)
	Called after an entity is added and before additional callbacks are processed.
virtual void	finalPduIsSetAction (DtReflectedEntity *entity)
	Called when an entity sends its final PDU.
virtual const DtBaseHashKey &	hashKeyFromStateMessage (const DtStateMsg *msg)
	Get a hash key from a state message.
virtual DtReflectedEntity *	newReflectedEntity (const DtEntityIdentifier &id, const DtEntityType &type) const
	Create a new reflected entity.
virtual void	entityAdded (DtReflectedEntity *ent)
	Called after an entity is added and before additional callbacks are processed.
Static Protected Member Functions
static void	entityStateCb (DtEntityStatePdu *pdu, void *usr)
	Callback for the exercise connection.
static void	relativeLocationCb (DtRelativeLocationPdu *pdu, void *usr)
	Callback which calls processRelativeLocationPdu.
static void	entityStateUpdateCb (DtEntityStateUpdatePdu *pdu, void *usr)
	Callback which calls processEntityStateUpdatePdu.
static void	diGuyPduCb (DtDIGuyCustomPdu *pdu, void *usr)
	Callback which calls processDiGuyPdu.
static void	seesPduCb (DtSuppEmisEntStatePdu *pdu, void *usr)
	SEES PDU callback.
static bool	checkEntityType (DtReflectedObject *obj, void *usr)
	Callback which checks whether the entity type has arrived yet; registered/deregistered using the fn, discoverOnlyWhenEntityTypeKnown.
Protected Attributes
bool	mySmoothCapable
DtEntityIdentifierHashKey *	myHashKey
bool	myProcessingDiGuyPdus

---

Detailed Description

Instances of this class provide a protocol independent interface to a list of reflected entities in a DIS environment.

Examples

• Talk
• Listen
• F18

---

Constructor & Destructor Documentation

DtReflectedEntityList::DtReflectedEntityList	(	DtExerciseConn *	exConn,
		bool	smoothCapable = false,
		bool	processDiGuyPdus = false
	)

Constructor.

virtual DtReflectedEntityList::~DtReflectedEntityList

(

)

[virtual]

Destructor.

DtReflectedEntityList::DtReflectedEntityList

(

const DtReflectedEntityList &

orig

)

[protected]

Copy constructor -- not implemented.

---

Member Function Documentation

virtual void DtReflectedEntityList::addEntityAdditionCallback	(	DtEntityCallbackFunction	cb,
		void *	userData
	)		[virtual]

Entity added callback registration/deregistration.

virtual void DtReflectedEntityList::addEntityRemovalCallback	(	DtEntityCallbackFunction	cb,
		void *	userData
	)		[virtual]

Entity removed callback registration/deregistration.

static bool DtReflectedEntityList::checkEntityType	(	DtReflectedObject *	obj,
		void *	usr
	)		[static, protected]

Callback which checks whether the entity type has arrived yet; registered/deregistered using the fn, discoverOnlyWhenEntityTypeKnown.

static void DtReflectedEntityList::diGuyPduCb	(	DtDIGuyCustomPdu *	pdu,
		void *	usr
	)		[static, protected]

Callback which calls processDiGuyPdu.

virtual void DtReflectedEntityList::discoverOnlyWhenEntityTypeKnown

(

bool

yesNo

)

[virtual]

Allows one to specify whether the REL should wait until the entity type is known before adding the entity to the list.

The default value is no, meaning entities will get added to the list immediately -- regardless of whether it has received any attr values or not.

virtual void DtReflectedEntityList::entityAdded

(

DtReflectedEntity *

ent

)

[protected, virtual]

Called after an entity is added and before additional callbacks are processed.

Right now, this function only calls DtInfo.

static void DtReflectedEntityList::entityStateCb	(	DtEntityStatePdu *	pdu,
		void *	usr
	)		[static, protected]

Callback for the exercise connection.

static void DtReflectedEntityList::entityStateUpdateCb	(	DtEntityStateUpdatePdu *	pdu,
		void *	usr
	)		[static, protected]

Callback which calls processEntityStateUpdatePdu.

virtual void DtReflectedEntityList::finalPduIsSetAction

(

DtReflectedEntity *

entity

)

[protected, virtual]

Called when an entity sends its final PDU.

Currently, this removes and deletes the entity.

virtual DtReflectedEntity* DtReflectedEntityList::first

(

)

const [virtual]

Get the first and last elements of the entity list.

virtual const DtBaseHashKey& DtReflectedEntityList::hashKeyFromStateMessage

(

const DtStateMsg *

msg

)

[protected, virtual]

Get a hash key from a state message.

Implements DtReflectedObjectList.

virtual DtReflectedEntity* DtReflectedEntityList::last

(

)

const [virtual]

virtual DtReflectedEntity* DtReflectedEntityList::lookup

(

const DtObjectId &

id

)

const [virtual]

Lookup an entity from its object ID.

virtual DtReflectedEntity* DtReflectedEntityList::newReflectedEntity	(	const DtEntityIdentifier &	id,
		const DtEntityType &	type
	)		const [protected, virtual]

Create a new reflected entity.

virtual DtReflectedObject* DtReflectedEntityList::newReflectedObj

(

const DtStateMsg &

msg

)

[protected, virtual]

Create a new object from a state message.

Calls newReflectedEntity() to create a new entity, and then tells the esr to use a smoother if smoothing is enabled.

Implements DtReflectedObjectList.

virtual void DtReflectedEntityList::objectAdded

(

DtReflectedObject *

obj

)

[protected, virtual]

Called after an entity is added and before additional callbacks are processed.

Calls entityAdded().

Reimplemented from DtReflectedObjectList.

DtReflectedEntityList& DtReflectedEntityList::operator=

(

const DtReflectedEntityList &

orig

)

[protected]

Assignment operator -- not implemented.

virtual void DtReflectedEntityList::print

(

)

[virtual]

Print the SRs of all objects.

virtual void DtReflectedEntityList::processDiGuyPdu

(

const DtDIGuyCustomPdu &

pdu

)

[virtual]

Process an incoming DI Guy Custom PDU.

Only used if capability is turned on in the constructor.

virtual DtReflectedEntity* DtReflectedEntityList::processEntityState

(

const DtEntityStatePdu &

pdu

)

[virtual]

Process an incoming entity state pdu.

Then calls down to base class processStateMessage().

virtual void DtReflectedEntityList::processEntityStateUpdatePdu

(

const DtEntityStateUpdatePdu &

pdu

)

[virtual]

Process an incoming relativeLocation pdu.

virtual void DtReflectedEntityList::processRelativeLocationPdu

(

const DtRelativeLocationPdu &

pdu

)

[virtual]

Process an incoming relativeLocation pdu.

virtual void DtReflectedEntityList::processSeesPdu

(

const DtSuppEmisEntStatePdu &

pdu

)

[virtual]

Process an incoming SEES PDU.

virtual DtReflectedObject* DtReflectedEntityList::processStateMessage

(

const DtStateMsg &

msg

)

[protected, virtual]

Process an incoming state message. Calls processEntityState().

Reimplemented from DtReflectedObjectList.

static void DtReflectedEntityList::relativeLocationCb	(	DtRelativeLocationPdu *	pdu,
		void *	usr
	)		[static, protected]

Callback which calls processRelativeLocationPdu.

virtual void DtReflectedEntityList::removeEntityAdditionCallback	(	DtEntityCallbackFunction	cb,
		void *	userData
	)		[virtual]

virtual void DtReflectedEntityList::removeEntityRemovalCallback	(	DtEntityCallbackFunction	cb,
		void *	userData
	)		[virtual]

static void DtReflectedEntityList::seesPduCb	(	DtSuppEmisEntStatePdu *	pdu,
		void *	usr
	)		[static, protected]

SEES PDU callback.

virtual void DtReflectedEntityList::setProcessDiGuyPdus

(

bool

trueFalse

)

[virtual]

Tells the reflected list whether to process DI-Guy PDU's or not.

If true, and the list is not processing DI-Guy PDU's, will add a callback for DI-Guy PDU's. If false, and the list is processing DI-Guy PDU's, will remove the callback to process the PDU's.

---

Member Data Documentation

DtEntityIdentifierHashKey* DtReflectedEntityList::myHashKey [protected]

bool DtReflectedEntityList::myProcessingDiGuyPdus [protected]

bool DtReflectedEntityList::mySmoothCapable [protected]

---

The documentation for this class was generated from the following file:

• dReflEntList.h
