Instances of DtReflectedObjectList are lists of instances of classes derived from DtReflectedObject. More...

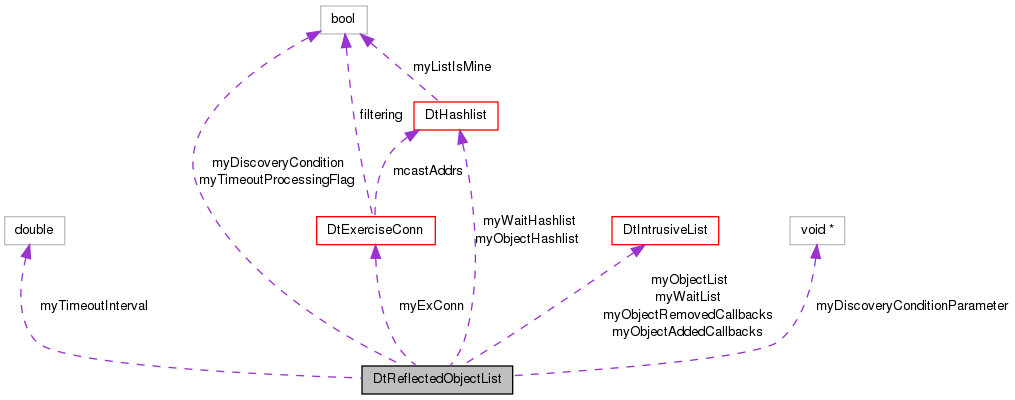

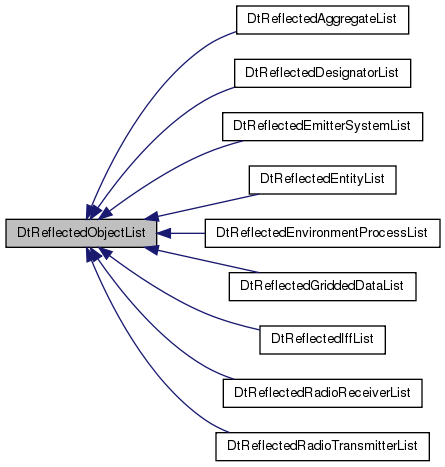

Inheritance diagram for DtReflectedObjectList: Collaboration diagram for DtReflectedObjectList:Public Member Functions | |
| DtReflectedObjectList (DtExerciseConn *exConn) | |
| Constructor. | |
| virtual | ~DtReflectedObjectList () |
| destructor Warning: makes non-virtual call to removeAndDelete | |
| virtual DtReflectedObject * | firstObj () const |
| Get the first/last object in the list. | |
| virtual DtReflectedObject * | lastObj () const |
| virtual int | count () const |
| Get number of objects. | |
| virtual DtReflectedObject * | lookupObj (const DtBaseHashKey &key) const |
| Search for an object. | |
| virtual DtExerciseConn * | exerciseConn () const |
| Get my exerciseConn. | |
| virtual void | addObjectAdditionCallback (DtReflectedObjectCallbackFunction cb, void *userData) |
| Object added callback registration/deregistration. | |
| virtual void | removeObjectAdditionCallback (DtReflectedObjectCallbackFunction cb, void *userData) |
| virtual void | addObjectRemovalCallback (DtReflectedObjectCallbackFunction cb, void *userData) |
| Object removed callback registration/deregistration. | |
| virtual void | removeObjectRemovalCallback (DtReflectedObjectCallbackFunction cb, void *userData) |
| virtual void | print () const |
| Print the SRs of all objects. | |
| virtual void | setTimeoutProcessing (bool onOff) |
| Set whether or not timeout processing occurs. | |
| virtual void | setTimeoutInterval (DtTime time) |
| Set/Get the remote object timeout period. | |
| virtual DtTime | timeoutInterval () |
| virtual void | setDiscoveryCondition (DtDiscoveryCondition fn, void *usr) |
| Set the checker function which will determine when an object gets discovered and put into the ref. | |
| virtual void | clearDiscoveryCondition () |
| Unregisters the checker function set in setDiscoverCondition. | |
Protected Member Functions | |
| DtReflectedObjectList (const DtReflectedObjectList &orig) | |
| copy constructor -- not implemented | |
| DtReflectedObjectList & | operator= (const DtReflectedObjectList &orig) |
| assignment operator -- not implemented | |
| virtual DtReflectedObject * | newReflectedObj (const DtStateMsg &msg)=0 |
| Create a new object from a state message. | |
| virtual DtReflectedObject * | processStateMessage (const DtStateMsg &msg) |
| Process an incoming state message. | |
| virtual void | doTimeouts () |
| Remove any remote objects which have not been updated during the timeout period. | |
| virtual void | removeAndDelete (DtReflectedObject *obj, char *msg=NULL) |
| Remove the remote object from the list if found and delete it. | |
| virtual void | objectAdded (DtReflectedObject *object) |
| Called after a remote object has been added to the list. | |
| virtual bool | shouldBeTimedOut (DtReflectedObject *object) |
| Returns whether or not the object should be timed out. | |
| void | emptyLists () |
| Empty the object list and the timeout list. | |
| void | emptyCallbackLists () |
| virtual void | processObjectAdditionCallbacks (DtReflectedObject *object) |
| Process object addition/removal callbacks. | |
| virtual void | processObjectRemovalCallbacks (DtReflectedObject *object) |
| virtual const DtBaseHashKey & | hashKeyFromStateMessage (const DtStateMsg *msg)=0 |
| Get a hash key from a state message. | |
| virtual int | acceptPdu (const DtStateMsg &) const |
| Determines if a PDU should be processed or not. | |
| virtual bool | readyToAdd (DtReflectedObject *obj) |
| Returns true if the obj is ready to be added to myObjectList; calls myDiscoveryCondition from within. | |
Static Protected Member Functions | |
| static void | doTimeoutsPostDrainCb (void *usr) |
| Calls doTimeouts. | |
Protected Attributes | |
| DtExerciseConn * | myExConn |
| DtIntrusiveList | myObjectAddedCallbacks |
| DtIntrusiveList | myObjectRemovedCallbacks |
| DtIntrusiveList | myObjectList |
| DtIntrusiveList | myWaitList |
| DtHashlist | myObjectHashlist |
| DtHashlist | myWaitHashlist |
| DtTime | myTimeoutInterval |
| bool | myTimeoutProcessingFlag |
| DtDiscoveryCondition | myDiscoveryCondition |
| void * | myDiscoveryConditionParameter |
Instances of DtReflectedObjectList are lists of instances of classes derived from DtReflectedObject.
A DtReflectedObjectList manages the comings and goings of its reflected objects based on discoveries and removes received from the exercise connection.
Constructor.
| virtual DtReflectedObjectList::~DtReflectedObjectList | ( | ) | [virtual] |
destructor Warning: makes non-virtual call to removeAndDelete
| DtReflectedObjectList::DtReflectedObjectList | ( | const DtReflectedObjectList & | orig | ) | [protected] |
copy constructor -- not implemented
| virtual int DtReflectedObjectList::acceptPdu | ( | const DtStateMsg & | ) | const [protected, virtual] |
Determines if a PDU should be processed or not.
Right now, this function returns 1.
Reimplemented in DtReflectedDesignatorList.
| virtual void DtReflectedObjectList::addObjectAdditionCallback | ( | DtReflectedObjectCallbackFunction | cb, |
| void * | userData | ||
| ) | [virtual] |
Object added callback registration/deregistration.
| virtual void DtReflectedObjectList::addObjectRemovalCallback | ( | DtReflectedObjectCallbackFunction | cb, |
| void * | userData | ||
| ) | [virtual] |
Object removed callback registration/deregistration.
| virtual void DtReflectedObjectList::clearDiscoveryCondition | ( | ) | [virtual] |
Unregisters the checker function set in setDiscoverCondition.
If there is none set, this has no effect.
| virtual int DtReflectedObjectList::count | ( | ) | const [virtual] |
Get number of objects.
| virtual void DtReflectedObjectList::doTimeouts | ( | ) | [protected, virtual] |
Remove any remote objects which have not been updated during the timeout period.
Gets called automatically by a postDrainCallback registered by the constructor. Users should not need to call this.
| static void DtReflectedObjectList::doTimeoutsPostDrainCb | ( | void * | usr | ) | [static, protected] |
Calls doTimeouts.
| void DtReflectedObjectList::emptyCallbackLists | ( | ) | [protected] |
| void DtReflectedObjectList::emptyLists | ( | ) | [protected] |
Empty the object list and the timeout list.
Non-virtual since meant to be called from destructor. Warning: makes non-virtual call to removeAndDelete
| virtual DtExerciseConn* DtReflectedObjectList::exerciseConn | ( | ) | const [virtual] |
Get my exerciseConn.
| virtual DtReflectedObject* DtReflectedObjectList::firstObj | ( | ) | const [virtual] |
Get the first/last object in the list.
| virtual const DtBaseHashKey& DtReflectedObjectList::hashKeyFromStateMessage | ( | const DtStateMsg * | msg | ) | [protected, pure virtual] |
Get a hash key from a state message.
Implemented in DtReflectedEntityList, DtReflectedEmitterSystemList, DtReflectedIffList, DtReflectedDesignatorList, DtReflectedAggregateList, DtReflectedGriddedDataList, DtReflectedRadioTransmitterList, DtReflectedEnvironmentProcessList, and DtReflectedRadioReceiverList.
| virtual DtReflectedObject* DtReflectedObjectList::lastObj | ( | ) | const [virtual] |
| virtual DtReflectedObject* DtReflectedObjectList::lookupObj | ( | const DtBaseHashKey & | key | ) | const [virtual] |
Search for an object.
| virtual DtReflectedObject* DtReflectedObjectList::newReflectedObj | ( | const DtStateMsg & | msg | ) | [protected, pure virtual] |
Create a new object from a state message.
Implemented in DtReflectedEntityList, DtReflectedEmitterSystemList, DtReflectedIffList, DtReflectedAggregateList, DtReflectedGriddedDataList, DtReflectedRadioTransmitterList, DtReflectedEnvironmentProcessList, DtReflectedRadioReceiverList, and DtReflectedDesignatorList.
| virtual void DtReflectedObjectList::objectAdded | ( | DtReflectedObject * | object | ) | [protected, virtual] |
Called after a remote object has been added to the list.
Defaults to do nothing. Subclasses can override this function to add functionality on addition.
Reimplemented in DtReflectedEntityList, DtReflectedEmitterSystemList, DtReflectedIffList, DtReflectedDesignatorList, DtReflectedAggregateList, DtReflectedGriddedDataList, DtReflectedRadioTransmitterList, DtReflectedEnvironmentProcessList, and DtReflectedRadioReceiverList.
| DtReflectedObjectList& DtReflectedObjectList::operator= | ( | const DtReflectedObjectList & | orig | ) | [protected] |
assignment operator -- not implemented
| virtual void DtReflectedObjectList::print | ( | ) | const [virtual] |
Print the SRs of all objects.
Reimplemented in DtReflectedDesignatorList.
| virtual void DtReflectedObjectList::processObjectAdditionCallbacks | ( | DtReflectedObject * | object | ) | [protected, virtual] |
Process object addition/removal callbacks.
| virtual void DtReflectedObjectList::processObjectRemovalCallbacks | ( | DtReflectedObject * | object | ) | [protected, virtual] |
| virtual DtReflectedObject* DtReflectedObjectList::processStateMessage | ( | const DtStateMsg & | msg | ) | [protected, virtual] |
Process an incoming state message.
Reimplemented in DtReflectedEntityList, DtReflectedEmitterSystemList, DtReflectedIffList, DtReflectedAggregateList, DtReflectedDesignatorList, DtReflectedGriddedDataList, DtReflectedRadioTransmitterList, DtReflectedEnvironmentProcessList, and DtReflectedRadioReceiverList.
| virtual bool DtReflectedObjectList::readyToAdd | ( | DtReflectedObject * | obj | ) | [protected, virtual] |
Returns true if the obj is ready to be added to myObjectList; calls myDiscoveryCondition from within.
| virtual void DtReflectedObjectList::removeAndDelete | ( | DtReflectedObject * | obj, |
| char * | msg = NULL |
||
| ) | [protected, virtual] |
Remove the remote object from the list if found and delete it.
Prints a message on deletion if specified.
Reimplemented in DtReflectedDesignatorList.
| virtual void DtReflectedObjectList::removeObjectAdditionCallback | ( | DtReflectedObjectCallbackFunction | cb, |
| void * | userData | ||
| ) | [virtual] |
| virtual void DtReflectedObjectList::removeObjectRemovalCallback | ( | DtReflectedObjectCallbackFunction | cb, |
| void * | userData | ||
| ) | [virtual] |
| virtual void DtReflectedObjectList::setDiscoveryCondition | ( | DtDiscoveryCondition | fn, |
| void * | usr | ||
| ) | [virtual] |
Set the checker function which will determine when an object gets discovered and put into the ref.
obj. list.
| virtual void DtReflectedObjectList::setTimeoutInterval | ( | DtTime | time | ) | [virtual] |
Set/Get the remote object timeout period.
| virtual void DtReflectedObjectList::setTimeoutProcessing | ( | bool | onOff | ) | [virtual] |
Set whether or not timeout processing occurs.
Defaults to On.
| virtual bool DtReflectedObjectList::shouldBeTimedOut | ( | DtReflectedObject * | object | ) | [protected, virtual] |
Returns whether or not the object should be timed out.
Assumes that timeout processing is enabled.
| virtual DtTime DtReflectedObjectList::timeoutInterval | ( | ) | [virtual] |
void* DtReflectedObjectList::myDiscoveryConditionParameter [protected] |
DtExerciseConn* DtReflectedObjectList::myExConn [protected] |
DtHashlist DtReflectedObjectList::myObjectHashlist [protected] |
DtIntrusiveList DtReflectedObjectList::myObjectList [protected] |
DtTime DtReflectedObjectList::myTimeoutInterval [protected] |
bool DtReflectedObjectList::myTimeoutProcessingFlag [protected] |
DtHashlist DtReflectedObjectList::myWaitHashlist [protected] |
DtIntrusiveList DtReflectedObjectList::myWaitList [protected] |
