DtReflectedAggregateList Class Reference

Instances of this class provide a protocol independent interface to a list of reflected aggregates in a DIS environment. More...

Inheritance diagram for DtReflectedAggregateList:

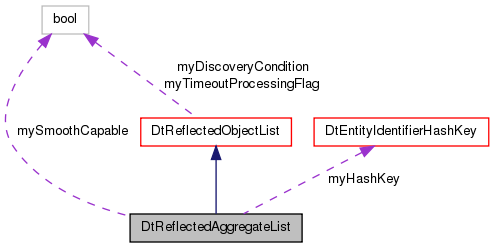

Collaboration diagram for DtReflectedAggregateList:

List of all members.

Public Member Functions
	DtReflectedAggregateList (DtExerciseConn *exConn, bool smoothCapable=false)
	Constructor.
virtual	~DtReflectedAggregateList ()
	Destructor.
virtual DtReflectedAggregate *	lookup (const DtObjectId &id) const
	Lookup an aggregate from its object ID.
virtual DtReflectedAggregate *	first () const
	Get the first and last elements of the aggregate list.
virtual DtReflectedAggregate *	last () const
virtual void	addAggregateAdditionCallback (DtAggregateCallbackFunction cb, void *userData)
	Aggregate added callback registration/deregistration.
virtual void	removeAggregateAdditionCallback (DtAggregateCallbackFunction cb, void *userData)
virtual void	addAggregateRemovalCallback (DtAggregateCallbackFunction cb, void *userData)
	Aggregate removed callback registration/deregistration.
virtual void	removeAggregateRemovalCallback (DtAggregateCallbackFunction cb, void *userData)
virtual void	print ()
	Print the SRs of all objects.
virtual DtReflectedAggregate *	processAggregateState (const DtAggregateStatePdu &pdu)
	Process an incoming aggregate state pdu.
virtual void	processRelativeLocationPdu (const DtRelativeLocationPdu &pdu)
	Process an incoming relativeLocation pdu.
Protected Member Functions
virtual DtReflectedObject *	newReflectedObj (const DtStateMsg &msg)
	Create a new object from a state message.
virtual DtReflectedObject *	processStateMessage (const DtStateMsg &msg)
	Process an incoming state message.
virtual void	objectAdded (DtReflectedObject *obj)
	Called after an aggregate is added and before additional callbacks are processed.
virtual const DtBaseHashKey &	hashKeyFromStateMessage (const DtStateMsg *msg)
	Get a hash key from a state message.
virtual DtReflectedAggregate *	newReflectedAggregate (const DtEntityIdentifier &id, const DtEntityType &type) const
	Create a new reflected aggregate.
virtual void	aggregateAdded (DtReflectedAggregate *agg)
	Called after an aggregate is added and before additional callbacks are processed.
Static Protected Member Functions
static void	aggregateStateCb (DtAggregateStatePdu *pdu, void *usr)
	Callback for the exercise connection.
static void	relativeLocationCb (DtRelativeLocationPdu *pdu, void *usr)
	Callback which calls processRelativeLocationPdu.
Protected Attributes
bool	mySmoothCapable
DtEntityIdentifierHashKey *	myHashKey
Private Member Functions
DtReflectedAggregateList &	operator= (const DtReflectedAggregateList &orig)
	Assignment operator -- not implemented.
	DtReflectedAggregateList (const DtReflectedAggregateList &orig)
	Copy constructor -- not implemented.

---

Detailed Description

Instances of this class provide a protocol independent interface to a list of reflected aggregates in a DIS environment.

---

Constructor & Destructor Documentation

DtReflectedAggregateList::DtReflectedAggregateList	(	DtExerciseConn *	exConn,
		bool	smoothCapable = false
	)

Constructor.

virtual DtReflectedAggregateList::~DtReflectedAggregateList

(

)

[virtual]

Destructor.

DtReflectedAggregateList::DtReflectedAggregateList

(

const DtReflectedAggregateList &

orig

)

[private]

Copy constructor -- not implemented.

---

Member Function Documentation

virtual void DtReflectedAggregateList::addAggregateAdditionCallback	(	DtAggregateCallbackFunction	cb,
		void *	userData
	)		[virtual]

Aggregate added callback registration/deregistration.

virtual void DtReflectedAggregateList::addAggregateRemovalCallback	(	DtAggregateCallbackFunction	cb,
		void *	userData
	)		[virtual]

Aggregate removed callback registration/deregistration.

virtual void DtReflectedAggregateList::aggregateAdded

(

DtReflectedAggregate *

agg

)

[protected, virtual]

Called after an aggregate is added and before additional callbacks are processed.

Right now, this function only calls DtInfo.

static void DtReflectedAggregateList::aggregateStateCb	(	DtAggregateStatePdu *	pdu,
		void *	usr
	)		[static, protected]

Callback for the exercise connection.

virtual DtReflectedAggregate* DtReflectedAggregateList::first

(

)

const [virtual]

Get the first and last elements of the aggregate list.

virtual const DtBaseHashKey& DtReflectedAggregateList::hashKeyFromStateMessage

(

const DtStateMsg *

msg

)

[protected, virtual]

Get a hash key from a state message.

Implements DtReflectedObjectList.

virtual DtReflectedAggregate* DtReflectedAggregateList::last

(

)

const [virtual]

virtual DtReflectedAggregate* DtReflectedAggregateList::lookup

(

const DtObjectId &

id

)

const [virtual]

Lookup an aggregate from its object ID.

virtual DtReflectedAggregate* DtReflectedAggregateList::newReflectedAggregate	(	const DtEntityIdentifier &	id,
		const DtEntityType &	type
	)		const [protected, virtual]

Create a new reflected aggregate.

virtual DtReflectedObject* DtReflectedAggregateList::newReflectedObj

(

const DtStateMsg &

msg

)

[protected, virtual]

Create a new object from a state message.

Implements DtReflectedObjectList.

virtual void DtReflectedAggregateList::objectAdded

(

DtReflectedObject *

obj

)

[protected, virtual]

Called after an aggregate is added and before additional callbacks are processed.

Right now, this function only calls DtInfo.

Reimplemented from DtReflectedObjectList.

DtReflectedAggregateList& DtReflectedAggregateList::operator=

(

const DtReflectedAggregateList &

orig

)

[private]

Assignment operator -- not implemented.

virtual void DtReflectedAggregateList::print

(

)

[virtual]

Print the SRs of all objects.

virtual DtReflectedAggregate* DtReflectedAggregateList::processAggregateState

(

const DtAggregateStatePdu &

pdu

)

[virtual]

Process an incoming aggregate state pdu.

Then calls down to base class processStateMessage().

virtual void DtReflectedAggregateList::processRelativeLocationPdu

(

const DtRelativeLocationPdu &

pdu

)

[virtual]

Process an incoming relativeLocation pdu.

virtual DtReflectedObject* DtReflectedAggregateList::processStateMessage

(

const DtStateMsg &

msg

)

[protected, virtual]

Process an incoming state message.

Reimplemented from DtReflectedObjectList.

static void DtReflectedAggregateList::relativeLocationCb	(	DtRelativeLocationPdu *	pdu,
		void *	usr
	)		[static, protected]

Callback which calls processRelativeLocationPdu.

virtual void DtReflectedAggregateList::removeAggregateAdditionCallback	(	DtAggregateCallbackFunction	cb,
		void *	userData
	)		[virtual]

virtual void DtReflectedAggregateList::removeAggregateRemovalCallback	(	DtAggregateCallbackFunction	cb,
		void *	userData
	)		[virtual]

---

Member Data Documentation

DtEntityIdentifierHashKey* DtReflectedAggregateList::myHashKey [protected]

bool DtReflectedAggregateList::mySmoothCapable [protected]

---

The documentation for this class was generated from the following file:

• dReflAggList.h
