DtActionRequestInteraction Class Reference

Instances of DtActionRequestInteraction are used to represent ActionRequest Interactions in the RPR FOM. More...

Inheritance diagram for DtActionRequestInteraction:

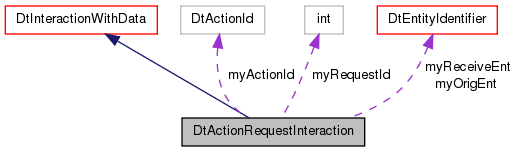

Collaboration diagram for DtActionRequestInteraction:

List of all members.

Public Member Functions
	DtActionRequestInteraction ()
	default constructor
virtual	~DtActionRequestInteraction ()
	destructor
	DtActionRequestInteraction (const DtActionRequestInteraction &orig)
	copy constructor
DtActionRequestInteraction &	operator= (const DtActionRequestInteraction &orig)
	assignment operator
virtual void	printData () const
	Print the interaction's data to DtInfo.
virtual void	printDataToStream (std::ostream &stream) const
	Print the interaction's data to the specified stream.
virtual void	setSenderId (const DtEntityIdentifier &id)
	Set/Get sender ID.
virtual const DtEntityIdentifier &	senderId () const
virtual void	setReceiverId (const DtEntityIdentifier &id)
	Set/Get receiver ID.
virtual const DtEntityIdentifier &	receiverId () const
virtual void	setRequestId (int id)
	Set/Get request ID.
virtual int	requestId () const
virtual void	setActionId (DtActionId id)
	Set/Get action ID.
virtual DtActionId	actionId () const
virtual const char *	name () const
	Name of the interaction (Not necessarily the ClassName from the FOM).
Static Public Member Functions
static DtInteraction *	create ()
	Create a DtActionRequestInteraction.
static void	addCallback (DtExerciseConn *conn, DtActionRequestInteractionCb cb, void *usr, DtDDMRegionSP region=DtDDMRegionSP())
	Add (register)/Remove (deregister) function to be called when interaction occurs.
static void	removeCallback (DtExerciseConn *conn, DtActionRequestInteractionCb cb, void *usr, DtDDMRegionSP region=DtDDMRegionSP())
Protected Attributes
DtEntityIdentifier	myOrigEnt
DtEntityIdentifier	myReceiveEnt
int	myRequestId
DtActionId	myActionId

---

Detailed Description

Instances of DtActionRequestInteraction are used to represent ActionRequest Interactions in the RPR FOM.

The variable and fixed datum records are accessed through DtInteractionWithData member functions.

---

Constructor & Destructor Documentation

DtActionRequestInteraction::DtActionRequestInteraction

(

)

default constructor

virtual DtActionRequestInteraction::~DtActionRequestInteraction

(

)

[virtual]

destructor

DtActionRequestInteraction::DtActionRequestInteraction

(

const DtActionRequestInteraction &

orig

)

copy constructor

---

Member Function Documentation

virtual DtActionId DtActionRequestInteraction::actionId

(

)

const [virtual]

static void DtActionRequestInteraction::addCallback	(	DtExerciseConn *	conn,
		DtActionRequestInteractionCb	cb,
		void *	usr,
		DtDDMRegionSP	region = DtDDMRegionSP()
	)		[static]

Add (register)/Remove (deregister) function to be called when interaction occurs.

static DtInteraction* DtActionRequestInteraction::create

(

)

[static]

Create a DtActionRequestInteraction.

Caller is responsible for deletion.

virtual const char* DtActionRequestInteraction::name

(

)

const [virtual]

Name of the interaction (Not necessarily the ClassName from the FOM).

Implements DtInteraction.

DtActionRequestInteraction& DtActionRequestInteraction::operator=

(

const DtActionRequestInteraction &

orig

)

assignment operator

virtual void DtActionRequestInteraction::printData

(

)

const [virtual]

Print the interaction's data to DtInfo.

Reimplemented from DtInteractionWithData.

virtual void DtActionRequestInteraction::printDataToStream

(

std::ostream &

stream

)

const [virtual]

Print the interaction's data to the specified stream.

Reimplemented from DtInteractionWithData.

virtual const DtEntityIdentifier& DtActionRequestInteraction::receiverId

(

)

const [virtual]

static void DtActionRequestInteraction::removeCallback	(	DtExerciseConn *	conn,
		DtActionRequestInteractionCb	cb,
		void *	usr,
		DtDDMRegionSP	region = DtDDMRegionSP()
	)		[static]

virtual int DtActionRequestInteraction::requestId

(

)

const [virtual]

virtual const DtEntityIdentifier& DtActionRequestInteraction::senderId

(

)

const [virtual]

virtual void DtActionRequestInteraction::setActionId

(

DtActionId

id

)

[virtual]

Set/Get action ID.

virtual void DtActionRequestInteraction::setReceiverId

(

const DtEntityIdentifier &

id

)

[virtual]

Set/Get receiver ID.

virtual void DtActionRequestInteraction::setRequestId

(

int

id

)

[virtual]

Set/Get request ID.

virtual void DtActionRequestInteraction::setSenderId

(

const DtEntityIdentifier &

id

)

[virtual]

Set/Get sender ID.

---

Member Data Documentation

DtActionId DtActionRequestInteraction::myActionId [protected]

DtEntityIdentifier DtActionRequestInteraction::myOrigEnt [protected]

DtEntityIdentifier DtActionRequestInteraction::myReceiveEnt [protected]

int DtActionRequestInteraction::myRequestId [protected]

---

The documentation for this class was generated from the following file:

• hActReqInter.h
