DtInteractionWithData Class Reference

class DtInteractionWithData: More...

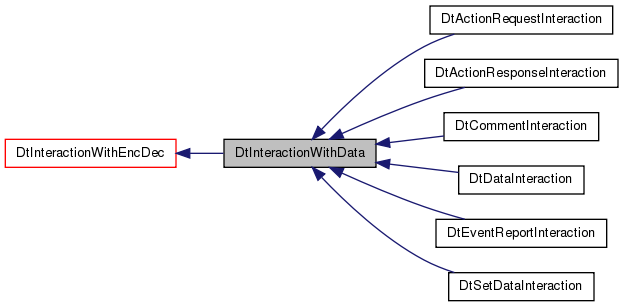

Inheritance diagram for DtInteractionWithData:

Collaboration diagram for DtInteractionWithData:

List of all members.

Public Member Functions
	DtInteractionWithData ()
	default constructor
virtual	~DtInteractionWithData ()
	destructor
	DtInteractionWithData (const DtInteractionWithData &orig)
	copy constructor
DtInteractionWithData &	operator= (const DtInteractionWithData &orig)
	assignment operator
virtual void	printData () const
	Print the interaction's data to DtInfo.
virtual void	printDataToStream (std::ostream &stream) const
	Print the interaction's data to the specified stream.
virtual int	numFixedFields () const
virtual int	numVarFields () const
	Returns number of variable length fields.
virtual DtDatumParam	varDatumId (int index) const
	Returns the datum param found in the index'th variable datum record.
virtual void	setVarDatumId (int index, DtDatumParam id, DtDatumRetCode *retcode=0)
virtual DtDatumParam	fixedDatumId (int index) const
	Returns the datum param found in the index'th fixed datum record.
virtual void	setFixedDatumId (int index, DtDatumParam id, DtDatumRetCode *retcode=0)
virtual DtDatumParam	datumId (DtDatumRecordType fixedOrVar, int index) const
	Returns the datum param found in the index'th fixed or variable datum record, depending on whether fixedOrVar is DtFixed or DtVar.
virtual int	datumSizeBits (DtDatumRecordType fixedOrVar, int index) const
	Returns the number of bits of data contained in the value fields of the index'th fixed or variable datum record, depending on whether fixedOrVar is DtFixed or DtVar.
virtual int	datumSizeBytes (DtDatumRecordType fixedOrVar, int index) const
	Returns the number of bytes of data contained in the value fields of the index'th fixed or variable datum record, depending on whether fixedOrVar is DtFixed or DtVar.
virtual void	getIndex (DtDatumParam param, DtDatumRecordType *fixedOrVar, int *index, DtDatumRetCode *retcode=0) const
	Looks through all fixed and variable records for one containing param as the parameter ID.
virtual DtFloat32	datumValFloat32 (DtDatumRecordType fixedOrVar, int index, DtDatumRetCode *retcode=0) const
	******* INSPECTING DATUM VALUES BY INDEX ********* If you know the data type of the value contained in a particular record, use one of the following to return it.
virtual DtFloat64	datumValFloat64 (DtDatumRecordType fixedOrVar, int index, DtDatumRetCode *retcode=0) const
virtual unsigned long	datumValUnsigned32 (DtDatumRecordType fixedOrVar, int index, DtDatumRetCode *retcode=0) const
virtual long	datumValInt32 (DtDatumRecordType fixedOrVar, int index, DtDatumRetCode *retcode=0) const
virtual const char *	datumValByteArray (DtDatumRecordType fixedOrVar, int index) const
virtual DtFloat32	datumValFloat32 (DtDatumParam param, DtDatumRetCode *retcode=0) const
	******* INSPECTING DATUM VALUES BY PARAM ID ********* If you know the data type of the value contained in a particular record, use one of the following to return it.
virtual DtFloat64	datumValFloat64 (DtDatumParam param, DtDatumRetCode *retcode=0) const
virtual unsigned long	datumValUnsigned32 (DtDatumParam param, DtDatumRetCode *retcode=0) const
virtual long	datumValInt32 (DtDatumParam param, DtDatumRetCode *retcode=0) const
virtual const char *	datumValByteArray (DtDatumParam param, DtDatumRetCode *retcode=0) const
virtual void	initDataSection (const DtDatumParam *fixedParams, const DtVarDatumSpec *specList)
	****************** MUTATOR FUNCTIONS ******************
virtual void	setNumFixedFields (int newNum)
	Sets the number of fixed or variable fields to newNum.
virtual void	setNumVarFields (int newNum)
virtual void	setDatumParam (DtDatumRecordType fixedOrVar, int index, DtDatumParam param, DtDatumRetCode *retcode=0)
	Set the datum ID in the index'th fixed or variable datum record to param, depending on whether fixedOrVar is DtFixed or DtVar.
virtual void	setVarDataBytes (int index, int length, DtDatumRetCode *retcode=0)
	Allocates length bytes for the index'th variable datum record.
virtual void	setDatumValFloat64 (DtDatumRecordType fixedOrVar, int index, DtFloat64 val, DtDatumRetCode *retcode=0)
	******* SETTING DATA VALUES BY INDEX ********* Use one of the following to set the data value in a fixed or variable datum record, depending on the data type of your data.
virtual void	setDatumValFloat32 (DtDatumRecordType fixedOrVar, int index, DtFloat32 val, DtDatumRetCode *retcode=0)
virtual void	setDatumValInt32 (DtDatumRecordType fixedOrVar, int index, long val, DtDatumRetCode *retcode=0)
virtual void	setDatumValUnsigned32 (DtDatumRecordType fixedOrVar, int index, unsigned long val, DtDatumRetCode *retcode=0)
virtual void	setDatumValByteArray (DtDatumRecordType fixedOrVar, int index, const char *val, DtDatumRetCode *retcode=0)
virtual void	setDatumValFloat64 (DtDatumParam param, DtFloat64 val, DtDatumRetCode *retcode=0)
	****** SETTING DATA VALUES BY PARAM ID ********* Use one of the following to set the data value in a fixed or variable datum record, depending on the data type of your data.
virtual void	setDatumValFloat32 (DtDatumParam param, DtFloat32 val, DtDatumRetCode *retcode=0)
virtual void	setDatumValInt32 (DtDatumParam param, long val, DtDatumRetCode *retcode=0)
virtual void	setDatumValUnsigned32 (DtDatumParam param, unsigned long val, DtDatumRetCode *retcode=0)
virtual void	setDatumValByteArray (DtDatumParam param, const char *val, DtDatumRetCode *retcode=0)
virtual DtDatumRecordSet *	datumRecSet ()
	Return the DtDatumRecordSet which an InteractionWithData uses to store its fixed and var records.
virtual const DtDatumRecordSet *	datumRecSet () const
Protected Attributes
DtDatumRecordSet	myRecSet

---

Detailed Description

class DtInteractionWithData:

Instances of DtInteractionWithData are used to represent RPR FOM Interactions that use fixed and var datum records.

---

Constructor & Destructor Documentation

DtInteractionWithData::DtInteractionWithData

(

)

default constructor

virtual DtInteractionWithData::~DtInteractionWithData

(

)

[virtual]

destructor

DtInteractionWithData::DtInteractionWithData

(

const DtInteractionWithData &

orig

)

copy constructor

---

Member Function Documentation

virtual DtDatumParam DtInteractionWithData::datumId	(	DtDatumRecordType	fixedOrVar,
		int	index
	)		const [virtual]

Returns the datum param found in the index'th fixed or variable datum record, depending on whether fixedOrVar is DtFixed or DtVar.

Index is between 1 and numRecords. Returns DtDatumParam(0) if index is out of bounds.

virtual DtDatumRecordSet* DtInteractionWithData::datumRecSet

(

)

[virtual]

Return the DtDatumRecordSet which an InteractionWithData uses to store its fixed and var records.

In general, the wrapper functions above should be used rather than going directly through the DtDatumRecordSet, which is necessary only when doing encoding and decoding of network representations.

virtual const DtDatumRecordSet* DtInteractionWithData::datumRecSet

(

)

const [virtual]

virtual int DtInteractionWithData::datumSizeBits	(	DtDatumRecordType	fixedOrVar,
		int	index
	)		const [virtual]

Returns the number of bits of data contained in the value fields of the index'th fixed or variable datum record, depending on whether fixedOrVar is DtFixed or DtVar.

If DtFixed, the answer is always 32.

virtual int DtInteractionWithData::datumSizeBytes	(	DtDatumRecordType	fixedOrVar,
		int	index
	)		const [virtual]

Returns the number of bytes of data contained in the value fields of the index'th fixed or variable datum record, depending on whether fixedOrVar is DtFixed or DtVar.

If DtFixed, the answer is always 4.

virtual const char* DtInteractionWithData::datumValByteArray	(	DtDatumRecordType	fixedOrVar,
		int	index
	)		const [virtual]

virtual const char* DtInteractionWithData::datumValByteArray	(	DtDatumParam	param,
		DtDatumRetCode *	retcode = 0
	)		const [virtual]

virtual DtFloat32 DtInteractionWithData::datumValFloat32	(	DtDatumRecordType	fixedOrVar,
		int	index,
		DtDatumRetCode *	retcode = 0
	)		const [virtual]

******* INSPECTING DATUM VALUES BY INDEX ********* If you know the data type of the value contained in a particular record, use one of the following to return it.

fixedOrVar (either DtFixed or DtVar) and index (between 1 and numRecords) indicate which record you are inspecting. datumValBytesArray is used when the data type is a character string, or something other than a long, unsigned long, float or double. It returns a pointer to a character string containing the exact bytes in the network representation that represents the value being inspected. The supplied retcode pointer will be filled with DtDatumValid if the value was successfully inspected, and DtDatumBadLength if either the index was invalid, or the size of the data indicated that it could not be interpreted as the chosen data type.

virtual DtFloat32 DtInteractionWithData::datumValFloat32	(	DtDatumParam	param,
		DtDatumRetCode *	retcode = 0
	)		const [virtual]

******* INSPECTING DATUM VALUES BY PARAM ID ********* If you know the data type of the value contained in a particular record, use one of the following to return it.

The particular record inspected will be the first one containing param as the datum ID. datumValByteArray is used when the data type is a character string, or something other than a long, unsigned long, float or double. It returns a pointer to a character string containing the exact bytes in the network representation that represents the value being inspected. The supplied retcode pointer will be filled with DtDatumValid if the value was successfully inspected, and DtDatumBadLength if either param was not found, or the size of the data indicated that it could not be interpreted as the chosen data type.

virtual DtFloat64 DtInteractionWithData::datumValFloat64	(	DtDatumRecordType	fixedOrVar,
		int	index,
		DtDatumRetCode *	retcode = 0
	)		const [virtual]

virtual DtFloat64 DtInteractionWithData::datumValFloat64	(	DtDatumParam	param,
		DtDatumRetCode *	retcode = 0
	)		const [virtual]

virtual long DtInteractionWithData::datumValInt32	(	DtDatumRecordType	fixedOrVar,
		int	index,
		DtDatumRetCode *	retcode = 0
	)		const [virtual]

virtual long DtInteractionWithData::datumValInt32	(	DtDatumParam	param,
		DtDatumRetCode *	retcode = 0
	)		const [virtual]

virtual unsigned long DtInteractionWithData::datumValUnsigned32	(	DtDatumRecordType	fixedOrVar,
		int	index,
		DtDatumRetCode *	retcode = 0
	)		const [virtual]

virtual unsigned long DtInteractionWithData::datumValUnsigned32	(	DtDatumParam	param,
		DtDatumRetCode *	retcode = 0
	)		const [virtual]

virtual DtDatumParam DtInteractionWithData::fixedDatumId

(

int

index

)

const [virtual]

Returns the datum param found in the index'th fixed datum record.

Index is between 1 and numRecords. Returns DtDatumParam(0) if index is out of bounds.

virtual void DtInteractionWithData::getIndex	(	DtDatumParam	param,
		DtDatumRecordType *	fixedOrVar,
		int *	index,
		DtDatumRetCode *	retcode = 0
	)		const [virtual]

Looks through all fixed and variable records for one containing param as the parameter ID.

If it finds one, fills supplied fixedOrVar pointer with DtFixed or DtVar, and index with the index to indicate which record was found, and fills retcode with DtDatumValid. If param was not found, retcode is filled with DtDatumBadId, and index and fixedOrVar are invalid.

virtual void DtInteractionWithData::initDataSection	(	const DtDatumParam *	fixedParams,
		const DtVarDatumSpec *	specList
	)		[virtual]

****************** MUTATOR FUNCTIONS ******************

Initialize to reflect the fixed parameters and variable parameters and sizes indicated. fixedParams is a NULL- terminated array of DtDatumParams. specList is an array of DtVarDatumSpecs terminated with the DtNullVarDatumSpec constant. This call can be made instead of calls to setNumVarDatumRecords, setNumFixedDatumRecord, and repeated calls to setDatumParam and setVarDataBytes.

virtual int DtInteractionWithData::numFixedFields

(

)

const [virtual]

virtual int DtInteractionWithData::numVarFields

(

)

const [virtual]

Returns number of variable length fields.

DtInteractionWithData& DtInteractionWithData::operator=

(

const DtInteractionWithData &

orig

)

assignment operator

virtual void DtInteractionWithData::printData

(

)

const [virtual]

Print the interaction's data to DtInfo.

Reimplemented from DtInteraction.

Reimplemented in DtDataInteraction, DtEventReportInteraction, DtCommentInteraction, DtActionResponseInteraction, DtSetDataInteraction, and DtActionRequestInteraction.

virtual void DtInteractionWithData::printDataToStream

(

std::ostream &

stream

)

const [virtual]

Print the interaction's data to the specified stream.

Reimplemented from DtInteraction.

Reimplemented in DtDataInteraction, DtEventReportInteraction, DtCommentInteraction, DtActionResponseInteraction, DtSetDataInteraction, and DtActionRequestInteraction.

virtual void DtInteractionWithData::setDatumParam	(	DtDatumRecordType	fixedOrVar,
		int	index,
		DtDatumParam	param,
		DtDatumRetCode *	retcode = 0
	)		[virtual]

Set the datum ID in the index'th fixed or variable datum record to param, depending on whether fixedOrVar is DtFixed or DtVar.

Supplied retcode pointer is filled with DtDatumValid if successful, or DtDatumBadIndex if the index is not valid.

virtual void DtInteractionWithData::setDatumValByteArray	(	DtDatumRecordType	fixedOrVar,
		int	index,
		const char *	val,
		DtDatumRetCode *	retcode = 0
	)		[virtual]

virtual void DtInteractionWithData::setDatumValByteArray	(	DtDatumParam	param,
		const char *	val,
		DtDatumRetCode *	retcode = 0
	)		[virtual]

virtual void DtInteractionWithData::setDatumValFloat32	(	DtDatumRecordType	fixedOrVar,
		int	index,
		DtFloat32	val,
		DtDatumRetCode *	retcode = 0
	)		[virtual]

virtual void DtInteractionWithData::setDatumValFloat32	(	DtDatumParam	param,
		DtFloat32	val,
		DtDatumRetCode *	retcode = 0
	)		[virtual]

virtual void DtInteractionWithData::setDatumValFloat64	(	DtDatumRecordType	fixedOrVar,
		int	index,
		DtFloat64	val,
		DtDatumRetCode *	retcode = 0
	)		[virtual]

******* SETTING DATA VALUES BY INDEX ********* Use one of the following to set the data value in a fixed or variable datum record, depending on the data type of your data.

fixedOrVar (either DtFixed or DtVar) and index (between 1 and numRecords) indicate which record you are modifying. setDatumValBytesArray is used when the data type is a character string, or something other than a long, unsigned long, float or double. It takes a pointer to a character string containing the exact bytes that should be used in the network representation. The supplied retcode pointer will be filled with DtDatumValid if the value was successfully set, DtDatumBadIndex if the index is invalid, and DtDatumBadLength if the size of the data indicated that it could not be set from as the chosen data type.

virtual void DtInteractionWithData::setDatumValFloat64	(	DtDatumParam	param,
		DtFloat64	val,
		DtDatumRetCode *	retcode = 0
	)		[virtual]

****** SETTING DATA VALUES BY PARAM ID ********* Use one of the following to set the data value in a fixed or variable datum record, depending on the data type of your data.

The particular record modified will be the first one containing param as its parameter ID. setDatumValBytesArray is used when the data type is a character string, or something other than a long, unsigned long, float or double. It takes a pointer to a character string containing the exact bytes that should be used in the network representation. The supplied retcode pointer will be filled with DtDatumValid if the value was successfully set, DtDatumBadId if param is invalid, and DtDatumBadLength if the size of the data indicated that it could not be set from the chosen data type.

virtual void DtInteractionWithData::setDatumValInt32	(	DtDatumRecordType	fixedOrVar,
		int	index,
		long	val,
		DtDatumRetCode *	retcode = 0
	)		[virtual]

virtual void DtInteractionWithData::setDatumValInt32	(	DtDatumParam	param,
		long	val,
		DtDatumRetCode *	retcode = 0
	)		[virtual]

virtual void DtInteractionWithData::setDatumValUnsigned32	(	DtDatumRecordType	fixedOrVar,
		int	index,
		unsigned long	val,
		DtDatumRetCode *	retcode = 0
	)		[virtual]

virtual void DtInteractionWithData::setDatumValUnsigned32	(	DtDatumParam	param,
		unsigned long	val,
		DtDatumRetCode *	retcode = 0
	)		[virtual]

virtual void DtInteractionWithData::setFixedDatumId	(	int	index,
		DtDatumParam	id,
		DtDatumRetCode *	retcode = 0
	)		[virtual]

virtual void DtInteractionWithData::setNumFixedFields

(

int

newNum

)

[virtual]

Sets the number of fixed or variable fields to newNum.

Previously existing fixed fields with indices greater than newNum are deleted. If newNum exceeds the number of existing fields, trailing new fields are created with zeros as datum params, sizes (for var only) and values.

virtual void DtInteractionWithData::setNumVarFields

(

int

newNum

)

[virtual]

virtual void DtInteractionWithData::setVarDataBytes	(	int	index,
		int	length,
		DtDatumRetCode *	retcode = 0
	)		[virtual]

Allocates length bytes for the index'th variable datum record.

Should be called before using one of the setDatumVal functions to actually set the data. Supplied retcode pointer is set to DtDatumValid if successful, or DtDatumBadIndex if the index is not valid.

virtual void DtInteractionWithData::setVarDatumId	(	int	index,
		DtDatumParam	id,
		DtDatumRetCode *	retcode = 0
	)		[virtual]

virtual DtDatumParam DtInteractionWithData::varDatumId

(

int

index

)

const [virtual]

Returns the datum param found in the index'th variable datum record.

Index is between 1 and numRecords. Returns DtDatumParam(0) if index is out of bounds.

---

Member Data Documentation

DtDatumRecordSet DtInteractionWithData::myRecSet [protected]

---

The documentation for this class was generated from the following file:

• hInterWData.h
