DtSetDataInteraction Class Reference

Instances of DtSetDataInteraction are used to represent SetData Interactions in the RPR FOM. More...

Inheritance diagram for DtSetDataInteraction:

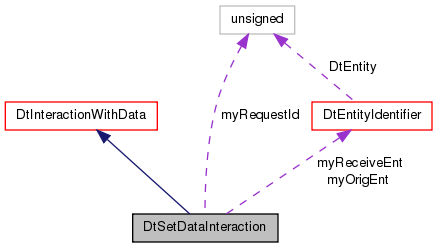

Collaboration diagram for DtSetDataInteraction:

List of all members.

Public Member Functions
	DtSetDataInteraction ()
	default constructor
virtual	~DtSetDataInteraction ()
	destructor
	DtSetDataInteraction (const DtSetDataInteraction &orig)
	copy constructor
DtSetDataInteraction &	operator= (const DtSetDataInteraction &orig)
	assignment operator
virtual void	printData () const
	Print the interaction's data to DtInfo.
virtual void	printDataToStream (std::ostream &stream) const
	Print the interaction's data to the specified stream.
virtual void	setSenderId (const DtEntityIdentifier &id)
	Set/Get sender ID.
virtual const DtEntityIdentifier &	senderId () const
virtual void	setReceiverId (const DtEntityIdentifier &id)
	Set/Get receiver ID.
virtual const DtEntityIdentifier &	receiverId () const
virtual void	setRequestId (unsigned long id)
	Set/Get request ID.
virtual unsigned long	requestId () const
virtual const char *	name () const
	Name of the interaction. (Not necessarily the ClassName from the FOM.)
Static Public Member Functions
static DtInteraction *	create ()
	Create a DtSetDataInteraction.
static void	addCallback (DtExerciseConn *conn, DtSetDataInteractionCb cb, void *usr, DtDDMRegionSP region=DtDDMRegionSP())
	Add (register)/Remove (deregister) function to be called when interaction occurs.
static void	removeCallback (DtExerciseConn *conn, DtSetDataInteractionCb cb, void *usr, DtDDMRegionSP region=DtDDMRegionSP())
Protected Attributes
DtEntityIdentifier	myOrigEnt
DtEntityIdentifier	myReceiveEnt
unsigned long	myRequestId

---

Detailed Description

Instances of DtSetDataInteraction are used to represent SetData Interactions in the RPR FOM.

The variable and fixed datum records are accessed through DtInteractionWithData member functions.

---

Constructor & Destructor Documentation

DtSetDataInteraction::DtSetDataInteraction

(

)

default constructor

virtual DtSetDataInteraction::~DtSetDataInteraction

(

)

[virtual]

destructor

DtSetDataInteraction::DtSetDataInteraction

(

const DtSetDataInteraction &

orig

)

copy constructor

---

Member Function Documentation

static void DtSetDataInteraction::addCallback	(	DtExerciseConn *	conn,
		DtSetDataInteractionCb	cb,
		void *	usr,
		DtDDMRegionSP	region = DtDDMRegionSP()
	)		[static]

Add (register)/Remove (deregister) function to be called when interaction occurs.

static DtInteraction* DtSetDataInteraction::create

(

)

[static]

Create a DtSetDataInteraction.

Caller is responsible for deletion.

virtual const char* DtSetDataInteraction::name

(

)

const [virtual]

Name of the interaction. (Not necessarily the ClassName from the FOM.)

Implements DtInteraction.

DtSetDataInteraction& DtSetDataInteraction::operator=

(

const DtSetDataInteraction &

orig

)

assignment operator

virtual void DtSetDataInteraction::printData

(

)

const [virtual]

Print the interaction's data to DtInfo.

Reimplemented from DtInteractionWithData.

virtual void DtSetDataInteraction::printDataToStream

(

std::ostream &

stream

)

const [virtual]

Print the interaction's data to the specified stream.

Reimplemented from DtInteractionWithData.

virtual const DtEntityIdentifier& DtSetDataInteraction::receiverId

(

)

const [virtual]

static void DtSetDataInteraction::removeCallback	(	DtExerciseConn *	conn,
		DtSetDataInteractionCb	cb,
		void *	usr,
		DtDDMRegionSP	region = DtDDMRegionSP()
	)		[static]

virtual unsigned long DtSetDataInteraction::requestId

(

)

const [virtual]

virtual const DtEntityIdentifier& DtSetDataInteraction::senderId

(

)

const [virtual]

virtual void DtSetDataInteraction::setReceiverId

(

const DtEntityIdentifier &

id

)

[virtual]

Set/Get receiver ID.

virtual void DtSetDataInteraction::setRequestId

(

unsigned long

id

)

[virtual]

Set/Get request ID.

virtual void DtSetDataInteraction::setSenderId

(

const DtEntityIdentifier &

id

)

[virtual]

Set/Get sender ID.

---

Member Data Documentation

DtEntityIdentifier DtSetDataInteraction::myOrigEnt [protected]

DtEntityIdentifier DtSetDataInteraction::myReceiveEnt [protected]

unsigned long DtSetDataInteraction::myRequestId [protected]

---

The documentation for this class was generated from the following file:

• hSetDataInter.h
