DtActionResponseInteraction Class Reference

class DtActionResponseInteraction: More...

Inheritance diagram for DtActionResponseInteraction:

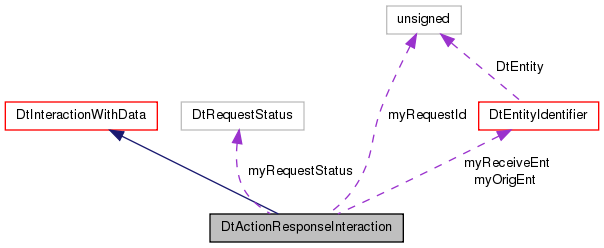

Collaboration diagram for DtActionResponseInteraction:

List of all members.

Public Member Functions
	DtActionResponseInteraction ()
	default constructor
virtual	~DtActionResponseInteraction ()
	destructor
	DtActionResponseInteraction (const DtActionResponseInteraction &orig)
	copy constructor
DtActionResponseInteraction &	operator= (const DtActionResponseInteraction &orig)
	assignment operator
virtual void	printData () const
	Print the interaction's data to DtInfo.
virtual void	printDataToStream (std::ostream &stream) const
	Print the interaction's data to the specified stream.
virtual void	setSenderId (const DtEntityIdentifier &id)
	Set/Get sender ID.
virtual const DtEntityIdentifier &	senderId () const
virtual void	setReceiverId (const DtEntityIdentifier &id)
	Set/Get receiver ID.
virtual const DtEntityIdentifier &	receiverId () const
virtual void	setRequestId (DtU32 id)
	Set/Get request ID.
virtual DtU32	requestId () const
virtual void	setRequestStatus (DtRequestStatus rStatus)
	Set/Get the request status.
virtual DtRequestStatus	requestStatus () const
virtual const char *	name () const
	Name of the interaction (Not necessarily the ClassName from the FOM).
Static Public Member Functions
static DtInteraction *	create ()
	Create a DtActionResponseInteraction.
static void	addCallback (DtExerciseConn *conn, DtActionResponseInteractionCb cb, void *usr, DtDDMRegionSP region=DtDDMRegionSP())
	Add (register)/Remove (deregister) function to be called when interaction occurs.
static void	removeCallback (DtExerciseConn *conn, DtActionResponseInteractionCb cb, void *usr, DtDDMRegionSP region=DtDDMRegionSP())
Protected Attributes
DtEntityIdentifier	myOrigEnt
DtEntityIdentifier	myReceiveEnt
DtU32	myRequestId
DtRequestStatus	myRequestStatus

---

Detailed Description

class DtActionResponseInteraction:

Instances of DtActionResponseInteraction are used to represent ActionResponse Interactions in the RPR FOM. The variable and fixed datum records are accessed through DtInteractionWithData member functions.

---

Constructor & Destructor Documentation

DtActionResponseInteraction::DtActionResponseInteraction

(

)

default constructor

virtual DtActionResponseInteraction::~DtActionResponseInteraction

(

)

[virtual]

destructor

DtActionResponseInteraction::DtActionResponseInteraction

(

const DtActionResponseInteraction &

orig

)

copy constructor

---

Member Function Documentation

static void DtActionResponseInteraction::addCallback	(	DtExerciseConn *	conn,
		DtActionResponseInteractionCb	cb,
		void *	usr,
		DtDDMRegionSP	region = DtDDMRegionSP()
	)		[static]

Add (register)/Remove (deregister) function to be called when interaction occurs.

static DtInteraction* DtActionResponseInteraction::create

(

)

[static]

Create a DtActionResponseInteraction.

Caller is responsible for deletion.

virtual const char* DtActionResponseInteraction::name

(

)

const [virtual]

Name of the interaction (Not necessarily the ClassName from the FOM).

Implements DtInteraction.

DtActionResponseInteraction& DtActionResponseInteraction::operator=

(

const DtActionResponseInteraction &

orig

)

assignment operator

virtual void DtActionResponseInteraction::printData

(

)

const [virtual]

Print the interaction's data to DtInfo.

Reimplemented from DtInteractionWithData.

virtual void DtActionResponseInteraction::printDataToStream

(

std::ostream &

stream

)

const [virtual]

Print the interaction's data to the specified stream.

Reimplemented from DtInteractionWithData.

virtual const DtEntityIdentifier& DtActionResponseInteraction::receiverId

(

)

const [virtual]

static void DtActionResponseInteraction::removeCallback	(	DtExerciseConn *	conn,
		DtActionResponseInteractionCb	cb,
		void *	usr,
		DtDDMRegionSP	region = DtDDMRegionSP()
	)		[static]

virtual DtU32 DtActionResponseInteraction::requestId

(

)

const [virtual]

virtual DtRequestStatus DtActionResponseInteraction::requestStatus

(

)

const [virtual]

virtual const DtEntityIdentifier& DtActionResponseInteraction::senderId

(

)

const [virtual]

virtual void DtActionResponseInteraction::setReceiverId

(

const DtEntityIdentifier &

id

)

[virtual]

Set/Get receiver ID.

virtual void DtActionResponseInteraction::setRequestId

(

DtU32

id

)

[virtual]

Set/Get request ID.

virtual void DtActionResponseInteraction::setRequestStatus

(

DtRequestStatus

rStatus

)

[virtual]

Set/Get the request status.

virtual void DtActionResponseInteraction::setSenderId

(

const DtEntityIdentifier &

id

)

[virtual]

Set/Get sender ID.

---

Member Data Documentation

DtEntityIdentifier DtActionResponseInteraction::myOrigEnt [protected]

DtEntityIdentifier DtActionResponseInteraction::myReceiveEnt [protected]

DtU32 DtActionResponseInteraction::myRequestId [protected]

DtRequestStatus DtActionResponseInteraction::myRequestStatus [protected]

---

The documentation for this class was generated from the following file:

• hActRespInter.h
