DtArtPartThresholder Class Reference

DtArtPartThresholder is used to store art-part-related thresholds, and to perform some art part thresholding. More...

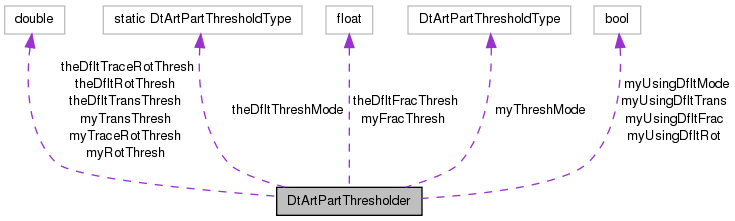

Collaboration diagram for DtArtPartThresholder:

List of all members.

Public Types
enum	DtArtPartThresholdType { DtArtPartDfltThreshMode = -1, DtArtPartIndividualThresh = 0, DtArtPartAggregateThresh = 1 }
Public Member Functions
	DtArtPartThresholder ()
	Constructor.
virtual	~DtArtPartThresholder ()
	Destructor.
	DtArtPartThresholder (const DtArtPartThresholder &orig)
	copy constructor
DtArtPartThresholder &	operator= (const DtArtPartThresholder &orig)
	assignment operator
virtual void	setRotationThreshold (double thresh)
	Set/Get rotation threshold in radians.
virtual double	rotationThreshold () const
virtual double	rotationTraceThreshold () const
	Returns the "RotationTrace" threshold.
virtual void	setTranslationThreshold (double thresh)
	Set/Get translation threshold in meters.
virtual double	translationThreshold () const
virtual void	setFractionalThreshold (double thresh)
	Set/Get fractional threshold (fraction between 0 and 1).
virtual double	fractionalThreshold () const
virtual void	setThreshMode (DtArtPartThresholdType mode)
	Set/Get the threshold mode.
virtual DtArtPartThresholdType	threshMode () const
virtual bool	artPartsExceedAggThreshold (const DtArticulatedPartCollection &localList, const DtArticulatedPartCollection &remoteList) const
	Get whether or not an aggregate threshold (such as position, translation, rotation, etc.) has been exceeded.
virtual bool	artPartsExceedIndivThreshold (const DtArticulatedPartCollection &localList, const DtArticulatedPartCollection &remoteList) const
	Get whether or not an individual parameter threshold has been exceeded.
virtual float	artPartThreshold (int paramType) const
	Get the thresholding value (functional, translational, or rotational) for the parameter type.
Static Public Member Functions
static void	setDfltThreshMode (DtArtPartThresholdType mode)
	Set/Get the threshold mode.
static DtArtPartThresholdType	dfltThreshMode ()
static void	setDfltFractionalThreshold (DtFloat32 thresh)
	Set/Get fractional threshold value.
static DtFloat32	dfltFractionalThreshold ()
static void	setDfltRotationThreshold (double r)
	Set/Get rotational threshold value.
static double	dfltRotationThreshold ()
static void	setDfltTranslationThreshold (double t)
	Set/Get translational threshold value.
static double	dfltTranslationThreshold ()
Protected Attributes
DtArtPartThresholdType	myThreshMode
float	myFracThresh
double	myTransThresh
double	myRotThresh
double	myTraceRotThresh
bool	myUsingDfltMode
bool	myUsingDfltTrans
bool	myUsingDfltRot
bool	myUsingDfltFrac
Static Protected Attributes
static DtArtPartThresholdType	theDfltThreshMode
static float	theDfltFracThresh
static double	theDfltTransThresh
static double	theDfltRotThresh
static double	theDfltTraceRotThresh

---

Detailed Description

DtArtPartThresholder is used to store art-part-related thresholds, and to perform some art part thresholding.

---

Member Enumeration Documentation

enum DtArtPartThresholder::DtArtPartThresholdType

Enumerator:

DtArtPartDfltThreshMode
DtArtPartIndividualThresh
DtArtPartAggregateThresh

---

Constructor & Destructor Documentation

DtArtPartThresholder::DtArtPartThresholder

(

)

Constructor.

virtual DtArtPartThresholder::~DtArtPartThresholder

(

)

[virtual]

Destructor.

DtArtPartThresholder::DtArtPartThresholder

(

const DtArtPartThresholder &

orig

)

copy constructor

---

Member Function Documentation

virtual bool DtArtPartThresholder::artPartsExceedAggThreshold	(	const DtArticulatedPartCollection &	localList,
		const DtArticulatedPartCollection &	remoteList
	)		const [virtual]

Get whether or not an aggregate threshold (such as position, translation, rotation, etc.) has been exceeded.

virtual bool DtArtPartThresholder::artPartsExceedIndivThreshold	(	const DtArticulatedPartCollection &	localList,
		const DtArticulatedPartCollection &	remoteList
	)		const [virtual]

Get whether or not an individual parameter threshold has been exceeded.

virtual float DtArtPartThresholder::artPartThreshold

(

int

paramType

)

const [virtual]

Get the thresholding value (functional, translational, or rotational) for the parameter type.

DtFloat32 DtArtPartThresholder::dfltFractionalThreshold

(

)

[inline, static]

References theDfltFracThresh.

double DtArtPartThresholder::dfltRotationThreshold

(

)

[inline, static]

References theDfltRotThresh.

Referenced by setDfltRotationThreshold().

DtArtPartThresholder::DtArtPartThresholdType DtArtPartThresholder::dfltThreshMode

(

)

[inline, static]

References theDfltThreshMode.

double DtArtPartThresholder::dfltTranslationThreshold

(

)

[inline, static]

References theDfltTransThresh.

virtual double DtArtPartThresholder::fractionalThreshold

(

)

const [virtual]

DtArtPartThresholder& DtArtPartThresholder::operator=

(

const DtArtPartThresholder &

orig

)

assignment operator

virtual double DtArtPartThresholder::rotationThreshold

(

)

const [virtual]

virtual double DtArtPartThresholder::rotationTraceThreshold

(

)

const [virtual]

Returns the "RotationTrace" threshold.

void DtArtPartThresholder::setDfltFractionalThreshold

(

DtFloat32

thresh

)

[inline, static]

Set/Get fractional threshold value.

References theDfltFracThresh.

void DtArtPartThresholder::setDfltRotationThreshold

(

double

r

)

[inline, static]

Set/Get rotational threshold value.

References dfltRotationThreshold(), DtLimit(), M_PI, theDfltRotThresh, and theDfltTraceRotThresh.

void DtArtPartThresholder::setDfltThreshMode

(

DtArtPartThresholdType

mode

)

[inline, static]

Set/Get the threshold mode.

References theDfltThreshMode.

void DtArtPartThresholder::setDfltTranslationThreshold

(

double

t

)

[inline, static]

Set/Get translational threshold value.

References theDfltTransThresh.

virtual void DtArtPartThresholder::setFractionalThreshold

(

double

thresh

)

[virtual]

Set/Get fractional threshold (fraction between 0 and 1).

Negative number means use default.

virtual void DtArtPartThresholder::setRotationThreshold

(

double

thresh

)

[virtual]

Set/Get rotation threshold in radians.

Negative number means use default.

virtual void DtArtPartThresholder::setThreshMode

(

DtArtPartThresholdType

mode

)

[virtual]

Set/Get the threshold mode.

Use DtArtPartDfltThreshMode to indicate use of the default.

virtual void DtArtPartThresholder::setTranslationThreshold

(

double

thresh

)

[virtual]

Set/Get translation threshold in meters.

Negative number means use default.

virtual DtArtPartThresholdType DtArtPartThresholder::threshMode

(

)

const [virtual]

virtual double DtArtPartThresholder::translationThreshold

(

)

const [virtual]

---

Member Data Documentation

float DtArtPartThresholder::myFracThresh [protected]

double DtArtPartThresholder::myRotThresh [protected]

DtArtPartThresholdType DtArtPartThresholder::myThreshMode [protected]

double DtArtPartThresholder::myTraceRotThresh [protected]

double DtArtPartThresholder::myTransThresh [protected]

bool DtArtPartThresholder::myUsingDfltFrac [protected]

bool DtArtPartThresholder::myUsingDfltMode [protected]

bool DtArtPartThresholder::myUsingDfltRot [protected]

bool DtArtPartThresholder::myUsingDfltTrans [protected]

float DtArtPartThresholder::theDfltFracThresh [static, protected]

Referenced by dfltFractionalThreshold(), and setDfltFractionalThreshold().

double DtArtPartThresholder::theDfltRotThresh [static, protected]

Referenced by dfltRotationThreshold(), and setDfltRotationThreshold().

DtArtPartThresholdType DtArtPartThresholder::theDfltThreshMode [static, protected]

Referenced by dfltThreshMode(), and setDfltThreshMode().

double DtArtPartThresholder::theDfltTraceRotThresh [static, protected]

Referenced by setDfltRotationThreshold().

double DtArtPartThresholder::theDfltTransThresh [static, protected]

Referenced by dfltTranslationThreshold(), and setDfltTranslationThreshold().

---

The documentation for this class was generated from the following file:

• artPartThresh.h
