DtArticulatedPartCollection Class Reference

A DtArticulatedPartCollection is a collection of articulated parts typically of an entity. More...

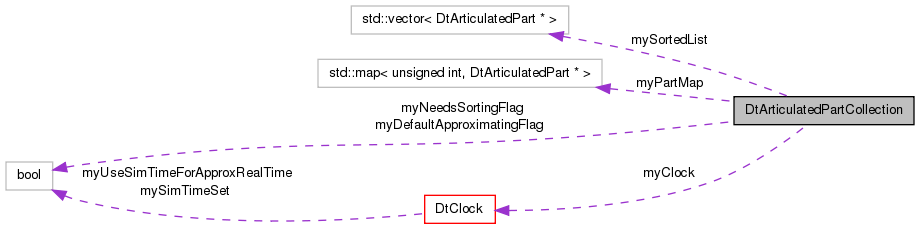

Collaboration diagram for DtArticulatedPartCollection:

List of all members.

Public Types
typedef std::map< unsigned int, DtArticulatedPart * >	PartMap
typedef PartMap::const_iterator	const_iterator
typedef std::set< unsigned int >	PartTypeSet
Public Member Functions
	DtArticulatedPartCollection (DtClock *clock=0)
	CTOR.
	DtArticulatedPartCollection (const DtArticulatedPartCollection &)
	Copy CTOR.
DtArticulatedPartCollection &	operator= (const DtArticulatedPartCollection &)
	Assignment operator.
virtual	~DtArticulatedPartCollection ()
	DTOR.
bool	operator== (const DtArticulatedPartCollection &other) const
bool	operator!= (const DtArticulatedPartCollection &other) const
virtual void	getPartTypes (PartTypeSet &aSet)
	Get all of the part types by adding each part type to a part type set.
virtual DtArticulatedPart &	getPart (unsigned int partType)
	Get the art part of a part type. If the part type does not exist it will be created.
virtual void	removeAllParts ()
	Removes all parts.
virtual void	removePart (unsigned int partType)
	Remove a part.
virtual void	attachPart (DtArticulatedPart *childPart, DtArticulatedPart *parentPart)
	Attach a child part to a parent part.
void	attachPart (unsigned int childPartType, unsigned int parentPartType)
	Helper function which looks up via type.
virtual unsigned int	totalParameterCount () const
	Get the sum of the number of parameters for all parts.
virtual unsigned int	partCount () const
	Get the number of parts.
virtual DtArticulatedPart *	createPart (DtArticulatedPart *copy=0) const
	Function used to create a part instance.
const_iterator	begin () const
	Get a constant iterator to the first part.
const_iterator	end () const
	Get a constant iterator beyond the last part.
virtual void	setClock (DtClock *clock, bool setForAllParts=true)
	Set the clock object.
bool	partsApproximateByDefault () const
	Get if parts approximate by default.
void	setPartsApproximateByDefault (bool deadReckonByDefault)
	Set whether parts approximate by default.
void	printDataToStream (std::ostream &stream) const
	Print the collection to a stream.
const std::vector < DtArticulatedPart * > &	getSortedList () const
	Get the parts in a sorted list useful for encoding.
virtual DtArticulatedPart *	findPart (unsigned int partType)
	Search for a particular part.
virtual const DtArticulatedPart *	findPart (unsigned int partType) const
	Search for a particular part.
DtClock *	clock ()
	Get the clock pointer, it may be NULL.
const DtClock *	clock () const
	Get the clock pointer, it may be NULL.
Protected Member Functions
virtual void	sortArtParts () const
	Sort the internal list.
int	calculatePartDistance (DtArticulatedPart *part) const
	Internal calculate distance function.
Protected Attributes
PartMap	myPartMap
DtClock *	myClock
bool	myDefaultApproximatingFlag
std::vector< DtArticulatedPart * >	mySortedList
bool	myNeedsSortingFlag

---

Detailed Description

A DtArticulatedPartCollection is a collection of articulated parts typically of an entity.

Examples

• Articulated Parts

---

Member Typedef Documentation

typedef PartMap::const_iterator DtArticulatedPartCollection::const_iterator

typedef std::map<unsigned int,DtArticulatedPart*> DtArticulatedPartCollection::PartMap

typedef std::set<unsigned int> DtArticulatedPartCollection::PartTypeSet

---

Constructor & Destructor Documentation

DtArticulatedPartCollection::DtArticulatedPartCollection

(

DtClock *

clock = 0

)

CTOR.

Parameters:

Input
clock	is an optional parameter for setting the clock. The clock is passed to each newly create part.

DtArticulatedPartCollection::DtArticulatedPartCollection

(

const DtArticulatedPartCollection &

)

Copy CTOR.

Warning:

If sub classing do not change the subclass copy constructor with this Copy CTOR as copying will not be done correctly. Chain the subclass with the default constructor and explicitly copy the internal parts using the desired class.

virtual DtArticulatedPartCollection::~DtArticulatedPartCollection

(

)

[virtual]

DTOR.

---

Member Function Documentation

virtual void DtArticulatedPartCollection::attachPart	(	DtArticulatedPart *	childPart,
		DtArticulatedPart *	parentPart
	)		[virtual]

Attach a child part to a parent part.

Exceptions:

DtCorruptedState

if childPart == parentPart

Referenced by attachPart().

void DtArticulatedPartCollection::attachPart	(	unsigned int	childPartType,
		unsigned int	parentPartType
	)		[inline]

Helper function which looks up via type.

References attachPart(), and findPart().

const_iterator DtArticulatedPartCollection::begin

(

)

const

Get a constant iterator to the first part.

int DtArticulatedPartCollection::calculatePartDistance

(

DtArticulatedPart *

part

)

const [protected]

Internal calculate distance function.

Exceptions:

DtCorruptedState

if a circulate dependency is detected.

DtClock* DtArticulatedPartCollection::clock

(

)

Get the clock pointer, it may be NULL.

const DtClock* DtArticulatedPartCollection::clock

(

)

const

Get the clock pointer, it may be NULL.

virtual DtArticulatedPart* DtArticulatedPartCollection::createPart

(

DtArticulatedPart *

copy = 0

)

const [virtual]

Function used to create a part instance.

This is a separate function to allow subclasses to create the part instances.

Parameters:

Input
copy	is an optional parameter which should be used with a copy constructor when copy is valid.

const_iterator DtArticulatedPartCollection::end

(

)

const

Get a constant iterator beyond the last part.

virtual DtArticulatedPart* DtArticulatedPartCollection::findPart

(

unsigned int

partType

)

[virtual]

Search for a particular part.

If the part does not exist the function will return null.

Return values:

0	If the part is not found.

Warning:

Do not delete the returned pointer it is owned and managed by the collection.

Do not hold on to the pointer it is owned and managed by the collection and may be deallocated anytime in the future.

Referenced by attachPart().

virtual const DtArticulatedPart* DtArticulatedPartCollection::findPart

(

unsigned int

partType

)

const [virtual]

Search for a particular part.

If the part does not exist the function will return null.

Return values:

0	If the part is not found.

Warning:

Do not delete the returned pointer it is owned and managed by the collection.

Do not hold on to the pointer it is owned and managed by the collection and may be deallocated anytime in the future.

virtual DtArticulatedPart& DtArticulatedPartCollection::getPart

(

unsigned int

partType

)

[virtual]

Get the art part of a part type. If the part type does not exist it will be created.

virtual void DtArticulatedPartCollection::getPartTypes

(

PartTypeSet &

aSet

)

[virtual]

Get all of the part types by adding each part type to a part type set.

This

Parameters:

Output
aSet	is used to store the part types. Note aSet is not cleared.

const std::vector<DtArticulatedPart*>& DtArticulatedPartCollection::getSortedList

(

)

const

Get the parts in a sorted list useful for encoding.

Exceptions:

DtCorruptedState

if a circulate dependency is detected.

bool DtArticulatedPartCollection::operator!=

(

const DtArticulatedPartCollection &

other

)

const

DtArticulatedPartCollection& DtArticulatedPartCollection::operator=

(

const DtArticulatedPartCollection &

)

Assignment operator.

bool DtArticulatedPartCollection::operator==

(

const DtArticulatedPartCollection &

other

)

const

virtual unsigned int DtArticulatedPartCollection::partCount

(

)

const [virtual]

Get the number of parts.

bool DtArticulatedPartCollection::partsApproximateByDefault

(

)

const

Get if parts approximate by default.

This is true by default for all articulated part collections.

void DtArticulatedPartCollection::printDataToStream

(

std::ostream &

stream

)

const

Print the collection to a stream.

virtual void DtArticulatedPartCollection::removeAllParts

(

)

[virtual]

Removes all parts.

Warning:

This function invalidates all iterators.

virtual void DtArticulatedPartCollection::removePart

(

unsigned int

partType

)

[virtual]

Remove a part.

If the part is not found the function does nothing.

Warning:

This function may invalidate an iterator if it points to the part that was just removed.

virtual void DtArticulatedPartCollection::setClock	(	DtClock *	clock,
		bool	setForAllParts = true
	)		[virtual]

Set the clock object.

Optionally this will set the clock object for all existing parts.

Parameters:

Input
clock	the clock pointer, which may be NULL.
setForAllParts	controls whether each existing part get the new clock pointer as well.

void DtArticulatedPartCollection::setPartsApproximateByDefault

(

bool

deadReckonByDefault

)

Set whether parts approximate by default.

virtual void DtArticulatedPartCollection::sortArtParts

(

)

const [protected, virtual]

Sort the internal list.

Exceptions:

DtCorruptedState

if a circulate dependency is detected.

virtual unsigned int DtArticulatedPartCollection::totalParameterCount

(

)

const [virtual]

Get the sum of the number of parameters for all parts.

---

Member Data Documentation

DtClock* DtArticulatedPartCollection::myClock [protected]

bool DtArticulatedPartCollection::myDefaultApproximatingFlag [protected]

bool DtArticulatedPartCollection::myNeedsSortingFlag [mutable, protected]

PartMap DtArticulatedPartCollection::myPartMap [protected]

std::vector<DtArticulatedPart*> DtArticulatedPartCollection::mySortedList [mutable, protected]

---

The documentation for this class was generated from the following file:

• articulatedPartCollection.h
