DtEmitterSystemRepository Class Reference

Instances of DtEmitterSystemRepository are used to store state data for emitter systems in both HLA and DIS environments. More...

Inheritance diagram for DtEmitterSystemRepository:

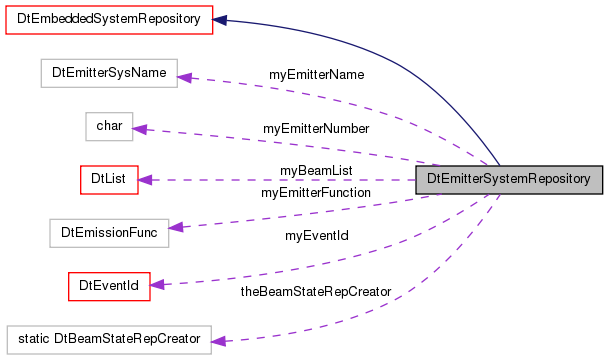

Collaboration diagram for DtEmitterSystemRepository:

List of all members.

Public Types
typedef DtEmitterBeamRepository *(*	DtBeamStateRepCreator )()
	Function prototype for functions that create Beam State Repositories.
Public Member Functions
	DtEmitterSystemRepository ()
	default constructor
virtual	~DtEmitterSystemRepository ()
	destructor
	DtEmitterSystemRepository (const DtEmitterSystemRepository &orig)
	copy constructor
DtEmitterSystemRepository &	operator= (const DtEmitterSystemRepository &orig)
	assignment operator
virtual DtStateRepository *	clone (bool copy=false) const
	Return a copy/empty object of the same type as this.
virtual void	setEmitterFunction (DtEmissionFunc function)
	Set/Get the emitter function.
virtual DtEmissionFunc	emitterFunction () const
virtual void	setEmitterName (DtEmitterSysName name)
	Set/Get the emitter name.
virtual DtEmitterSysName	emitterName () const
virtual void	setEmitterNumber (DtU8 number)
	Set/Get the emitter number.
virtual DtU8	emitterNumber () const
virtual void	setEventId (const DtEventId &id)
	Set/Get Event Id - not used until RPR 0.7.
virtual const DtEventId &	eventId () const
virtual void	printData () const
	Print data to the DtInfo stream.
virtual void	printDataToStream (std::ostream &stream) const
	Print data to the specified stream.
virtual DtEmitterBeamRepository *	beamSRById (DtU8 beamId, DtEmitterSysRetCode *retcode=NULL)
	Return a pointer to the first BeamSR with specified beamID.
virtual DtEmitterBeamRepository *	addBeam (DtU8 beamId=0, DtBeamType type=DtRegularBeam, DtEmitterSysRetCode *retcode=NULL)
	Add/remove a new emitter beam within this system.
virtual DtEmitterSysRetCode	removeBeam (DtU8 beamId)
	removes an emitter beam, if there are duplicate beams it will remove the first beam with the given beamID.
virtual DtEmitterSysRetCode	removeBeam (const DtGlobalObjectDesignator &id)
virtual int	numBeams () const
	Returns number of beams.
virtual const DtList *	beamList () const
	Returns DtList of DtEmitterBeamStateRepositories.
virtual DtList *	beamList ()
bool	isMember (DtEmitterBeamRepository *bsr) const
	Returns true if the give BSR is in this ESR's list of BSRs.
Static Public Member Functions
static DtEmitterSystemRepository *	create ()
static DtBeamStateRepCreator	setStateRepCreator (DtBeamStateRepCreator creator)
	Give us a function to be used for creating Beam SRs.
Protected Member Functions
virtual void	purgeBeamList ()
Protected Attributes
DtEventId	myEventId
DtEmissionFunc	myEmitterFunction
DtEmitterSysName	myEmitterName
DtU8	myEmitterNumber
DtList	myBeamList
	List of beams in this system.
Static Protected Attributes
static DtBeamStateRepCreator	theBeamStateRepCreator

---

Detailed Description

Instances of DtEmitterSystemRepository are used to store state data for emitter systems in both HLA and DIS environments.

---

Member Typedef Documentation

typedef DtEmitterBeamRepository*(* DtEmitterSystemRepository::DtBeamStateRepCreator)()

Function prototype for functions that create Beam State Repositories.

---

Constructor & Destructor Documentation

DtEmitterSystemRepository::DtEmitterSystemRepository

(

)

default constructor

virtual DtEmitterSystemRepository::~DtEmitterSystemRepository

(

)

[virtual]

destructor

DtEmitterSystemRepository::DtEmitterSystemRepository

(

const DtEmitterSystemRepository &

orig

)

copy constructor

---

Member Function Documentation

virtual DtEmitterBeamRepository* DtEmitterSystemRepository::addBeam	(	DtU8	beamId = 0,
		DtBeamType	type = DtRegularBeam,
		DtEmitterSysRetCode *	retcode = NULL
	)		[virtual]

Add/remove a new emitter beam within this system.

If you add a beam with duplicate ID, retcode will be set to DtDuplicateBeam, and beamSRById will return the first beamSR with the given ID.

virtual const DtList* DtEmitterSystemRepository::beamList

(

)

const [virtual]

Returns DtList of DtEmitterBeamStateRepositories.

virtual DtList* DtEmitterSystemRepository::beamList

(

)

[virtual]

virtual DtEmitterBeamRepository* DtEmitterSystemRepository::beamSRById	(	DtU8	beamId,
		DtEmitterSysRetCode *	retcode = NULL
	)		[virtual]

Return a pointer to the first BeamSR with specified beamID.

virtual DtStateRepository* DtEmitterSystemRepository::clone

(

bool

copy = false

)

const [virtual]

Return a copy/empty object of the same type as this.

Reimplemented from DtEmbeddedSystemRepository.

static DtEmitterSystemRepository* DtEmitterSystemRepository::create

(

)

[static]

Reimplemented from DtEmbeddedSystemRepository.

virtual DtEmissionFunc DtEmitterSystemRepository::emitterFunction

(

)

const [virtual]

virtual DtEmitterSysName DtEmitterSystemRepository::emitterName

(

)

const [virtual]

virtual DtU8 DtEmitterSystemRepository::emitterNumber

(

)

const [virtual]

virtual const DtEventId& DtEmitterSystemRepository::eventId

(

)

const [virtual]

bool DtEmitterSystemRepository::isMember

(

DtEmitterBeamRepository *

bsr

)

const

Returns true if the give BSR is in this ESR's list of BSRs.

virtual int DtEmitterSystemRepository::numBeams

(

)

const [virtual]

Returns number of beams.

DtEmitterSystemRepository& DtEmitterSystemRepository::operator=

(

const DtEmitterSystemRepository &

orig

)

assignment operator

virtual void DtEmitterSystemRepository::printData

(

)

const [virtual]

Print data to the DtInfo stream.

Reimplemented from DtEmbeddedSystemRepository.

virtual void DtEmitterSystemRepository::printDataToStream

(

std::ostream &

stream

)

const [virtual]

Print data to the specified stream.

Reimplemented from DtEmbeddedSystemRepository.

virtual void DtEmitterSystemRepository::purgeBeamList

(

)

[protected, virtual]

virtual DtEmitterSysRetCode DtEmitterSystemRepository::removeBeam

(

DtU8

beamId

)

[virtual]

removes an emitter beam, if there are duplicate beams it will remove the first beam with the given beamID.

This can cause crashes in HLA as this may not be the HLA object which was actually removed. It is safer in HLA to call removeBeam which takes a GlobalId

virtual DtEmitterSysRetCode DtEmitterSystemRepository::removeBeam

(

const DtGlobalObjectDesignator &

id

)

[virtual]

virtual void DtEmitterSystemRepository::setEmitterFunction

(

DtEmissionFunc

function

)

[virtual]

Set/Get the emitter function.

virtual void DtEmitterSystemRepository::setEmitterName

(

DtEmitterSysName

name

)

[virtual]

Set/Get the emitter name.

virtual void DtEmitterSystemRepository::setEmitterNumber

(

DtU8

number

)

[virtual]

Set/Get the emitter number.

virtual void DtEmitterSystemRepository::setEventId

(

const DtEventId &

id

)

[virtual]

Set/Get Event Id - not used until RPR 0.7.

static DtBeamStateRepCreator DtEmitterSystemRepository::setStateRepCreator

(

DtBeamStateRepCreator

creator

)

[static]

Give us a function to be used for creating Beam SRs.

---

Member Data Documentation

DtList DtEmitterSystemRepository::myBeamList [protected]

List of beams in this system.

DtEmissionFunc DtEmitterSystemRepository::myEmitterFunction [protected]

DtEmitterSysName DtEmitterSystemRepository::myEmitterName [protected]

DtU8 DtEmitterSystemRepository::myEmitterNumber [protected]

DtEventId DtEmitterSystemRepository::myEventId [protected]

DtBeamStateRepCreator DtEmitterSystemRepository::theBeamStateRepCreator [static, protected]

---

The documentation for this class was generated from the following file:

• emitterSysSR.h
